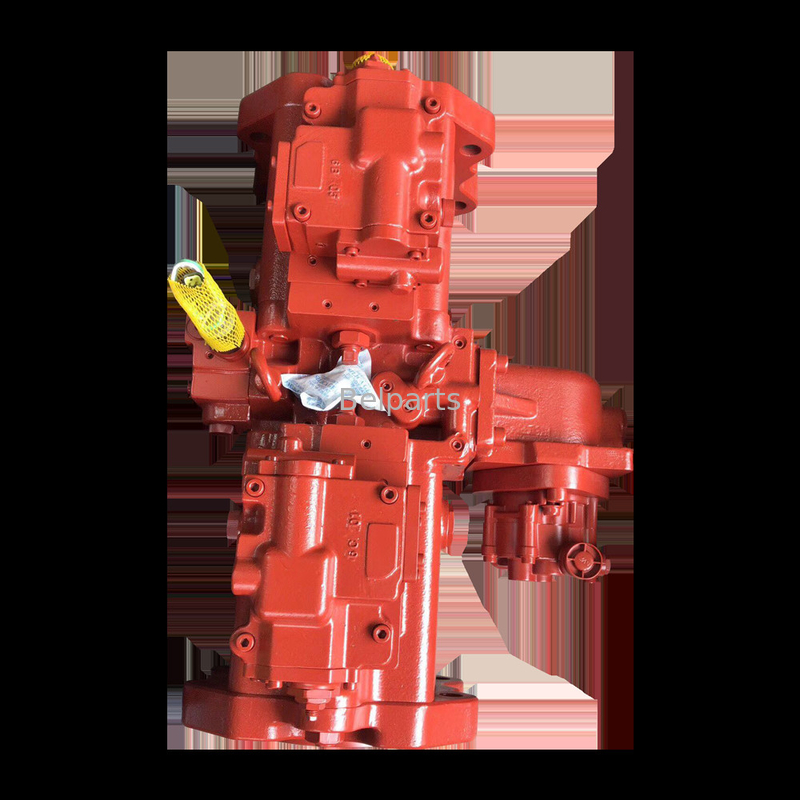

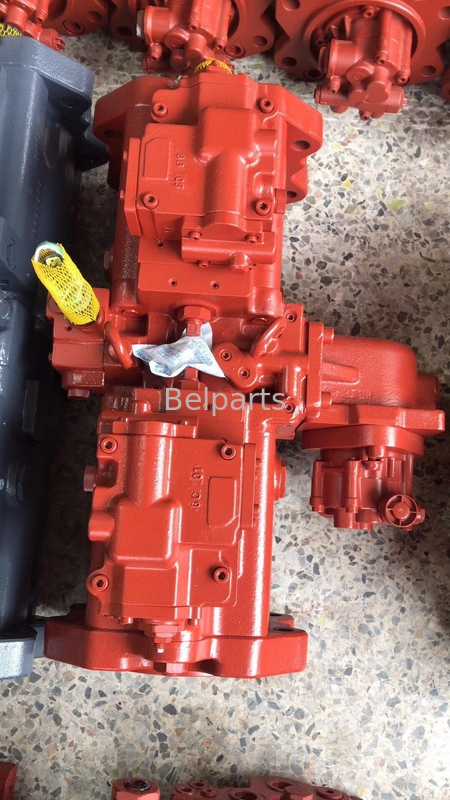

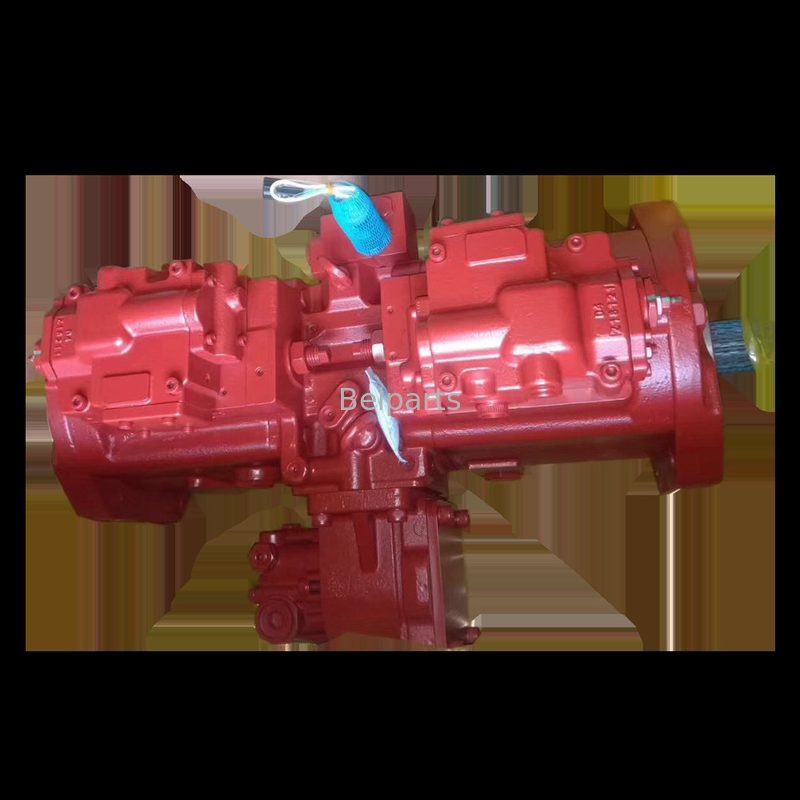

Belparts excavator main pump R360LC-7 R360LC-9 hydraulic pump 31NA-10010 31NA-10030 31QA-10010 for hyundai
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | R360LC-7 R360LC-9 | Warranty | 1 Year |
|---|---|---|---|
| Weight | 40Kg | Condition | 100% New |
| Texture | Steel | Part Name | Hydraulic Pump/Main Pump |
| Quality | High Quality | ||
| High Light | R360LC-7 excavator main pump,R360LC-9 excavator main pump,hyundai excavator main pump |
||
Product Description
Belparts excavator main pump R360LC-7 R360LC-9 hydraulic pump 31NA-10010 31NA-10030 31QA-10010 for hyundai
Product Description
| Product name | Excavator Hydraulic pump |
| Place of Origin: | China(mainland) |
| Model: | R360LC-7 R360LC-9 |
| Part number: | 31NA-10010 31NA-10030 31QA-10010 |
| MOQ: | 1 PCS |
| Payment term: | T/T,Alibaba trade assurance,PayPal |
| Delivery time: | Within 1~7 days after receiving the payment |
| Packing: | Standard exporting packing or as required |
| # | Part No | Part Name | Qty. | Price request |
| * | 31NA-10010 | MAIN PUMP *-1,-2,-3,-4,-5 |
1 | |
| *-1 | @ | FUEL INJECTION PIPE & NOZZLE | 1 | |
| S012 | XJBN-00567 | BLOCK-CYLINDER 2953802067 |
2 | |
| 111 | XJBN-00574 | SHAFT-DRIVE(F) 2933801244 |
1 | |
| 113 | XJBN-00573 | SHAFT-DRIVE(R) 2924250-0008 |
1 | |
| 114 | XJBN-00572 | COUPLING-SPLINE 2943800613 |
1 | |
| 123 | XJBN-00571 | BEARING-ROLLER PNUP309ET |
2 | |
| 124 | XJBN-00570 | BEARING-NEEDLE PRNA6932R |
2 | |
| 127 | XJBN-00569 | SPACER-BEARING 2903370-0018 |
3 | |
| 130 | XJBN-00568 | BOOSTER 2933800926 |
1 | |
| S151 | XJBN-00566 | PISTON 38B00-151 |
18 | |
| S152 | XJBN-00565 | SHOE 38B00-152 |
18 | |
| 153 | XJBN-00020 | PLATE-SET 2943800488 |
2 | |
| 156 | XJBN-00564 | BUSHING-SPHERICAL | 2 | |
| 157 | XJBN-00541 | SPRING-CYLINDER 2953802061 |
18 | |
| 211 | XJBN-00023 | PLATE-SHOE 371A00AA-124 |
2 | |
| S212 | XJBN-00012 | PLATE-SWASH 2923800908 |
2 | |
| S214 | XJBN-00013 | BUSHING-TILTING P1R222616 |
2 | |
| 251 | XJBN-00560 | SUPPORT-S.P. 2923800906 |
2 | |
| 261 | XJBN-00025 | COVER(FR)-SEAL 2943800518 |
1 | |
| 271 | XJBN-00026 | CASING-PUMP 2923800904 |
2 | |
| 311 | XJBN-00559 | COVER-VALVE(F) 2923801932 |
1 | |
| 312 | XJBN-00558 | COVER-VALVE(R) 2923801934 |
1 | |
| S313 | XJBN-00557 | PLATE-VALVE(R) 2933801022 |
1 | |
| S314 | XJBN-00556 | PLATE-VALVE(L) 2933801023 |
1 | |
| 401 | XJBN-00028 | SCREW 2953801868 |
4 | |
| 402 | XJBN-00555 | SCREW-HEX SOC HD 2953802438 |
4 | |
| 406 | XJBN-00355 | SCREW-HEX SOC HD OSBM820 |
4 | |
| 466 | XJBN-00356 | PLUG OVP14 |
4 | |
| 468 | XJBN-00357 | PLUG OVP34 |
4 | |
| 490 | XJBN-00032 | PLUG PBP116-2403 |
28 | |
| 492 | XJBN-00234 | PLUG VZ50101400 |
1 | |
| S531 | XJBN-00369 | PIN-TILTING 2943800502 |
2 | |
| S548 | XJBN-00360 | PIN-FEED BACK 2953802202 |
2 | |
| 532 | XJBN-00033 | PISTON-SERVO 2943800503 |
2 | |
| 534 | XJBN-00034 | STOPPER(L) 2953801865 |
2 | |
| 535 | XJBN-00035 | STOPPER(S) 2953801864 |
2 | |
| 702 | XJBN-00040 | O-RING | 2 | |
| 706 | XJBN-00554 | O-RING | 1 | |
| 710 | XJBN-00041 | O-RING | 1 | |
| 717 | XJBN-00042 | O-RING PCPP170 |
2 | |
| 719 | XJBN-00043 | O-RING PCPP165 |
3 | |
| 724 | XJBN-00361 | O-RING OORBP8 |
15 | |
| 725 | XJBN-00362 | O-RING OORBP11 |
10 | |
| 728 | XJBN-00363 | O-RING OORBP24 |
4 | |
| 732 | XJBN-00047 | O-RING | 2 | |
| 774 | XJBN-00906 | SEAL-OIL P15Z557812F |
1 | |
| 789 | XJBN-00049 | RING-BACK UP PT2SP21 |
2 | |
| 792 | XJBN-00050 | RING-BACK UP PT2SG40 |
2 | |
| 808 | XJBN-00364 | NUT ORNM20 |
4 | |
| 824 | XJBN-00052 | RING-SNAP 0SR45 |
2 | |
| 885 | XJBN-00053 | PIN-2 PJR1014 |
2 | |
| 886 | XJBN-00365 | PIN-SPRING OSPV614 |
5 | |
| 901 | XJBN-00055 | BOLT-EYE | 2 | |
| 953 | XJBN-00056 | SCREW-SET PSSSM2035 |
2 | |
| 954 | XJBN-00553 | SCREW-SET 2933300-0017 |
2 | |
| 981 | XJBN-00391 | NAME PLATE PNPA-2550A |
1 | |
| 983 | XJBN-00341 | PIN OSK2548 |
2 | |
| *-2 | XJBN-00575 | REGULATOR-FRONT | 1 | |
| *-3 | XJBN-00590 | REGULATOR-REAR | 1 | |
| *-4 | XJBN-00520 | GEAR PUMP | 1 | |
| S011 | XJBN-00563 | PISTON ASSY 3853802466,ILL |
2 | |
| S013 | XJBN-00562 | CYLINDER ASSY-RH 2953802226,ILL |
1 | |
| S014 | XJBN-00561 | CYLINDER ASSY-LH 2953802227,ILL |
1 | |
| S030 | XJBN-00011 | SWASH PLATE ASSY 2953801991,ILL |
2 | |
| S530 | XJBN-00371 | TILTING PIN ASSY 2953801988,ILL |
2 |
Model |
Nominal displacement (ml/r) |
Pressure(MPa) | Speed(r/min) | Volumetric efficiency (≥%) |
L1 | Weight (kg) |
||||
Rated |
Max |
Min. |
Rated |
Max |
||||||
| CBXM-F10-AT** | 10 | 20 | 25 | 800 | 2000 | 2500 | 92 | 72 | 92 | 1.9 |
| CBXM-F16.8-AT** | 16.8 | 80.5 | 100.5 | 2.2 | ||||||
| CBXM-F2O-AT** | 20 | 84.5 | 104.5 | 2.3 | ||||||
| Model | Nominal displacement (ml/r) |
Pressure(MPa) | Speed(r/min) | Volumetric efficiency (≥%) |
L1 | L2 | L | Weight (kg) |
||
| Rated | Max | Optimum speed |
Speed range |
|||||||
| CBXZ-C10-K3V63DTP | 10 | 3.5 | 5 | 1500~2500 | 800~2800 | 90 | 52 | 55.5 | 68 | 1.9 |
| CBXZ-C12-K3V63DTP | 12 | 64.5 | 68 | 72.5 | 2.3 | |||||
| CBXZ-C13-K3V63DTP | 15 | 85 | 89 | 93 | 2.7 | |||||
Company Information
GZ Yuexiang Engineering Machinery Co., Ltd, founded in September 2013, is a foreign trade company, which is specialized in
procuring and selling excavator parts.Our main products are excavator hydraulic pump, hydraulic parts, travel motor and gearbox, swing motor and gearbox. Our products have been exported to more than 100 countries and regions.
