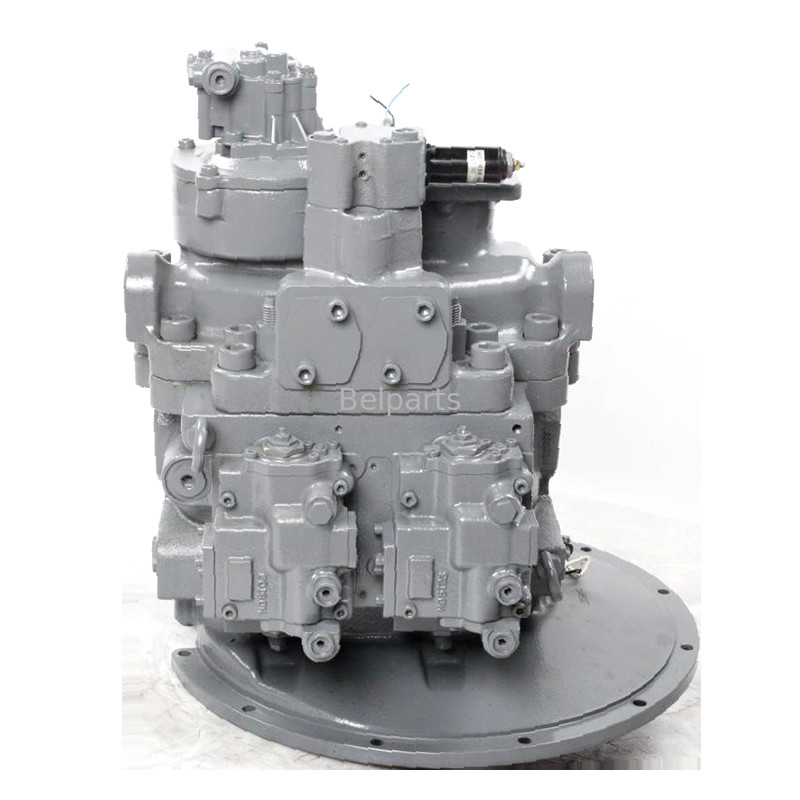

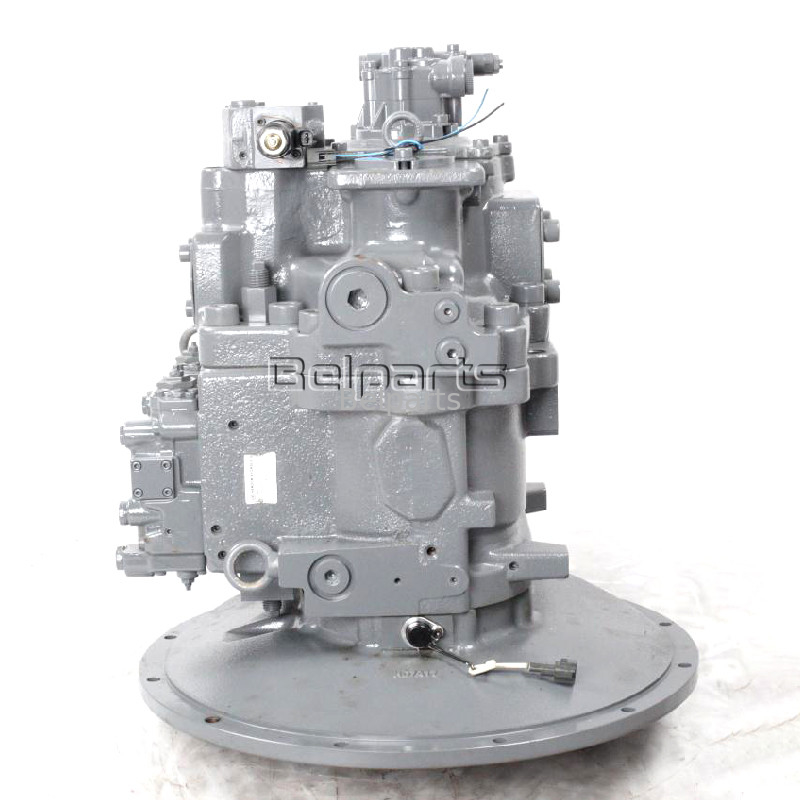

Belparts excavator main pump R450LC-7 R500LC-7 hydraulic pump 31NB-10010 31NB-10020 31NB-10022 for hyundai
Place of Origin:Made in china
Brand Name:Belparts
Model Number:R450LC-7 R500LC-7
Minimum Order Quantity:1PCS
Price:Negotiated price
Payment Terms:T/T, trade assurance,PayPal
Supply Ability:1000PCS
Product Details
Highlight:
31NB-10022 excavator main pump
,31NB-10010 excavator main pump
,R500LC-7 excavator main pump
Model:
R450LC-7 R500LC-7
Warranty:
1 Year
Weight:
40Kg
Condition:
100% New
Texture:
Steel
Part Name:
Hydraulic Pump/Main Pump
Quality:
High Quality
Product Description
Belparts excavator main pump R450LC-7 R500LC-7 hydraulic pump 31NB-10010 31NB-10020 31NB-10022 for hyundai
Product Description
|
Excavator Hydraulic pump |
|
|
Place of Origin: |
China(mainland) |
|
Model: |
R450LC-7 R500LC-7 |
|
Part number: |
31NB-10010 31NB-10020 31NB-10022 |
|
MOQ: |
1 PCS |
|
Payment term: |
T/T, trade assurance,PayPal |
|
Delivery time: |
Within 1~7 days after receiving the payment |
|
Packing: |
Standard exporting packing or as required |

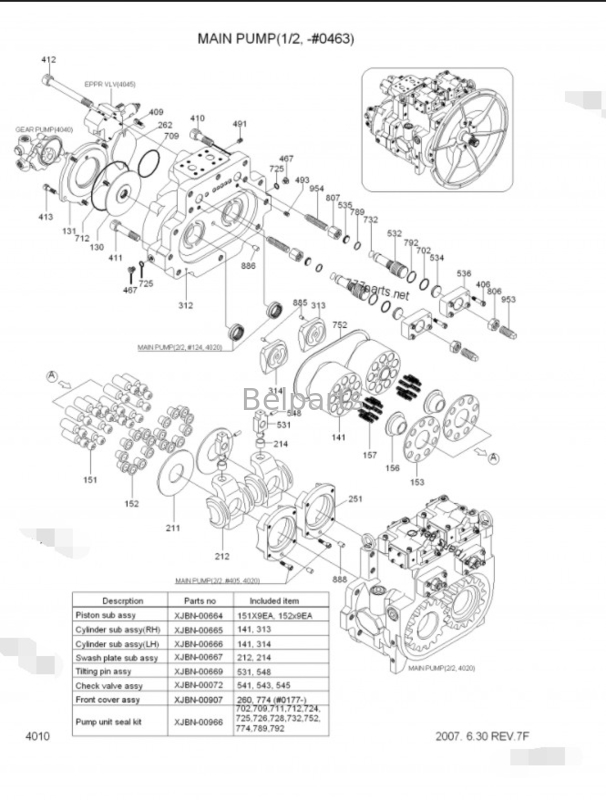

| # | Part No | Part Name | Qty. | Price request |
| * | 31NB-10010 | MAIN PUMP | 1 | |
| *-1 | @ | FUEL INJECTION PIPE & NOZZLE | 1 | |
| 130 | XJBN-00678 | BOOSTER | 1 | |
| 131 | XJBN-00679 | COVER-BOOSTER | 1 | |
| S141 | XJBN-00680 | BLOCK-CYLINDER | 2 | |
| S151 | XJBN-00681 | PISTON | 18 | |
| S152 | XJBN-00682 | SHOE | 18 | |
| 153 | XJBN-00683 | PLATE-SET | 2 | |
| 156 | XJBN-00564 | BUSHING-SPHERICAL | 2 | |
| 157 | XJBN-00541 | SPRING-CYLINDER | 18 | |
| 211 | XJBN-00023 | PLATE-SHOE | 2 | |
| S212 | XJBN-00687 | PLATE-SWASH | 2 | |
| S214 | XJBN-00013 | BUSHING-TILTING | 2 | |
| 251 | XJBN-00688 | SUPPORT | 2 | |
| 262 | XJBN-00690 | COVER | 1 | |
| 312 | XJBN-00692 | COVER-VALVE | 1 | |
| S313 | XJBN-00557 | PLATE-VALVE(R) | 1 | |
| S314 | XJBN-00556 | PLATE-VALVE(L) | 1 | |
| 406 | XJBN-00694 | SCREW-HEX | 8 | |
| 409 | XJBN-00696 | SCREW-HEX | 2 | |
| 410 | XJBN-00697 | SCREW-HEX | 9 | |
| 411 | XJBN-00698 | SCREW-HEX | 2 | |
| 412 | XJBN-00699 | SCREW-HEX | 1 | |
| 413 | XJBN-00700 | SCREW-HEX | 5 | |
| 467 | XJBN-00265 | PLUG | 2 | |
| 491 | XJBN-00234 | PLUG | 14 | |
| 493 | XJBN-00148 | PLUG | 2 | |
| S531 | XJBN-00702 | PIN-TILTING | 2 | |
| 532 | XJBN-00703 | PISTON-SERVO | 2 | |
| 534 | XJBN-00034 | STOPPER(L) | 2 | |
| 535 | XJBN-00704 | STOPPER(L) | 2 | |
| 536 | XJBN-00705 | COVER-SERVO | 2 | |
| S548 | XJBN-00360 | PIN-FEED BACK | 2 | |
| K702 | XJBN-00040 | O-RING | 2 | |
| K709 | XJBN-00899 | O-RING | 1 | |
| K712 | XJBN-00901 | O-RING | 1 | |
| K725 | XJBN-00903 | O-RING | 6 | |
| K732 | XJBN-00047 | O-RING | 2 | |
| K752 | XJBN-00707 | SEAL-PACKING | 2 | |
| K789 | XJBN-00049 | RING-BACK UP | 2 | |
| K792 | XJBN-00050 | RING-BACK UP | 2 | |
| 806 | XJBN-00364 | NUT | 2 | |
| 807 | XJBN-00708 | NUT | 2 | |
| 885 | XJBN-00053 | PIN-2 | 2 | |
| 886 | XJBN-00365 | PIN-SPRING | 4 | |
| 888 | XJBN-00712 | PIN | 2 | |
| 953 | XJBN-00057 | SCREW-SET | 2 | |
| 954 | XJBN-00713 | SCREW-SET | 2 | |
| *-2 | XJBN-00714 | REGULATOR ASSY | 1 | |
| *-3 | XJBN-00663 | GEAR PUMP | 1 | |
| *-4 | XJBN-00668 | CASING ASSY-EPPR VLV | 1 | |
| 011 | XJBN-00664 | PISTON ASSY SEE ILLUST |
2 | |
| 013 | XJBN-00665 | CYLINDER ASSY-RH SEE ILLUST |
1 | |
| 014 | XJBN-00666 | CYLINDER ASSY-LH SEE ILLUST |
1 | |
| 030 | XJBN-00667 | SWASH PLATE ASSY SEE ILLUST |
1 | |
| 530 | XJBN-00669 | TILTING PIN SUB ASSY SEE ILLUST |
1 | |
| 041 | XJBN-00072 | CHECK VALVE ASSY 1 SEE ILLUST |
1 | |
| 260 | XJBN-00907 | FRONT COVER ASSY SEE ILLUST |
1 | |
| K | XJBN-00966 | SEAL KIT-PUMP UNIT SEE ILLUST |
1 |
Model |
Nominal displacement (ml/r) |
Pressure(MPa) |
Speed(r/min) | Volumetric efficiency (≥%) |
L1 | L2 | L | Weight (kg) |
|||
Rated |
Max |
Min |
Rated |
Max |
|||||||
| AP2D-16.2/4.5 | 16.2/4.5 | 22/5 | 25/8 | 800 | 2000 | 3000 | 92/92 | 45.2 | 130.2 | 145 | 5.55 |
| AP2D-16.2/6.5 | 16.2/6.5 | 92/92 | 45.2 | 132 | 147 | 5.6 | |||||
| AP2D-18.2/4.5 | 18.2/4.5 | 92/92 | 46 | 132 | 149 | 5.7 | |||||
| AP2D-18.2/6.5 | 18.2/6.5 | 92/92 | 46 | 133 | 151 | 5.73 | |||||
| AP2D-20/4.5 | 20/4.5 | 92/92 | 47.2 | 136 | 156 | 5.85 | |||||
| AP2D-20/6.5 | 20/6.5 | 92/92 | 47.2 | 133 | 151 | 5.8 | |||||
| AP2D-23/4.5 | 23/4.5 | 92/92 | 50 | 140.5 | 159 | 5.9 | |||||
| AP2D-23/6.5 | 23/6.5 | 92/92 | 50 | 141.5 | 161 | 5.96 | |||||
| AP2D-23/9 | 23/9 | 92/92 | 50 | 143 | 163 | 6.1 | |||||
