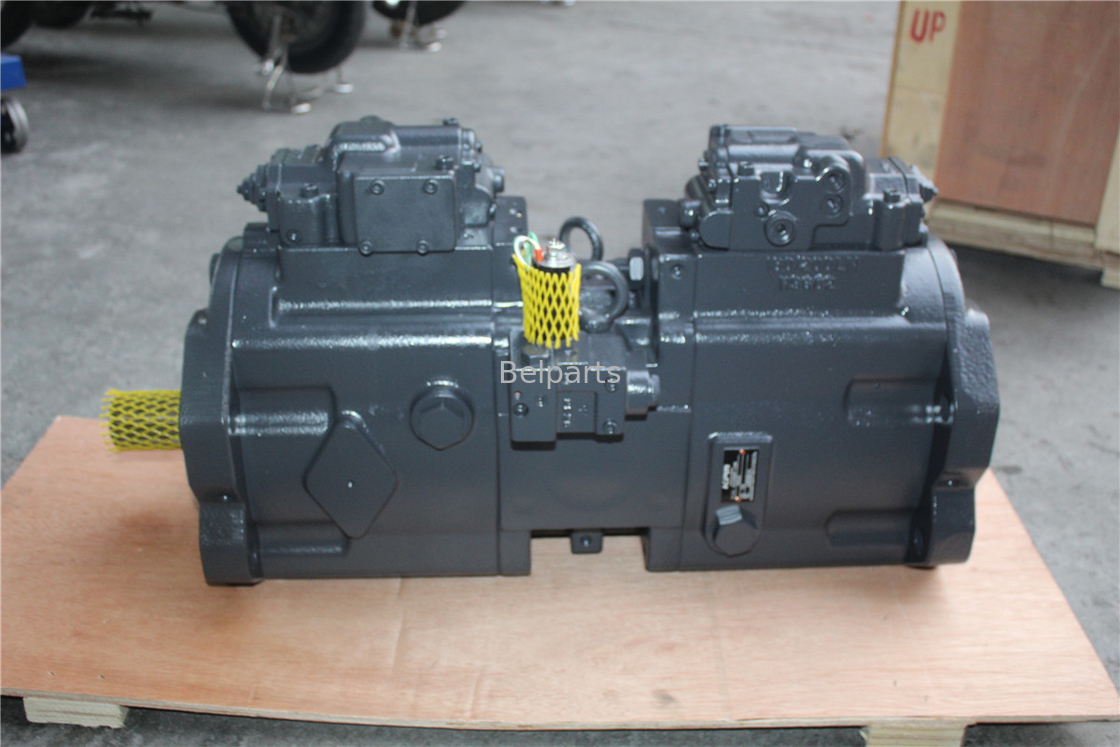

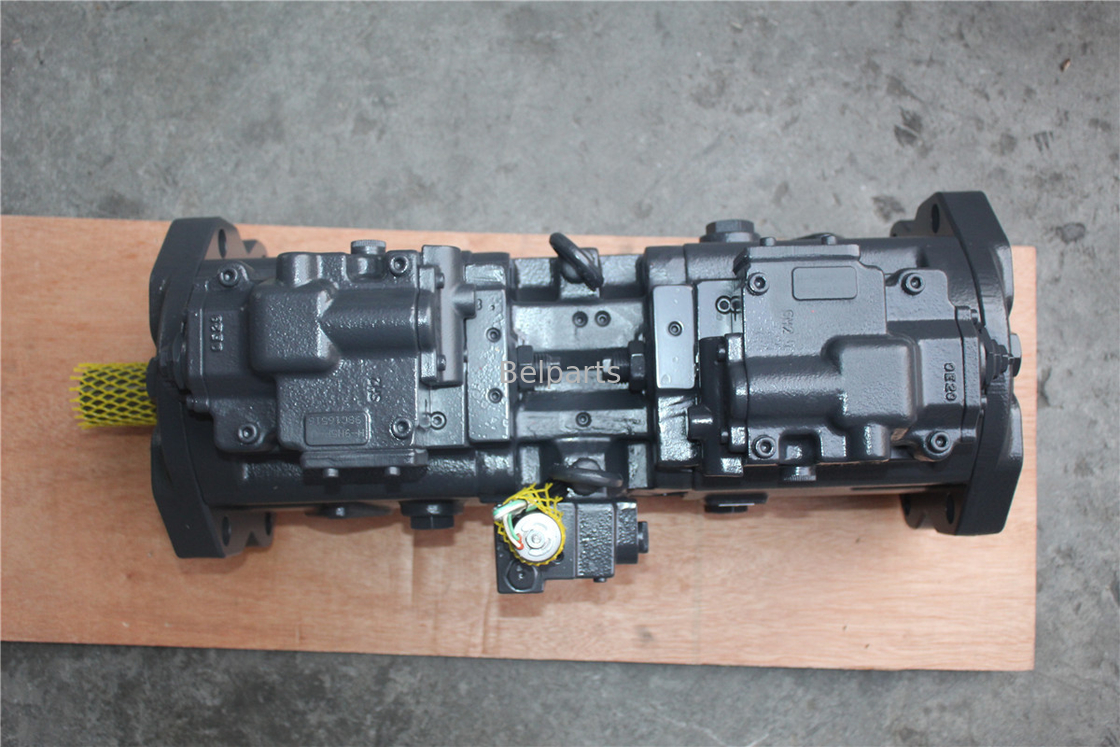

Belparts excavator main pump R480LC-9 R520LC-9 R370LC-7 hydraulic pump 31QB-10011 31NA-10020 for hyundai
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | R480LC-9 R520LC-9 R370LC-7 | Warranty | 1 Year |
|---|---|---|---|
| Weight | 40Kg | Condition | 100% New |
| Texture | Steel | Part Name | Hydraulic Pump/Main Pump |
| Quality | High Quality | ||
| High Light | hyundai excavator main pump,R480LC-9 excavator main pump,R370LC-7 excavator main pump |
||
Product Description
Belparts excavator main pump R480LC-9 R520LC-9 R370LC-7 hydraulic pump 31QB-10011 31NA-10020 for hyundai
Product Description
|
Excavator Hydraulic pump |
|
|
Place of Origin: |
China(mainland) |
|
Model: |
R480LC-9 R520LC-9 R370LC-7 |
|
Part number: |
31QB-10011 31NA-10020 |
|
MOQ: |
1 PCS |
|
Payment term: |
T/T,Alibaba trade assurance,PayPal |
|
Delivery time: |
Within 1~7 days after receiving the payment |
|
Packing: |
Standard exporting packing or as required |
| # | Part No | Part Name | Qty. | Price request |
| * | 31QB-10011 | MAIN PUMP *-1,-2,-3,-4 |
1 | |
| *-1 | @ | FUEL INJECTION PIPE & NOZZLE | 1 | |
| 111 | XJBN-00976 | SHAFT-DRIVE(F) | 1 | |
| 113 | XJBN-00977 | SHAFT-DRIVE(R) | 1 | |
| 114 | XJBN-00572 | COUPLING-SPLINE | 1 | |
| 123 | XJBN-00571 | BEARING-ROLLER | 2 | |
| 124 | XJBN-00978 | BEARING-NEEDLE | 2 | |
| 127 | XJBN-00569 | SPACER-BEARING | 3 | |
| 130 | XJBN-00568 | BOOSTER | 1 | |
| N012 | XJBN-00680 | BLOCK-CYLINDER | 2 | |
| N151 | XJBN-00681 | PISTON | 18 | |
| N152 | XJBN-01522 | SHOE | 18 | |
| 153 | XJBN-00683 | PLATE-SET | 2 | |
| 156 | XJBN-00564 | BUSHING-SPHERICAL | 2 | |
| 157 | XJBN-00541 | SPRING-CYLINDER | 18 | |
| 211 | XJBN-00023 | PLATE-SHOE | 2 | |
| N212 | XJBN-00012 | PLATE-SWASH | 2 | |
| N214 | XJBN-00013 | BUSHING-TILTING | 2 | |
| 251 | XJBN-00560 | SUPPORT-S.P. | 2 | |
| 261 | XJBN-00025 | COVER(FR)-SEAL | 1 | |
| 263 | XJBN-00979 | COVER(RR)-SEAL | 1 | |
| 271 | XJBN-01594 | CASING-PUMP | 2 | |
| 311 | XJBN-00559 | COVER-VALVE(F) | 1 | |
| 312 | XJBN-00558 | COVER-VALVE(R) | 1 | |
| N313 | XJBN-01387 | PLATE(R)-VALVE | 1 | |
| N314 | XJBN-01388 | PLATE(L)-VALVE | 1 | |
| 401 | XJBN-00028 | SCREW | 4 | |
| 402 | XJBN-00555 | SCREW-HEX SOC HD | 4 | |
| 406 | XJBN-00355 | SCREW-HEX SOC HD | 8 | |
| 466 | XJBN-00356 | PLUG | 4 | |
| 468 | XJBN-00031 | PLUG | 4 | |
| 490 | XJBN-00032 | PLUG | 28 | |
| 492 | XJBN-00234 | PLUG | 1 | |
| N531 | XJBN-00981 | PIN-TILTING | 2 | |
| 532 | XJBN-00703 | PISTON-SERVO | 2 | |
| 534 | XJBN-00034 | STOPPER(L) | 2 | |
| 535 | XJBN-00035 | STOPPER(S) | 2 | |
| N548 | XJBN-00360 | PIN-FEED BACK | 2 | |
| 702 | XJBN-00040 | O-RING | 2 | |
| 706 | XJBN-00982 | O-RING | 1 | |
| 710 | XJBN-00983 | O-RING | 2 | |
| 717 | XJBN-00984 | O-RING | 2 | |
| 719 | XJBN-00985 | O-RING | 3 | |
| 724 | XJBN-00902 | O-RING | 15 | |
| 725 | XJBN-00903 | O-RING | 10 | |
| 728 | XJBN-00905 | O-RING | 4 | |
| 732 | XJBN-00047 | O-RING | 2 | |
| 774 | XJBN-01595 | SEAL-OIL | 1 | |
| 789 | XJBN-00049 | RING-BACK UP | 2 | |
| 792 | XJBN-00050 | RING-BACK UP | 2 | |
| 808 | XJBN-00051 | NUT | 4 | |
| 824 | XJBN-00052 | RING-SNAP | 2 | |
| 885 | XJBN-00053 | PIN-2 | 2 | |
| 886 | XJBN-00054 | PIN-SPRING | 5 | |
| 901 | XJBN-00055 | BOLT-EYE | 2 | |
| 953 | XJBN-00056 | SCREW-SET | 2 | |
| 954 | XJBN-00553 | SCREW-SET | 2 | |
| 956 | XJBN-01181 | SCREW-SET | 8 | |
| 981 | XJBN-00156 | NAME PLATE | 1 | |
| 983 | XJBN-00455 | PIN | 2 | |
| *-2 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4020,FRONT |
1 | |
| *-2 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4030,REAR |
1 | |
| *-3 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4040 |
1 | |
| S011 | XJBN-01523 | PISTON ASSY SEE ILLUST |
2 | |
| S013 | XJBN-01383 | CYLINDER ASSY-RH SEE ILLUST |
1 | |
| S014 | XJBN-01384 | CYLINDER ASSY-LH SEE ILLUST |
1 | |
| S030 | XJBN-00011 | SWASH PLATE ASSY SEE ILLUST |
2 | |
| S530 | XJBN-00986 | TILTING PIN ASSY SEE ILLUST |
2 | |
| N | @ | FUEL INJECTION PIPE & NOZZLE | AR |
Model |
Nominal displacement (ml/r) |
Pressure(MPa) | Speed(r/min) | Volumetric efficiency (≥%) |
L1 | Weight (kg) |
||||
Rated |
Max |
Min. |
Rated |
Max |
||||||
| CBXM-F10-AT** | 10 | 20 | 25 | 800 | 2000 | 2500 | 92 | 72 | 92 | 1.9 |
| CBXM-F16.8-AT** | 16.8 | 80.5 | 100.5 | 2.2 | ||||||
| CBXM-F2O-AT** | 20 | 84.5 | 104.5 | 2.3 | ||||||
Model |
Nominal displacement (ml/r) |
Pressure(MPa) | Speed(r/min) | Volumetric efficiency (≥%) |
Weight (kg) |
||
Rated |
Max |
Optimum speed |
Speed range |
||||
| KS55-G14 | 14 | 20 | 25 | 1500～2500 | 600～3000 | 92 | |
| KS55-G17 | 17 | 20 | 25 | 1500~2500 | 600～3000 | 92 | |
Company Information
GZ Yuexiang Engineering Machinery Co., Ltd, founded in September 2013, is a foreign trade company, which is specialized in
procuring and selling excavator parts.Our main products are excavator hydraulic pump, hydraulic parts, travel motor and gearbox, swing motor and gearbox. Our products have been exported to more than 100 countries and regions.
