Place of Origin:
Made in china
Brand Name:
Belparts
Model Number:
R800LC-7A
Video

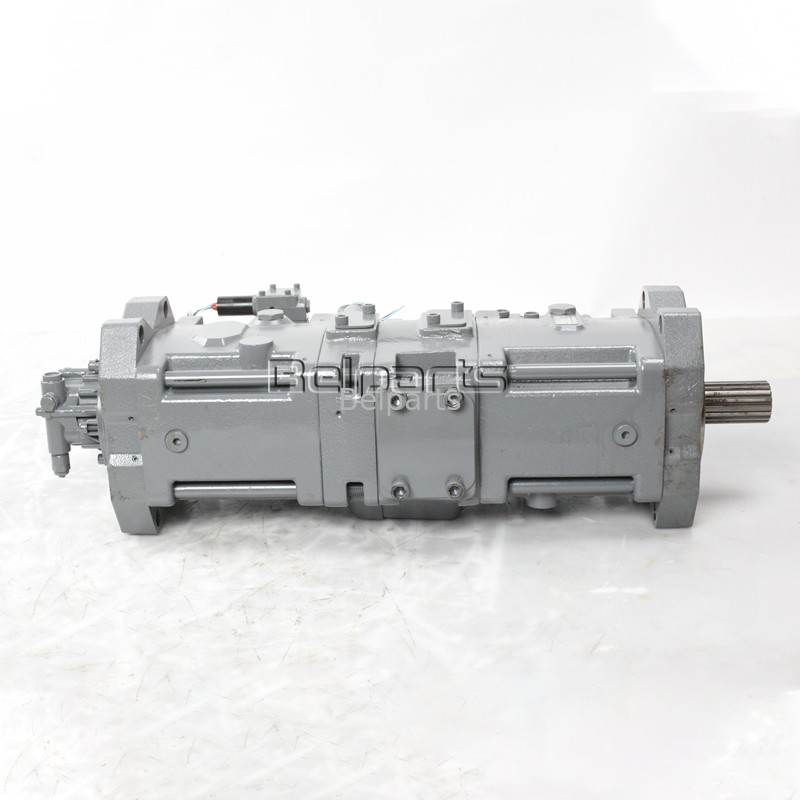

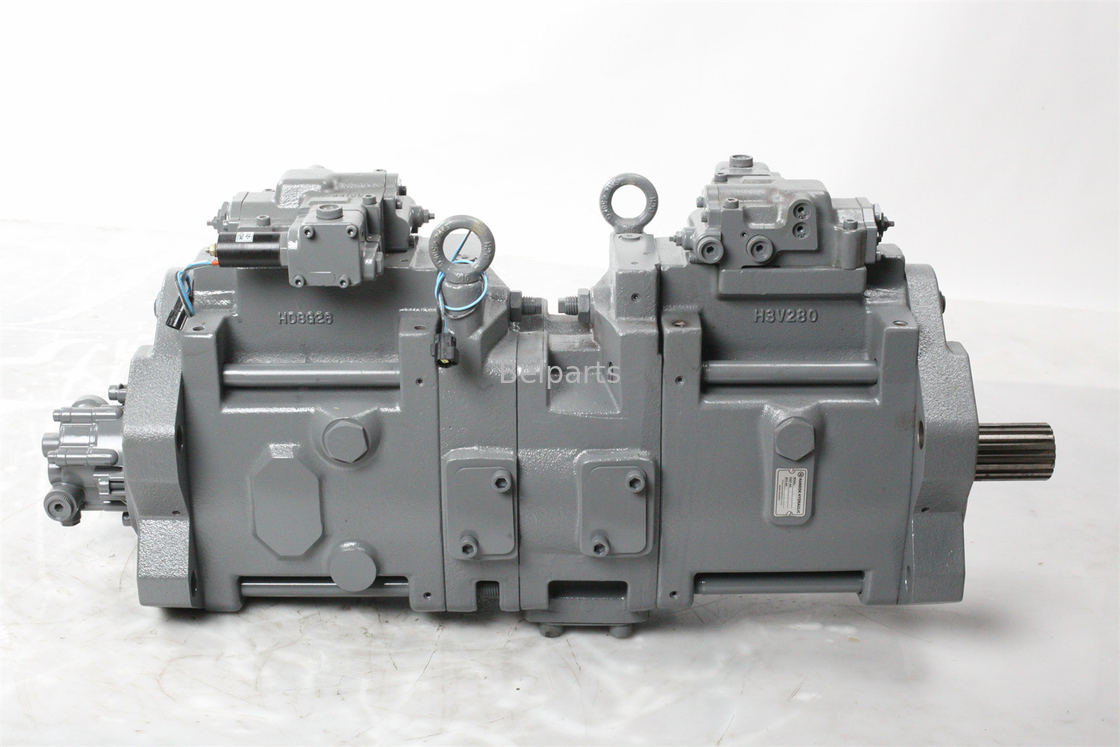

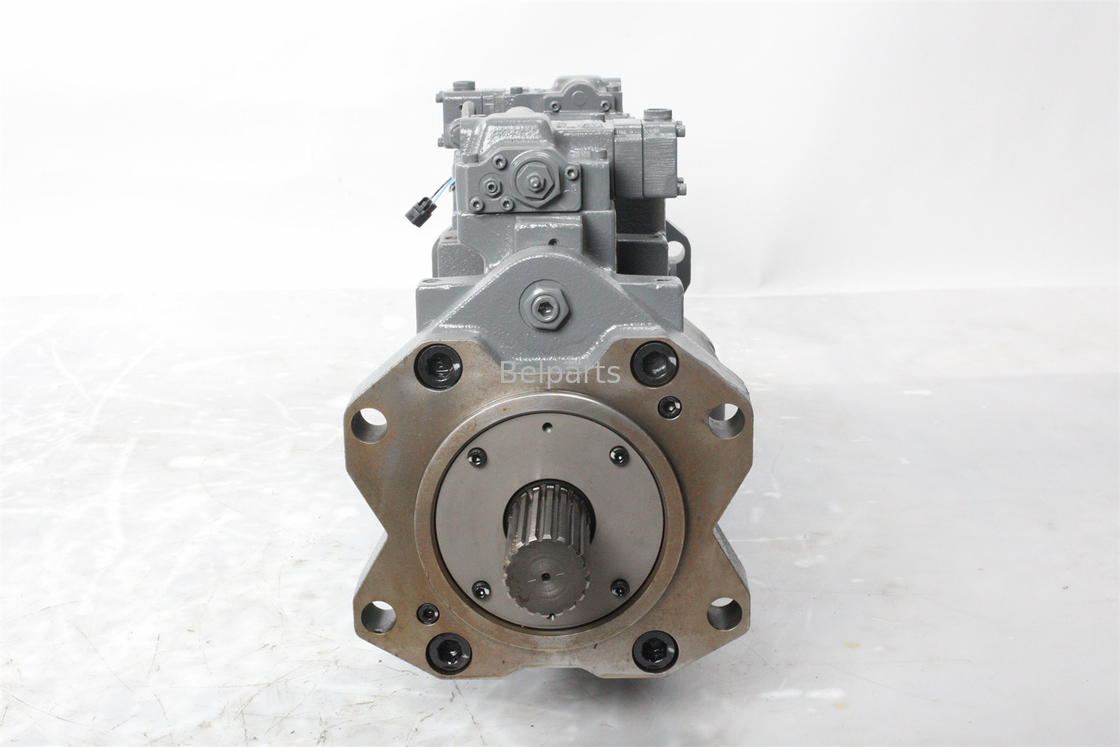

Belparts excavator main pump R800LC-7A hydraulic pump 31ND-10010 for hyundai
Product Description
|
Excavator Hydraulic pump |
|
|
Place of Origin: |
China(mainland) |
|
Model: |
R800LC-7A |
|
Part number: |
31ND-10010 |
|
MOQ: |
1 PCS |
|
Payment term: |
T/T, trade assurance,PayPal |
|
Delivery time: |
Within 1~7 days after receiving the payment |
|
Packing: |
Standard exporting packing or as required |
| # | Part No | Part Name | Qty. | Price request |
| * | 31ND-10010 | MAIN PUMP *-1,2,3 |
1 | |
| *-1 | @ | FUEL INJECTION PIPE & NOZZLE | 1 | |
| 111 | XJBN-01130 | SHAFT(F)-DRIVE | 1 | |
| 113 | XJBN-01131 | SHAFT(R)-DRIVE | 1 | |
| 114 | XJBN-01132 | COUPLING | 1 | |
| 123 | XJBN-01133 | RARING-ROLLER | 2 | |
| 124 | XJBN-01135 | BEARING-NEEDLE | 2 | |
| 127 | XJBN-01136 | SPACER | 4 | |
| 130 | XJBN-01137 | BOOSTER | 1 | |
| NS012 | XJBN-01138 | BLOCK-CYLINDER | 2 | |
| NS151 | XJBN-01139 | PISTON | 18 | |
| NS152 | XJBN-01140 | SHOE | 18 | |
| 153 | XJBN-01141 | PLATE-SET | 2 | |
| 156 | XJBN-01142 | BUSHING-SPHERICAL | 2 | |
| 157 | XJBN-01143 | SPRING-CYLINDER | 18 | |
| S211 | XJBN-01144 | PLATE-SHOE | 2 | |
| N212 | XJBN-01145 | PLATE-SWASH | 2 | |
| NS214 | XJBN-01146 | BEARING-STEEL | 2 | |
| 251 | XJBN-01147 | SUPPORT | 2 | |
| 253 | XJBN-01148 | WASHER | 8 | |
| 261 | XJBN-01149 | COVER-FRONT | 1 | |
| 263 | XJBN-01150 | COVER-REAR | 1 | |
| 271 | XJBN-01151 | CASING-PUMP | 2 | |
| 311 | XJBN-01152 | COVER(F)-VALVE | 1 | |
| 312 | XJBN-01153 | COVER(R)-VALVE | 1 | |
| NS313 | XJBN-01154 | PLATE(R)-VALVE | 1 | |
| NS314 | XJBN-01155 | PLATE(F)-VALVE | 1 | |
| 401 | XJBN-01156 | SCREW | 4 | |
| 402 | XJBN-01157 | SCREW | 4 | |
| 406 | XJBN-00355 | SCREW-HEX SOC HD | 4 | |
| 407 | XJBN-00693 | BOLT | 4 | |
| 415 | XJBN-01158 | SCREW | 2 | |
| 416 | XJBN-01159 | SCREW | 4 | |
| 466 | XJBN-00356 | PLUG | 2 | |
| 468 | XJBN-00357 | PLUG | 4 | |
| 490 | XJBN-00032 | PLUG | 31 | |
| 491 | XJBN-01160 | RESTRICTOR | 4 | |
| 492 | XJBN-00234 | PLUG | 5 | |
| NS531 | XJBN-01161 | PIN-TILTING | 2 | |
| 532 | XJBN-01162 | PISTON-SERVO | 2 | |
| 534 | XJBN-01163 | STOPPER(L) | 4 | |
| 535 | XJBN-01164 | STOPPER(S) | 2 | |
| NS548 | XJBN-01165 | PIN-FEED BACK | 2 | |
| 702 | XJBN-01166 | O-RING | 2 | |
| 706 | XJBN-01167 | O-RING | 1 | |
| 710 | XJBN-01168 | O-RING | 2 | |
| 717 | XJBN-01169 | O-RING | 4 | |
| 718 | XJBN-01170 | O-RING | 1 | |
| 724 | XJBN-01171 | O-RING | 19 | |
| 725 | XJBN-01172 | O-RING | 2 | |
| 728 | XJBN-01173 | O-RING | 2 | |
| 732 | XJBN-01174 | O-RING | 2 | |
| 774 | XJBN-01175 | SEAL-OIL | 1 | |
| 789 | XJBN-01176 | RING-BACK UP | 2 | |
| 792 | XJBN-01177 | RING-BACK UP | 2 | |
| 808 | XJBN-00364 | NUT | 4 | |
| 824 | XJBN-00759 | RING-SNAP | 2 | |
| 885 | XJBN-00053 | PIN-2 | 2 | |
| 887 | XJBN-01178 | PIN-SPRING | 5 | |
| 901 | XJBN-01179 | BOLT-EYE | 2 | |
| 953 | XJBN-01180 | SCREW-SET | 2 | |
| 954 | XJBN-00713 | SCREW-SET | 2 | |
| 956 | XJBN-01181 | SCREW-SET | 8 | |
| 981 | XJBN-00156 | NAME PLATE | 1 | |
| 983 | XJBN-00341 | PIN | 2 | |
| *-2 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4020 |
2 | |
| *-3 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4030 |
2 | |
| *-4 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4040 |
2 | |
| S011 | XJBN-01182 | PISTON ASSY SEE ILLUST |
2 | |
| S013 | XJBN-01183 | CYLINDER ASSY-RH SEE ILLUST |
1 | |
| S014 | XJBN-01184 | CYLINDER ASSY-LH SEE ILLUST |
1 | |
| S030 | XJBN-01185 | SWASH PLATE ASSY SEE ILLUST |
2 | |
| S530 | XJBN-01186 | TILTING PIN ASSY SEE ILLUST |
2 | |
| N | @ | FUEL INJECTION PIPE & NOZZLE | AR |
Model |
Nominal displacement (ml/r) |
Pressure(MPa) |
Speed(r/min) | Volumetric efficiency (≥%) |
L1 | L | Weight (kg) |
|||
Rated |
Max |
Min |
Rated |
Max |
||||||
| CBHC-F11-AL** | 11 | 20 | 25 | 500 | 2000 | 3000 | 90 | 54.5 | 118 | 3.5 |
| CBHC-F12-AL** | 12 | 55 | 119 | 3.6 | ||||||
| CBHC-F14.5-AL** | 14.5 | 57 | 123 | 3.7 | ||||||
| CBHC-F16-AL** | 16 | 58 | 125 | 3.8 | ||||||
| CBHC-F18-AL** | 18 | 59.5 | 128 | 3.9 | ||||||
| CBHC-F20-AL** | 20 | 61 | 131 | 4.0 | ||||||
Model |
Nominal displacement(ml/r) |
Pressure(MPa) | Speed(r/min) | Volumetric efficiency(≥%) |
L1 | L | Weight (kg) |
||
Rated |
Max |
Optimum speed |
Speed range |
||||||
| CMF-F306-AL** | 06 | 20 | 25 | 1500~2500 | 800~3000 | 90 | 89 | 138.5 | 4 |
| CMF-F308-AL** | 08 | 90.3 | 141 | 4.4 | |||||
| CMF-F310-AL** | 10 | 92 | 144 | 4.2 | |||||
| CMF-F316-AL** | 16 | 97 | 154 | 4.3 | |||||
| CMF-F320-AL** | 20 | 100.5 | 161 | 4.4 | |||||
| CMF-F325-AL** | 25 | 105 | 170 | 4.5 | |||||
Model |
Nominal displacement (ml/r) |
Pressure(MPa) |
Speed(r/min) | Volumetric efficiency (≥%) |
L1 | L | Intet |
Outlet | Weight (kg) |
|||||||
Rated |
Max |
Min |
Rated |
Max |
a | b | D | a | b | D | ||||||
| CBK-G427-AFφ* | 27 | 25 | 30 | 600 | 2500 | 3000 | ) ☑2 |
58 | 118 | 26.2 | 52.4 | 25 | 22.2 | 47.6 | 19 | 4.1 |
| CBK-G432-AFφ* | 32 | 61 | 123 | 30.2 | 58.7 | 32 | 26.2 | 52.4 | 25 | 4.4 | ||||||
| CBK-G436-AFφ* | 36 | 63 | 127 | 4.6 | ||||||||||||
| CBK-G440-AFφ* | 40 | 20 | 25 | 65 | 131 | 4.8 | ||||||||||
| CBK-G444-AFφ* | 44 | 67 | 135 | 5.0 | ||||||||||||
Model |
Nominal displacement (ml/r) |
Pressure(MPa) | Speed(r/min) | Volumetric efficiency (≥%) |
L1 | Weight (kg) |
||||
Rated |
Max |
Min. |
Rated |
Max |
||||||
| CBXM-F10-AT** | 10 | 20 | 25 | 800 | 2000 | 2500 | 92 | 72 | 92 | 1.9 |
| CBXM-F16.8-AT** | 16.8 | 80.5 | 100.5 | 2.2 | ||||||
| CBXM-F2O-AT** | 20 | 84.5 | 104.5 | 2.3 | ||||||
