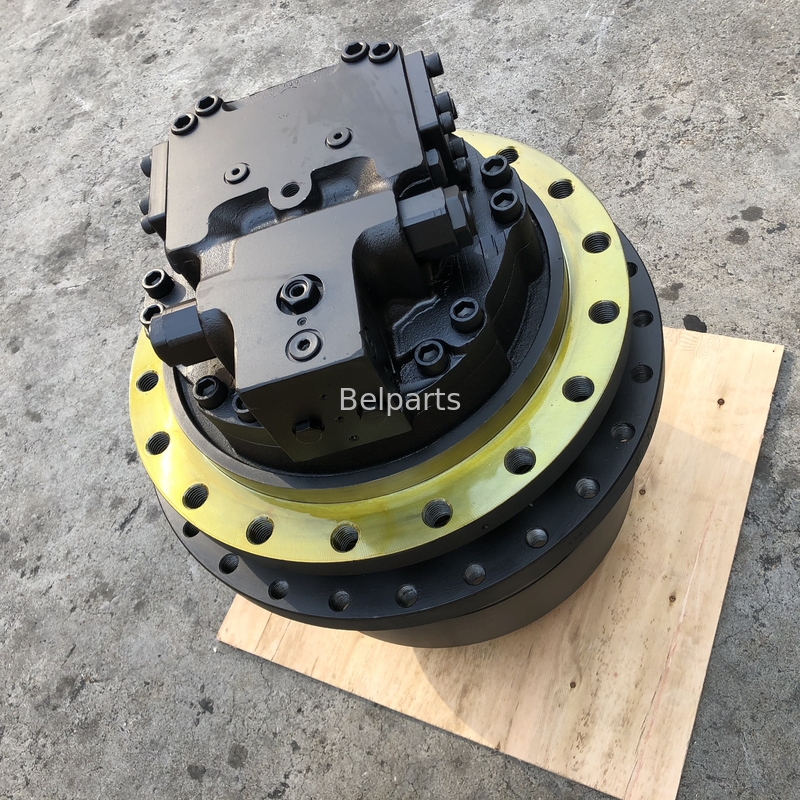

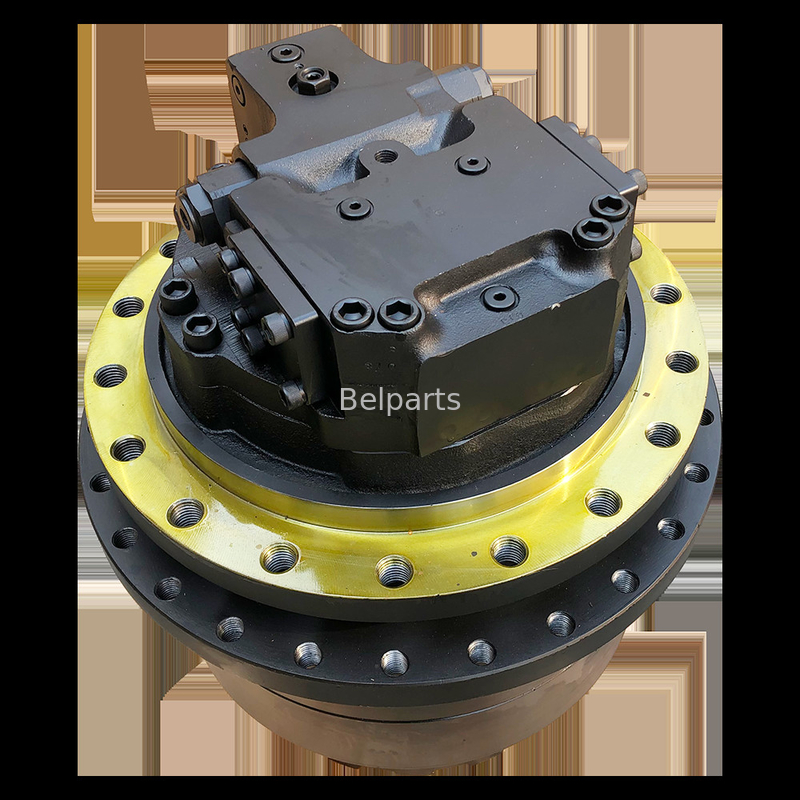

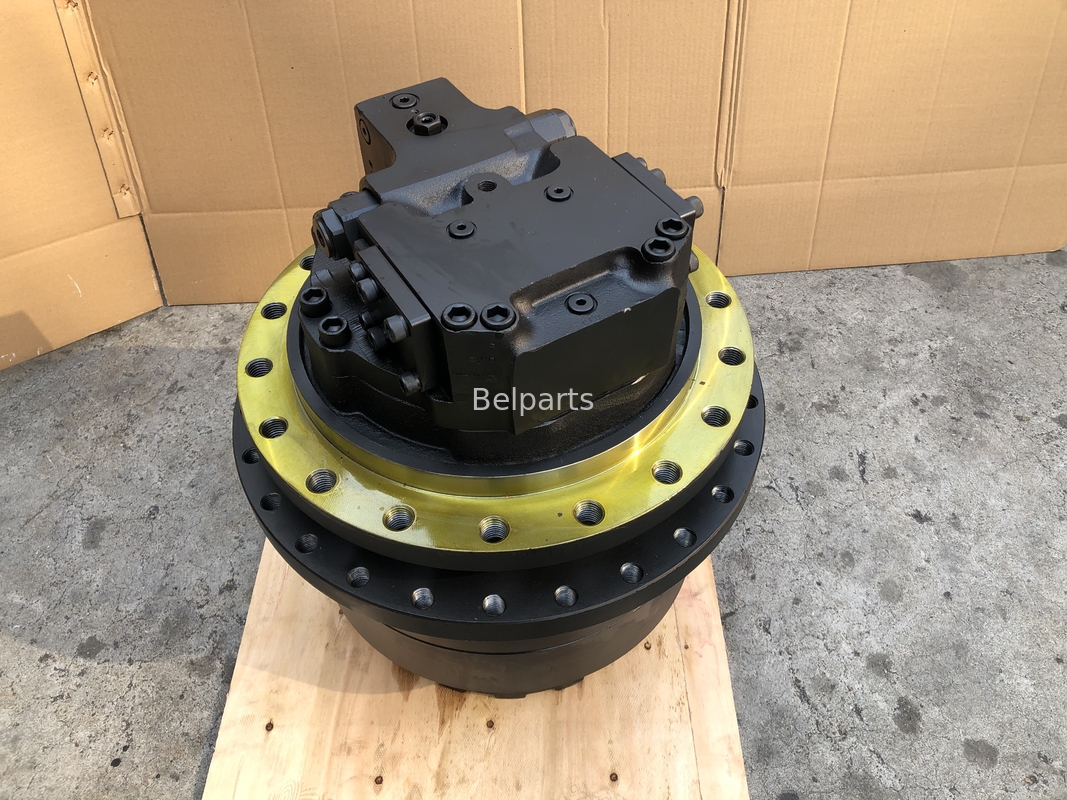

R320LC-7 R320LC-7A Final Drive Assembly Belparts Excavator 31N9-40010 31N9-40030BG 31Q9-40030 Travel Motor For Hyundai
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Machine Model | R320LC-7 R320LC-7A | Part Number | 31N9-40010 31N9-40030BG 31Q9-40030 |
|---|---|---|---|
| Part Name | Travel Motor | Appliion | Crawler Excavator |
| Material | Steel | Color | Black |
| Packing | Wooden Box | ||
| High Light | Belparts Excavator final drive assembly,Hyundai final drive assembly,R320LC-7 final drive assembly |
||
Product Description
R320LC-7 R320LC-7A final drive assembly Belparts Excavator 31N9-40010 31N9-40030BG 31Q9-40030 travel motor for hyundai
Product description
Appliion:Excavator
Part name:Travel motor ass'y
Material:Steel
Model:R320LC-7 R320LC-7A
MOQ:1PC
Warranty:6 months
Payment term:T/T, paypal, Alibaba trade assurance or as required
Part number:31N9-40010 31N9-40030BG 31Q9-40030
Shipment:by sea, by air, by express or as required
| Appliion | Excavator |
| Part name | Travel motor ass'y |
| Material | Steel |
| Model | R320LC-7 R320LC-7A |
| MOQ | 1PC |
| Warranty | 6 months |
| Payment term | T/T, paypal, Alibaba trade assurance or as required |
| Part number | 31N9-40010 31N9-40030BG 31Q9-40030 |
| Shipment | by sea, by air, by express or as required |
| # | Part No | Part Name | Qty. | Price request |
| * | 31N9-40010 | TRACK MOTOR | 1 | |
| *-1 | XJCK-00123 | TRAVEL MOTOR UNIT | 1 | |
| *-1 | XJCK-00139 | TRAVEL MOTOR UNIT | 1 | |
| 27 | XJCK-00045 | CASING | 1 | |
| 28 | XJCK-00122 | COVER-REAR | 1 | |
| 29 | XJCK-00121 | BLOCK-CYLINDER | 1 | |
| 30 | XJCK-00042 | RETAINER-SHOE | 1 | |
| 31 | XJCK-00041 | PLATE-FRICTION | 4 | |
| 32 | XJCK-00040 | PISTON-BRAKE | 1 | |
| 33 | XJCK-00039 | PLATE-SEPARATING | 5 | |
| 34 | XJCK-00120 | PLATE-VALVE | 1 | |
| 35 | XJCK-00037 | SHAFT | 1 | |
| 36 | XJCK-00036 | COUPLING | 1 | |
| N37 | XJCK-00035 | PLATE-SWASH | 1 | |
| N38 | XJCK-00034 | PIVOT | 2 | |
| 39 | XJCK-00077 | HOLDER-SPRING | 1 | |
| 40 | XJCK-00119 | PISTON ASSY | 9 | |
| 41 | XJCK-00031 | D-RING | 1 | |
| 42 | XJCK-00030 | D-RING | 1 | |
| 43 | XJCK-00029 | VALVE-CHECK | 3 | |
| 44 | XJCK-00028 | RING-RETAINER | 1 | |
| 45 | XJCK-00027 | RING-RETAINER | 1 | |
| N46 | XJCK-00026 | SHIM | 1 | |
| 47 | XJCK-00025 | PISTON | 1 | |
| 48 | XJCK-00024 | BALL | 1 | |
| 49 | XJCK-00023 | JOINT-BALL | 1 | |
| 50 | XJCK-00022 | SEAL-PISTON | 1 | |
| 51 | XJCK-00021 | RESTRICTOR | 1 | |
| 52 | XJCK-00020 | RESTRICTOR | 1 | |
| 53 | XJCK-00019 | SEAL-OIL | 1 | |
| 54 | XJCK-00018 | SPRING-CHECK VLV | 3 | |
| 55 | XJCK-00017 | SPRING-CYLINDER | 9 | |
| 56 | XJCK-00016 | SPRING-BRAKE | 12 | |
| 57 | XJCK-00015 | BEARING | 1 | |
| 58 | XJCK-00014 | BEARING | 1 | |
| 59 | XJCK-00013 | SCREW-CAP | 10 | |
| 60 | XJCK-00012 | PIN-PARALLEL | 1 | |
| 61 | XJCK-00011 | O-RING | 3 | |
| 62 | XJCK-00010 | O-RING | 2 | |
| 63 | XJCK-00009 | O-RING | 3 | |
| 64 | XJCK-00008 | O-RING | 1 | |
| 65 | XJCK-00007 | O-RING | 1 | |
| 66 | XJCK-00137 | RELIEF VALVE | 2 | |
| 67 | XJCK-00005 | PILOT VALVE | 1 | |
| 68 | XJCK-00118 | VALVE-BRAKE | 1 | |
| 69 | XJCK-00003 | PLUG 2355-4-166188-0 |
2 | |
| 70 | XJCK-00001 | O-RING 0401-1000110-10 |
2 | |
| 71 | XJCK-00076 | PLUG-EXPANDER | 1 | |
| 72 | XJCK-00075 | PLUG | 4 | |
| 73 | XJCK-00074 | PLUG | 1 | |
| *-2 | XJCK-00136 | T/REDUCTION GEAR | 1 |
Company information
Our factory strength
FAQ
1.What is the warranty time of the products?
The warranty time is 6/12 months based on the item details; We don't provide warranty time for original and used products.
2.What is your delivery time?
Generally, we will arrange the goods within 24 hours after your payment; if not in stock, stocking time is 3-7 days.
3.What are your main products ?
We are specialized in spare parts for excavator hydraulic system, such as travel/swing motor, travel/swing gearbox/parts, hydraulic pump/parts,gear parts,etc.If you need other excavator parts, we also can supply as your requirements.
4.How can I do if there is something wrong with the goods?
First at all, we have confidence in the quality of our products, if you really found something wrong, please provide pictures or video for us and we will check. After it is confirmed, please return the goods to us and we will offer the correct item.
5.How do I pay?
You can pay by T/T, PayPal (for small amount) and Alibaba trade assurance.
