R360LC-7A R360LC-9 Final Drive Assembly Belparts Excavator R360LC-7 31NA-40010 31NA-40020 31QA-40020 Travel Motor

R360LC-7A R360LC-9 Final Drive Assembly Belparts Excavator R360LC-7 31NA-40010 31NA-40020 31QA-40020 Travel Motor

R360LC-9 final drive assembly

R360LC-7A final drive assembly

Travel Motor final drive assembly

Place of Origin:

Made in China

Brand Name:

Belparts

Model Number:

R360LC-7 R360LC-7A R360LC-9

Contact Us
Request A Quote
R360LC-7A R360LC-9 Final Drive Assembly Belparts Excavator R360LC-7 31NA-40010 31NA-40020 31QA-40020 Travel Motor
R360LC-7A R360LC-9 Final Drive Assembly Belparts Excavator R360LC-7 31NA-40010 31NA-40020 31QA-40020 Travel Motor R360LC-7A R360LC-9 Final Drive Assembly Belparts Excavator R360LC-7 31NA-40010 31NA-40020 31QA-40020 Travel Motor R360LC-7A R360LC-9 Final Drive Assembly Belparts Excavator R360LC-7 31NA-40010 31NA-40020 31QA-40020 Travel Motor
Product Details
Machine Model:
R360LC-7 R360LC-7A R360LC-9
Part Number:
31NA-40010 31NA-40020 31QA-40020
Part Name:
Travel Motor
Appliion:
Crawler Excavator
Material:
Steel
Color:
Black
Packing:
Wooden Box
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Negotiable price
Packaging Details
Wooden box
Delivery Time
1-3 days
Payment Terms
T/T, trder assurance, Paypal
Supply Ability
1000
RELATED PRODUCTS
Good price HMGF40FA ZX200-3 Final Drive Assy 9257254 9258325 Travel Motor Assy For Excavator Parts online

HMGF40FA ZX200-3 Final Drive Assy 9257254 9258325 Travel Motor Assy For Excavator Parts

Get Best Price
Good price Hitachi Excavator HMGF40FA ZX200-3 Final Drive 9257254 9258325 Travel Motor Assy online

Hitachi Excavator HMGF40FA ZX200-3 Final Drive 9257254 9258325 Travel Motor Assy

Get Best Price
Good price Belparts Excavator SK220-4 Travel Motor Assembly For Kobelco Spare Parts online Video

Belparts Excavator SK220-4 Travel Motor Assembly For Kobelco Spare Parts

Get Best Price
Good price EC240 SA 1143-00111 Excavator Travel Motor For GM35 Volvo Hydraulic Motor online

EC240 SA 1143-00111 Excavator Travel Motor For GM35 Volvo Hydraulic Motor

Get Best Price
Contact Us
+86 13247509480
belparts02@gmail.com
86-020-32384870
Contact Now
Product Description

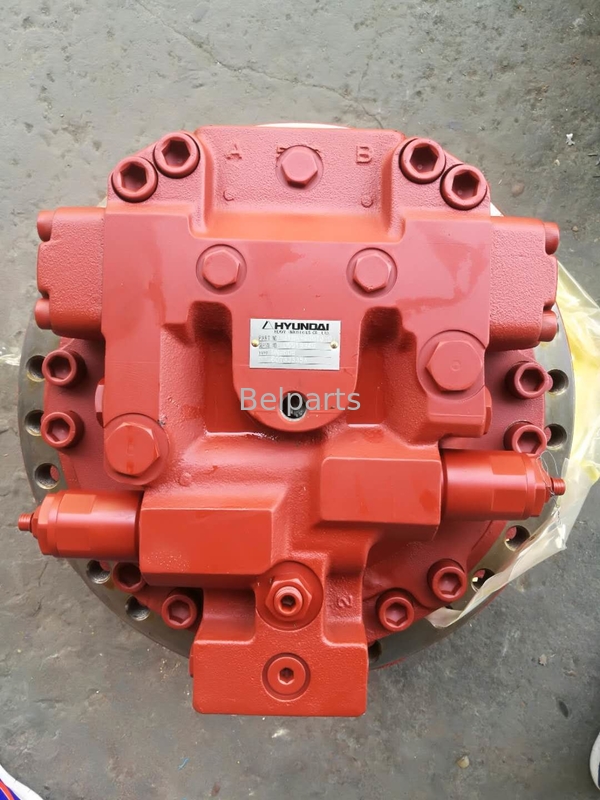

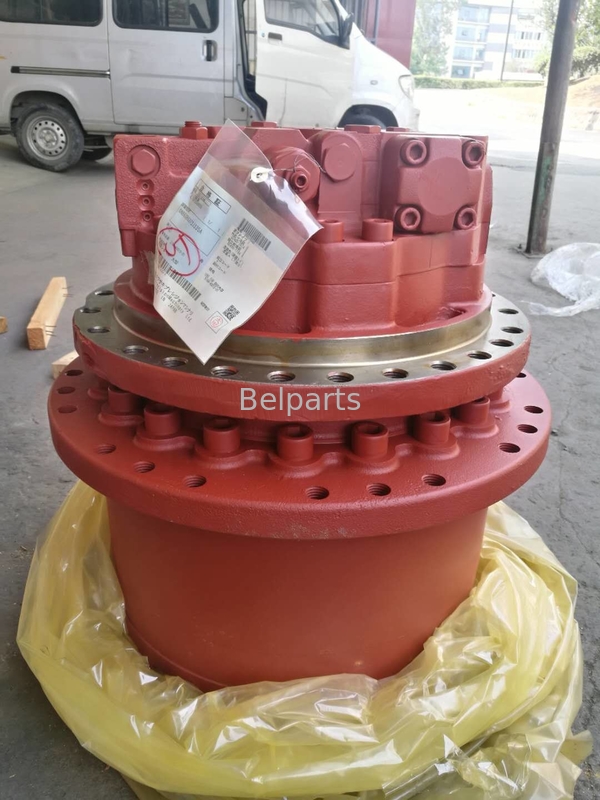

R360LC-7A R360LC-9 final drive assembly Belparts Excavator R360LC-7 31NA-40010 31NA-40020 31QA-40020 travel motor



Product description

Appliion:Excavator
Part name:Travel motor ass'y
Material:Steel
Model:R360LC-7 R360LC-7A R360LC-9
MOQ:1PC
Warranty:6 months
Payment term:T/T, paypal, trade assurance or as required
Part number:31N9-40010 31N9-40030BG 31Q9-40030
Shipment:by sea, by air, by express or as required



Appliion Excavator
Part name Travel motor ass'y
Material Steel
Model R360LC-7 R360LC-7A R360LC-9
MOQ 1PC
Warranty 6 months
Payment term T/T, paypal, trade assurance or as required
Part number 31NA-40010 31NA-40020 31QA-40020
Shipment by sea, by air, by express or as required



# Part No Part Name Qty. Price request
* 31NA-40010 TRAVEL MOTOR
*-1,*-2		 1  
*-1 XJBN-00519 TRAVEL MOTOR UNIT 1  
022 XJBN-00513 SPOOL-C/BALANCE 1  
101 XJBN-00512 SHAFT-DRIVE 1  
102 XJBN-00511 BEARING-ROLLER 1  
103 XJBN-00510 BEARING-NEEDLE 1  
106 XJBN-00509 SPACER-BEARING 1  
107 XJBN-00600 RING-SNAP 1  
S111 XJBN-00507 BLOCK-CYLINDER 1  
113 XJBN-00506 BUSHING-SPHERICAL 1  
114 XJBN-00022 SPRING-CYLINDER 9  
116 XJBN-00368 SPACER 1  
NS121 XJBN-00504 PISTON 9  
NS122 XJBN-00503 SHOE 9  
123 XJBN-00020 PLATE-SET 1  
NS131 XJBN-00638 PLATE-VALVE 1  
161 XJBN-00403 O-RING 2  
162 XJBN-00397 RING-BACK UP 2  
201 XJBN-00502 PLATE-SWASH 1  
202 XJBN-00501 SUPPROT 1  
S272 XJBN-00500 CASING 1  
S303 XJBN-00499 CASING-VALVE 1  
304 XJBN-00498 COVER-SEAL 1  
350 XJBN-00497 VALVE-RELIEF 2  
361 XJBN-00496 WASHER 2  
362 XJBN-00495 SPRING-C/BALANCE 2  
364 XJBN-00494 COVER-C/BALANCE 2  
K365 XJBN-00493 O-RING 2  
366 XJBN-00492 BOLT-SOCKET 8  
401 XJBN-00491 BOLT-SOCKET 8  
402 XJBN-00490 BOLT-SOCKET 4  
435 XJBN-00489 RING-SNAP 1  
S451 XJBN-00053 PIN-2 1  
S452 XJBN-00488 PIN-1 2  
461 XJBN-00032 PLUG 10  
464 XJBN-00409 PLUG 4  
K471 XJBN-00286 O-RING 1  
K472 XJBN-00486 O-RING 1  
K485 XJBN-00097 O-RING 4  
K491 XJBN-00485 SEAL-OIL 1  
501 XJBN-00484 PISTON-TILTING 1  
502 XJBN-00483 PISTON-TILTING 1  
503 XJBN-00482 STOPPER 1  
504 XJBN-00481 STOPPER-S 1  
505 XJBN-00480 ROD-TILTING 1  
506 XJBN-00479 SCREW 2  
507 XJBN-00478 NUT 2  
K508 XJBN-00477 O-RING 1  
K509 XJBN-00283 O-RING 2  
K510 XJBN-00398 RING-BACK UP 1  
K511 XJBN-00475 O-RING 1  
K512 XJBN-00474 RING-BACK UP 1  
531 XJBN-00473 SPOOL-TILTING 1  
533 XJBN-00472 SPRING-TILTING 1  
541 XJBN-00471 SEAT 2  
542 XJBN-00470 STOPPER 2  
543 XJBN-00359 BALL-STEEL 2  
545 XJBN-00469 ORIFICE 1  
546 XJBN-00468 ORIFICE 2  
K547 XJBN-00231 O-RING 3  
567 XJBN-00356 PLUG 7  
K568 XJBN-00362 O-RING 7  
571 XJBN-00639 PLUG 1  
K572 XJBN-00233 O-RING 1  
702 XJBN-00640 PISTON-BRAKE 1  
705 XJBN-00466 SPRING-BRAKE 10  
K707 XJBN-00465 RING 252-PISTON 1  
K708 XJBN-00464 RING 278-PISTON 1  
S709 XJBN-00463 PIN-CENTER 4  
710 XJBN-00462 GUIDE-SPRING 1  
711 XJBN-00641 SPOOL 1  
712 XJBN-00460 BUSHING 1  
713 XJBN-00459 SPRING 1  
714 XJBN-00458 PLUG 1  
741 XJBN-00457 PLATE-SEPARATOR 1  
742 XJBN-00456 PLATE-FRICTION 2  
801 XJBN-00156 NAME PLATE 1  
802 XJBN-00341 PIN 2  
*-2 @ FUEL INJECTION PIPE & NOZZLE
SEE 4130		 1  
K XJBN-00514 SEAL KIT
SEE ILLUST		 1  
011 XJBN-00515 VALVE CASING SUB ASSY
SEE ILLUST		 1  
012 XJBN-00516 CASING SUB ASSY
SEE ILLUST		 1  
013 XJBN-00517 CYLINDER SUB ASSY
SEE ILLUST		 1  
014 XJBN-00518 PISTON SUB ASSY
SEE ILLUST		 9  



R360LC-7A R360LC-9 Final Drive Assembly Belparts Excavator R360LC-7 31NA-40010 31NA-40020 31QA-40020 Travel Motor 0R360LC-7A R360LC-9 Final Drive Assembly Belparts Excavator R360LC-7 31NA-40010 31NA-40020 31QA-40020 Travel Motor 1R360LC-7A R360LC-9 Final Drive Assembly Belparts Excavator R360LC-7 31NA-40010 31NA-40020 31QA-40020 Travel Motor 2R360LC-7A R360LC-9 Final Drive Assembly Belparts Excavator R360LC-7 31NA-40010 31NA-40020 31QA-40020 Travel Motor 3



Company information

R360LC-7A R360LC-9 Final Drive Assembly Belparts Excavator R360LC-7 31NA-40010 31NA-40020 31QA-40020 Travel Motor 4R360LC-7A R360LC-9 Final Drive Assembly Belparts Excavator R360LC-7 31NA-40010 31NA-40020 31QA-40020 Travel Motor 5R360LC-7A R360LC-9 Final Drive Assembly Belparts Excavator R360LC-7 31NA-40010 31NA-40020 31QA-40020 Travel Motor 6



Our factory strength

R360LC-7A R360LC-9 Final Drive Assembly Belparts Excavator R360LC-7 31NA-40010 31NA-40020 31QA-40020 Travel Motor 7R360LC-7A R360LC-9 Final Drive Assembly Belparts Excavator R360LC-7 31NA-40010 31NA-40020 31QA-40020 Travel Motor 8R360LC-7A R360LC-9 Final Drive Assembly Belparts Excavator R360LC-7 31NA-40010 31NA-40020 31QA-40020 Travel Motor 9

FAQ

1.What is the warranty time of the products?

The warranty time is 6/12 months based on the item details; We don't provide warranty time for original and used products.

2.What is your delivery time?

Generally, we will arrange the goods within 24 hours after your payment; if not in stock, stocking time is 3-7 days.

3.What are your main products ?

We are specialized in spare parts for excavator hydraulic system, such as travel/swing motor, travel/swing gearbox/parts, hydraulic pump/parts,gear parts,etc.If you need other excavator parts, we also can supply as your requirements.

4.How can I do if there is something wrong with the goods?

First at all, we have confidence in the quality of our products, if you really found something wrong, please provide pictures or video for us and we will check. After it is confirmed, please return the goods to us and we will offer the correct item.

5.How do I pay?

You can pay by T/T, PayPal (for small amount) and trade assurance.



Product on sale

R360LC-7A R360LC-9 Final Drive Assembly Belparts Excavator R360LC-7 31NA-40010 31NA-40020 31QA-40020 Travel Motor 10R360LC-7A R360LC-9 Final Drive Assembly Belparts Excavator R360LC-7 31NA-40010 31NA-40020 31QA-40020 Travel Motor 11
