Place of Origin:
Made in China
Brand Name:
Belparts
Model Number:
EX120-2 EX120-3

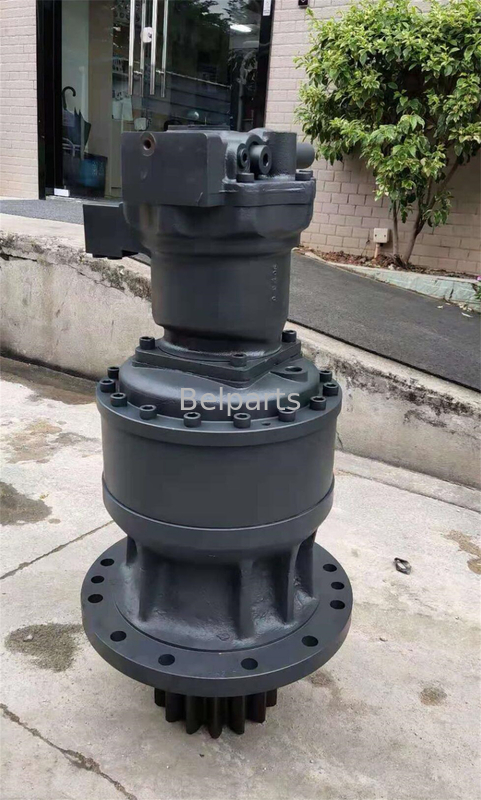

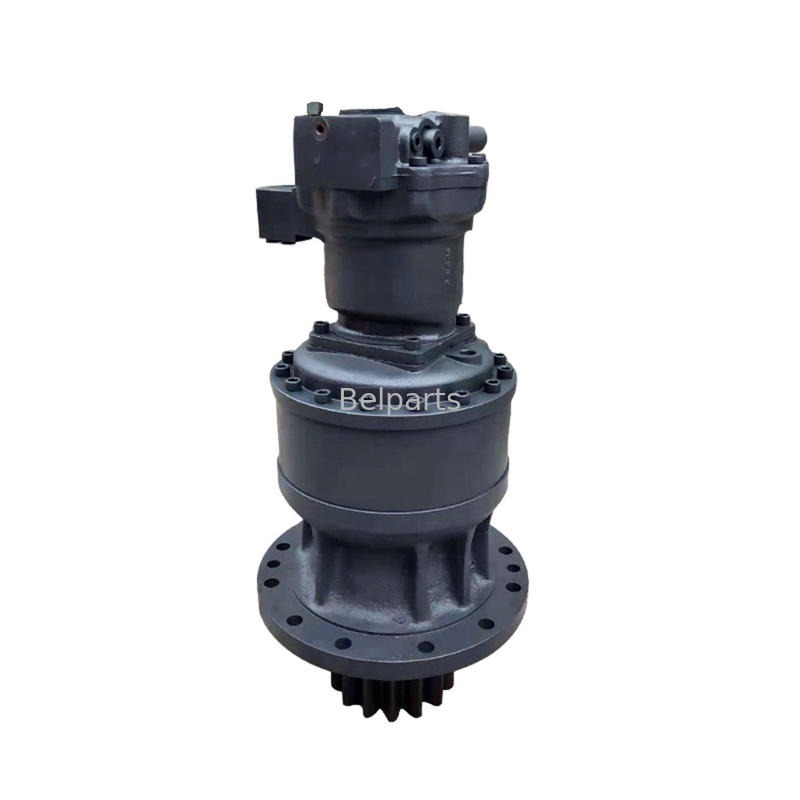

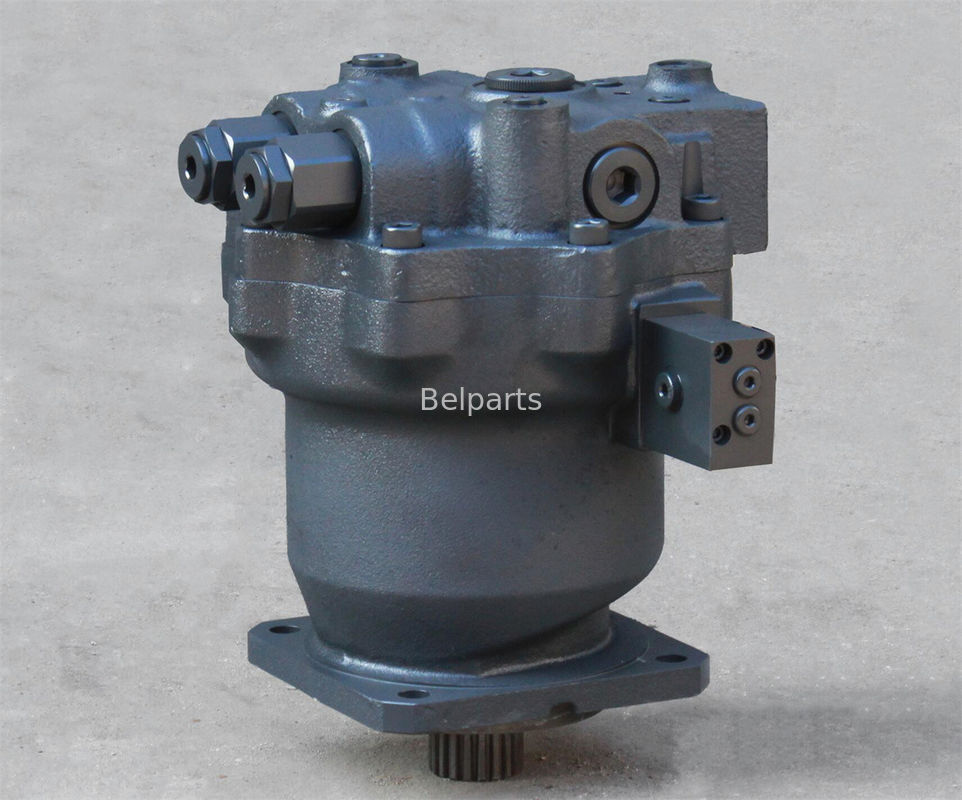

Belparts excavator EC330B EC360B swing motor VOE14625697 slewing motor VOE 14512786
Appliion |
Excavator |
Part name |
Excavator swing motor |
Part number |
VOE 14512786 |
Model |
EC330B EC360B |
MOQ |
1PC |
Payment term |
T/T, Paypal, Trade assurance, or as required |
Delivery |
2 days after the payment received |
Shipment |
by sea, by air, by express, or as required |
# | Part No | Part Name | Qty. | Price request |
---|---|---|---|---|
8277279 | ||||
VOE 14512786 | Swing Motor | 1 | ||
1 | SA 8230-01090 | Ring | 1 | |
2 | SA 8230-04460 | Ring | 1 | |
3 | SA 8230-00910 | Seal | 1 | |
4 | SA 7177-03140 | Roller Bearing | 1 | |
5 | VOE 14512779 | Housing, Casing | 1 | |
6 | SA 8230-04390 | Plate | 1 | |
7 | SA 8230-04400 | Plate | 1 | |
8 | SA 8230-04300 | Spring | 1 | |
9 | SA 8230-04060 | Cylinder | 1 | |
10 | VOE 14512780 | Piston | 9 | |
11 | SA 8230-22940 | Plate | 4 | |
12 | SA 8230-22950 | Plate | 4 | |
13 | SA 8230-04090 | Piston | 1 | |
14 | SA 8230-00260 | O-ring | 1 | |
15 | SA 8230-00270 | O-ring | 2 | |
16 | SA 8230-04270 | Spring | 19 | |
17 | SA 8230-00900 | Seal | 4 | |
18 | SA 8230-04310 | Spring | 4 | |
19 | SA 8230-04350 | Spring | 4 | |
20 | SA 8230-01160 | Cap more | 2 | |
21 | VOE 983502 | O-ring more | 2 | |
22 | SA 8230-00630 | Bolt | 1 | |
23 | SA 8230-04120 | Piston | 2 | |
24 | VOE 14512781 | Cover | 1 | |
25 | SA 8230-00560 | Pin | 2 | |
26 | VOE 14508590 | Valve | 2 | |
27 | SA 9566-10180 | Ring | 1 | |
28 | SA 9511-12012 | O-ring more | 2 | |
29 | VOE 990557 | O-ring more | 3 | |
30 | SA 8230-37030 | Cap | 1 | |
31 | VOE 990557 | O-ring more | 1 | |
32 | VOE 14512782 | Relief valve | 2 | |
33 | SA 9511-12031 | O-ring | 1 | |
34 | SA 8230-00600 | Bolt | 7 | |
35 | SA 8230-11610 | Cap | 2 | |
36 | SA 8230-12860 | Spring | 2 | |
37 | SA 9566-10260 | Ring more | 2 | |
38 | SA 9511-12026 | O-ring more | 2 | |
39 | SA 8230-11110 | Check valve | 2 | |
40 | SA 9324-21317 | Pin | 1 | |
41 | SA 8230-04020 | Plate | 1 | |
42 | SA 8230-00840 | Needle Bearing | 1 | |
43 | SA 8230-01100 | Ring | 1 | |
44 | SA 8230-00610 | Bolt | 3 | |
45 | SA 8230-00160 | O-ring | 1 | |
46 | SA 8230-00190 | O-ring | 2 | |
100 | VOE 14512788 | Sealing Kit | 1 |
Our Company
Loed in Guangzhou China, GZ Belparts Engineering Machinery Co., Ltd was founded in September 2013. Now, we have one shop, one warehouse, and one office as well as a professional team for purchasing, selling, packing, shipping, and after-sale service.
Our main products are Excavator Hydraulic spare parts, Hydraulic main pump, Swing Motor, Travel Motor, Final Drive Ass'y, Swing Ass'y, Swing Gearbox, Travel Gearbox, and other hydraulic items with genuine and aftermarket quality. Until now, our products enjoy a high reputation all over the world and have been exported to more than 125 countries and regions, spreading all over the Middle East, Southeast Asia, Africa, North America, South America, Europe and Oceania with its own brand "Belparts" are widely acclaimed by foreign customers.
