R360-9 Swing Motor
,31NA-10160 Swing Motor

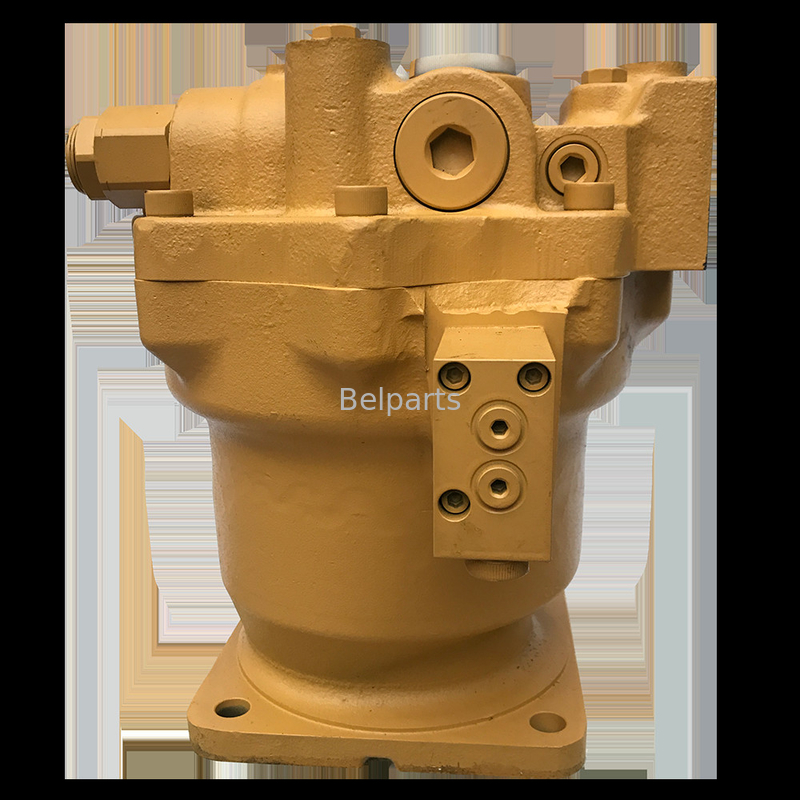

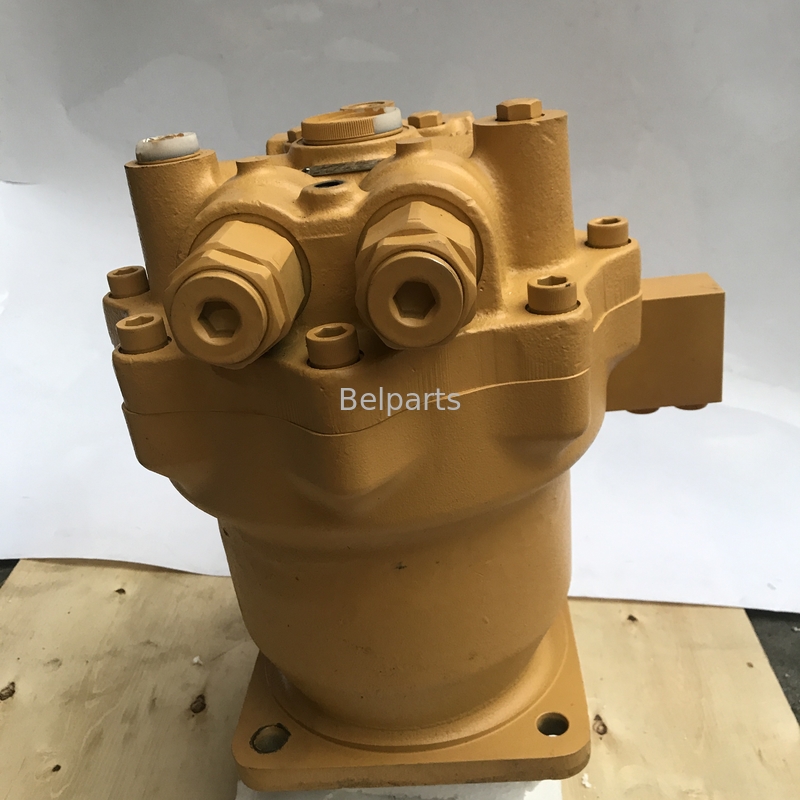

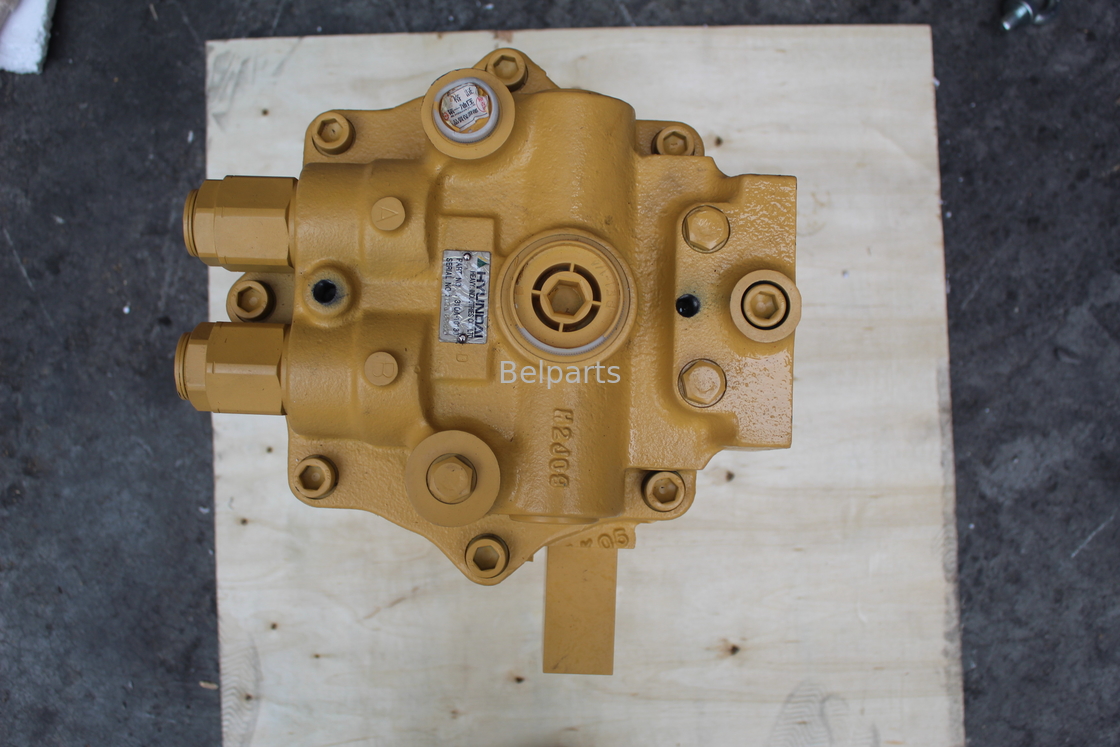

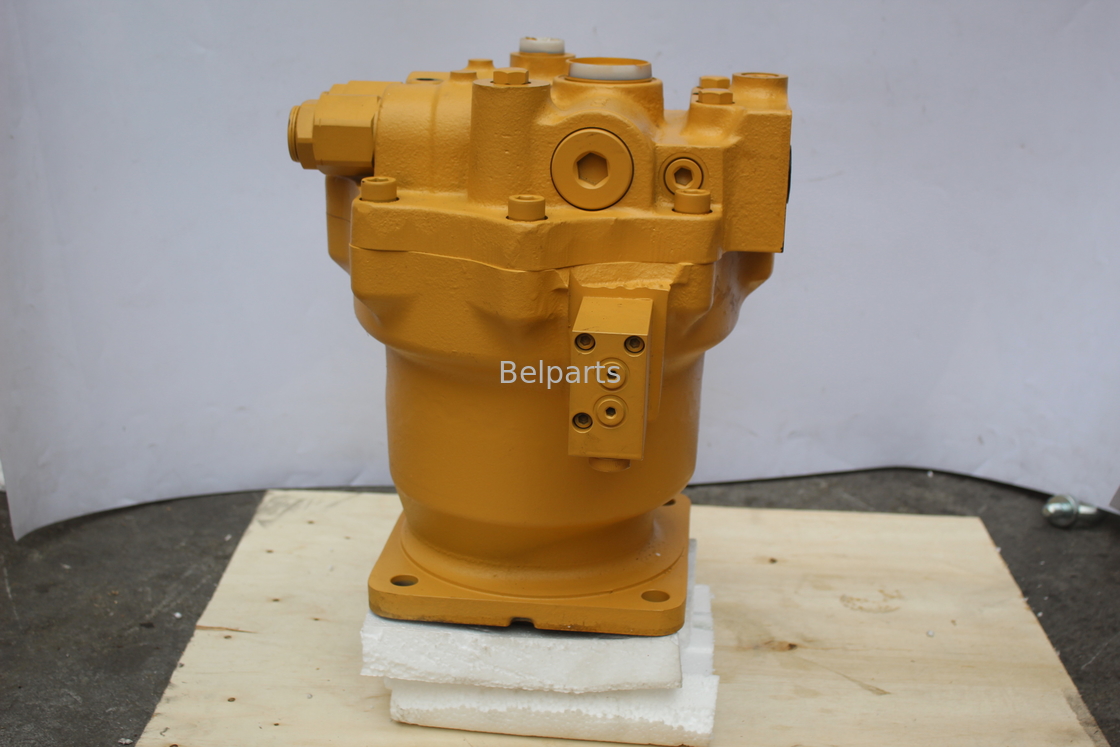

Belparts excavator R360-9 swing motor 31NA-10120 31NA-10160 31QA-10130 slewing motor for hyundai
|
Appliion |
Excavator |
|
Part name |
swing motor |
|
Material |
Steel |
|
Model |
R360-9 |
|
Part number |
31NA-10120 31NA-10160 31QA-10130 |
|
Payment term |
37*36*52 |
|
Delivery |
56KG |
|
Brand |
Belparts |
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| * | 31NA-10120 | SWING UNIT *-1,*-2 |
1 | |
| *-1 | XJDB-00223 | SWING MOTOR UNIT | 1 | |
| 1 | XJDB-00164 | RING-SNAP 0809-198 |
1 | |
| 2 | XJDB-00165 | RING-INNER 1399-210 |
1 | |
| 3 | XJDB-00167 | SEAL-OIL 0722-137 |
1 | |
| 4 | XJDB-00168 | BEARING-T/ROLLER 0671-135 |
1 | |
| N5 | XJDB-00169 | HOUSING 1311-297 |
1 | |
| 6 | XJDB-00170 | PLATE-CAM 1398-153 |
1 | |
| 7 | XJDB-00171 | PLATE-RETURN 1398-154 |
1 | |
| 8 | XJDB-00172 | SPRING-BACKING 1390-174 |
1 | |
| N9 | XJDB-00173 | CYLINDER 1318-182 |
1 | |
| 10 | XJDB-00174 | PISTON ASSY 1321-238 |
9 | |
| 11 | XJDB-00175 | PLATE-LINING 7598-033 |
4 | |
| 12 | XJDB-00176 | PLATE-FREE 7598-034 |
4 | |
| 13 | XJDB-00177 | PISTON 1320-137 |
1 | |
| 14 | XJDB-00178 | O-RING 0200-158 |
1 | |
| 15 | XJDB-00179 | O-RING 0200-159 |
2 | |
| 16 | XJDB-00014 | SPRING 1390-166 |
19 | |
| 17 | XJDB-00180 | RING-TEFLON 0719-072 |
4 | |
| 18 | XJDB-00181 | PLATE-DISK 1390-175 |
4 | |
| 19 | XJDB-00182 | BUSHING 1391-130 |
4 | |
| 20 | XJDB-00017 | CAP 0824-051 |
2 | |
| 21 | XJDB-00018 | O-RING 8202-009 |
2 | |
| 22 | XJDB-00183 | BOLT-SOCKET 0576-061 |
1 | |
| N23 | XJDB-00184 | PISTON 1320-158 |
2 | |
| 24 | XJDB-00222 | COVER 1303-341 |
1 | |
| 25 | XJDB-00015 | PIN-PARALLEL 0522-143 |
2 | |
| 26 | XJDB-00186 | PIN-PARALLEL 0522-145 |
1 | |
| 27 | XJDB-00187 | PLATE-BALANCE 1313-182 |
1 | |
| 28 | XJDB-00188 | BEARING-NEEDLE 0682-136 |
1 | |
| 29 | XJDB-00189 | RING-SNAP 0809-199 |
1 | |
| 30 | XJDB-00190 | CAP 0824-053 |
1 | |
| 31 | XJDB-00032 | O-RING 8202-014 |
3 | |
| 32 | XJDB-00096 | O-RING 0207-002 |
2 | |
| 33 | XJDB-00191 | RELIEF VALVE ASSY 3537-218 |
2 | |
| 34 | XJDB-00073 | BOLT-SOCKET 0576-034 |
7 | |
| 35 | XJDB-00044 | CAP 3526-327 |
2 | |
| 36 | XJDB-00043 | SPRING 3590-288 |
2 | |
| 37 | XJDB-00045 | RING-BACK UP 0859-229 |
2 | |
| 38 | XJDB-00036 | O-RING 8202-021 |
2 | |
| 39 | XJDB-00042 | VALVE-CHECK 3513-154 |
2 | |
| 40 | XJDB-00033 | O-RING 8202-010 |
2 | |
| 41 | XJDB-00031 | RING-BACK UP 0859-320 |
2 | |
| 42 | XJDB-00030 | BYPASS VALVE ASSY 3537-252 |
2 | |
| 43 | XJDB-00038 | VALVE-TIME DELAY 1329-111 |
1 | |
| 44 | XJDB-00037 | BOLT-SOCKET 0576-054 |
3 | |
| 45 | XJDB-00039 | O-RING 0200-010 |
1 | |
| 46 | XJDB-00040 | O-RING 0200-049 |
2 | |
| *-2 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4110 |
1 | |
| N | @ | FUEL INJECTION PIPE & NOZZLE | AR |
Processing&Testing
Delivery
- 1.Outside packing: standard export carton packing;
- 2.According to orders, pack the spare parts one by one in a small plastic bag;
- 3.Put them into small carton boxes one by one;
- 4.Put the packed small carton boxes into bigger carton boxes one by one;
- 5.Put the bigger carton boxes into wooden boxes if necessary especially for
- the shipments by sea.
FAQ
1.What is the warranty time of the products?
The warranty time is 3/6 months based on the item details;We don't provide warranty time for original and used products.
2.What is your delivery time?
Generally, we will arrange the goods within 24 hours after your payment;if not in stock, the delivery time will be communied in advance, usually 3-7 days.
3.What are your main products ?
We are specialized in spare parts for excavator hydraulic system, such as travel motor,swing motor, travel gearbox,swing gearbox,gear parts, hydraulic pump;hydraulic parts,etc.lf you need other excavator parts, we also can supply as yourrequirements.
4.How can I do if there is something wrong with the goods?
First at all, we have confidence in the quality of our products, if you really foundsomething wrong, please provide pictures or video for us and we will check.After it is confirmed, please return the goods to us and we will offer the correct item.
5.How do l pay?
You can pay by T/T, PayPal (for small amount) and trade assurance.
