Place of Origin:
China
Brand Name:
Belparts
Model Number:
ZX470

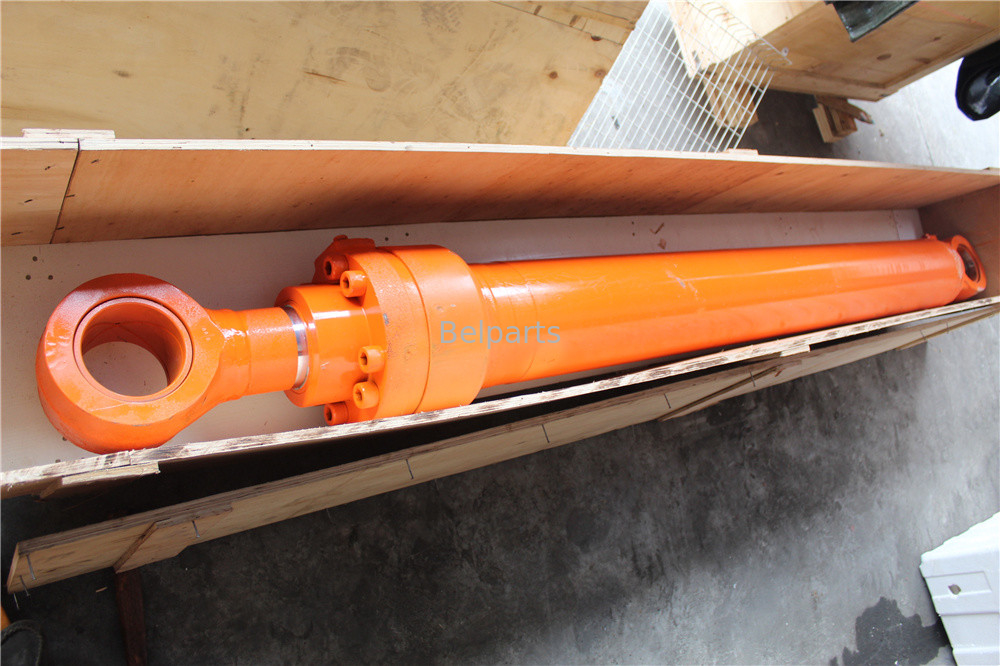

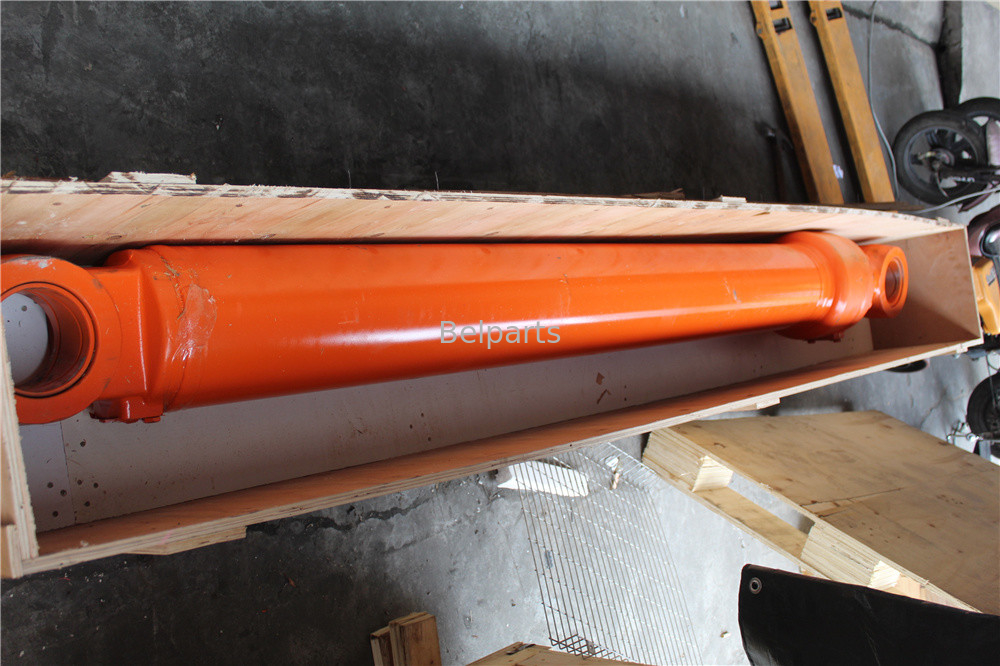

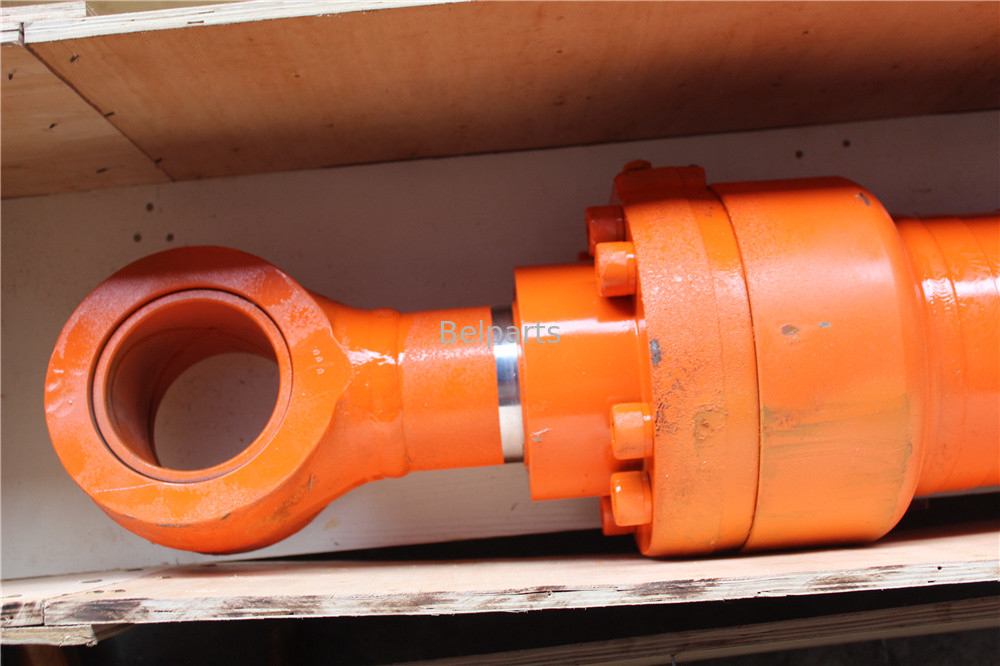

This Hydraulic Cylinder Assy is a great addition to any Hydraulic Cylinder Combination, as it offers a Threaded Rod End Type and a Clevis Rod End Mounting. It also comes in a sturdy Wooden Box package and has a Flange Mounting Type. The Piston Rod Diameter of 50mm makes this Hydraulic Cylinder Make-Up a reliable and durable choice.
| Hydraulic Cylinder Assembly | |
| Hydraulic Cylinder Make-Up | |
| Hydraulic Cylinder Composition | |
| Part Number | 4698938C |
| Model | ZX470 |
| Mounting Type | Flange |
| Rod End Mounting | Clevis |
| Rod End Type | Threaded |
| Piston Rod Diameter | 50mm |
| Package | Wooden Box |
The Belparts ZX470 Hydraulic Cylinder Assy is made up of high-quality components that are designed to provide reliable and efficient performance in a wide range of applications. The hydraulic cylinder is composed of a piston, piston rod, cylinder barrel, and end caps, which work together to convert hydraulic energy into mechanical force.
Hydraulic Cylinder Composition:
The Belparts ZX470 Hydraulic Cylinder Assy is composed of a piston, piston rod, cylinder barrel, and end caps. The piston is the moving component that creates pressure within the cylinder, while the piston rod transfers this pressure to the load. The cylinder barrel houses the piston and provides a sealed environment, while the end caps provide support and help to keep the cylinder in place. All of these components work together to provide reliable and efficient performance.
Hydraulic Cylinder Combination:
The Belparts ZX470 Hydraulic Cylinder Assy is designed to be used in a variety of applications, including construction, mining, and agriculture. Its flange mounting type makes it easy to install and its wooden box packaging ensures that it arrives at its destination intact. The part number for this hydraulic cylinder is 4698938C, and it is specifically designed for use with the ZX470 model. With a piston rod diameter of 50mm, it is capable of providing the necessary force for a wide range of tasks. Whether you need to lift heavy loads, move materials, or power machinery, the Belparts ZX470 Hydraulic Cylinder Assy is a reliable and efficient choice.
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 4637751 | CYL.; BOOM (R) | 1 | ||
| 125 | 4653043 | . CYL. (PIPELESS) | 1 | |
| 1 | 0420101 | .. TUBE; CYL. ASS'Y | 1 | |
| 1A | ... TUBE; CYL. | 1 | ||
| 1B | 0420112 | ... BUSHING; PIN | 1 | |
| 2 | 0972101 | .. ROD; PISTON ASS'Y | 1 | |
| 2A | ... ROD; PISTON | 1 | ||
| 2B | 0420104 | ... BUSHING; PIN | 1 | |
| 3 | 0972102 | .. HEAD; CYL. | 1 | |
| 4 | 0352704 | .. BUSHING | 1 | |
| 5 | 0133103 | .. RING; RETAINING | 1 | |
| 6 | 0972103 | .. RING | 1 | |
| 7 | 0972104 | .. PACKING; U-RING | 1 | |
| 8 | 0352707 | .. RING; BACK-UP | 1 | |
| 9 | 0972105 | .. BRING; WIPER | 1 | |
| 10 | A811160 | .. O-RING | 1 | |
| 11 | 4170546 | .. RING; BACK-UP | 1 | |
| 12 | 0191412 | .. BOLT; SOCKET | 8 | |
| 13 | 0420106 | .. BRG.; CUSHION | 1 | |
| 14 | 0420113 | .. SEAL; CUSHION | 1 | |
| 15 | 0420108 | .. PISTON | 1 | |
| 16 | 4170547 | .. RING; SEAL ASS'Y | 1 | |
| 17 | 0972106 | .. RING; SLIDE | 2 | |
| 18 | 0259307 | .. RING; SLIDE | 2 | |
| 19 | 0972107 | .. NUT | 1 | |
| 20 | 0352715 | .. SCREW; SET | 1 | |
| 21 | 0104404 | .. BALL | 1 | |
| 23 | 4337631 | .. RING; WIPER | 2 | |
| 24 | 0420111 | .. RING; WIPER | 2 | |
| 25 | J75481 | .. FITTING; GREASE | 1 | |
| 26 | 0942407 | . PIPE | 1 | |
| 27 | 0420114 | . PIPE | 1 | |
| 28 | 984614 | . O-RING | 2 | |
| 29 | M341236 | . BOLT; SOCKET | 8 | |
| 30 | 0875612 | . BAND | 1 | |
| 31 | 0352720 | . BAND | 1 | |
| 32 | 0352721 | . BAND | 2 | |
| 33 | J901035 | . BOLT | 4 | |
| 34 | A590910 | . WASHER | 4 | |
| 35 | 0236915 | . HOLDER | 2 | |
| 36 | 0236916 | . BOLT | 1 | |
| 37 | A590914 | . WASHER; SPRING | 1 | |
| 38 | 0309219 | . CLAMP; PIPE | 1 | |
| 39 | J901265 | . BOLT | 1 | |
| 40 | A590912 | . WASHER; SPRING | 1 | |
| 100 | 4653040 | KIT; SEAL | 1 |
Our Hydraulic Cylinder Assy product is backed by a comprehensive technical support and services team to ensure reliable and efficient operation. Our team is available to provide assistance with installation, troubleshooting, and maintenance. We also offer repair and replacement services for damaged or worn components. Our experts can provide guidance on proper usage and maintenance to optimize the performance and lifespan of the product. Additionally, we offer training and education to help customers understand the product and its capabilities.
