ZX270-3 Excavator Travel Motor
,9255876 Excavator Travel Motor
,ZX330-1 Excavator Travel Motor

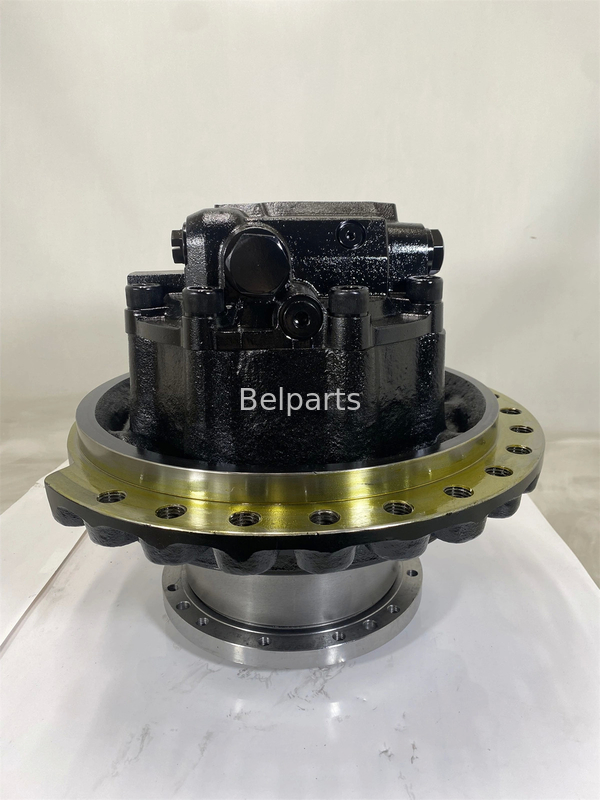

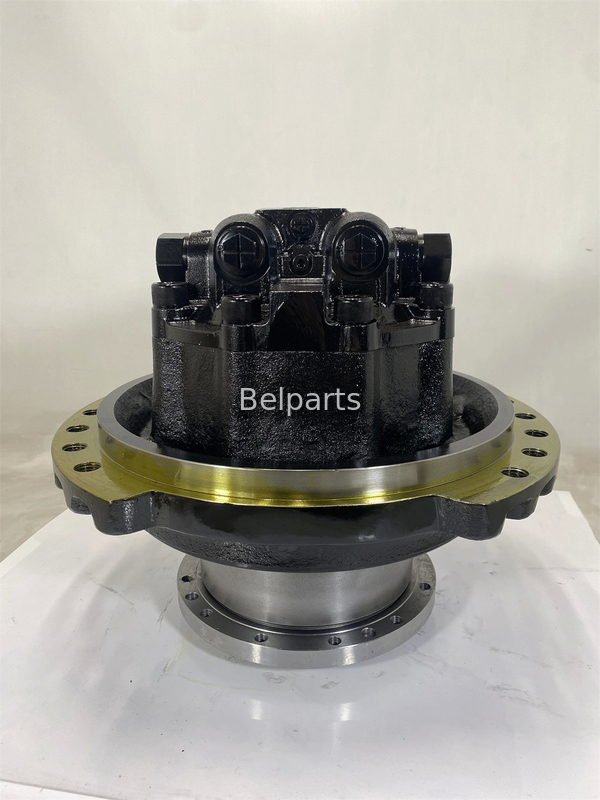

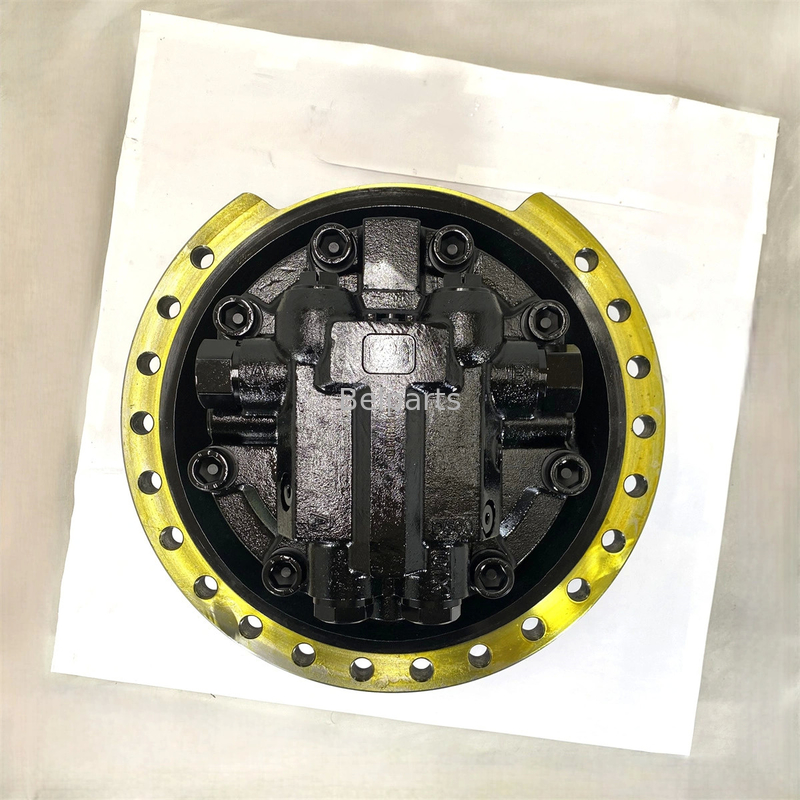

Final drive ZX270-3 ZX330-1 Excavator Travel Motor for 9255876 mini excavator parts
Product name: Travel motor Assy
Place of Origin:China(mainland)
Model:ZX270-3 ZX330-1
Part number:9255876
MOQ:1 PCS
Payment term:T/T & Paypal& trade assurence
Delivery time: Within 3 days after receiving the payment
Packing: Standard exporting packing or as required
List of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 9255880 | TRAVEL DEVICE (FOR ASSEMBLY OF MACHINE) | 1 | ||
| 9256990 | TRAVEL DEVICE (FOR TRANSPORTATION) | 1 | ||
| 00 | 9255876 | . MOTOR; OIL (TRAVEL) (FOR ASSEMBLY OF MACHINE) | 1 | |
| 00 | 9251292 | . MOTOR; OIL (TRAVEL) (FOR TRANSPORTATION) | 1 | |
| 02 | 1033048 | . DRUM | 1 | |
| 03 | 4066695 | . SEAL; GROUP | 1 | |
| 04 | 4629674 | . BRG.; ROL. | 2 | |
| 07 | A590920 | . WASHER; SPRING | 24 | |
| 08 | J932060 | . BOLT | 24 | |
| 09 | 1033227 | . SPROCKET | 1 | |
| 10 | 3094717 | . NUT | 1 | |
| 11 | 4470326 | . PLATE; LOCK | 1 | |
| 12 | J901225 | . BOLT | 2 | |
| 14 | 1022198 | . CARRIER | 1 | |
| 15 | 4401293 | . SPACER | 3 | |
| 16 | 3075003 | . GEAR; PLANETARY | 3 | |
| 17 | 4455088 | . BRG.; NEEDLE | 6 | |
| 18 | 4269470 | . PLATE; THRUST | 6 | |
| 19 | 4269452 | . PIN | 3 | |
| 20 | 4192021 | . PIN; SPRING | 3 | |
| 21 | 3075005 | . GEAR; SUN | 1 | |
| 23 | 1022195 | . GEAR; RING | 1 | |
| 24 | J931640 | . BOLT | 28 | |
| 26 | 1022197 | . CARRIER | 1 | |
| 27 | 3075002 | . GEAR; PLANETARY | 3 | |
| 28 | 4455099 | . BRG.; NEEDLE | 3 | |
| 29 | 4284521 | . PLATE; THRUST | 6 | |
| 30 | 4269451 | . PIN | 3 | |
| 31 | 4197763 | . PIN; SPRING | 3 | |
| 32 | 3074989 | . GEAR; SUN | 1 | |
| 34 | 1022196 | . CARRIER | 1 | |
| 36 | 3075001 | . GEAR; PLANETARY | 3 | |
| 37 | 4455098 | . BRG.; NEEDLE | 3 | |
| 38 | 4284520 | . PLATE; THRUST | 6 | |
| 39 | 4269472 | . PIN | 3 | |
| 40 | 4192020 | . PIN; SPRING | 3 | |
| 41 | 2048000 | . SHAFT; PROP. | 1 | |
| 43 | 2045031 | . COVER | 1 | |
| 44 | 4277474 | . PIN; STOPPER | 1 | |
| 45 | 4278168 | . BRG.; BALL | 1 | |
| 46 | 930451 | . RING; RETAINING | 1 | |
| 48 | 4245797 | . PLUG | 3 | |
| 49 | 4609016 | . BOLT; SEMS | 16 | |
| 51 | . NAME-PLATE | 1 | ||
| 52 | M492564 | . SCREW; DRIVE | 2 |
The excavator travel assembly is the core component for machine movement, consisting of a hydraulic motor, reduction gearbox, sprocket, track chain, idler wheel, carrier roller, and track roller. Its key function is to convert hydraulic energy into mechanical power, enabling stable mobility across challenging terrains.
-
Hydraulic Power Transmission
-
The hydraulic pump transforms engine power into high-pressure oil, which is transmitted to the travel motor via hydraulic lines.
-
The travel motor converts hydraulic energy into rotational kinetic energy, generating high-speed, low-torque output.
-
-
-
Speed Reduction & Torque Amplification
-
The gearbox reduces motor speed through gear sets while significantly increasing torque, ensuring sufficient traction force for the sprocket.
-
-
-
Track Drive Mechanism
-
The sprocket engages with track links to drive the track chain. Carrier rollers and track rollers form a closed-loop track system, while the idler wheel adjusts track tension.
-
Differential control of dual travel motors enables forward/reverse movement, steering, and zero-radius rotation.
-
