Name: Kobelco SK115SR SK135 Excavator Slewing Gearbox YY02-03001 YX32W00002F2
Brand: GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED
SKU: SK115SR SK135
Price: 475.00 USD
Availability: InStock

Home > products > Excavator Swing Gearbox >

Kobelco SK115SR SK135 Excavator Slewing Gearbox YY02-03001 YX32W00002F2

Kobelco SK115SR SK135 Slewing Gearbox

YX32W00002F2 Slewing Gearbox

YY02-03001 Slewing Gearbox

Place of Origin:

Made in China

Brand Name:

Belparts

Model Number:

SK115SR SK135

Request A Quote

Product Details

Model Name:

SK115SR SK135

Part Number:

YY02-03001 YX32W00002F2

Brand:

Kobelco

Material:

Steel

Price:

Negotiable Price

After-sales Services:

Online

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Negotiable price

Packaging Details

Wooden packing

Delivery Time

1-7days

Payment Terms

T/T, Paypal and Trade Assurance

Supply Ability

1000pieces

Excavator R480-9 390B-12100 Swing Drive Gearbox For Hyundai Hydraulic Reduction

Get Best Price

Video

Excavator ZX120-3 Swing Device ZX120 Slewing Gearbox 9277217

Get Best Price

Video

Excavator 9277217 hydraulic swing gearbox ZX120-3 swing device

Get Best Price

Video

Excavator E330D swing reduction E336D excavator 2042679 swing gearbox

Get Best Price

+86 13247509480

belparts02@gmail.com

86-020-32384870

Contact Now

Product Description

Kobelco SK115SR SK135 excavator Slewing Gearbox YY02-03001 YX32W00002F2

Appliion	Excavator
Part name	Belparts swing gearbox
part number	YY02-03001 YX32W00002F2
Model	SK115SR SK135
Brand	kobelco
Payment term	T/T, Paypal, Trade assurance, or as required
Delivery	3 days after the payment received
Shipment	by sea, by air, by express, or as required

Construction & Key Components

The swing gearbox consists of several essential parts:

(A) Hydraulic Motor

Converts hydraulic energy into mechanical rotation.
Common types: Axial piston motors, gerotor motors.

(B) Planetary Gear System

Sun gear: Driven by the motor.
Planet gears: Rotate around the sun gear, mounted on a carrier.
Ring gear: Stationary or rotating, depending on design.
Provides high torque output while maintaining compact size.

(C) Slewing Bearing (Swing Ring)

Large-diameter ball or roller bearing that supports the excavator’s rotation.
Can be internal gear type (common in modern excavators) or external gear type.

(D) Brake System

Hydraulic disc brake (common in modern excavators).
Mechanical brake (used in older models).
Prevents free rotation when the machine is idle.

(E) Housing & Seals

Cast iron or steel housing for durability.
Oil seals and gaskets prevent leakage and contamination.

Pos.	Part No	Qty	Parts name	Comments
1.	YN32W01051P1	[1]	SHAFT	SM
2.	YN32W01052P1	[1]	GEAR	SM
3.	YN32W01117P1	[3]	GEAR	SM Pinton
4.	YN32W01054P1	[1]	GEAR	SM
5.	YN32W01055P1	[4]	GEAR	SM
6.	YN32W01056P1	[1]	RING GEAR	SM
7.	YN32W01123F1	[1]	SPIDER	KOB Spider, Inludes, Refs. 7-1 & 7-2
7-1.	NSS	[1]	NOT SOLD SEPARAT	CON Spider
7-2.	NSS	[3]	NOT SOLD SEPARAT	CON Shaft
8.	YN32W01058P1	[1]	CARRIER,Housing, Spider	SM
9.	YN32W01067P1	[4]	SHAFT	SM
10.	YN32W01030P1	[1]	SPHERICAL BEARING	KOB Superseded by part number: 25Z804D18
11.	YN32W01029P1	[1]	SPHERICAL BEARING	KOB Superseded by part number: R25P0047D9
12.	YN32W01060P1	[1]	OIL SEAL	SM
13.	YN32W01104P1	[1]	BOX	SM Superseded by part number: YN32W00022F2
14.	YN32W01026P1	[3]	THRUST WASHER	KOB
15.	YN32W01028P1	[3]	THRUST WASHER	KOB
16.	YN32W01022P1	[102]	ROLLER	KOB
17.	YN32W01072P1	[4]	NEEDLE BEARING	SM
18.	YN32W01063P1	[8]	WASHER	SM
19.	ZR16X03500	[1]	RING	KOB Retaining -- ID 32.20 x OD 35 x Th 1.6mm
20.	ZR16X09000	[1]	RING	KOB Retaining -- ID 84.50 x OD 108 x 3.0mm
21.	YN32W01082P1	[1]	SLEEVE	SM
22.	ZP26D08025	[4]	PIN	KOB Roll -- OD 08 x 25mm Long
23.	HS23C14135G1	[11]	SCREW,M14 x 135mm	SM M14x2.0x135mm
24.	PV02B01073DB	[2]	CAP	KOB 18.4mm Plastic
25.	YN32W01080D1	[1]	RIGID TUBE	SM 1/2" PT x 112mm Long
26.	ZG31U08000	[1]	HYD CONNECTOR	SM Elbow, 90° -- 1/2" PT
27.	ZE82T08000	[1]	PLUG	KOB 1/2" PT
28.	ZR16X04000	[3]	RING	KOB Retaining -- ID 37 x OD 40 x Th 1.8mm
29.	YN32W01081P1	[1]	OIL SEAL	SM
30.	ZG91V02000	[1]	LUBE NIPPLE,67 Degree x 1/8" PT	KOB 67° x 1/8" PT Superseded by part number: 72283072
31.	2444Z3305	[1]	BREATHER	KOB 1/8"PT

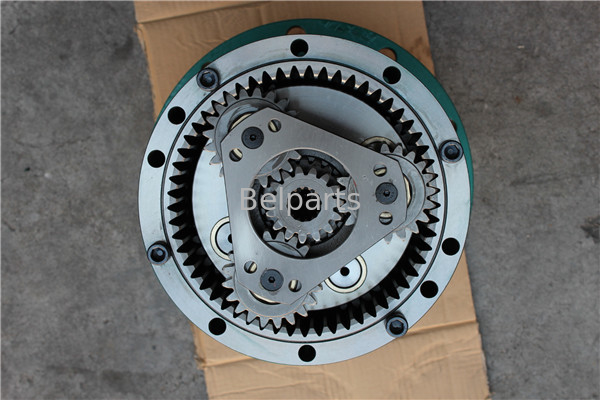

Kobelco SK115SR SK135 Excavator Slewing Gearbox YY02-03001 YX32W00002F2 0

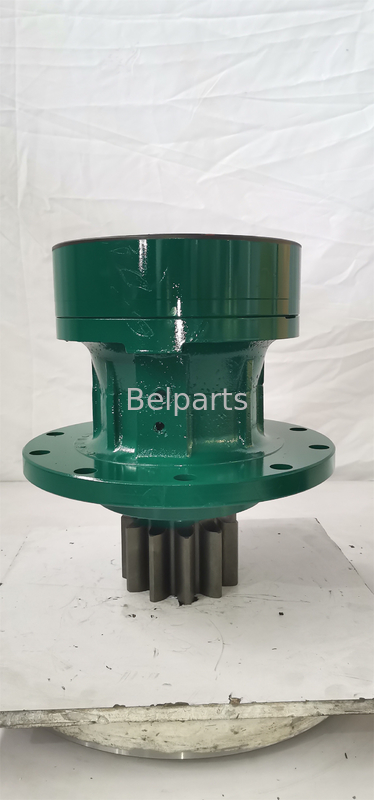

Kobelco SK115SR SK135 Excavator Slewing Gearbox YY02-03001 YX32W00002F2 1

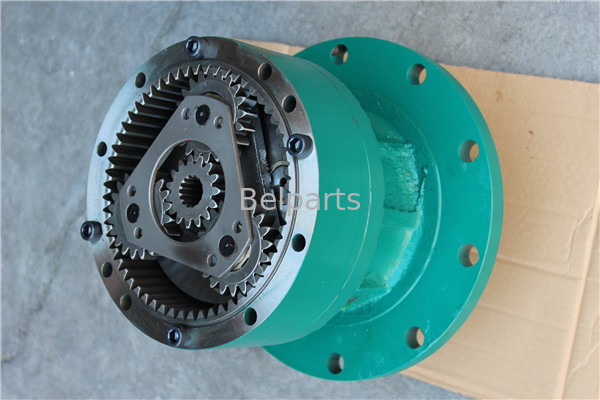

Kobelco SK115SR SK135 Excavator Slewing Gearbox YY02-03001 YX32W00002F2 2
