Quality Belparts Swing Motor EC700CL Slewing Motor 14535293 VOE14535293 For MFC250-032 factory

Belparts Swing Motor EC700CL Slewing Motor 14535293 VOE14535293 For MFC250-032

Name: Belparts Swing Motor EC700CL Slewing Motor 14535293 VOE14535293 For MFC250-032
Brand: BELPARTS MACHINERY LIMITED
SKU: EC700CL
Price: 475.00 USD
Availability: InStock

Place of Origin:Made in China

Brand Name:Belparts

Model Number:EC700CL

Minimum Order Quantity:1 piece

Price:Negotiable price

Payment Terms:T/T, Paypal and Trade Assurance

Supply Ability:1000pieces

Product Details

Highlight:

VOE14535293 Swing Motor

,

EC700CL Swing Motor

,

MFC250-032 Swing Motor

Model: EC700CL

Part Number: 14535293 VOE14535293

Appliion: Excavator Parts

Model Name: Excavator Swing Motor

Brand: Belparts

Payments: T/T, PayPal, Trade Assurance

Port: Huangpu, Guangzhou

Warranty: 6 Months

Product Description

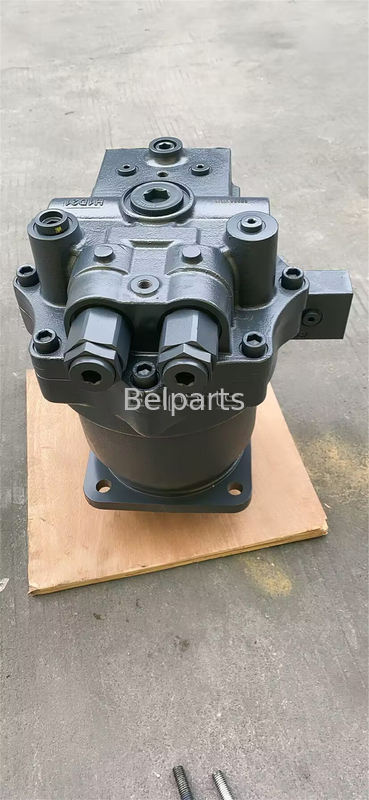

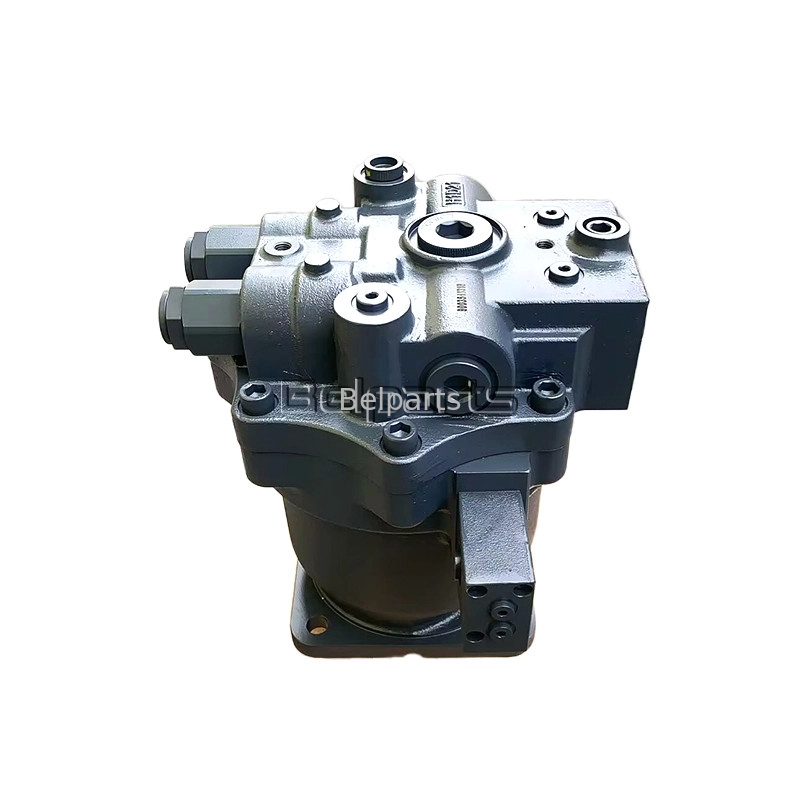

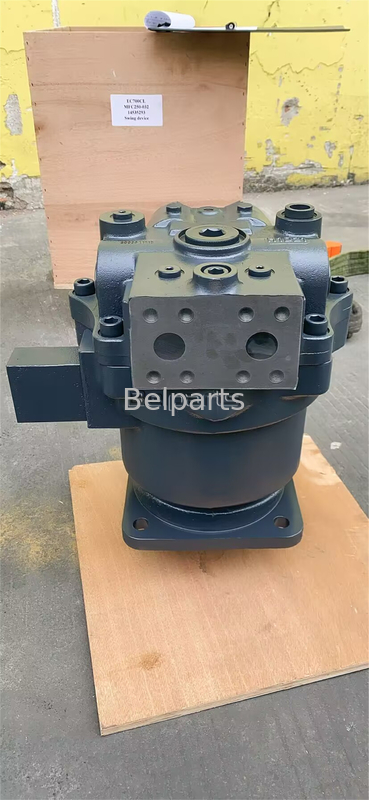

Belparts Swing Motor EC700CL slewing motor 14535293 VOE14535293 for MFC250-032

Appliion:Excavator
Part name:swing motor
Material:Steel
Model:EC700CL
Part number:14535293 VOE14535293
Brand:Belparts

The excavator swing motor is the core component responsible for the machine's 360° rotation, converting hydraulic energy into precise mechanical motion. Our cutting-edge swing motor series combines decades of engineering expertise with advanced materials science to deliver unmatched performance in harsh working conditions.

Featuring a patented axial piston design with hardened steel components, our motors achieve 15% higher torque density than industry standards while maintaining 92% volumetric efficiency. The integrated anti-shock valve system minimizes pressure spikes during sudden stops, extending service life by up to 8,000 hours even in continuous mining operations.

List of spare parts

#	Part No	Part Name	Qty.
#	Part No	Part Name	8279230
	VOE 14535293	Swing Motor	1
1	SA 8230-01090	Ring	1
2	SA 8230-04460	Ring	1
3	SA 8230-00910	Seal	1
4	SA 7177-03140	Roller Bearing	1
5	VOE 14512779	Housing, Casing	1
6	SA 8230-04390	Plate	1
7	SA 8230-04400	Plate	1
8	SA 8230-04300	Spring	1
9	SA 8230-04060	Cylinder	1
10	VOE 14512780	Piston	9
11	SA 8230-22940	Plate	4
12	SA 8230-22950	Plate	4
13	SA 8230-04090	Piston	1
14	SA 8230-00260	O-ring	1
15	SA 8230-00270	O-ring	2
16	SA 8230-04270	Spring	19
17	SA 8230-00901	Seal ring	4
18	SA 8230-04310	Spring	4
19	SA 8230-04350	Spring	4
20	SA 7273-10751	Cap more	2
21	SA 9511-12011	O-ring more	2
22	SA 8230-00630	Bolt	1
23	SA 8230-04120	Piston	2
24	VOE 14512781	Cover	1
25	SA 8230-00560	Pin	2
26	VOE 14508590	Valve	2
27	VOE 14539965	Ring	2
28	SA 9511-12012	O-ring more	2
29	SA 9511-12018	O-ring more	3
30	SA 8230-37030	Cap	1
31	SA 8230-04180	Valve	1
32	VOE 14535294	Relief valve	2
33	SA 9511-12031	O-ring	1
34	SA 8230-00600	Bolt	7
35	SA 8230-11610	Cap	2
36	SA 8230-12860	Spring	2
37	VOE 14880821	Ring more	2
38	SA 9511-12026	O-ring more	2
39	SA 8230-11110	Check valve	2
40	SA 9324-21317	Pin	1
41	SA 8230-04020	Plate	1
42	SA 8230-00840	Needle Bearing	1
43	SA 8230-01100	Ring	1
44	SA 8230-00610	Bolt	1
45	SA 8230-00160	O-ring	3
46	SA 8230-00190	O-ring	2
100	VOE 14535301	Seal	1

Belparts Swing Motor EC700CL Slewing Motor 14535293 VOE14535293 For MFC250-032

FAQ:

What is the warranty time of the products?
The warranty time is 6/12 months based on the item details; We don't provide warranty time for original and used products.
2.What is your delivery time?
Generally, we will arrange the goods within 24 hours after your payment; if not in stock, stocking time is 1-7 days.
3.What are your main products ?
We are specialized in spare parts for excavator hydraulic system, such as travel/swing motor, travel/swing gearbox/parts, hydraulic pump/parts,gear parts,etc.If you need other excavator parts, we also can supply as your requirements.
4.How can I do if there is something wrong with the goods?
First at all, we have confidence in the quality of our products, if you really found something wrong, please provide pictures or video for us and we will check. After it is confirmed, please return the goods to us and we will offer the correct item.
5.How do I pay?
You can pay by T/T,PayPal (for small amount) and alibab trade assurance.
