9136850 hydraulic main pump
,Hitachi ZX300 hydraulic main pump
,9122780 hydraulic main pump

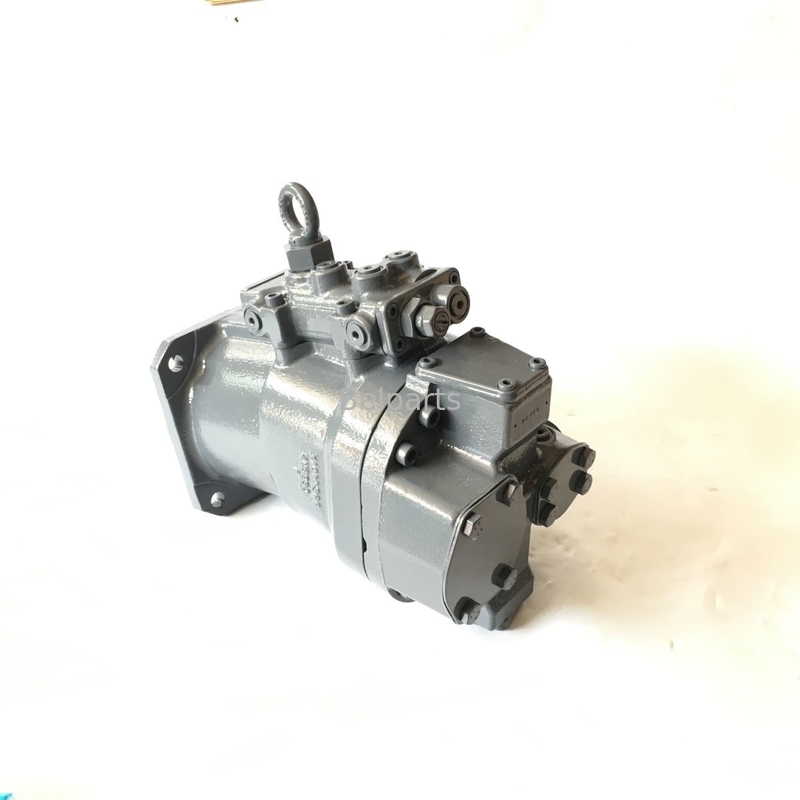

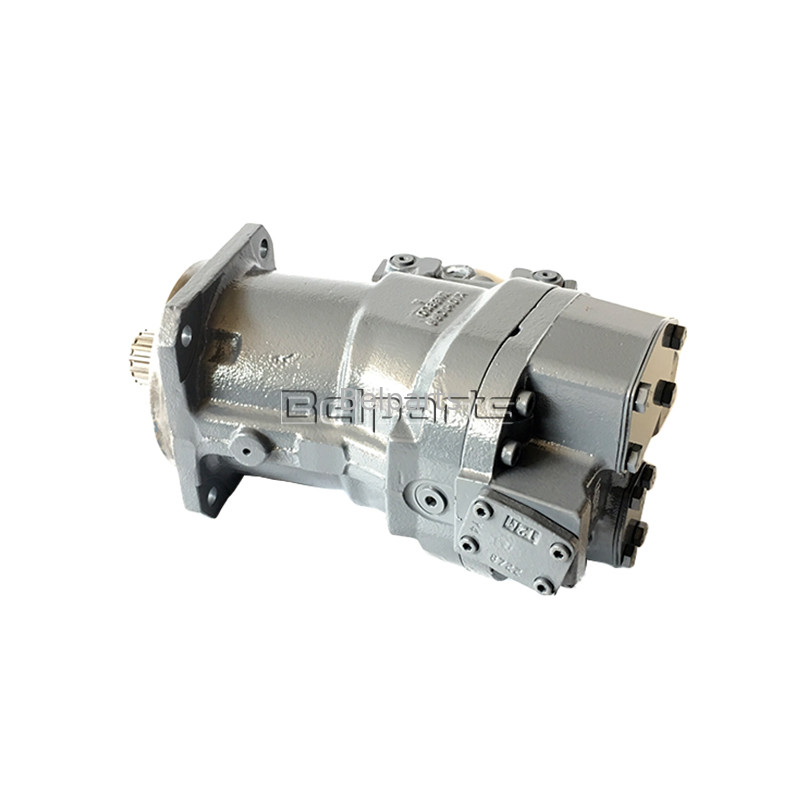

Hitachi ZX300 hydraulic main pump 9122780 9136850 for excavator spare parts
|
Belparts excavator hydraulic main pump |
|
|
Place of Origin: |
China(mainland) |
|
Model: |
ZX300 ZX330 |
|
MOQ: |
1 PCS |
|
Payment term: |
T/T & PayPal |
|
Delivery time: |
Within 2 days after receiving the payment |
|
Packing: |
Standard exporting packing or as required |
List of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 9122780 | PUMP; SINGLE |
2 | ||
| (9136850) | PUMP; SINGLE |
2 | ||
| 02 | 1014184 | . CASING; PUMP | 1 | |
| 03 | 8046112 | . PACKING | 1 | |
| 04 | 2023051 | . DISC; DRIVING | 1 | |
| 06 | 4190694 | . BRG.; ROL. | 1 | |
| 07 | 4209323 | . BRG.; ROL. | 1 | |
| 08 | 3035965 | . SPACER | 1 | |
| 09 | 4191665 | . NUT; BRG. | 1 | |
| 13 | 8049118 | . PISTON | 7 | |
| 13 | 8051275 | . PISTON | 7 | |
| 14 | 2022744 | . ROTOR | 1 | |
| 16 | 8035539 | . SHAFT; CENTER | 1 | |
| 17 | 4184779 | . BALL | 1 | |
| 18 | 4191667 | . RING; RETAINING | 1 | |
| 19 | 4194362 | . SPRING; COMPRES. | 1 | |
| 20 | 4193062 | . RING; RETAINING | 1 | |
| 21 | 4198956 | . PIN | 1 | |
| 23 | 3035966 | . COVER; SEAL | 1 | |
| 24 | 4191664 | . O-RING | 1 | |
| 25 | 4094325 | . RING; RETAINING | 1 | |
| 26 | 4232070 | . SEAL; OIL | 1 | |
| 27 | 9742978 | . VALVE | 1 | |
| 31 | 3039569 | . LINK | 1 | |
| 32 | 9724756 | . LEVER | 2 | |
| 34 | 4179179 | . PIN | 2 | |
| 35 | 4179177 | . PIN | 2 | |
| 36 | 4200227 | . PIN | 1 | |
| 37 | 4179176 | . PIN | 1 | |
| 38 | 4146370 | . RING; RETAINING | 6 | |
| 39 | 1011957 | . HEAD | 1 | |
| 39 | 1011956 | . HEAD | 1 | |
| 41 | 3036326 | . PISTON; SERVO | 1 | |
| 42 | 4193245 | . PIN | 1 | |
| 43 | 4179838 | . SCREW; SET | 1 | |
| 46 | 4099290 | . PIN; SPRING | 2 | |
| 48 | 4180349 | . O-RING | 10 | |
| 49 | M341245 | . BOLT; SOCKET | 8 | |
| 50 | 495841 | . WASHER; SPRING | 8 | |
| 51 | 4108720 | . PLUG | 1 | |
| 51A | 957366 | .. O-RING | 1 | |
| 52 | 4204862 | . STOPPER | 1 | |
| 53 | 955020 | . O-RING | 1 | |
| 59 | 984623 | . O-RING | 1 | |
| 62 | 4216295 | . STOPPER | 1 | |
| 63 | M340820 | . BOLT; SOCKET | 8 | |
| 64 | 4514388 | . WASHER; SPRING | 8 | |
| 66 | 9122781 | . REGULATOR |
1 | |
| 66 | (9136851) | . REGULATOR |
1 | |
| 69 | A810055 | . O-RING | 1 | |
| 70 | 4515041 | . PIN; SPRING | 2 | |
| 75 | 3065868 | . NAME-PLATE | 1 | |
| 76 | M492564 | . SCREW; DRIVE | 2 | |
| 78 | 4211432 | . PLUG | 1 | |
| 79 | 4506424 | . O-RING | 1 | |
| 81 | 9089486 | . PLUG | 1 | |
| 81A | 4509180 | .. O-RING | 1 |
Repair Structure
Belparts hydraulic pumps feature modular repair design with main service units including:
-
Front Cover Module: Contains bearings and shaft seals
-
Rotating Assembly Module: Replaceable as a complete unit
-
Control Valve Module: Independent service unit
-
Rear Cover Module: Contains charge pump and adjustment mechanism
During repair, corresponding modules can be replaced based on fault conditions, significantly reducing repair time and costs.
Company Information
Factory
Exhibition
Delivery&Logistics
-
Packaging Details:
-
1.According to orders, pack the spare parts one by one by oil paper;
-
2.Put them into small carton boxes one by one;
-
3.Put the packed small carton boxes into bigger carton boxes one by one;
-
4.Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea.
-
5. Goods is packed with oil paper and plastic bags inside
-
6.Using wooden case package.
-
7.We support the custom-made demand for package
