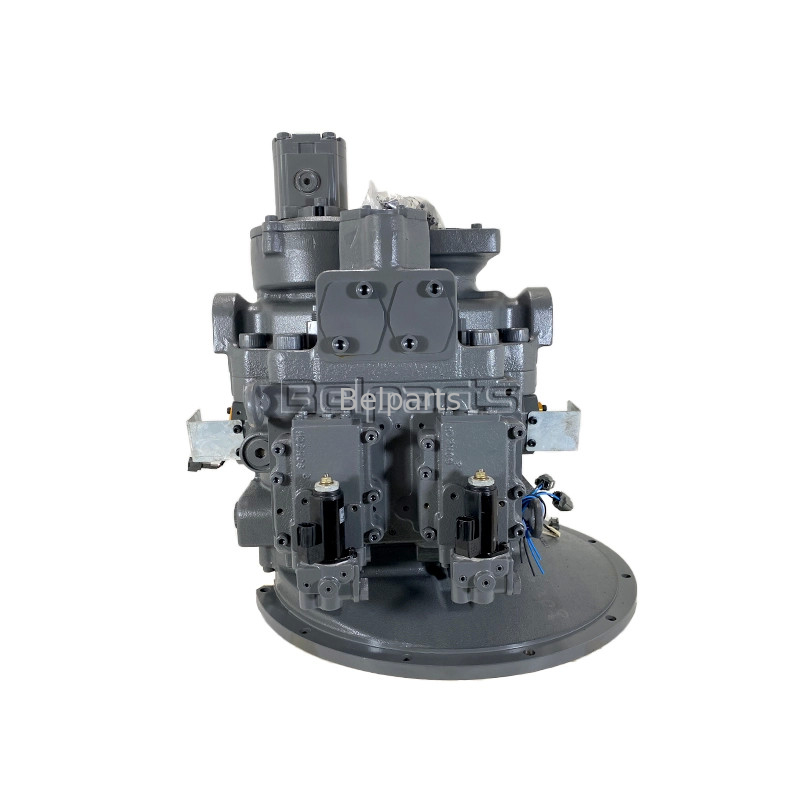

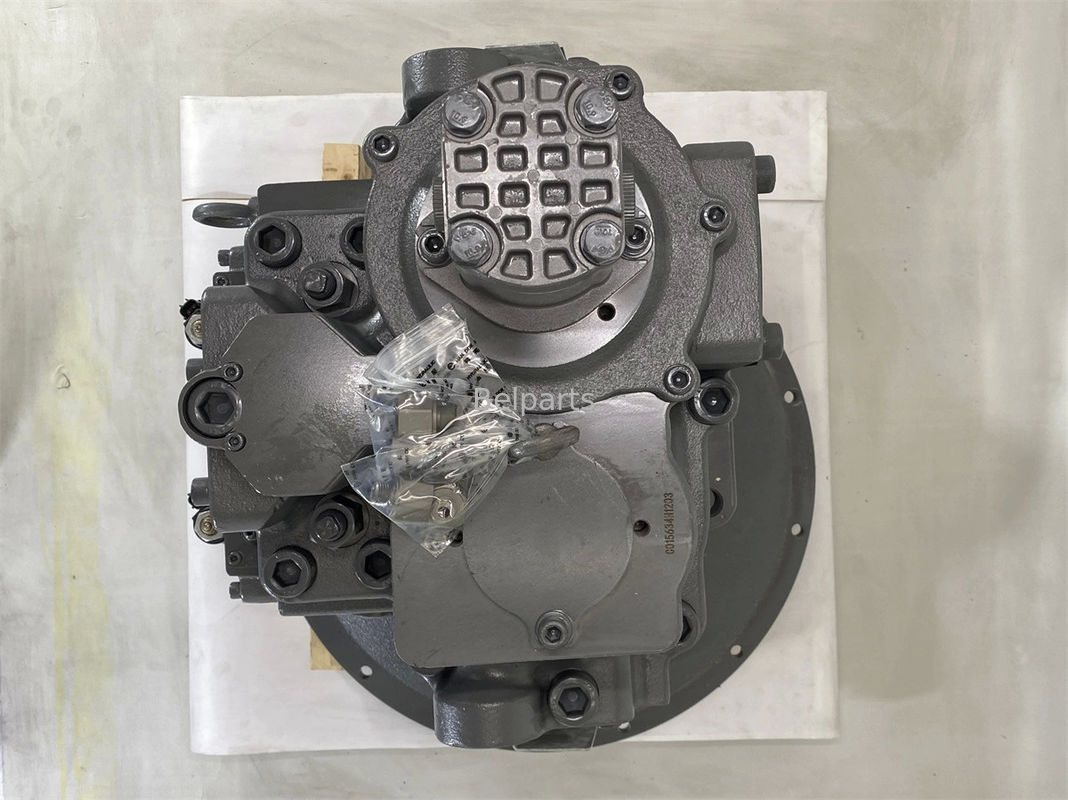

Belparts Excavator K5V200DPH-NXMXR-OE11 Excavator Main Pump ZX450-1 4432815 For Hitachi

Belparts Excavator K5V200DPH-NXMXR-OE11 Excavator Main Pump ZX450-1 4432815 For Hitachi

Belparts excavator main pump

Hitachi excavator main pump

ZX450-1 excavator main pump

Place of Origin:

Made in China

Brand Name:

Belparts

Model Number:

ZX450-1

Contact Us
Request A Quote
Product Details
Model:
ZX450-1
Part Number:
4432815
Appliion:
Crawler Excavator Parts
Name:
Hydraulic Pump Assembly
Power:
Hydraulic
Condition:
New
Place Of Origin:
Guangdong, China
Shipment:
By Express, By Air, By Sea
Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Negotiable price
Packaging Details
Wooden packing
Delivery Time
1-7days
Payment Terms
T/T, Paypal and Trade Assurance
Supply Ability
1000pieces
Product Description

Belparts excavator K5V200DPH-NXMXR-OE11 excavator main pump ZX450-1 4432815 for Hitachi



The hydraulic pump converts mechanical energy into hydraulic energy to power the excavator's hydraulic system. When the engine drives the pump shaft to rotate, the internal pistons or gear sets create oil suction and compression processes, forming a high-pressure oil flow. Belparts hydraulic pumps feature variable displacement design that automatically adjusts output flow according to load requirements, achieving high energy efficiency.



Product name

Belparts excavator hydraulic main pump

Place of Origin:

China(mainland)

Model:

ZX450-1

Part number:

4432815

Payment term:

T/T & PayPal

Delivery time:

Within 2 days after receiving the payment

Packing:

Standard exporting packing or as required





Belparts (GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED), is a foreign trade company integrating development, sales, procurement, warehousing, transportation and service. Founded in September 2013, we have more than twelve years of experience in machinery trade.



Our main products are Excavator Hydraulic Spare Parts, Hydraulic Main Pump, Swing Motor, Travel Motor, Final Drive Ass'y, Swing Device Ass'y, Swing Gearbox, Travel Gearbox, Gears, Regulators, Relief Valve, Fan Motor and other hydraulic items with genuine and aftermarket quality. Until now, our products have been exported to more than 198 countries and regions, spreading all over the Middle East, Southeast Asia, Africa, North America, South America, Europe and Oceania with our own brand "Belparts", which is highly praised by foreign customers and enjoys a high reputation.



List of spare parts

# Part No Part Name Qty. Price request
  9122780 PUMP; SINGLE 2
  (9136850) PUMP; SINGLE 2
02 1014184 . CASING; PUMP 1
03 8046112 . PACKING 1
04 2023051 . DISC; DRIVING 1
06 4190694 . BRG.; ROL. 1
07 4209323 . BRG.; ROL. 1
08 3035965 . SPACER 1
09 4191665 . NUT; BRG. 1
13 8049118 . PISTON 7
13 8051275 . PISTON 7
14 2022744 . ROTOR 1
16 8035539 . SHAFT; CENTER 1
17 4184779 . BALL 1
18 4191667 . RING; RETAINING 1
19 4194362 . SPRING; COMPRES. 1
20 4193062 . RING; RETAINING 1
21 4198956 . PIN 1
23 3035966 . COVER; SEAL 1
24 4191664 . O-RING 1
25 4094325 . RING; RETAINING 1
26 4232070 . SEAL; OIL 1
27 9742978 . VALVE 1
31 3039569 . LINK 1
32 9724756 . LEVER 2
34 4179179 . PIN 2
35 4179177 . PIN 2
36 4200227 . PIN 1
37 4179176 . PIN 1
38 4146370 . RING; RETAINING 6
39 1011957 . HEAD 1
39 1011956 . HEAD 1
41 3036326 . PISTON; SERVO 1
42 4193245 . PIN 1
43 4179838 . SCREW; SET 1
46 4099290 . PIN; SPRING 2
48 4180349 . O-RING 10
49 M341245 . BOLT; SOCKET 8
50 495841 . WASHER; SPRING 8
51 4108720 . PLUG 1
51A 957366 .. O-RING 1
52 4204862 . STOPPER 1
53 955020 . O-RING 1
59 984623 . O-RING 1
62 4216295 . STOPPER 1
63 M340820 . BOLT; SOCKET 8
64 4514388 . WASHER; SPRING 8
66 9122781 . REGULATOR 1
66 (9136851) . REGULATOR 1
69 A810055 . O-RING 1
70 4515041 . PIN; SPRING 2
75 3065868 . NAME-PLATE 1
76 M492564 . SCREW; DRIVE 2
78 4211432 . PLUG 1
79 4506424 . O-RING 1
81 9089486 . PLUG 1
81A 4509180 .. O-RING 1



Belparts Excavator K5V200DPH-NXMXR-OE11 Excavator Main Pump ZX450-1 4432815 For Hitachi 0

Belparts Excavator K5V200DPH-NXMXR-OE11 Excavator Main Pump ZX450-1 4432815 For Hitachi 1



Company Information


Belparts Excavator K5V200DPH-NXMXR-OE11 Excavator Main Pump ZX450-1 4432815 For Hitachi 2

Belparts Excavator K5V200DPH-NXMXR-OE11 Excavator Main Pump ZX450-1 4432815 For Hitachi 3

Belparts Excavator K5V200DPH-NXMXR-OE11 Excavator Main Pump ZX450-1 4432815 For Hitachi 4

Factory


Belparts Excavator K5V200DPH-NXMXR-OE11 Excavator Main Pump ZX450-1 4432815 For Hitachi 5Belparts Excavator K5V200DPH-NXMXR-OE11 Excavator Main Pump ZX450-1 4432815 For Hitachi 6

Exhibition


Belparts Excavator K5V200DPH-NXMXR-OE11 Excavator Main Pump ZX450-1 4432815 For Hitachi 7

Belparts Excavator K5V200DPH-NXMXR-OE11 Excavator Main Pump ZX450-1 4432815 For Hitachi 8

Delivery&Logistics


Belparts Excavator K5V200DPH-NXMXR-OE11 Excavator Main Pump ZX450-1 4432815 For Hitachi 9

Belparts Excavator K5V200DPH-NXMXR-OE11 Excavator Main Pump ZX450-1 4432815 For Hitachi 10

  • Packaging Details:

  • 1.According to orders, pack the spare parts one by one by oil paper;

  • 2.Put them into small carton boxes one by one;

  • 3.Put the packed small carton boxes into bigger carton boxes one by one;

  • 4.Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea.

  • 5. Goods is packed with oil paper and plastic bags inside

  • 6.Using wooden case package.

  • 7.We support the custom-made demand for package
