K3V112DP-XDPR-9Y00 Excavator pump
,hydraulic Excavator pump
,CX210B Excavator pump

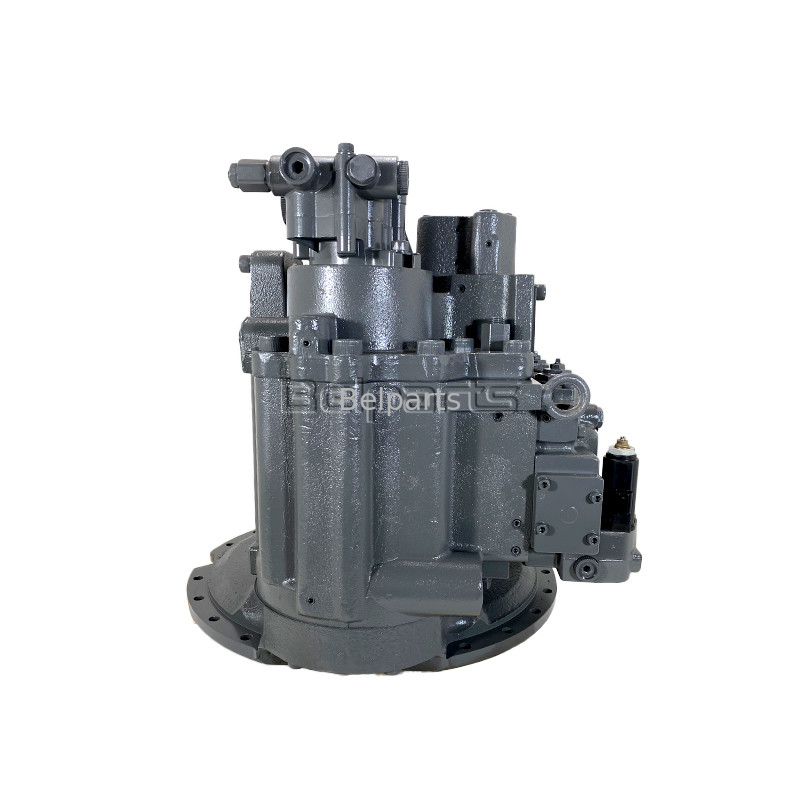

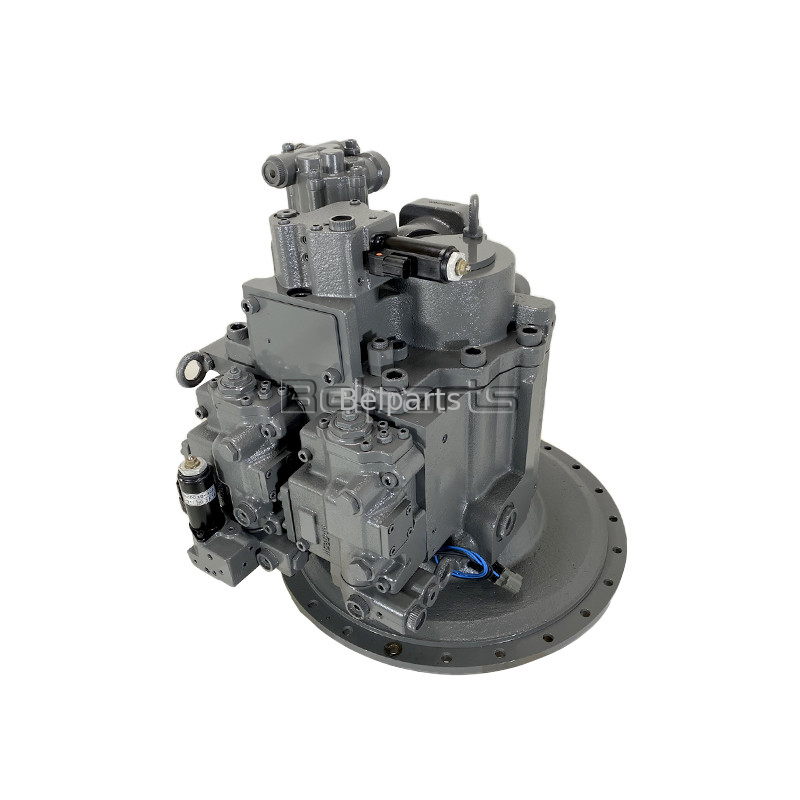

Excavator CX210B KRJ17131 pump assy K3V112DP-XDPR-9Y00 hydraulic main pump
The hydraulic pump converts mechanical energy into hydraulic energy to power the excavator's hydraulic system. When the engine drives the pump shaft to rotate, the internal pistons or gear sets create oil suction and compression processes, forming a high-pressure oil flow. Belparts hydraulic pumps feature variable displacement design that automatically adjusts output flow according to load requirements, achieving high energy efficiency.
|
Belparts excavator hydraulic main pump |
|
|
Place of Origin: |
China(mainland) |
|
Model: |
CX210B |
|
Part number: |
KRJ17131 |
|
Payment term: |
T/T & PayPal |
|
Delivery time: |
Within 2 days after receiving the payment |
|
Packing: |
Standard exporting packing or as required |
| 09 | 4191665 | . NUT; BRG. | 1 | |
| 13 | 8049118 | . PISTON | 7 | |
| 13 | 8051275 | . PISTON | 7 | |
| 14 | 2022744 | . ROTOR | 1 | |
| 16 | 8035539 | . SHAFT; CENTER | 1 | |
| 17 | 4184779 | . BALL | 1 | |
| 18 | 4191667 | . RING; RETAINING | 1 | |
| 19 | 4194362 | . SPRING; COMPRES. | 1 | |
| 20 | 4193062 | . RING; RETAINING | 1 | |
| 21 | 4198956 | . PIN | 1 | |
| 23 | 3035966 | . COVER; SEAL | 1 | |
| 24 | 4191664 | . O-RING | 1 | |
| 25 | 4094325 | . RING; RETAINING | 1 | |
| 26 | 4232070 | . SEAL; OIL | 1 | |
| 27 | 9742978 | . VALVE | 1 | |
| 31 | 3039569 | . LINK | 1 | |
| 32 | 9724756 | . LEVER | 2 | |
| 34 | 4179179 | . PIN | 2 | |
| 35 | 4179177 | . PIN | 2 | |
| 36 | 4200227 | . PIN | 1 | |
| 37 | 4179176 | . PIN | 1 | |
| 38 | 4146370 | . RING; RETAINING | 6 | |
| 39 | 1011957 | . HEAD | 1 | |
| 39 | 1011956 | . HEAD | 1 | |
| 41 | 3036326 | . PISTON; SERVO | 1 | |
| 42 | 4193245 | . PIN | 1 | |
| 43 | 4179838 | . SCREW; SET | 1 | |
| 46 | 4099290 | . PIN; SPRING | 2 | |
| 48 | 4180349 | . O-RING | 10 | |
| 49 | M341245 | . BOLT; SOCKET | 8 | |
| 50 | 495841 | . WASHER; SPRING | 8 | |
| 51 | 4108720 | . PLUG | 1 | |
| 51A | 957366 | .. O-RING | 1 | |
| 52 | 4204862 | . STOPPER | 1 | |
| 53 | 955020 | . O-RING | 1 | |
| 59 | 984623 | . O-RING | 1 | |
| 62 | 4216295 | . STOPPER | 1 | |
| 63 | M340820 | . BOLT; SOCKET | 8 | |
| 64 | 4514388 | . WASHER; SPRING | 8 | |
| 66 | 9122781 | . REGULATOR |
1 | |
| 66 | (9136851) | . REGULATOR |
1 | |
| 69 | A810055 | . O-RING | 1 | |
| 70 | 4515041 | . PIN; SPRING | 2 | |
| 75 | 3065868 | . NAME-PLATE | 1 | |
| 76 | M492564 | . SCREW; DRIVE | 2 | |
| 78 | 4211432 | . PLUG | 1 | |
| 79 | 4506424 | . O-RING | 1 | |
| 81 | 9089486 | . PLUG | 1 | |
| 81A | 4509180 | .. O-RING | 1 |
Maintenance
Regularly replace hydraulic oil and filter element to keep the oil clean.
Regularly check the noise, vibration, and temperature of the hydraulic pump, and promptly address any abnormalities found.
Avoid long-term overload work to prevent hydraulic pump overheating and damage.
development trend
High pressure and high flow rate: Improve the work efficiency and operational capacity of excavators.
Intelligence: Adopting electronic control technology to achieve precise control and energy management of hydraulic pumps.
Energy saving and environmental protection: Develop hydraulic pumps with low noise, low energy consumption, and low emissions.
-
JThis OEM-quality hydraulic pump fits my machine perfectly, and it runs very well on it.
