HPVO118HW-RH26A hydraulic pump assy
,Belparts excavator hydraulic pump assy
,9262319 9262320 hydraulic pump assy

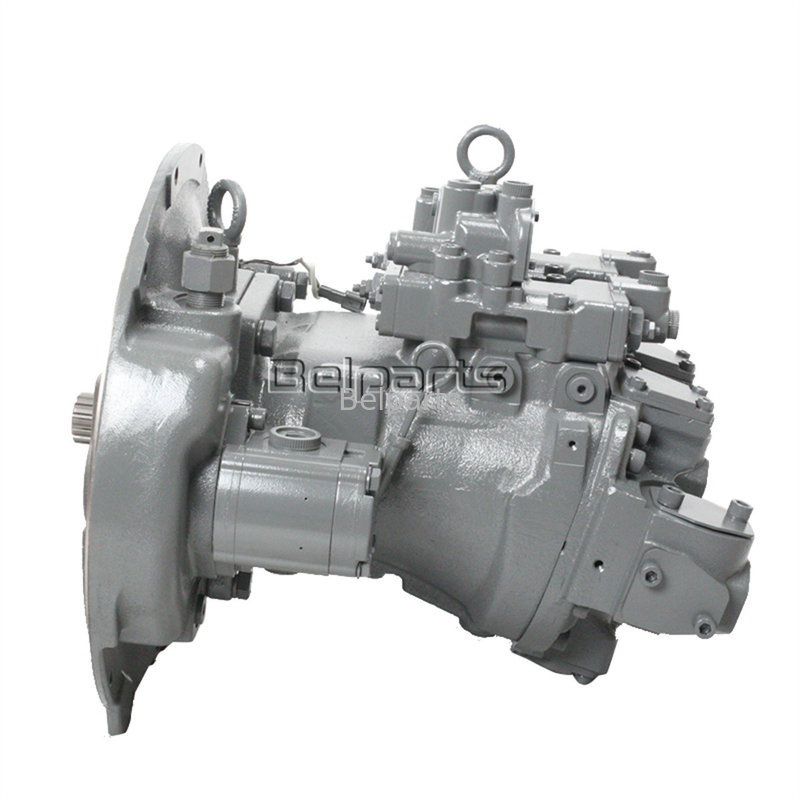

Belparts excavator ZX200-3 9262319 9262320 hydraulic pump assy for HPVO118HW-RH26A
The hydraulic pump converts mechanical energy into hydraulic energy to power the excavator's hydraulic system. When the engine drives the pump shaft to rotate, the internal pistons or gear sets create oil suction and compression processes, forming a high-pressure oil flow. Belparts hydraulic pumps feature variable displacement design that automatically adjusts output flow according to load requirements, achieving high energy efficiency.
|
Belparts excavator hydraulic main pump |
|
|
Place of Origin: |
China(mainland) |
|
Model: |
ZX200-3 |
|
Part number: |
9262319 9262320 3055594 |
|
Payment term: |
T/T & PayPal |
|
Delivery time: |
Within 2 days after receiving the payment |
|
Packing: |
Standard exporting packing or as required |
List of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 9262319 | PUMP DEVICE (FOR ASSEMBLY OF MACHINE) | 1 | ||
| (9262320) | PUMP DEVICE (FOR TRANSPORTATION) | 1 | ||
| 01 | 1033158 | . CASING; GEAR | 1 | |
| 05 | 3063840 | . GEAR; PILOT | 1 | |
| 06 | 3055594 | . SHAFT; GEAR | 1 | |
| 10 | 958740 | . BRG.; BALL | 2 | |
| 11 | 962002 | . RING; RETAINING | 1 | |
| 12 | 991725 | . RING; RETAINING | 1 | |
| 34 | 4099290 | . PIN; SPRING | 2 | |
| 43 | 4310055 | . SEAL; OIL | 1 | |
| 44 | 991725 | . RING; RETAINING | 1 | |
| 61 | 4438059 | . GAUGE; LEVEL | 1 | |
| 62 | 9743977 | . PIPE; GAUGE | 1 | |
| 63 | 9742779 | . PACKING | 1 | |
| 64 | M340816 | . BOLT; SOCKET | 2 | |
| 83 | 94-0649 | . ELBOW | 1 | |
| 84 | 4645330 | . PLUG | 1 | |
| 86 | 4234782 | . PLUG | 1 | |
| 87 | 4092534 | . PLUG | 1 | |
| 87A | 4509180 | .. O-RING | 1 | |
| 103 | . PUMP; UNIT | 1 | ||
| 112 | . NAME-PLATE | 1 | ||
| 113 | M492564 | . SCREW; DRIVE | 2 | |
| 117 | 9256847 | . PUMP; REGULATOR (1) | 1 | |
| 118 | 9256848 | . PUMP; REGULATOR (2) | 1 | |
| 119 | 9218005 | . PUMP; GEAR | 1 | |
| 121 | M341030 | . BOLT; SOCKET | 2 | |
| 122 | 984054 | . WASHER; SPRING | 2 | |
| 123 | 4114402 | . WASHER | 2 | |
| 127 | 4631943 | . PIPE | 1 | |
| 130 | 4293950 | . ELBOW; S | 2 | |
| 130A | 957366 | .. O-RING | 1 | |
| 133 | 4641504 | . COUPLING | 1 | |
| 133A | 4463992 | .. HUB | 1 | |
| 133B | 4334899 | .. SCREW; SET | 2 | |
| 133C | 4101345 | .. PIN; SPRING | 4 | |
| 133D | 4463993 | .. INSERT | 4 | |
| 133E | 4334894 | .. BOLT; SOCKET | 4 | |
| 133F | 4654760 | .. ELEMENT | 1 | |
| 136 | 8058352 | . PACKING | 1 | |
| 137 | J901645 | . BOLT | 6 | |
| 138 | A590916 | . WASHER; SPRING | 6 | |
| 200 | 4451036 | KIT; SEAL | 1 |
The hydraulic pump converts mechanical energy into hydraulic energy to power the excavator's hydraulic system. When the engine drives the pump shaft to rotate, the internal pistons or gear sets create oil suction and compression processes, forming a high-pressure oil flow. Belparts hydraulic pumps feature variable displacement design that automatically adjusts output flow according to load requirements, achieving high energy efficiency.
Product Structure
-
Pump Housing: High-strength cast iron material providing stable support
-
Rotating Assembly: Precisely machined swash plate, cylinder block and piston set
-
Control Valve Group: Includes pressure compensation valve, flow control valve, etc.
-
Shaft Sealing System: Multi-seal design to prevent leakage
-
Bearing System: High-load bearings ensure long-term smooth operation
| 991725 |
-
