9257254 final drive assy
,HMGF40FA final drive assy
,ZX200-3 final drive assy

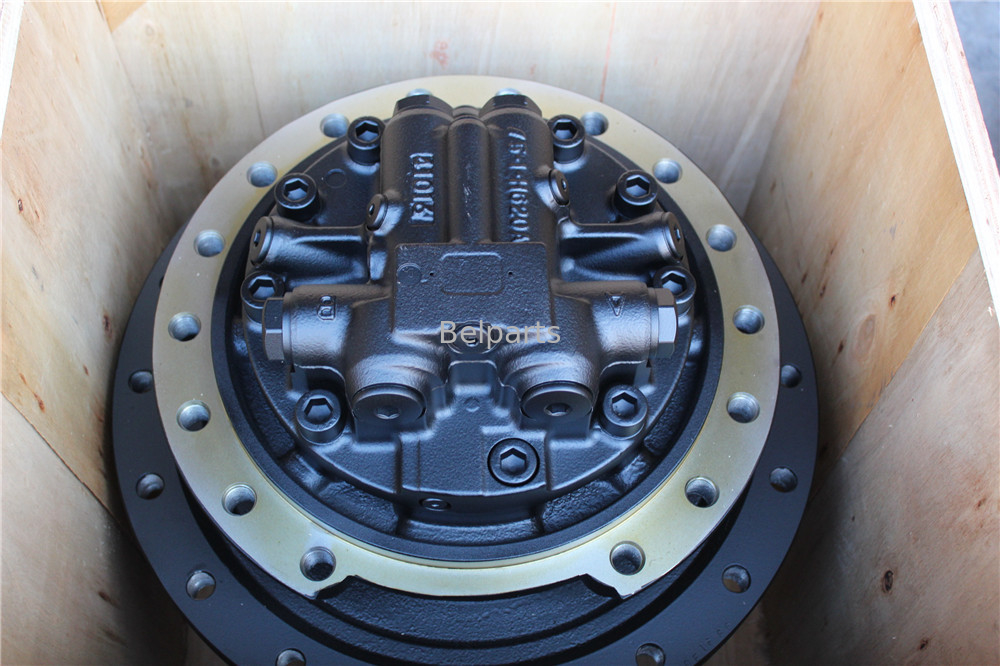

HMGF40FA ZX200-3 final drive assy 9257254 9258325 travel motor assy for excavator parts
The excavatortravel motor assembly is a critical component of the machine’s chassis system, responsible for supporting the entire weight and providing mobility. It typically consists of tracks, sprockets, idlers, rollers (carrier and track), and travel motors. The design of the undercarriage directly impacts the excavator’s stability, traction, and operational efficiency. A high-quality undercarriage ensures smooth movement across rough terrain, minimizes slippage and wear, and offers excellent durability for demanding appliions in mining, construction, and agriculture.
|
Part name |
travel motor assembly |
|
Brand |
hitachi |
|
Model |
ZX200-3 |
|
Part number |
9257254 9258325 |
|
Material |
Steel |
|
Delivery |
3-7days |
|
Package |
Wooden box |
List of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 9257254 | MOTOR; OIL (FOR ASSEMBLY OF MACHINE) | 1 | ||
| (9258325) | MOTOR; OIL (FOR TRANSPORTATION) | 1 | ||
| 00 | 1031123 | . HOUSING | 1 | |
| 01 | 4613831 | . SEAL; OIL | 1 | |
| 03 | 4601724 | . PISTON | 1 | |
| 07 | 2049166 | . SHAFT | 1 | |
| 08 | 959499 | . RING; RETAINING | 1 | |
| 09 | 4600108 | . PIN | 2 | |
| 10 | 4600133 | . BRG.; ROL. | 1 | |
| 15 | 8099321 | . PISTON | 9 | |
| 16 | 3081570 | . RETAINER | 1 | |
| 17 | 4397757 | . BUSHING | 1 | |
| 18 | 2049256 | . PLATE; SWASH | 1 | |
| 19 | 4396747 | . SPRING; COMPRES. | 6 | |
| 20 | 2051451 | . ROTOR | 1 | |
| 22 | 3081593 | . PLATE; FRICTION | 4 | |
| 23 | 3081592 | . PLATE | 4 | |
| 25 | 3081595 | . PISTON | 1 | |
| 26 | 4396775 | . O-RING | 1 | |
| 28 | 4396774 | . O-RING | 1 | |
| 29 | 3081594 | . SPRING; DISC | 1 | |
| 30 | 4420958 | . O-RING | 1 | |
| 31 | 4506415 | . O-RING | 2 | |
| 34 | 9247662 | . VALVE; BRAKE (FOR ASSEMBLY OF MACHINE) | 1 | |
| 34 | (9260003) | . VALVE; BRAKE (FOR TRANSPORTATION) | 1 | |
| 35 | 4631910 | . BRG.; NEEDLE | 1 | |
| 36 | 4630921 | . PIN; KNOCK | 2 | |
| 38 | 3106481 | . PLATE; VALVE | 1 | |
| 40 | M341850 | . BOLT; SOCKET | 9 |
The excavator travel assembly is one of the core components of the excavator, primarily composed of the travel motor, reduction gear, track frame, sprocket, carrier roller, idler, and track. The working principle involves the hydraulic system driving the travel motor, which transmits power to the reduction gear, and then through the sprocket to drive the track, enabling smooth movement of the excavator. The design of the travel assembly fully considers load distribution, power transmission efficiency, and durability, ensuring stable operation under various working conditions.
Our main products are Excavator Hydraulic spare parts, Hydraulic main pump, Swing Motor, Travel Motor, Final Drive Ass'y, Swing Device Ass'y, Swing Gearbox, Travel Gearbox, Gears, Regulators, Relief Valve, Fan motor and other hydraulic items with genuine and aftermarket quality.
Until now, our products enjoy a high reputation and have been exported to more than 125 countries and regions, spreading all over the Middle East, Southeast Asia, Africa, North America, South America, Europe and Oceania with its own brand "Belparts" which are widely acclaimed by foreign customers.
If you are interested in any models, please contact with us with the OEM model code, and we will share with our product alogue and check the prices for you very soon.
