Place of Origin:
Made in China
Brand Name:
Belparts
Model Number:
ZX200-3 ZX200-5G ZX210-5G

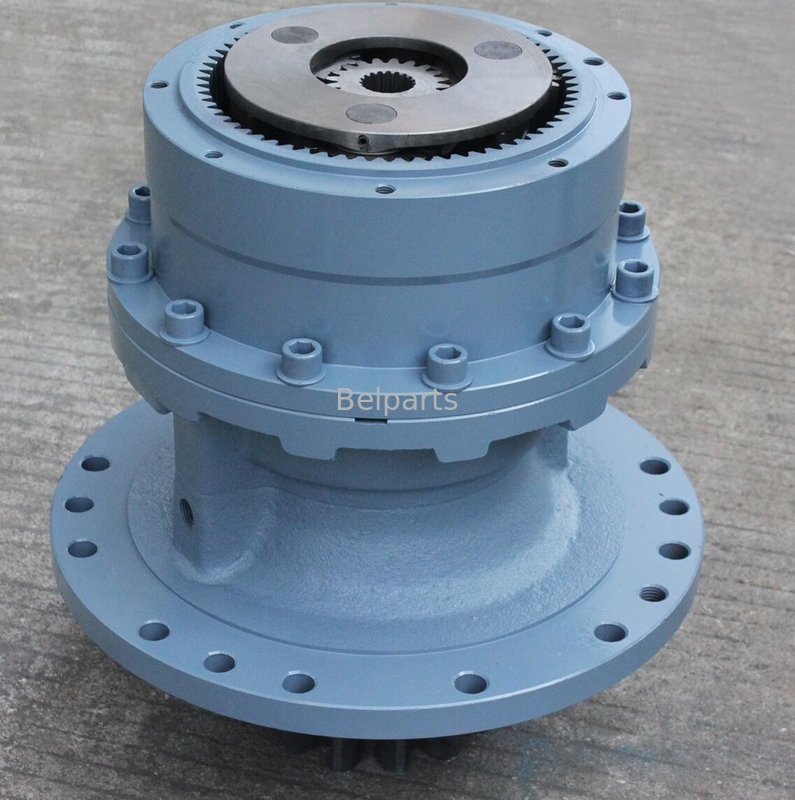

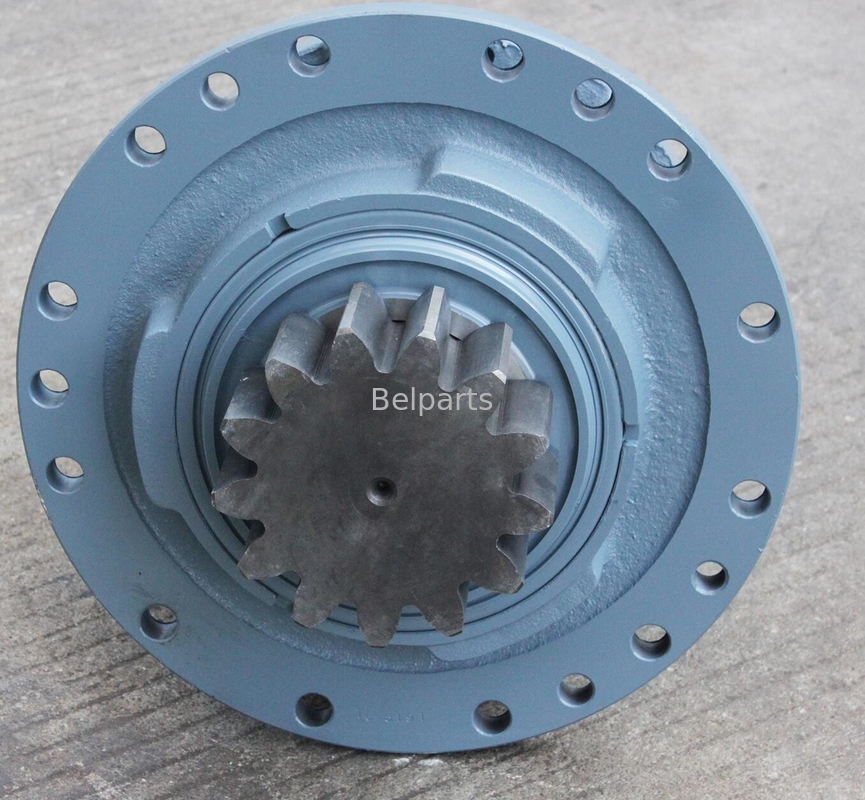

Belparts 4610138 9316591 SWING GEARBOX SWING REDUCTION FOR Hitachi ZX200-3 ZX200-5G ZX210-5G
The excavator slewing gearbox is one of the most critical core components of an excavator, primarily responsible for enabling the rotation of the upper structure. Driven by a hydraulic motor, the slewing gearbox transmits power to the slewing bearing, allowing the excavator to rotate flexibly during operation and perform various complex tasks such as digging, loading, and unloading. The performance of the slewing gearbox directly determines the operational precision, efficiency, and overall stability of the excavator. Therefore, the design and manufacturing of the slewing gearbox must meet extremely high technical requirements, including high load capacity, low noise, long service life, and excellent impact resistance.
PRODUCT DESCRIPTION | ||
Model: 4610138 9316591 SWING DEVICE ASSY/SWING GEARBOX/SWING MOTOR/SWING REDUCTION GEARA FOR Hitachi ZX200-3 ZX200-5G ZX210-5G EXCAVATORS PARTS AFTERMARKET ORIGINAL | category: SWING DEVICE ASSY | |
Brand: TQ | Place of Origin:Other Country | |
Condition: Original & Oem | Warranty: 12 months | |
MOQ: 1 pcs | Production Capacity: 1000pcs /Month | |
Standard or Nonstandard: Standard | Payment Term: L/C,T/T, Western Union, Tradeassurance | |
Delivery Time: 1-3 days (depend on order) | Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS | |
Guarantee: We will check and send detailed pictures to buyers |
Parts on group SWING DEVICE: | ||||
Pos. | Part No | Qty | Parts name | Comments |
9260805 | [1] | SWING DEVICE | ||
0 | 4610138 | [1] | MOTOR;OIL (SWING) | |
1 | 991342 | [1] | RING;RETAINING | |
2 | 9260804 | [1] | T.MISSION (SWING) | I 9262916 <for assembly of machine> |
2 | 9262916 | [1] | T.MISSION (SWING) | <for transportation> |
3 | 4614096 | [8] | BOLT;SOCKET | |
4 | 4449144 | [1] | PIPE | |
5 | 3107447 | [1] | GAUGE;LEVEL | |
6 | 4332658 | [1] | PIPE | |
7 | 4343365 | [1] | CAP | |
9 | +++++++ | [1] | NAME-PLATE | |
10 | M492564 | [2] | SCREW;DRIVE |
Parts on group MOTOR;OIL (SWING): | |||
Pos. | Part No | Qty | Parts name |
4610138 | [1] | MOTOR;OIL | |
10 | 788801 | [1] | PISTON ASSY |
010A. | +++++++ | [9] | PISTON |
010B. | +++++++ | [9] | SHOE |
20 | 788802 | [1] | CASING ASSY |
020A. | +++++++ | [1] | CASING |
020B. | +++++++ | [2] | PIN;SPRING |
51 | 4654845 | [2] | VALVE;RELIEF |
051A. | A811030 | [2] | O-RING |
80 | 788803 | [1] | PLUNGER |
101 | 788804 | [1] | SHAFT |
111 | 788805 | [1] | CYLINDER |
114 | 788806 | [1] | SPRING;PLATE |
123 | 788807 | [1] | RETAINER |
124 | 788808 | [1] | PLATE |
131 | 788809 | [1] | PLATE;VALVE |
301 | 788810 | [1] | CASING |
351 | 409215 | [2] | PLUNGER |
355 | 409216 | [2] | SPRING |
390 | +++++++ | [1] | PLATE |
391 | 625509 | [2] | PIN |
401 | 365318 | [4] | BOLT;SOCKET |
443 | 788811 | [1] | BRG.;ROL. |
444 | 677203 | [1] | BRG.;ROL. |
467 | 629404 | [2] | PLUG |
469 | 692708 | [2] | PLUG |
472 | 1119003 | [1] | O-RING |
487 | 957366 | [2] | O-RING |
488 | 4506428 | [2] | O-RING |
491 | 788813 | [1] | SEAL;OIL |
702 | 788814 | [1] | PISTON |
706 | 353321 | [1] | O-RING |
707 | 425117 | [1] | O-RING |
Company Description
GZ Belparts Engineering Machinery Co., Ltd, founded in September 2013, is a foreign trade company, which is specialized in
procuring and selling excavator parts.
Our main products are excavator hydraulic pump, hydraulic parts, travel motor and gearbox, swing motor, and gearbox.
The founder of our company has more than 9 years experience in importing and exporting and is able to help customers solve various import and export problems. We maintain good long-term relationships with all kinds of accessories factories. Thus, we can help develop and produce new products according to customer’s requirements or samples, providing technical support to customers and offering perfect services.
