Place of Origin:
Made in China
Brand Name:
Belparts
Model Number:
ZX200 ZX240-3 ZX240-5G ZX250-5B

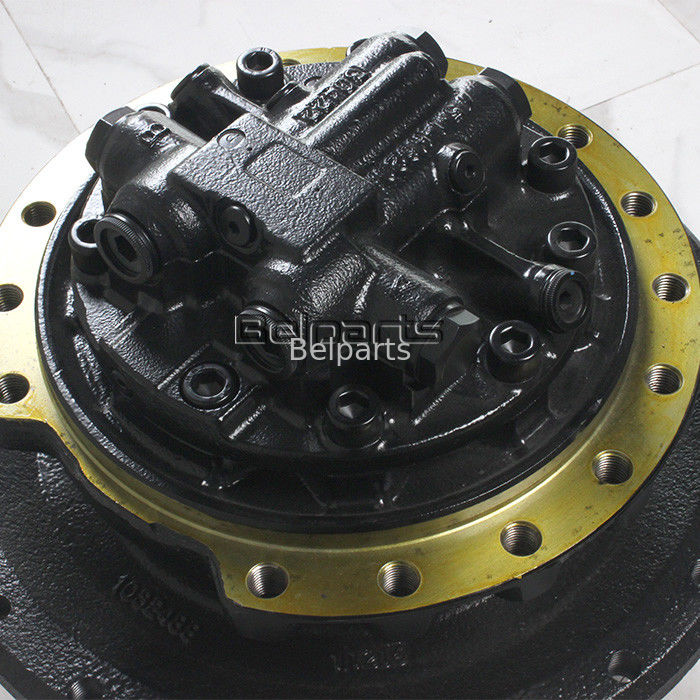

Belparts excavator ZX200 ZX240-3 ZX240-5G ZX250-5B travel motor assembly 9243839 9256989 9242907 9257553 FOR HITACHI
PRODUCT DESCRIPTION |
||
Model: 9243839 9256989 9242907 9257553 FOR HITACHI ZX200 ZX240-3 ZX240-3G ZX240-5G ZX250-5B ZX260-3G EXCAVATOR PARTS TRAVEL ASSEMBLY FINAL DRIVE TRAVEL MOTOR TRAVEL GEARBOX AFTERMARKET ORIGINAL | Ategory: Final Drive |
|
Brand:TQ |
Place of Origin:Other Country |
|
Condition: Original & Oem |
Warranty: 12 months |
|
MOQ: 1 pcs |
Production Capacity: 1000pcs /Month |
|
Standard or Nonstandard: Standard |
Payment Term: L/C,T/T, Western Union, Tradeassurance |
|
Delivery Time: 1-3 days (depend on order) |
Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS |
|
Guarantee: We will check and send detailed pictures to buyers for confirmation |
Pos. | Part No | Qty | Parts name | Comments |
9243839 | [1] | TRAVEL DEVICE | I 9256989 <for assembly of machine> | |
9256989 | [1] | TRAVEL DEVICE | <for transportation> | |
0 | 9242907 | [1] | MOTOR;OIL | I 9257553 <for assembly of machine> |
0 | 9257553 | [1] | MOTOR;OIL | <for transportation> |
2 | 4634693 | [1] | SEAL;GROUP | |
3 | 4246793 | [2] | BRG.;ROL. | |
4 | 1032488 | [1] | DRUM | |
5 | 1032489 | [1] | SPROCKET | |
6 | J932055 | [20] | BOLT | |
7 | A590920 | [20] | WASHER;SPRING | |
9 | 3086531 | [1] | NUT | |
10 | 4436242 | [1] | PIN;KNOCK | |
11 | 4628766 | [6] | BRG.;NEEDLE | Y 4445531 |
11 | 4445531 | [6] | BRG.;NEEDLE | |
12 | 1032487 | [1] | CARRIER | |
13 | 3103053 | [3] | GEAR;PLANETARY | |
15 | 4624830 | [6] | PLATE;THRUST | |
16 | 4139975 | [3] | PIN | |
17 | 4116309 | [3] | PIN;SPRING | |
18 | 3103054 | [1] | GEAR;SUN | |
20 | 1032490 | [1] | GEAR;RING | |
21 | J931640 | [28] | BOLT | |
23 | 1032486 | [1] | CARRIER | |
24 | 4183819 | [1] | SPACER | |
25 | 3103052 | [3] | GEAR;PLANETARY | |
26 | 4445529 | [3] | BRG.;NEEDLE | |
27 | 4210851 | [6] | PLATE;THRUST | |
28 | 4309995 | [3] | PIN | |
29 | 4246358 | [3] | PIN;SPRING | |
30 | 3082149 | [1] | GEAR;SUN | |
32 | 1032485 | [1] | CARRIER | |
33 | 4401293 | [1] | SPACER | |
34 | 3103051 | [3] | GEAR;PLANETARY | |
35 | 4406589 | [3] | BRG.;NEEDLE | |
36 | 4148080 | [6] | PLATE;THRUST | |
37 | 4210853 | [3] | PIN | I YB00000839 |
37 | YB00000839 | [3] | PIN | |
38 | 4173093 | [3] | PIN;SPRING |
The undercarriage is widely used in construction sites, mining, agriculture, and forestry, particularly in environments requiring frequent movement and operation on uneven ground.
To ensure long-term performance, regular maintenance is required:
Lubrication: Apply grease to moving parts to reduce wear.
Track Tension Adjustment: Maintain proper tension to avoid excessive tightness or looseness.
Debris Removal: Clean mud, rocks, and debris from tracks and rollers to prevent damage.
Regular Inspections: Check for component wear and replace damaged parts promptly.
