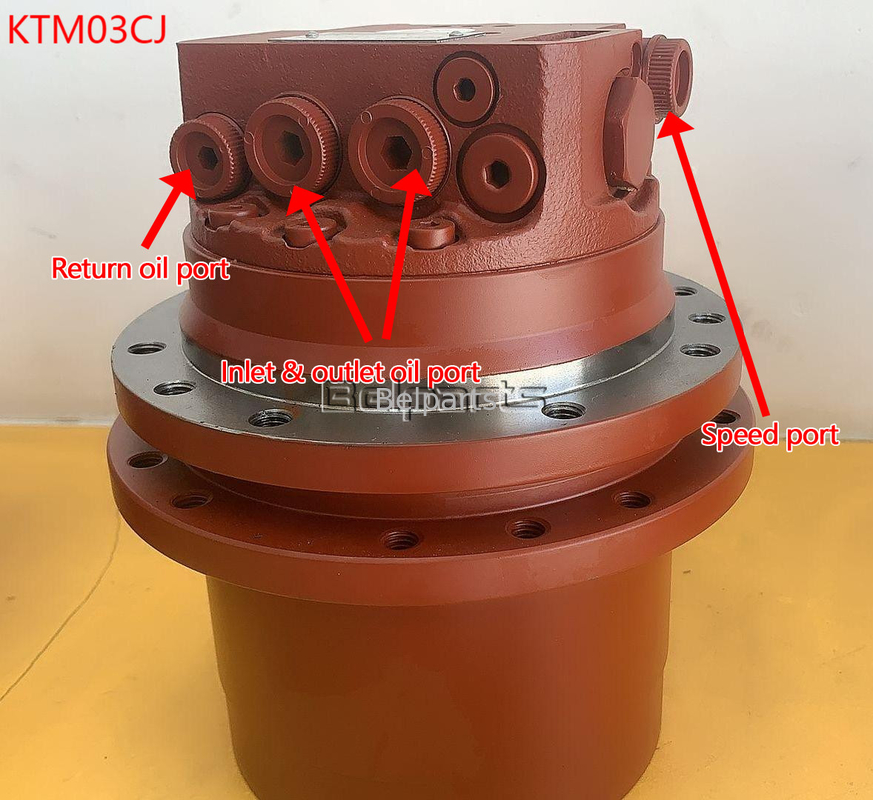

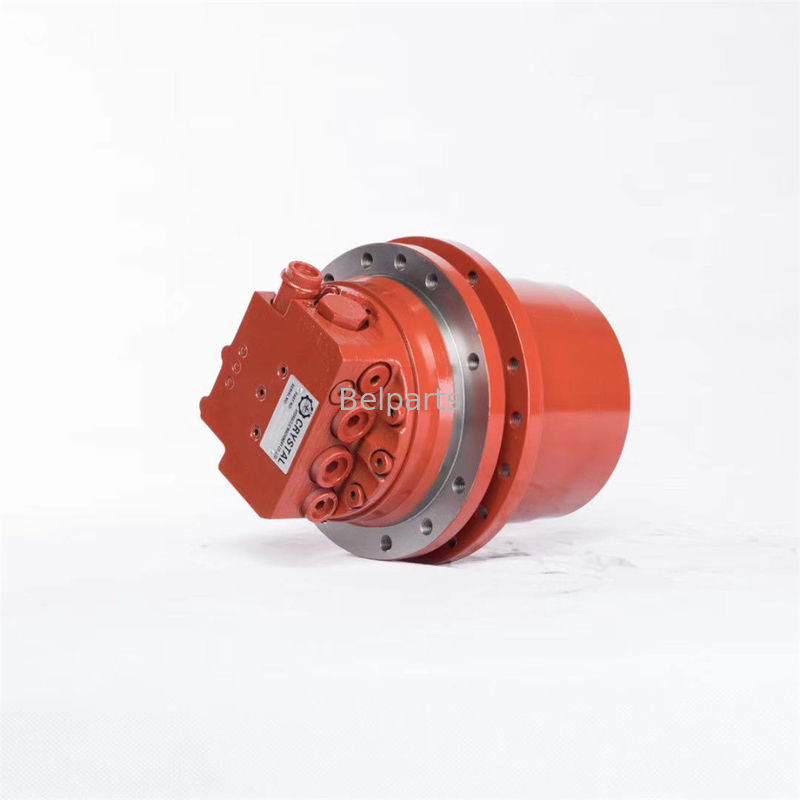

Replacement Final Drive Gearbox TM03CJ MAG18VP-230 KX20 For KYB Excavators

TM03CJ MAG18VP-230 KX20 Replacement final drive gearbox for KYB Excavators

The excavatortravel motor assembly is a critical component of the machine’s chassis system, responsible for supporting the entire weight and providing mobility. It typically consists of tracks, sprockets, idlers, rollers (carrier and track), and travel motors. The design of the undercarriage directly impacts the excavator’s stability, traction, and operational efficiency. A high-quality undercarriage ensures smooth movement across rough terrain, minimizes slippage and wear, and offers excellent durability for demanding applications in mining, construction, and agriculture.

Let's walk through the key parts that make up this vital system. Starting from the ground up: The Track Chains (Tracks) are the "tires," heavy-duty steel belts with links connected by pins and bushings. They provide traction and distribute weight. The Drive Sprockets at the rear are large, toothed wheels driven by the hydraulic motors. Their teeth engage with the track links to pull the machine. The Track Rollers (Bottom Rollers) are mounted along the frame and support the excavator's weight as it rolls along the track. The Carrier Rollers (Top Rollers) sit above the track, keeping it aligned and preventing excessive bouncing. At the very front is the Idler Wheel, a smooth wheel that guides the track and is used to adjust track tension (often via a grease cylinder). The Track Frame is the robust, box-like structure that connects everything to the excavator's main body and often allows for some side-to-side oscillation over uneven ground. Finally, the Track Shoes/Grousers are the removable plates bolted to the track links; their design (like single or triple grousers) affects grip and ground pressure. All these components must work seamlessly together under immense load and stress.
