Name: Belparts excavator 31N9-10010 R320-3 main pump assembly K3V180DT-9N69 hydraulic pump
Brand: GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED
SKU: R320-3
Price: 475.00 USD
Availability: InStock

Home > products > Hydraulic Pump Excavator Parts >

Belparts excavator 31N9-10010 R320-3 main pump assembly K3V180DT-9N69 hydraulic pump

excavator hydraulic pump assembly

R320-3 main pump

K3V180DT hydraulic pump

Place of Origin:

Made in China

Brand Name:

Belparts

Model Number:

R320-3

Request A Quote

Product Details

Model:

R320-3

Part Number:

31N9-10010

Pump Number:

K3V180DT-9N69

Appliion:

Excavator Parts

Name:

Hydraulic Pump Assy

Power:

Hydraulic

Condition:

New/used

Place Of Origin:

Guangdong, China

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Negotiable price

Packaging Details

Wooden packing

Delivery Time

1-7days

Payment Terms

T/T, Paypal and Trade Assurance

Supply Ability

1000pieces

Volvo EC480D K5V200DTH-9N2Y hydraulic main pump assy for excavator spare parts

Get Best Price

Kobelco SK350-8 hydraulic main pump assembly K5V140DTP-YT0K for excavator spare parts

Get Best Price

Kobelco SK460-8 K5V200DPH-YTOK excavator main pump assembly for hydraulic spare parts

Get Best Price

Belparts excavator E320C 320D SBS120 hydraulic main pump assembly

Get Best Price

+86 13247509480

belparts02@gmail.com

86-020-32384870

Contact Now

Product Description

Belparts excavator 31N9-10010 R320-3 main pump assembly K3V180DT-9N69 hydraulic pump

The hydraulic pump is a critical component in excavators, responsible for converting mechanical energy into hydraulic energy. It supplies high-pressure hydraulic oil to various actuators (such as hydraulic cylinders and motors), enabling smooth and efficient operation of the excavator. High-quality hydraulic pumps ensure durability, energy efficiency, and precise control, making them essential for construction, mining, and other heavy-duty applications.

PRODUCT DESCRIPTION
Model: R320-3 K3V180DT-9N69	category: Hydraulic Pump assy
Part number: 31N9-10010 XJBN-00015 XJBN-00153	Place of Origin:China/other country
Condition: Original & Oem	Warranty: 12 months
MOQ: 1 pcs	Production Capacity: 1000pcs /Month
Standard or Nonstandard: Standard	Payment Term: L/C,T/T, Tradeassurance
Delivery Time: 1-3 days (depend on order)	Means of Transport: By Sea, Air or DHL
Guarantee: We will check and send detailed pictures to buyers for confirmation

List of spare parts

#	Part No	Part Name	Qty.
*	31N9-10010	MAIN PUMP	1
*-1	@	FUEL INJECTION PIPE & NOZZLE	1
S012	XJBN-00567	BLOCK-CYLINDER	2
111	XJBN-00015	SHAFT-DRIVE(F)	1
113	XJBN-00153	SHAFT-DRIVE(R)	1
114	XJBN-00367	COUPLING-SPLINE	1
123	XJBN-00017	BEARING-ROLLER	2
124	XJBN-00018	BEARING-NEEDLE	2
127	XJBN-00019	SPACER-BEARING	3
S151	XJBN-00566	PISTON	1
S152	XJBN-00565	SHOE	1
153	XJBN-00020	PLATE-SET	2
156	XJBN-00564	BUSHING-SPHERICAL	2
157	XJBN-00541	SPRING-CYLINDER	18
211	XJBN-00023	PLATE-SHOE	2
S212	XJBN-00012	PLATE-SWASH	1
S214	XJBN-00013	BUSHING-TILTING	1
251	XJBN-00560	SUPPORT-S.P.	2
261	XJBN-00025	COVER(FR)-SEAL	1
271	XJBN-00026	CASING-PUMP	2
312	XJBN-00027	BLOCK-VALVE	1
S313	XJBN-00557	PLATE-VALVE(R)	1
S314	XJBN-00556	PLATE-VALVE(L)	1
325	XJBN-00380	CASING-VALVE	1
401	XJBN-00028	SCREW	8
406	XJBN-00355	SCREW-HEX SOC HD	4
466	XJBN-00356	PLUG	2
468	XJBN-00357	PLUG	3
490	XJBN-00032	PLUG	30
S531	XJBN-00369	PIN-TILTING	1
532	XJBN-00033	PISTON-SERVO	2
534	XJBN-00034	STOPPER(L)	2
535	XJBN-00035	STOPPER(S)	2
541	XJBN-00036	SEAT	4
543	XJBN-00037	STOPPER 1	2
544	XJBN-00039	STOPPER 2	2
545	XJBN-00359	BALL-STEEL	4
S548	XJBN-00360	PIN-FEED BACK	1
K702	XJBN-00040	O-RING	2
K710	XJBN-00041	O-RING	1
K717	XJBN-00042	O-RING	2
K719	XJBN-00043	O-RING	2
K724	XJBN-00044	O-RING	16
K725	XJBN-00362	O-RING	4
K727	XJBN-00283	O-RING	1
K728	XJBN-00363	O-RING	3
K732	XJBN-00047	O-RING	2
K774	XJBN-00906	SEAL-OIL	1
K789	XJBN-00049	RING-BACK UP	2
K792	XJBN-00050	RING-BACK UP	2
808	XJBN-00364	NUT	4
824	XJBN-00052	RING-SNAP	2
885	XJBN-00053	PIN-2	2
886	XJBN-00365	PIN-SPRING	4
901	XJBN-00055	BOLT-EYE	2
953	XJBN-00654	SCREW-SET	2
954	XJBN-00057	SCREW-SET	2
981	XJBN-00391	NAME PLATE	1
983	XJBN-00341	PIN	2
*-2	XJBN-00656	REGULATOR	1
*-3	XJBN-00655	GEAR PUMP	1
011	XJBN-00563	PISTON ASSY SEE ILLUST	18
013	XJBN-00562	CYLINDER ASSY-RH SEE ILLUST	1
014	XJBN-00561	CYLINDER ASSY-LH SEE ILLUST	1
030	XJBN-00011	SWASH PLATE ASSY SEE ILLUST	2
530	XJBN-00371	TILTING PIN ASSY SEE ILLUST	2
K	XJBN-01108	SEAL KIT-PUMP UNIT SEE ILLUST	1

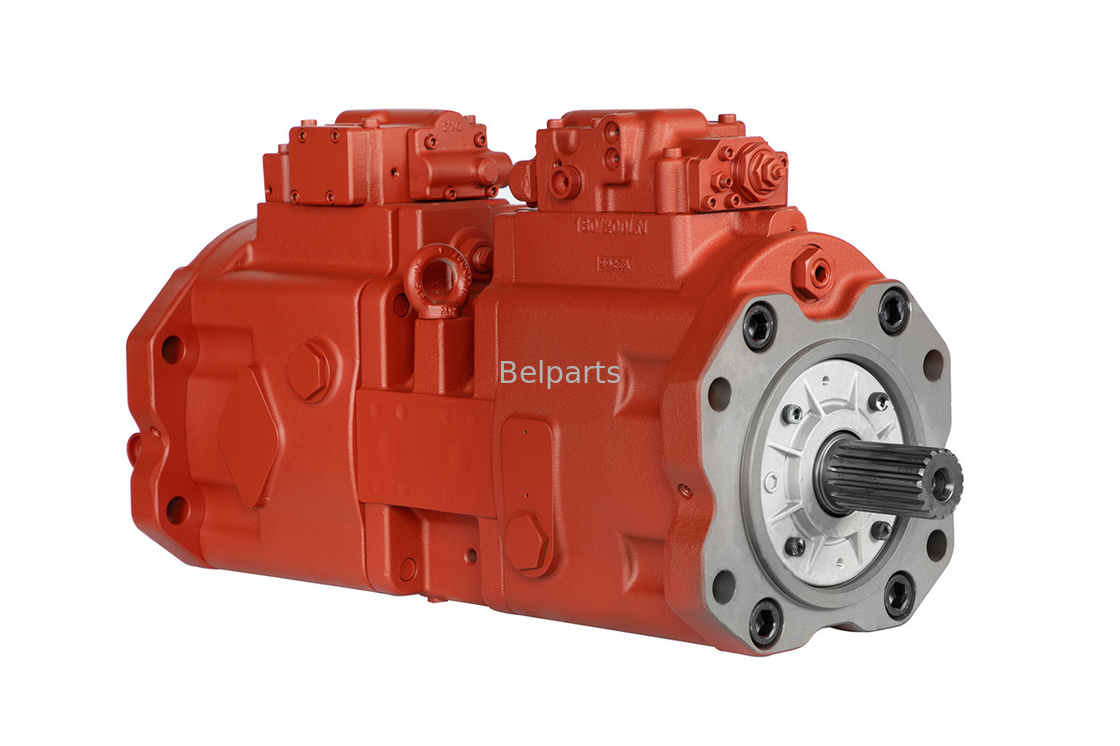

Belparts excavator 31N9-10010 R320-3 main pump assembly K3V180DT-9N69 hydraulic pump 1

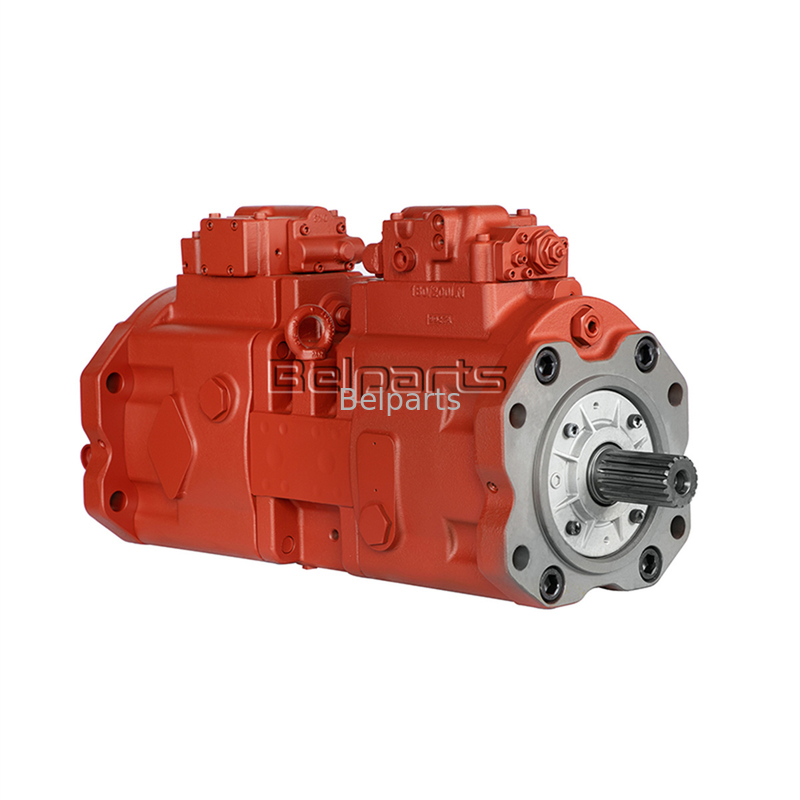

Belparts excavator 31N9-10010 R320-3 main pump assembly K3V180DT-9N69 hydraulic pump 2

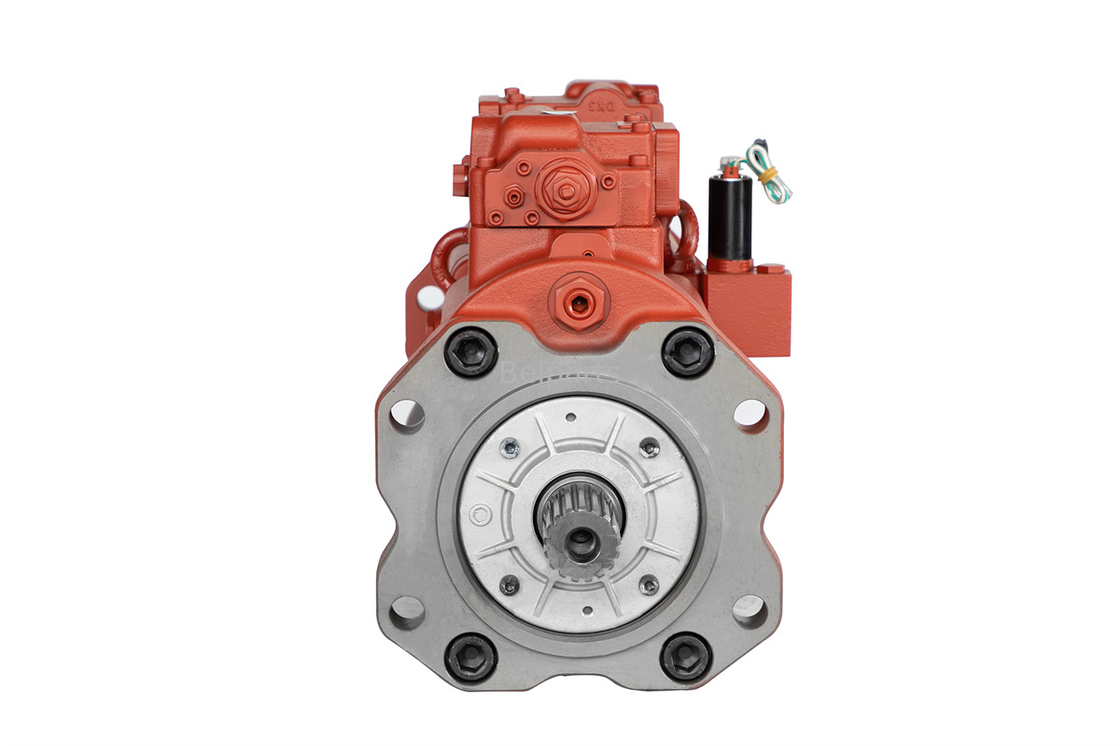

Belparts excavator 31N9-10010 R320-3 main pump assembly K3V180DT-9N69 hydraulic pump 3
