Excavator spare parts K3V112DT-9NC9 hydraulic pump assembly XE195 XE210 XE215 XE230 XE240 hydraulic pump assembly
Excavator hydraulic pump assembly
,K3V112DT-9NC9 hydraulic pump
,XE195 excavator hydraulic pump

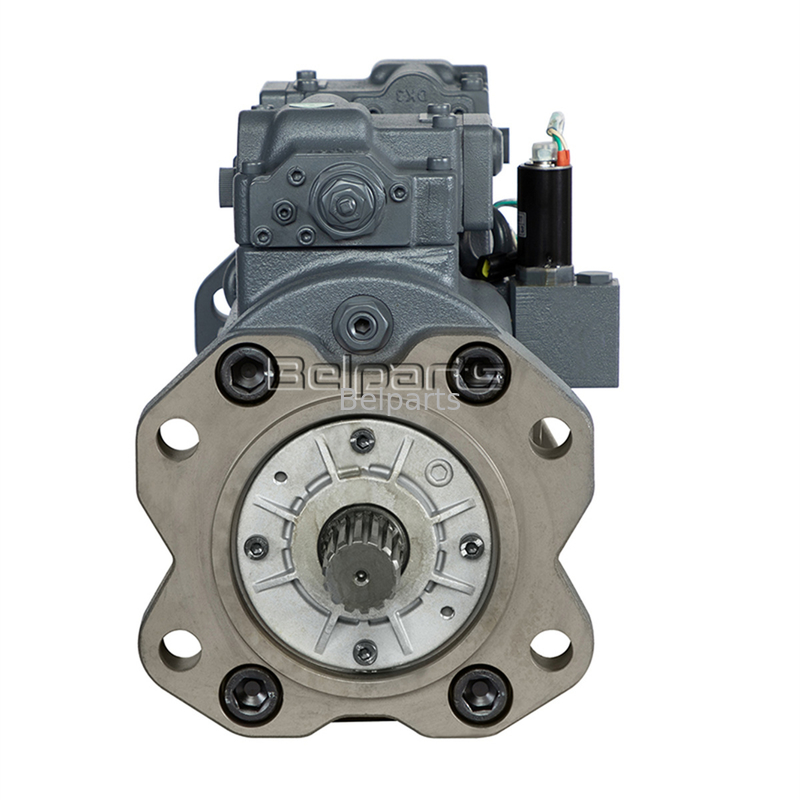

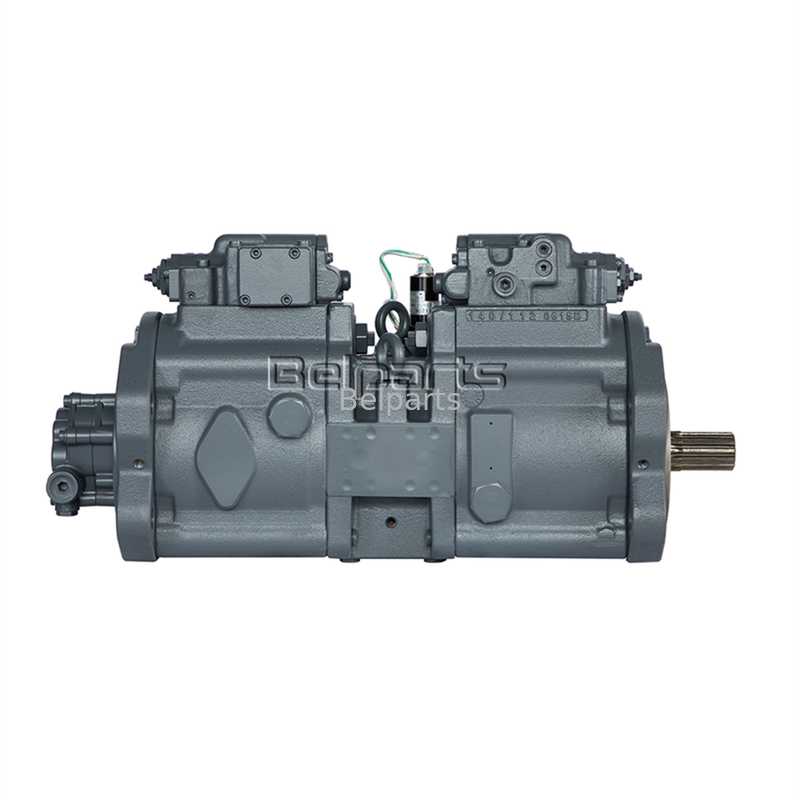

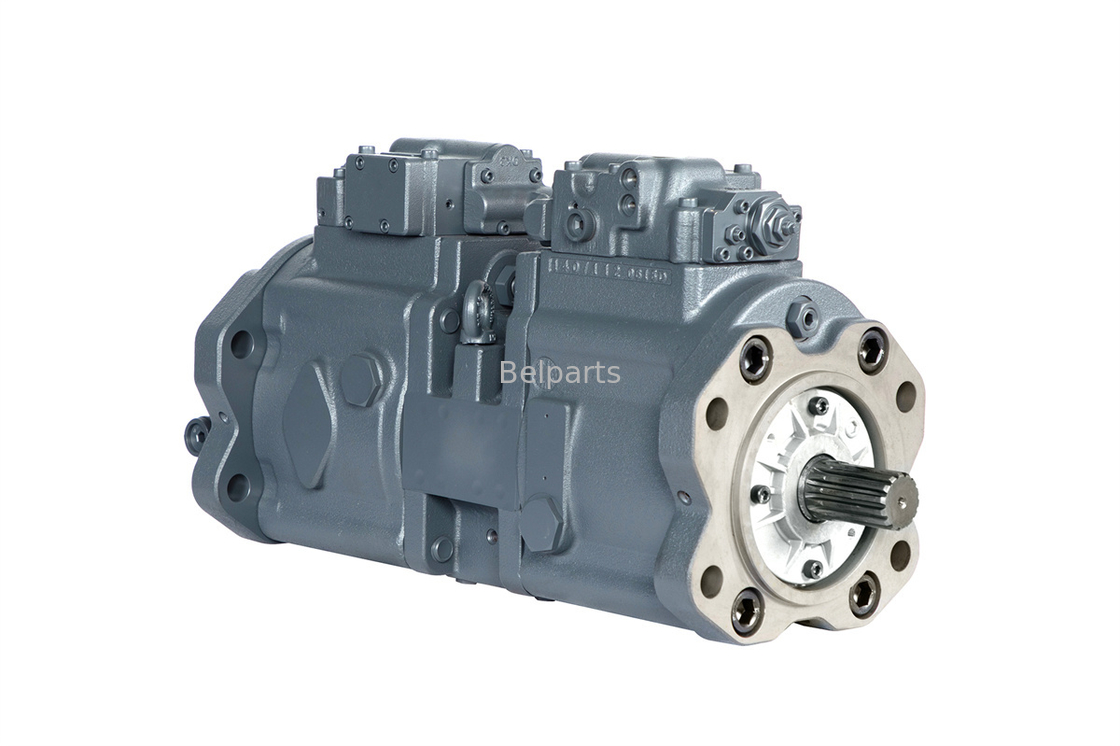

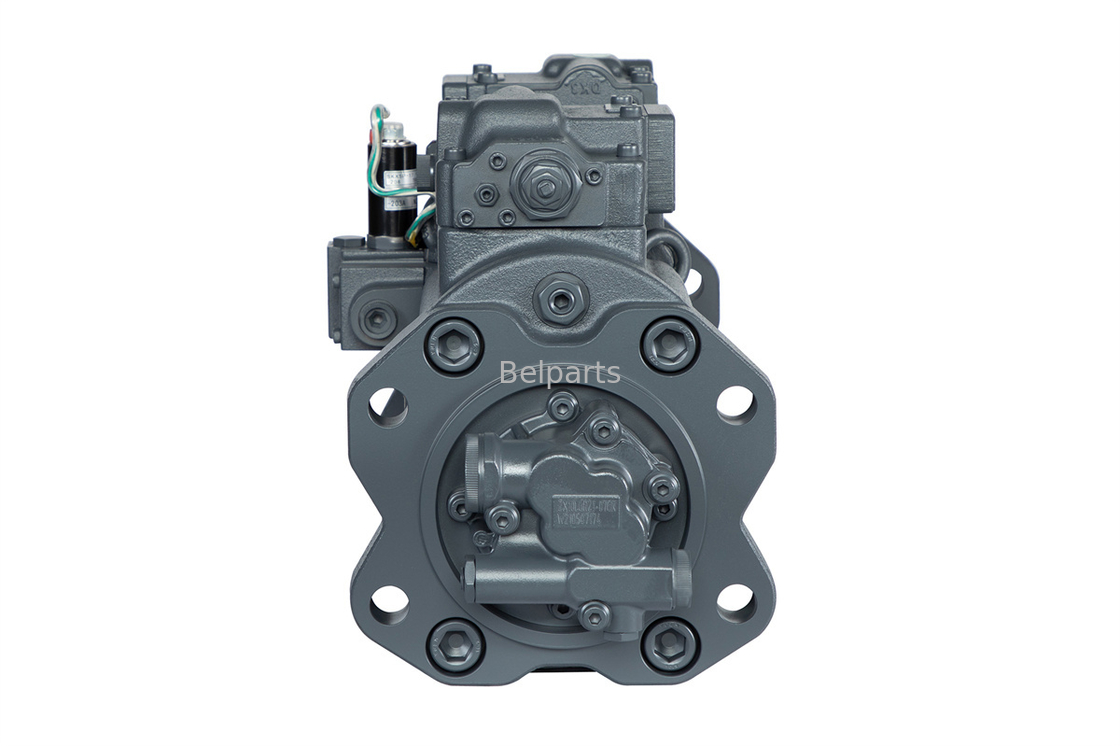

Excavator spare parts K3V112DT-9NC9 hydraulic pump assembly XE195 XE210 XE215 XE230 XE240 hydraulic pump assembly
The hydraulic pump is a critical component in excavators, responsible for converting mechanical energy into hydraulic energy. It supplies high-pressure hydraulic oil to various actuators (such as hydraulic cylinders and motors), enabling smooth and efficient operation of the excavator. High-quality hydraulic pumps ensure durability, energy efficiency, and precise control, making them essential for construction, mining, and other heavy-duty applications.
| PRODUCT DESCRIPTION | ||
|
Model: XE195 XE210 XE215 XE230 XE240 |
category: Hydraulic Pump assy | |
|
Part number: K3V112DT-9NC9 |
Place of Origin:China/other country | |
| Condition: Original & Oem | Warranty: 12 months | |
| MOQ: 1 pcs | Production Capacity: 1000pcs /Month | |
| Standard or Nonstandard: Standard | Payment Term: L/C,T/T, Tradeassurance | |
| Delivery Time: 1-3 days (depend on order) | Means of Transport: By Sea, Air or DHL | |
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||
We could supply the hydraulic pump , also the inner spare parts as below model:
| Model | Pump number | |
| ЕС210 | K3V112DT-9N-14Т | K3V112DT-9N-14Т ( ЕС210) CH |
| R210-7 | K3V112DT-9С-12Т | K3V112DT-9С-12Т (R210-7) CH |
| JS220 | K3V112DTP-9С-14Т | K3V112DTP-9С-14Т (JS220) CH |
| DX225 | K3V112DTP-9N-12Т | K3V112DTP-9N-12Т (DX225) CH |
| S255 | K3V112DTP-HNOV-14T | K3V112DTP-HNOV-14T(PTO) (S255) CH |
| S225LC-V | K3V112DT-HNOV-12T | K3V112DT-HNOV-12T (S225LC-V) CH |
| DH258-5-7 | K3V112DTP-HNOV-14T | K3V112DTP-HNOV-14T(PTO) (DH258-5-7,S255LC-V,S225NLC-V) CH |
| ЕС140 | K3V63DT-9N-14Т | K3V63DT-9N-14Т (ЕС140) CH |
| R130 | K3V63DT-9С-14Т | K3V63DT-9С-14Т (R130,R140-7, JS130,JS160) CH |
| JS160 | K3V63DTP-9С-14Т | K3V63DTP-9С-14Т (JS160) CH |
| DX300 | K5V140DTP-9N-17Т | K5V140DTP-9N-17Т (DX300) CH |
| EC460 | K5V200DTH-9N-17Т | K5V200DTH-9N-17Т (EC460,R480-9S) CH |
| PC200-7 | 708-2L-00300 | 708-2L-00300 Hydrualic pump PC200-7 |
The axial piston pump with a tilting swashplate is the undisputed workhorse for primary hydraulic circuits in modern excavators. Its core principle involves multiple pistons arranged axially (parallel to the drive shaft) within a rotating cylinder block. Each piston features a slipper pad riding on a non-rotating swashplate angled relative to the drive shaft's axis. As the cylinder block rotates, the pistons reciprocate within their bores: moving outward during the half-rotation where the swashplate distance increases (suction stroke, drawing fluid from the inlet port), and being forced inward during the opposite half-rotation where the distance decreases (discharge stroke, pressurizing fluid to the outlet port). The critical structural element for variable displacement is the adjustable swashplate angle. By changing this angle (typically via a hydraulic servo piston controlled by the operator or machine electronics), the stroke length of the pistons is altered.
| 991725 |
-
JThis OEM-quality hydraulic pump fits my machine perfectly, and it runs very well on it.
