9177550 9196961 Hitachi swing motor ZAXIS120-3 ZAXIS120-3 zx130-3 zx130K-3 EQUIPMENT COMPONENT PARTS
Place of Origin:Made in China
Brand Name:Belparts
Model Number:ZX120-3
Minimum Order Quantity:1 piece
Price:Negotiable price
Payment Terms:T/T,Paypal and Trade Assurance
Supply Ability:1000pieces
Product Details
Highlight:
Hitachi swing motor for ZAXIS120-3
,ZX130-3 swing motor assembly
,Hitachi swing motor with warranty
Model:
ZX120-3
Part Number:
9177550 9196961
Model Name:
Excavator Swing Motor Assy
Highlight:
Excavator ZX120-3 9177550 9196961 Hitachi Excavator Swing Motor
Product Number:
Hitachi Swing Motor
Part Name:
Excavator Slewing Motor
Brand:
Hitachi
Condition:
New/used
Product Description
9177550 9196961 Hitachi Swing Motor ZAXIS120-3 ZAXIS120-3 ZX130-3 ZX130K-3 Equipment Component Parts
9177550 9196961 Hitachi swing motor for ZAXIS120-3, ZAXIS120-3, ZX130-3, and ZX130K-3 excavators. This is a complete slewing motor assembly available in both new and used conditions.
Product Specifications
| Attribute | Value |
|---|---|
| Model | ZX120-3 |
| Part Number | 9177550 9196961 |
| Model Name | Excavator swing motor |
| Part Name | Slewing motor assembly |
| Brand | Hitachi |
| Condition | New/Used |
| Payment Methods | T/T, PayPal, Trade Assurance |

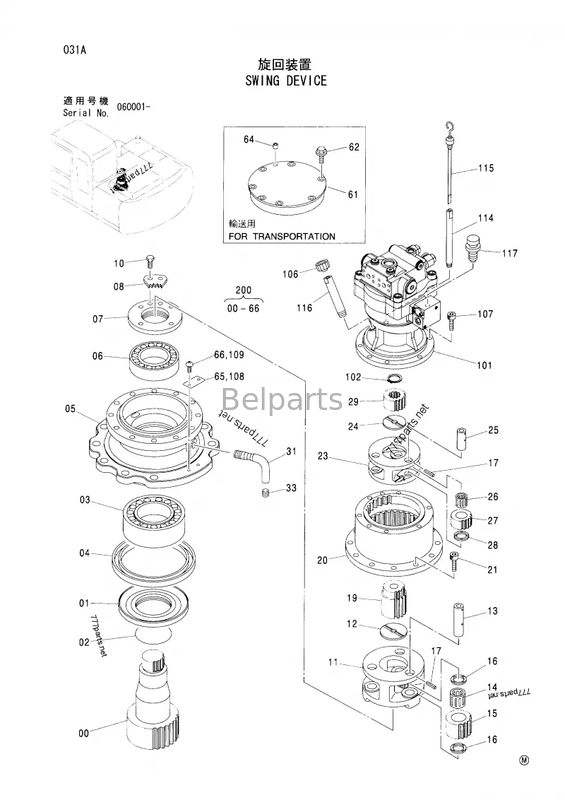

List of Spare Parts
| # | Part No | Part Name | Qty. | Price Request |
|---|---|---|---|---|
| 9177550 | MOTOR; OIL (SWING) (FOR ASSEMBLY OF MACHINE) | 1 | ||
| (9196961) | MOTOR; OIL (SWING) (FOR TRANSPORTATION) | 1 | ||
| 01 | 8080152 | CASING | 1 | |
| 01A | CASING | 1 | ||
| 01B | CASING; MOTOR | |||
| 02 | 4320490 | SEAL; OIL | 1 | |
| 03 | 3085794 | SHAFT | 1 | |
| 05 | 991342 | RING; RETAINING | 1 | |
| 06 | 4402669 | BRG.; ROL. | 1 | |
| 07 | 940144 | RING; RETAINING | 1 | |
| 08 | 4396102 | PLATE; SWASH | 1 | |
| 10 | 2043442 | ROTOR | 1 | |
| 12 | 4413753 | SPRING; DISC | 1 | |
| 13 | 4413700 | BUSHING | 1 | |
| 14 | 8071556 | PISTON | 9 | |
| 15 | 3081727 | RETAINER | 1 | |
| 17 | 3087818 | PLATE; FRICTION | 4 | |
| 19 | 3075729 | PLATE | 4 | |
| 21 | 3084716 | PISTON | 1 | |
| 22 | 4413765 | O-RING | 1 | |
| 23 | 4413764 | O-RING | 2 | |
| 24 | 4434436 | SPRING; DISC | 1 | |
| 26 | 3089613 | PLATE; VALVE | 1 | |
| 28 | 9177595 | VALVE; BRAKE (FOR ASSEMBLY OF MACHINE) | 1 | |
| 28 | (9198979) | VALVE; BRAKE (FOR TRANSPORTATION) | 1 | |
| 29 | 4413768 | BRG.; NEEDLE | 1 | |
| 30 | 4413761 | PIN; KNOCK | 2 | |
| 32 | A590916 | WASHER; SPRING | 4 | |
| 34 | M341650 | BOLT; SOCKET | 4 | |
| 36 | M492564 | SCREW; DRIVE | 2 | |
| 37 | 3088886 | NAME-PLATE | 1 | |
| 41 | 9134110 | PLUG | 3 | |
| 41A | 957366 | O-RING | 1 | |
| 43 | 9134109 | PLUG | 1 | |
| 43A | 4506408 | O-RING | 1 | |
| 45 | 4399892 | POPPET | 1 | |
| 46 | 4398846 | SPRING; COMPRES. | 1 | |
| 47 | 4452178 | WASHER; PLANE | 1 | |
| 50 | 4398889 | SPRING; COMPRES. | 1 |

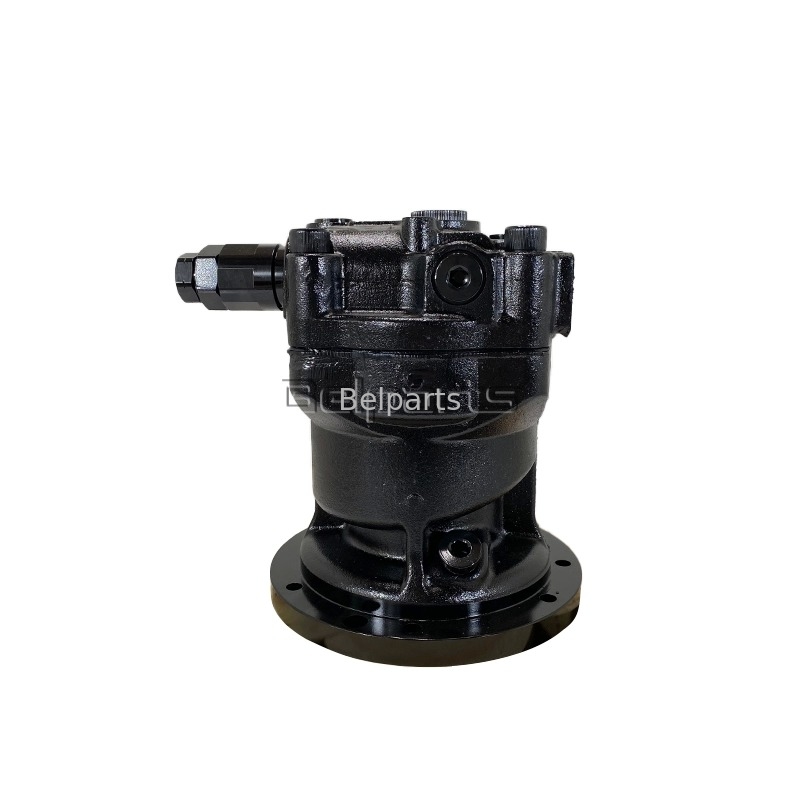

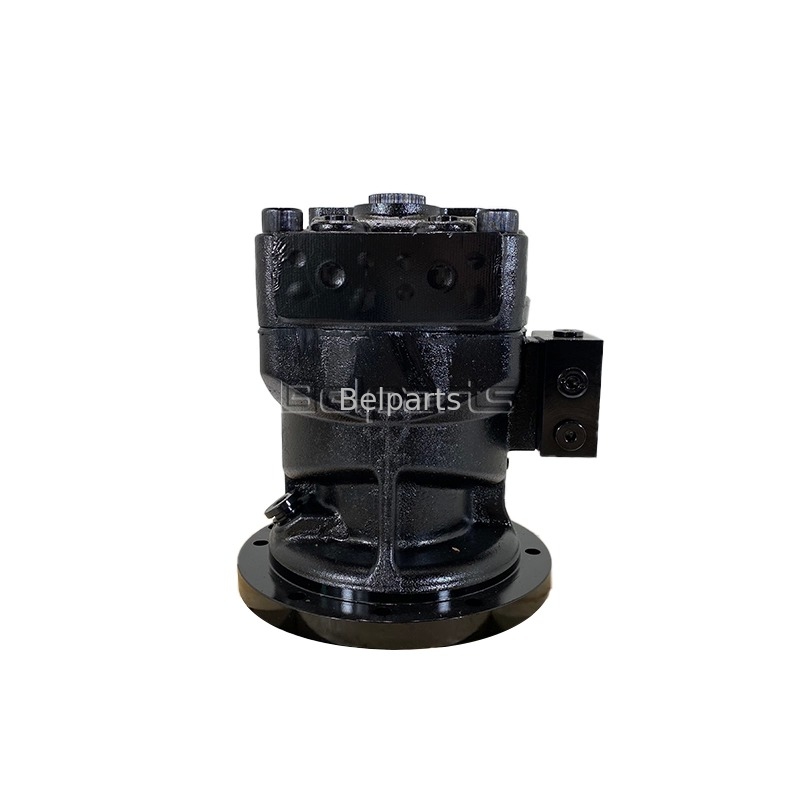

Product Images
