Quality Belparts excavator DH290LC-V slewing reduction 2101-1025G 2101-1025E 2101-1025H Doosan excavator slewing gearbox factory

Belparts excavator DH290LC-V slewing reduction 2101-1025G 2101-1025E 2101-1025H Doosan excavator slewing gearbox

Name: Belparts excavator DH290LC-V slewing reduction 2101-1025G 2101-1025E 2101-1025H Doosan excavator slewing gearbox
Brand: GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED
SKU: DH290LC-V
Price: 475.00 USD
Availability: InStock

Place of Origin:Made in China

Brand Name:Belparts

Model Number:DH290LC-V

Minimum Order Quantity:1 piece

Price:Negotiable price

Payment Terms:T/T, Paypal and Trade Assurance

Supply Ability:1000pieces

Product Details

Highlight:

Doosan excavator slewing gearbox

,

excavator swing reduction gearbox

,

DH290LC-V slewing gear replacement

Model: DH290LC-V

Part Number: 2101-1025G 2101-1025E 2101-1025H

Part Name: Slewing Gearbox

Hlighlight: DH290LC-V Swing Reduction Gearbox 2101-1025G 2101-1025E 2101-1025H

Application: Excavator, Engineering Machinery Equipment

Product Name: Doosan Swing Gearbox

Condition: New/used

Price: Negotiable Price

Product Description

Belparts Excavator DH290LC-V Slewing Reduction Gearbox

Original OEM replacement slewing gearbox for Doosan excavators. Models: 2101-1025G, 2101-1025E, 2101-1025H.

Product Specifications

Parameter	Value
Model	DH290LC-V
Category	Hydraulic Motor
Part Numbers	2101-1025G, 2101-1025E, 2101-1025H
Place of Origin	Other Country
Condition	Original & OEM
Warranty	12 months
MOQ	1 pcs
Production Capacity	1000 pcs/Month
Standard	Standard
Payment Terms	L/C, T/T, Trade Assurance
Delivery Time	1-3 days (depends on order)
Transport	By Sea, Air or DHL

Component List

No.	Part Number	Description	Weight/Dimensions	Qty
-	2101-1025E	SWING REDUCTION GEAR ASS'Y		1
-	2101-1025G	REDUCTION GEAR ASS'Y		1
-	2101-1025H	REDUCTION GEAR ASS'Y		1
-	2101-1025I	REDUCTION GEAR ASS'Y	337 kg	1
1	2423-1184D	CASING, FRONT	38 kg	1
2	2423-1185	CASING, MIDDLE	31 kg	1
3	2112-1156C	SHAFT, DRIVE	52 kg	1
3	2112-1156E	SHAFT, DRIVE	43 kg	1
4	2104-1004C	GEAR, RING(NO.2)		1
4	2104-1004E	GEAR, RING(NO.2)	29 kg / 46046090	1
5	2101-1006C	GEAR, PLANETARY(NO.2)		3
5	2101-1006E	GEAR, PLANETARY(NO.2)	7 kg	3
6	2101-1005E	GEAR, SUN(NO.2)		1
6	2101-1005G	GEAR, SUN(NO.2)	6 kg	1
6	2101-1005H	GEAR, SUN(NO.2)	6 kg	1
7	2104-1005C	GEAR, RING(NO.1)	8 kg	1
8	2101-1031	GEAR, PLANETARY(NO.1)	1 kg	3
9	2101-1032	GEAR, SUN(NO.1)	3 kg	1
10	2230-1034	CARRIER	8 kg	1
11	2123-1631B	PIN	2 kg	3
12	2114-1553	WASHER, THRUST		6
12	2114-1553A	WASHER, THRUST		6
13	2549-1118	BUTTON, THRUST		1
14	2123-1632	PIN(NO.1)	1 kg	3
15	2412-9001	SIDE PLATE NO.1(=2412-9001P)	12 kg	3
16	2412-9002	SIDE PLATE NO.2		3
17	2412-9003	SIDE PLATE(=2412-9003P)		1
18	2505-1009	BAR, LEVEL	1 kg	1
19	2182-1304	PIPE		1
20	2278-1009A	RING, SPACER	1 kg	1
21	2123-1634	PIN, KNOCK		4
22	2109-9031	SPH.ROLLER BRG.(=2109-9031P)	12 kg	1
23	2109-9032	SPH.ROLLER BRG.(=2109-9032P)	5 kg	1
24	2216-9001	NEEDLE CAGE(=2216-9001P)		3
25	S2225971	BOLT, LOCK	1 kg	16
26	S2224871	LOCK BOLT, REDUCTION GEAR	E0502399	12
27	2180-1235	SEAL, OIL		1
28	2123-1633D2	PIN, SPRING		3

Maintenance Information

The gears and bearings of the slewing gearbox require regular inspection and maintenance. Gears and bearings are the core components of the slewing gearbox, and their condition directly affects the performance and lifespan of the slewing gearbox.

Regularly check the meshing state of the gears and the operating condition of the bearings
Promptly address any abnormalities to effectively prevent failures
Watch for issues such as gear wear, pitting, and tooth breakage
Monitor bearing wear, looseness, and abnormal noise
For slewing gearboxes operating under high-load conditions, periodic disassembly and inspection are necessary to ensure internal components are in good condition

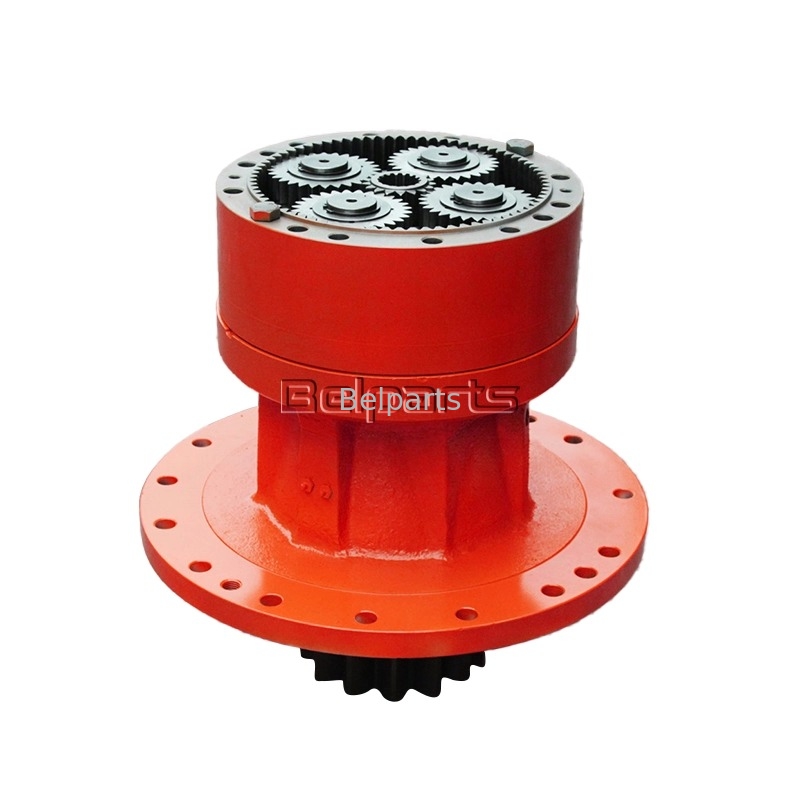

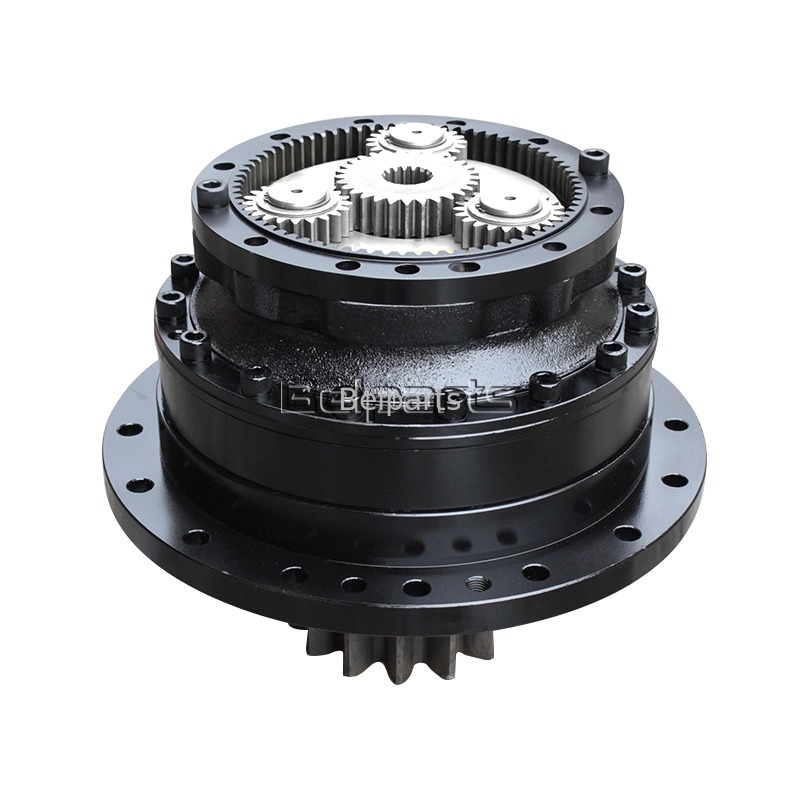

Product Images
