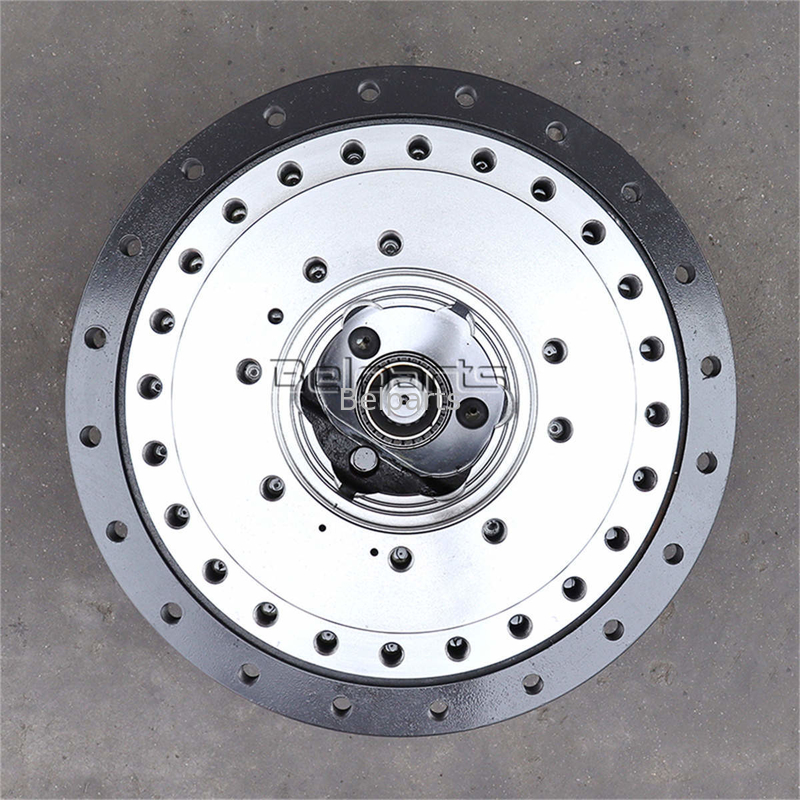

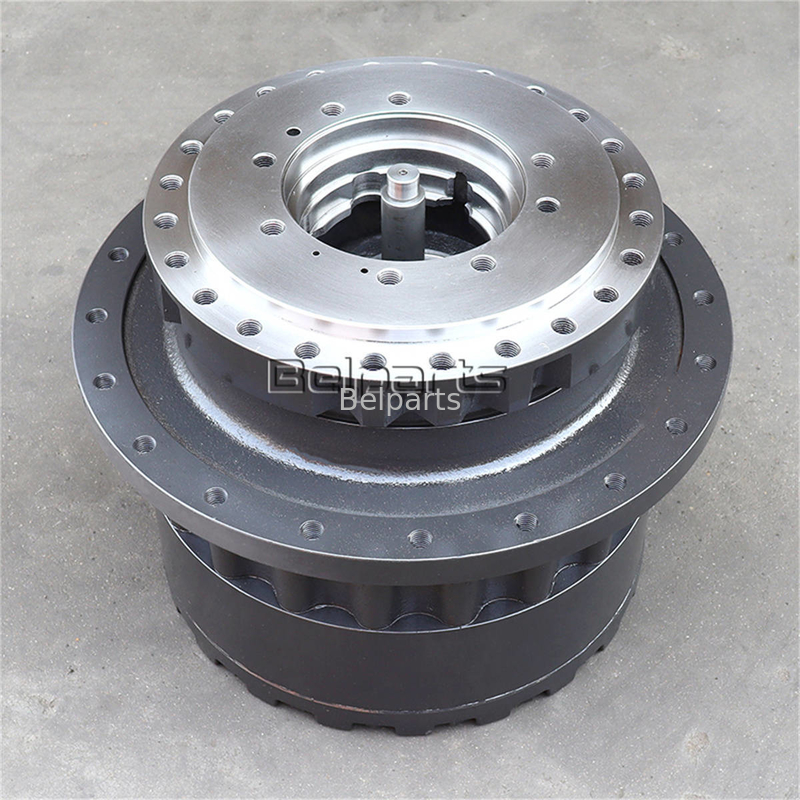

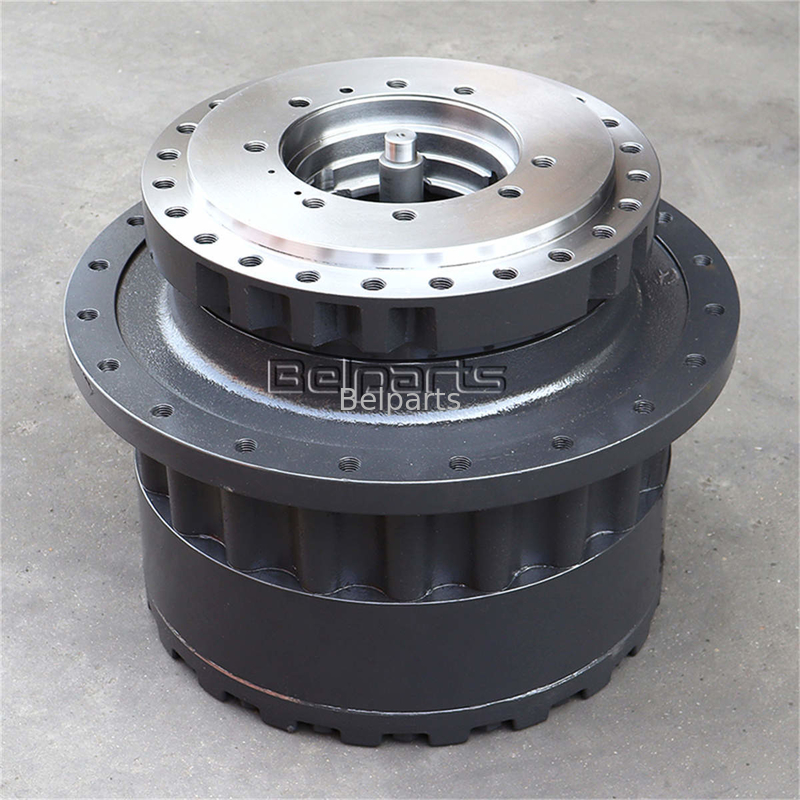

Komatsu PC300-7 207-27-71140 708-8H-00320 Excavator Travel Gearbox Hydraulic Drive Unit
Komatsu PC300-7 excavator travel gearbox
,hydraulic drive unit travel gearbox
,excavator travel gearbox with warranty
Komatsu PC300-7 207-27-71140 708-8H-00320 Excavator Travel Gearbox Hydraulic Drive Unit
The travel gearbox is a critical component in an excavator’s undercarriage system, responsible for transmitting power from the hydraulic motor to the tracks or wheels, enabling precise movement and heavy-duty operation. Its reliability directly impacts the machine’s productivity in mining, construction, and earthmoving applications.
| Appliion | Excavator |
| Part name | Belparts travel gearbox |
| Material | Steel |
| Model | PC300-7 |
| Part number | 207-27-71140 708-8H-00320 |
| Payment term | T/T, Paypal, Trade assurance, or as required |
| Delivery | 3 days after the payment received |
| Shipment | by sea, by air, by express, or as required |
List of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 1 | (708-8H-00320) | MOTOR ASS'Y | 2 | |
| 2 | 170-27-00025 | FLOATING SEAL ASS'Y | 2 | |
| 2 | Ring | 2 | ||
| 3 | O-ring | 2 | ||
| 4 | 207-27-71311 | Hub | 2 | |
| 5 | 207-27-71330 | Bearing | 4 | |
| 6 | 207-27-52350 | O-ring | 2 | |
| 7 | 207-27-71370 | Lock | 2 | |
| 8 | 207-27-71360 | LOCK NUT | 2 | |
| 9 | 01010-81020 | BOLT,(FOR MONO LEVER STEERING) | 4 | |
| 10 | 207-27-71320 | Carrier | 2 | |
| 11 | 207-27-71140 | Gear | 8 | |
| 12 | 207-27-63210 | BEARING,2P | 8 | |
| 13 | 20Y-27-21250 | WASHER,THRUST | 16 | |
| 14 | 207-27-63230 | Pin | 8 | |
| 15 | 20Y-26-21330 | Pin | 8 | |
| 16 | 20Y-27-13310 | WASHER,THRUST | 2 | |
| 17 | 207-27-71130 | Gear | 2 | |
| 18 | 207-27-71151 | Gear | 2 | |
| 19 | 207-27-71250 | Washer | 2 | |
| 20 | 207-27-71161 | Carrier | 2 | |
| 21 | 207-27-71121 | GEAR,1P | 6 | |
| 22 | 207-27-61220 | BEARING,1P | 6 | |
| 23 | 20Y-27-21240 | WASHER,THRUST | 12 | |
| 24 | 207-27-61240 | Pin | 6 | |
| 25 | 20Y-27-21280 | Pin | 6 | |
| 26 | 207-27-71352 | Shaft | 2 | |
| 27 | 20Y-27-11250 | Spacer | 2 | |
| 28 | 20Y-27-22250 | BUTTON | 2 | |
| 29 | 207-27-71340 | Cover | 2 | |
| 30 | 01011-61880 | Bolt | 40 | |
| 31 | 01643-31845 | WASHER,(WITHOUT R.O.P.S.) | 40 | |
| 32 | 07049-01215 | PLUG,(FOR ROPS SWEEP) (WITHOUT CAB) | 4 | |
| 33 | 07044-12412 | PLUG,MAGNETIC | 6 | |
| 34 | 07002-02434 | O-RING,DRAIN PLUG? R.H. HALF TANK | 6 | |
| 35 | 207-27-61210 | SPROCKET | 2 | |
| 36 | 207-27-51311 | Bolt | 40 | |
| 37 | 01010-82075 | CAPSCREW | 42 | |
| 38 | 01643-32060 | FLAT WASHER - M20 (HARDENED) | 42 | |
| 39 | 207-30-71240 | Cover | 2 | |
| 40 | 01010-81640 | BOLT,(FOR SLAG HANDLING) (FOR USA) | 12 | |
| 41 | 01643-31645 | WASHER,(FOR TRAVEL MOTOR) (NOT SHOW) | 12 |
High-quality excavator travel gearboxes use high-strength alloy steel forged gears. After carburizing and quenching treatment, the surface hardness can reach HRC58-62, which has high wear resistance and impact resistance and can withstand long-term heavy-load operation. The internal lubricating oil circuit adopts a forced lubrication design to ensure that gears and bearings are fully lubricated during high-speed operation, reducing friction loss. At the same time, the gearbox shell is made of die-cast aluminum alloy or cast iron, which has both light weight and deformation resistance, adapting to the harsh outdoor construction environment. During maintenance, it is necessary to regularly check the oil level and oil quality to avoid gear sintering caused by oil shortage or oil contamination. The seals need to be replaced every 2000 hours to prevent leakage failures.
