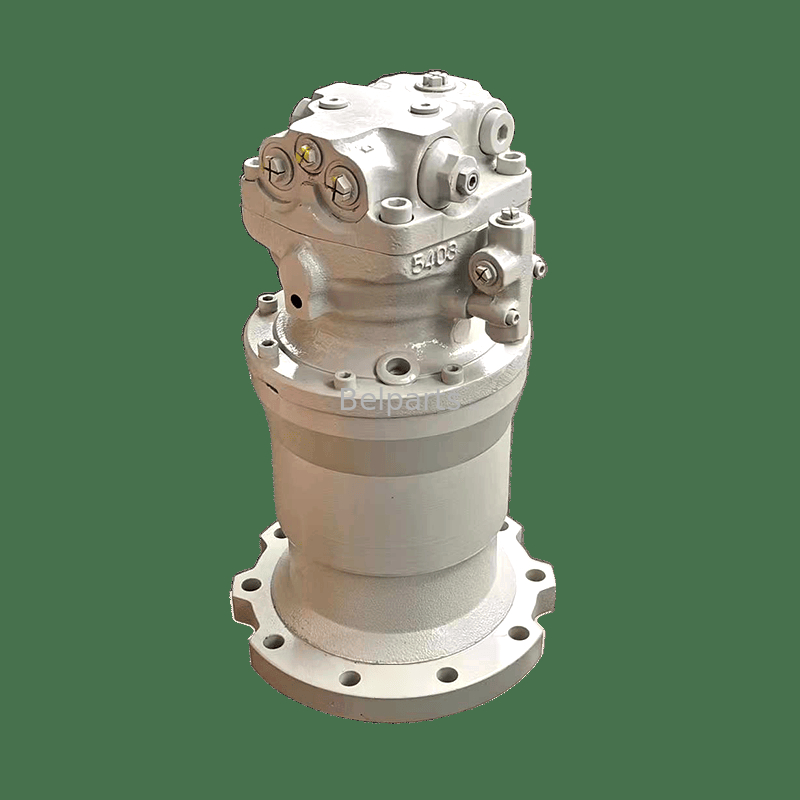

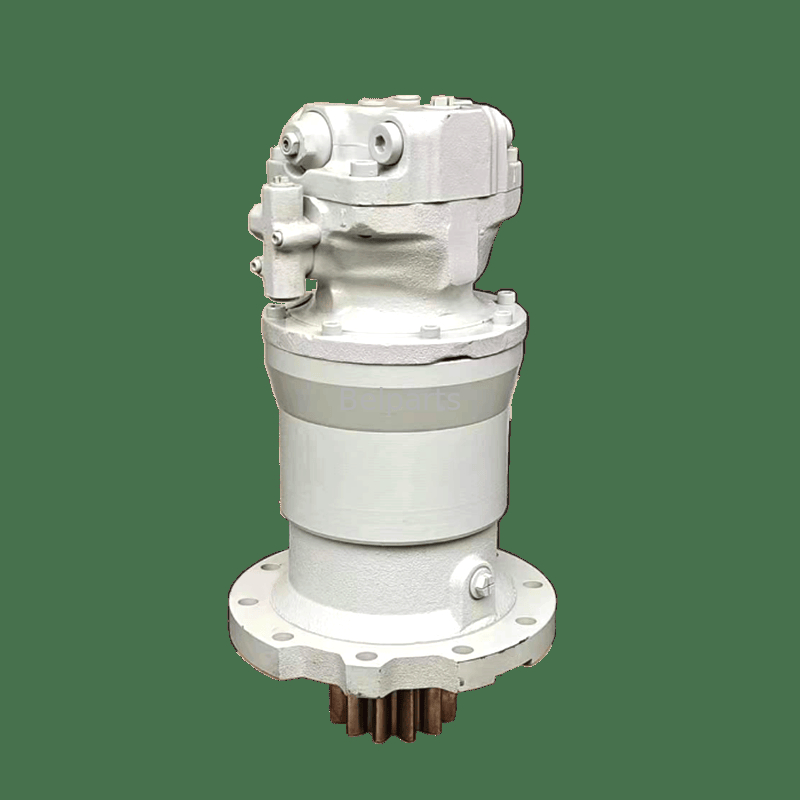

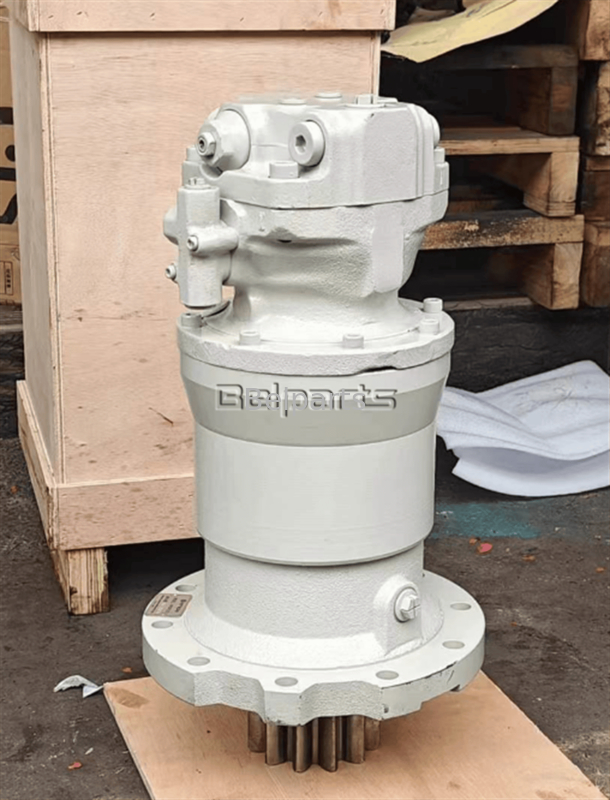

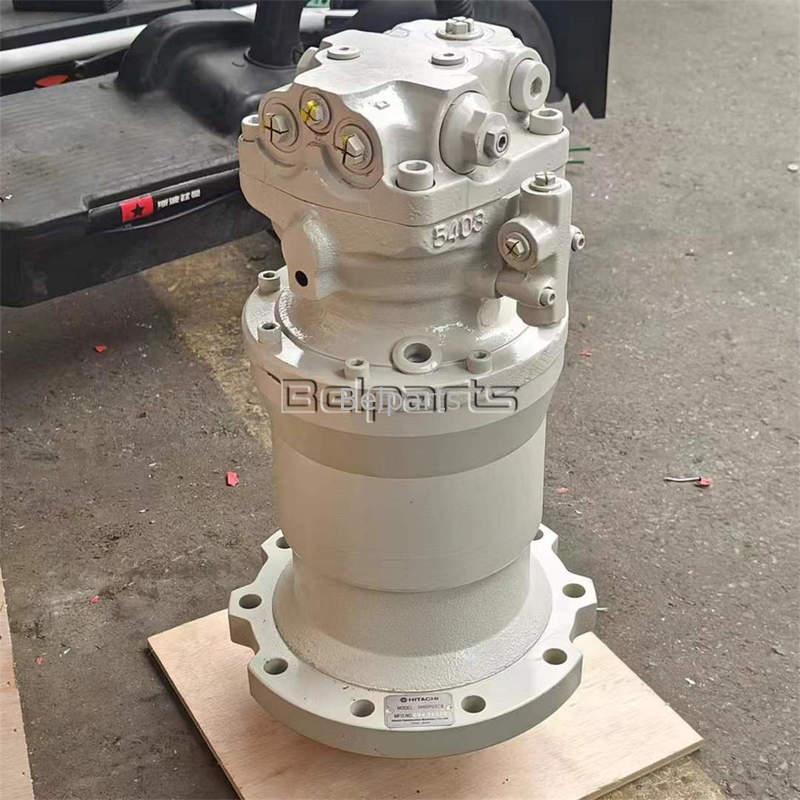

Belparts swing motor assy EX75UR-1 EX60UR-1 hydraulic motor kit MSF-52P 4469027 for hitachi
Hitachi swing motor assy
,EX75UR-1 hydraulic motor kit
,MSF-52P swing motor
| Attribute | Value |
|---|---|
| Model | EX75UR-1 EX60UR-1 |
| Part Number | MSF-52P 4469027 |
| Model Name | Excavator swing motor |
| Part Name | Slewing motor |
| Brand | belparts |
| Condition | New/Used |
| Payment Methods | T/T, PayPal, Trade Assu |
List of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 4469027 | MOTOR; OIL | 1 | ||
| 1 | 0443501 | . PLATE | 2 | |
| 2 | 0443502 | . PLATE | 2 | |
| 3 | 0476710 | . RING; RETAINING | 1 | |
| 4 | 0443513 | . BRG. ;NEEDLE | 1 | |
| 5 | 0443503 | . O-RING | 1 | |
| 6 | 0476718 | . O-RING | 1 | |
| 7 | 0443505 | . O-RING | 1 | |
| 8 | 4509181 | . O-RING | 2 | |
| 9 | 0802701 | . PLATE | 1 | |
| 10 | 0443509 | . PISTON | 2 | |
| 11 | 0443510 | . RING | 2 | |
| 12 | 0802702 | . SCROWAVE | 4 | |
| 13 | 0802703 | . RING | 4 | |
| 14 | 0802704 | . BUSHING | 4 | |
| 15 | 0443512 | . SPRING | 14 | |
| 16 | 0443504 | . PISTON | 1 | |
| 17 | 0443520 | . O-RING | 2 | |
| 18 | . CYL. | 1 | ||
| 19 | 0476708 | . SPRING; FLUSH | 1 | |
| 20 | . PISTON | 7 | ||
| 21 | 0476707 | . PLATE | 1 | |
| 22 | 0476705 | . PLATE | 1 | |
| 23 | 0476704 | . BRG.; ROL. | 1 | |
| 24 | . HOUSING | 1 | ||
| 25 | 4472676 | . VALVE; RELIEF | 2 | |
| 25A | 0212313 | .. O-RING | 1 | |
| 26 | 0622810 | . CAP | 2 | |
| 27 | 957366 | . O-RING | 2 | |
| 28 | 0476716 | . PIN | 2 | |
| 29 | 0802706 | . VALVE | 1 | |
| 30 | 0443521 | . BOLT; SOCKET | 2 | |
| 31 | . COVER | 1 | ||
| 32 | M341230 | . BOLT; SOCKET | 5 | |
| 33 | 0443518 | . CHECK | 2 | |
| 34 | 0622827 | . SPRING | 2 | |
| 35 | 0212313 | . O-RING | 3 | |
| 36 | 0212312 | . RING; BACK-UP | 2 | |
| 37 | 0802707 | . CAP | 2 | |
| 38 | 0101557 | . PLUG | 1 |
The torque output capacity of the swing motor directly determines the swing operation performance of the excavator, especially under load conditions (such as bucket full-load swing). The torque is proportional to the working pressure of the hydraulic system and the motor displacement: the higher the working pressure, the greater the thrust of the oil on the piston; the larger the motor displacement (longer piston stroke or more quantity), the stronger the torque output per rotation. Therefore, excavators designed for heavy-load operation scenarios usually match high-pressure and large-displacement swing motors to ensure that even in the full-load state, stable and powerful swing actions can still be achieved, avoiding operation stagnation due to insufficient torque.
