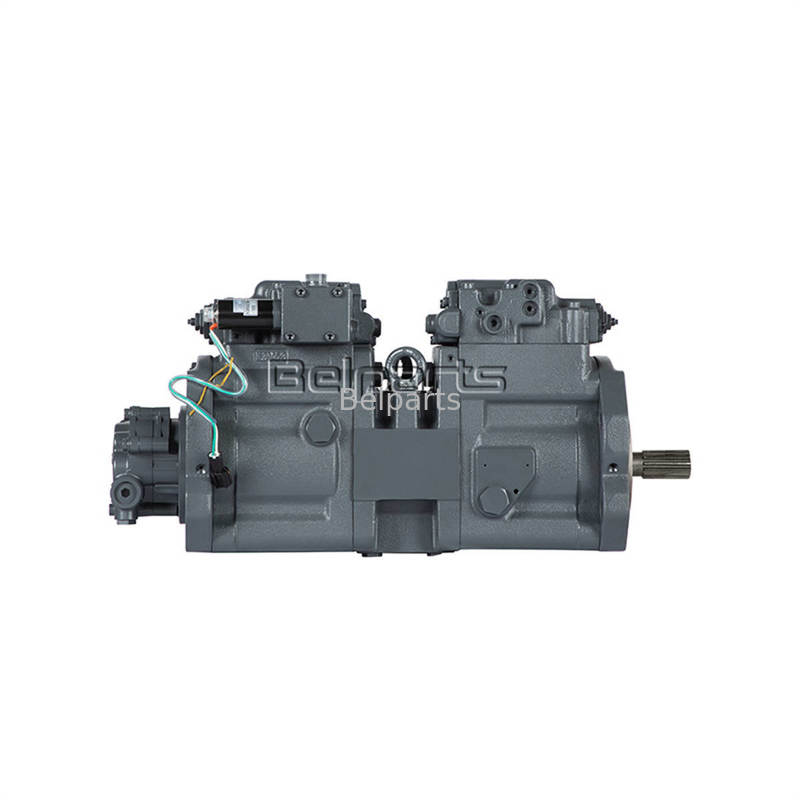

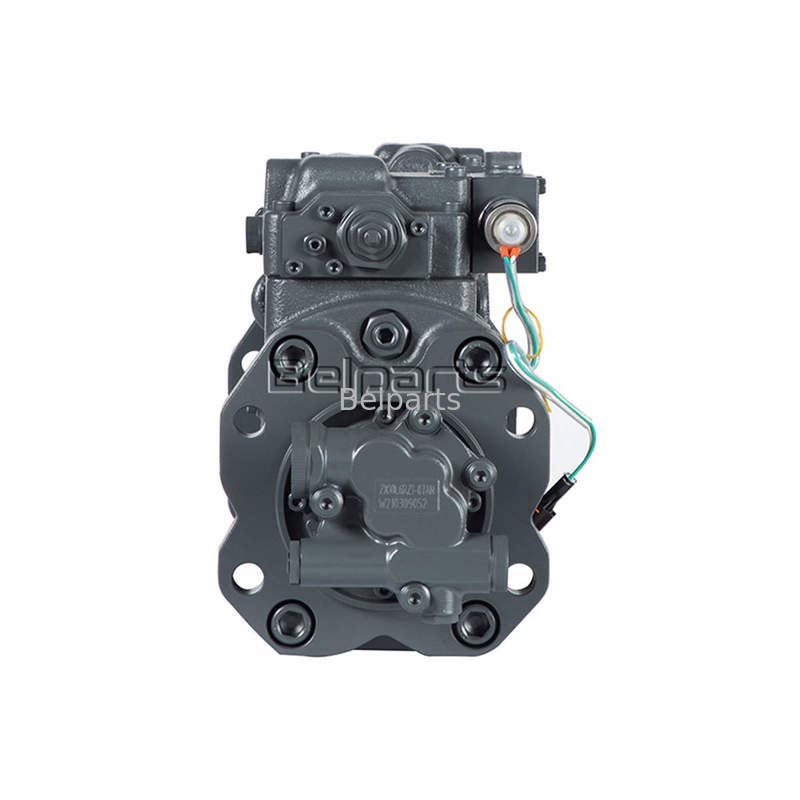

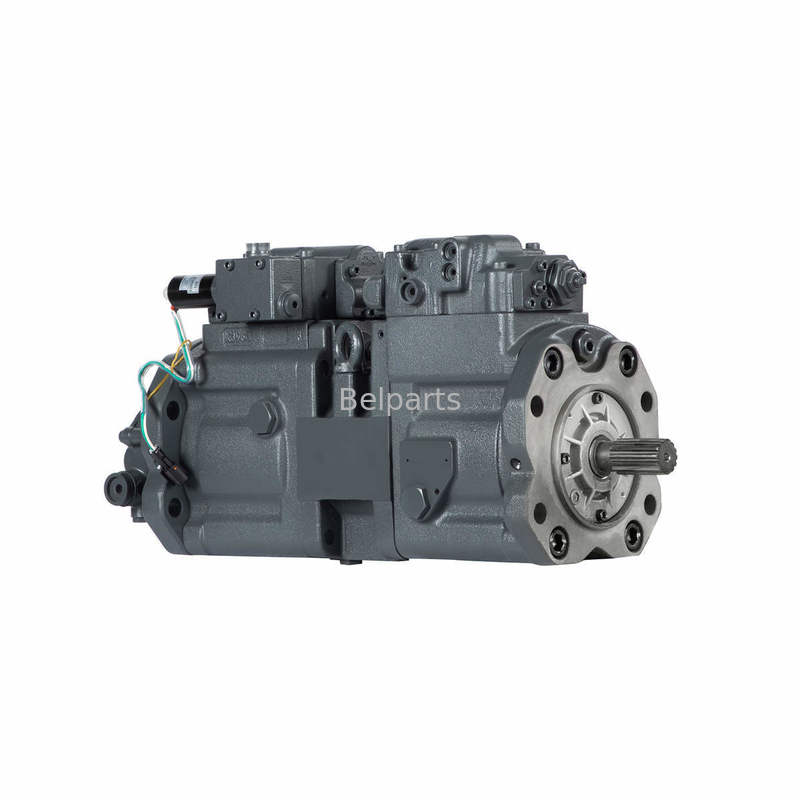

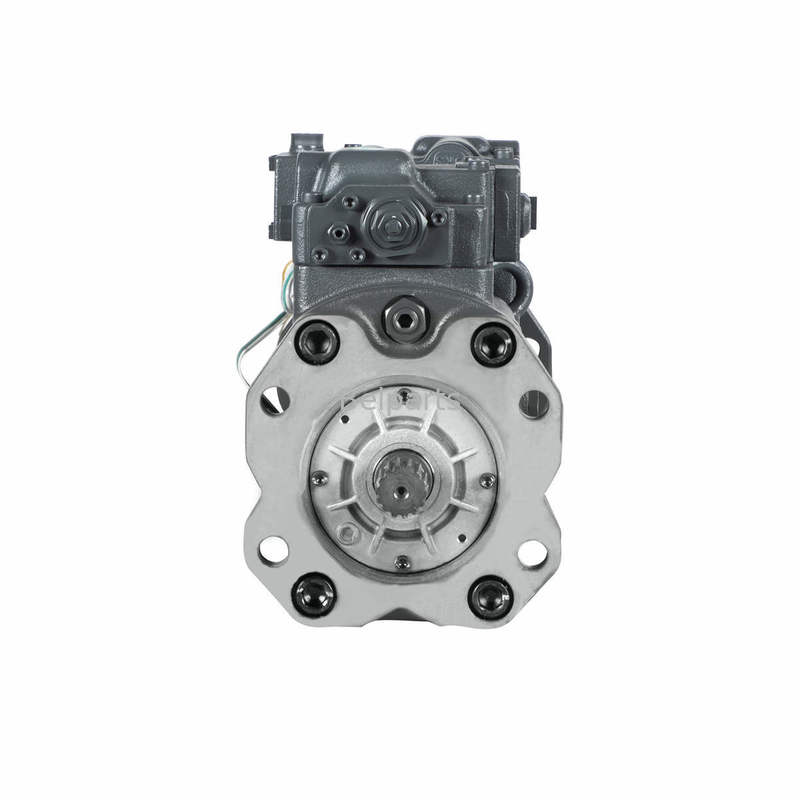

Belparts excavator EC140 K3V63DT-9NOT 60100378-J Excavator hydraulic pump replacement
EC140 excavator hydraulic pump
,K3V63DT excavator pump replacement
,excavator hydraulic pump with warranty
The hydraulic pump is a critical component in excavators, responsible for converting mechanical energy into hydraulic energy. It supplies high-pressure hydraulic oil to various actuators (such as hydraulic cylinders and motors), enabling smooth and efficient operation of the excavator. High-quality hydraulic pumps ensure durability, energy efficiency, and precise control, making them essential for construction, mining, and other heavy-duty applications.
| Application | Excavator |
|---|---|
| Part Name | Hydraulic Main Pump |
| Model | EC140 |
| Part Number | K3V63DT-9NOT 60100378-J |
| Warranty | 3-12 months |
| Payment Term | T/T, Trade Assurance, Paypal and etc. |
| Brand | Hitachi or as required |
| Hydraulic Pump | Model | Compatible With |
|---|---|---|
| K3V112DTP-9P12-15T Short axis | CHANGE THE EX200-5 ZAX200,ZAX230 | |
| K3V112DTP-9P12-16T Long axis | CHANGE THE ZAX200,EX200-2-3-5 | |
| K3V112DT-HNOV-12T | DH220-5-7,DH215-7,DH225-7 | |
| K3V112DT-HNOV-14T | JCM921 | |
| K3V112DT-9C32-12T | R210-7,R215-7,R220-5,R225-7 | |
| K3V112DT-9C32-14T | SH200A1 | |
| K3V112DT-9N24-12T | SH280,HD700-5-7,HD800-5-7,HD820,R215-9 | |
| K3V112DT-9N24-14 | EC210,EC240,LG225 | |
| K3V112DT-9N24-14T | LG225,XE215 | |
| K3V112DTP-9C32-14T | JCB220,JCB230 | |
| K3V112DTP-9P12-12T | R225-9,R265-9,R275-9 | |
| K3V112DTP-9N24-12T | R225-9T,DX225 | |
| K3V112DTP-9N24-14T | LG920E,LG922E | |
| K3V112DTP-9N24-14T(PTO) | SH200A3 Gear pump facing backward | |
| K3V112DTP-9N24-14T(PTO) | DX260 Gear pump facing backward | |
| K3V112DTP-HNOV-14T(PTO) | DH258-5-7 Gear pump facing backward | |
| K3V112DTP-HNOV-14T(PTO) | DH215-9,DH225-9 Gear pump facing forward | |
| K3V112DTP-9N24-14T (PTO) | DH220-0E Gear pump facing forward | |
| K3V112DT | EC220D | |
| K3V112DTP-9TEL-14T | SK200-6E,SK230-6E | |
| K3V112DTP-9T8L-14T | SY215-8 | |
| K3V112DTP-OE11-14T | SY215-8S/SY215-9 | |
| K3V112DTP-YT6K-17T | SK200-8,SK210-8.SK250-8,SK260-8 | |
| K3V112DTP1F9R-9Y14-HV | SH210-5 SK210A5 ,CX210 |
The axial piston hydraulic pump is the core component of the main hydraulic system in medium and large excavators. Its design centers on the principle of "reciprocating movement of pistons to change volume". The cylinder block inside the pump is arranged coaxially with the drive shaft, and multiple piston holes are evenly distributed around the circumference of the cylinder block. Each piston in the hole is in contact with the swash plate through a slipper. When the engine drives the drive shaft to rotate, the cylinder block rotates synchronously. Under the combined action of the inclined thrust of the swash plate and the return spring, the piston makes a reciprocating linear movement along the piston hole: when the piston moves from the bottom to the top of the cylinder block, the sealed volume in the piston hole increases, creating a negative pressure, and low-pressure hydraulic oil is sucked from the oil tank through the suction valve; when the piston moves from the top to the bottom, the sealed volume shrinks, the oil is compressed, and the high-pressure oil is discharged through the pressure valve after the pressure rises, finally converting the rotational mechanical energy of the engine into the pressure energy of the hydraulic oil.
-
JThis OEM-quality hydraulic pump fits my machine perfectly, and it runs very well on it.
