Quality Belparts excavator R210LC-9 31Q6-10100 hydraulic main pump repair for K3V112DTP-9C14 factory

Belparts excavator R210LC-9 31Q6-10100 hydraulic main pump repair for K3V112DTP-9C14

Name: Belparts excavator R210LC-9 31Q6-10100 hydraulic main pump repair for K3V112DTP-9C14
Brand: BELPARTS MACHINERY LIMITED
SKU: R210LC-9
Price: 475.00 USD
Availability: InStock

Place of Origin:Made in China

Brand Name:Belparts

Model Number:R210LC-9

Minimum Order Quantity:1 piece

Price:Negotiable price

Payment Terms:T/T, Paypal and Trade Assurance

Supply Ability:1000pieces

Product Details

Highlight:

excavator hydraulic main pump repair

,

R210LC-9 hydraulic pump replacement

,

K3V112DTP-9C14 compatible pump repair

Model: R210LC-9

Part Number: 31Q6-10100

Application: Excavator, Engineering Machinery Equipment

Appliion: Excavator

Name: Hydraulic Main Pump Assembly

Highlight: Crawler Excavator K3V112DTP-9C14 R210LC-9 31Q6-10100 Hydraulic Main Pump

Usage: Hyundai Crawler Excavator

Condition: New/used

Product Description

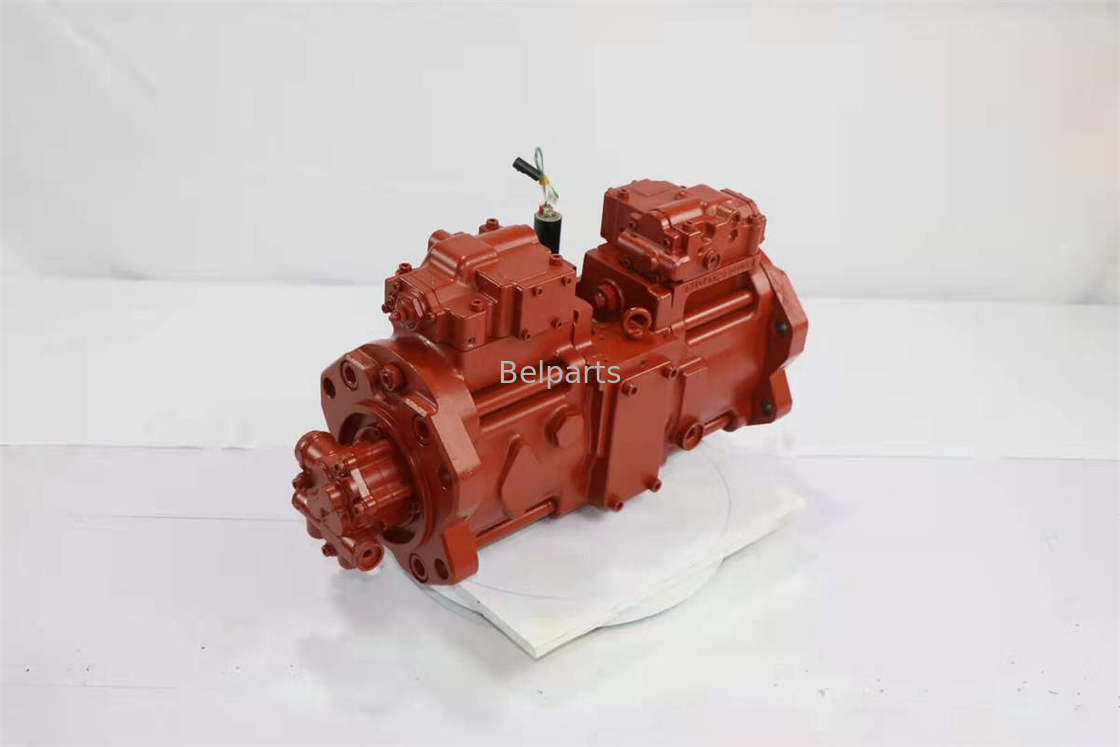

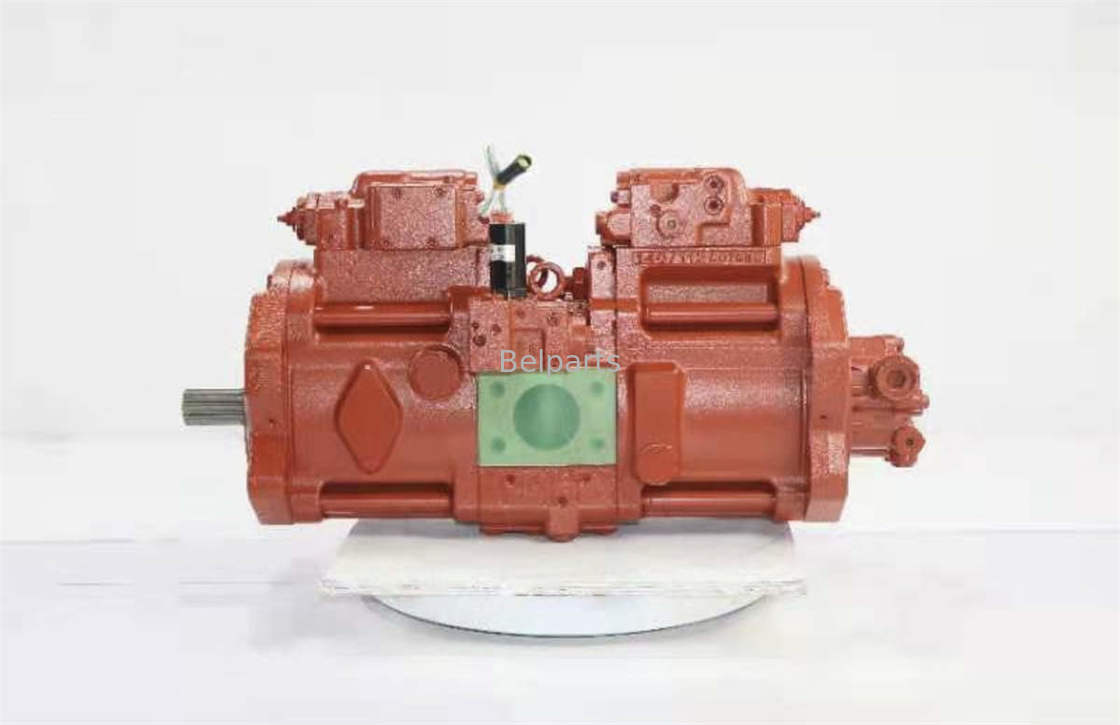

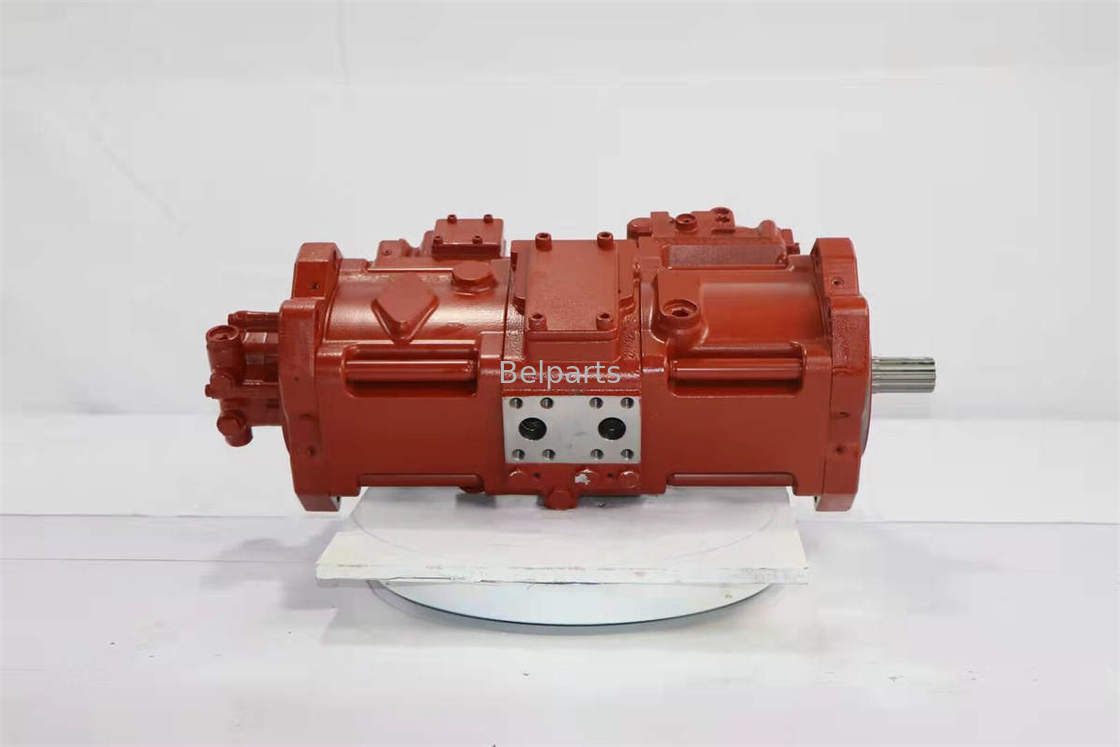

Belparts Excavator R210LC-9 31Q6-10100 Hydraulic Main Pump Repair for K3V112DTP-9C14

The hydraulic pump is a critical component in excavators, responsible for converting mechanical energy into hydraulic energy. It supplies high-pressure hydraulic oil to various actuators (such as hydraulic cylinders and motors), enabling smooth and efficient operation of the excavator. High-quality hydraulic pumps ensure durability, energy efficiency, and precise control, making them essential for construction, mining, and other heavy-duty applications.

Application	Excavator
Part Name	Hydraulic Main Pump
Model	R210LC-9
Part Number	K3V112DTP-9C14 31Q6-10100
Warranty	3-12 months
Payment Term	T/T, Trade Assurance, Paypal and etc.
Brand	Hitachi or as required

List of Spare Parts

#	Part No	Part Name	Qty.
*	31Q6-10100	MAIN PUMP
-1,-2,-3,-4	1
*-1	@	FUEL INJECTION PIPE & NOZZLE	1
NS141	XJBN-00067	BLOCK-CYLINDER	2
NS151	XJBN-01032	PISTON	18
NS152	XJBN-01214	SHOE	18
153	XJBN-00945	PLATE-SET	2
156	XJBN-00083	BUSHING-SPHERICAL	2
157	XJBN-00084	SPRING-CYLINDER	18
211	XJBN-00085	PLATE-SHOE	2
NS212	XJBN-00780	PLATE-SWASH	2
S214	XJBN-00071	BUSHING-TILTING	2
251	XJBN-00779	SUPPORT	2
312	XJBN-00776	COVER-VALVE	1
NS313	XJBN-01035	PLATE-VALVE(R)	1
NS314	XJBN-01036	PLATE-VALVE(L)	1
316	XJBN-00690	COVER	1
406	XJBN-00355	SCREW-HEX SOC HD	8
409	XJBN-00696	SCREW-HEX	2
410	XJBN-00775	SCREW-HEX	12
412	XJBN-00774	SCREW-HEX	1
467	XJBN-00265	PLUG	2
491	XJBN-00234	PLUG	9
S531	XJBN-00771	PIN-TILTING	2
532	XJBN-00770	PISTON-SERVO	2
534	XJBN-01124	STOPPER(L)	2
535	XJBN-00093	STOPPER(S)	2
536	XJBN-00768	COVER-SERVO	2
NS548	XJBN-00360	PIN-FEED BACK	2
703	XJBN-00915	O-RING	2
709	XJBN-00387	O-RING	1
725	XJBN-00045	O-RING	2
732	XJBN-00904	O-RING	2
752	XJBN-00763	PACKING-SEAT	1
789	XJBN-00099	RING-BACK UP	2
793	XJBN-00761	RING-BACK UP	2
806	XJBN-00101	NUT-HEX	2
807	XJBN-00760	NUT	2
885	XJBN-00103	PIN-VALVE PLATE	2
886	XJBN-00054	PIN-SPRING	2
888	XJBN-00712	PIN	1
953	XJBN-00757	SCREW-SET	2
954	XJBN-00392	SCREW-SET	2
*-2	@	FUEL INJECTION PIPE & NOZZLE SEE 4030	2
*-3	@	FUEL INJECTION PIPE & NOZZLE SEE 4040	1
*-4	@	FUEL INJECTION PIPE & NOZZLE SEE 4045	1
S	XJBN-01039	PISTON SUB ASSY SEE ILLUST	2
S	XJBN-01040	CYLINDER SUB ASSY-RH SEE ILLUST	1
S	XJBN-01041	CYLINDER SUB ASSY-LH SEE ILLUST	1
S	XJBN-00756	SWASH PLATE ASSY SEE ILLUST	2
S	XJBN-00754	TILTING PIN ASSY SEE ILLUST	2

To truly understand your excavator's hydraulic power, you need to know its two vital signs: Pressure (PSI/Bar) and Flow (GPM/LPM). Think of them as the dynamic duo working together inside your hydraulic pump. Flow (GPM/LPM) is the volume of hydraulic oil the pump delivers per minute. It determines the speed of your hydraulic functions - how fast the boom raises, the arm curls, or the bucket dumps. More flow generally means faster cylinder and motor movement. Pressure (PSI/Bar), generated by the pump and regulated by the system, is the force behind that oil. It determines the power or strength - how much weight the boom can lift, how hard the bucket can dig into tough ground, or how much force the tracks can apply to push. The pump creates flow; resistance in the system (like a cylinder trying to lift a heavy load) creates pressure. A powerful pump delivers high flow at high pressure. It's crucial they are balanced for your machine. Too little flow, and movements are sluggish. Too little pressure, and the machine lacks digging or lifting force.
