Quality SK480LC-6E MAIN HYDRAULIC PUMP FOR KOBELCO EXCAVATOR SPARE PART LS10V00001F3 LS10V00003F2 K3V180DTH170R-9TOU ORIGINAL NEW AXIAL PISTON PUMP factory

SK480LC-6E MAIN HYDRAULIC PUMP FOR KOBELCO EXCAVATOR SPARE PART LS10V00001F3 LS10V00003F2 K3V180DTH170R-9TOU ORIGINAL NEW AXIAL PISTON PUMP

Name: SK480LC-6E MAIN HYDRAULIC PUMP FOR KOBELCO EXCAVATOR SPARE PART LS10V00001F3 LS10V00003F2 K3V180DTH170R-9TOU ORIGINAL NEW AXIAL PISTON PUMP
Brand: GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED
SKU: SK480LC-6E
Price: 3600 USD
Availability: InStock

Place of Origin:Japan

Brand Name:Kobelco

Certification:2006/42/EC ISO9001

Model Number:SK480LC-6E

Minimum Order Quantity:1

Price:3600

Payment Terms:L/C,T/T,alibab TRADE ASSURANCE,PAYPAL

Supply Ability:100

Product Details

Highlight:

Kobelco excavator hydraulic pump

,

axial piston pump for excavator

,

original hydraulic pump with warranty

Part Name: Main Hydraulic Pump

Type: K3V180DTH170R-9TOU

Quality: Original Brand New

Part Number: LS10V00001F3 LS10V00003F2

Condition: New100%

Application: Crawler Excavator

Product Description

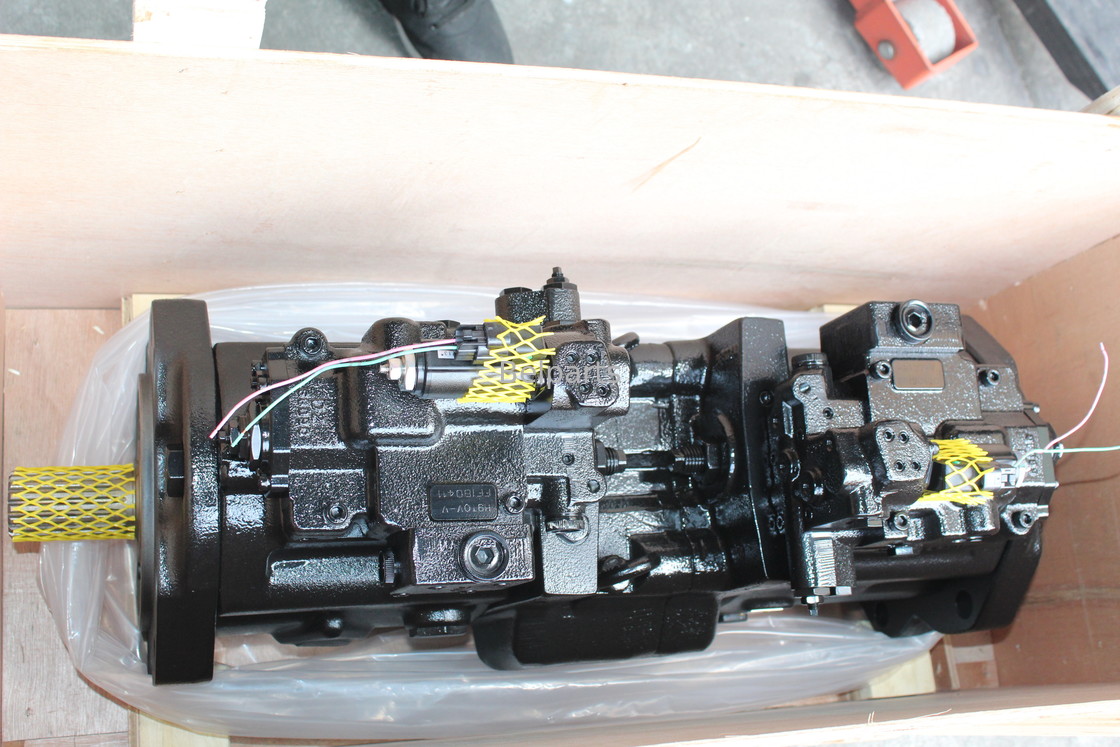

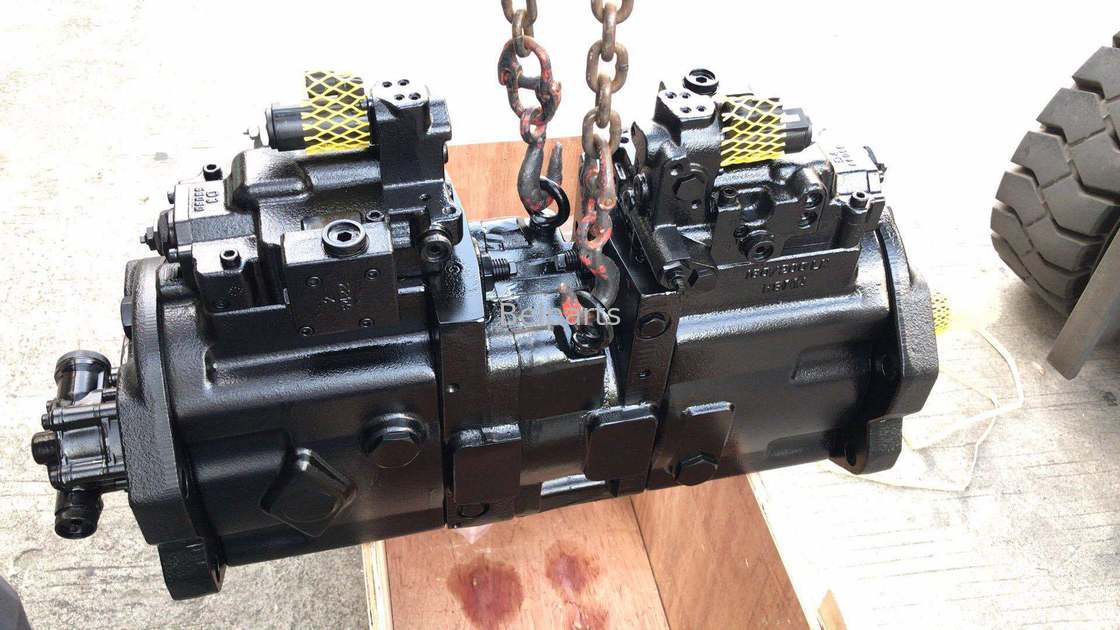

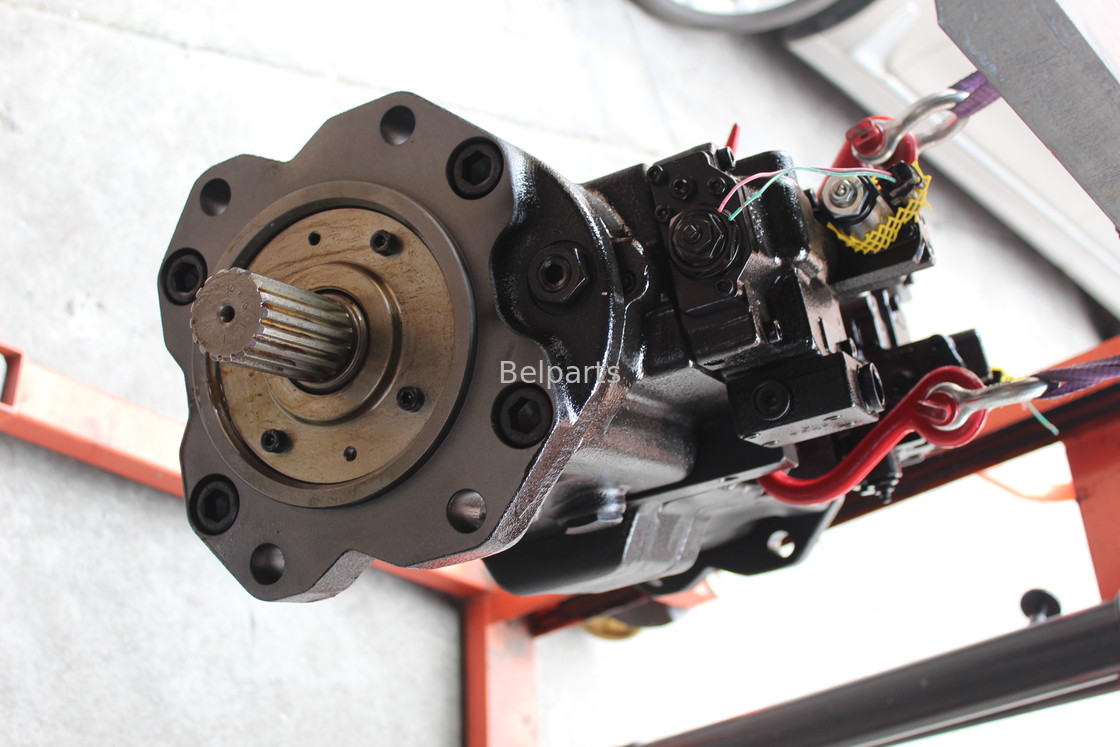

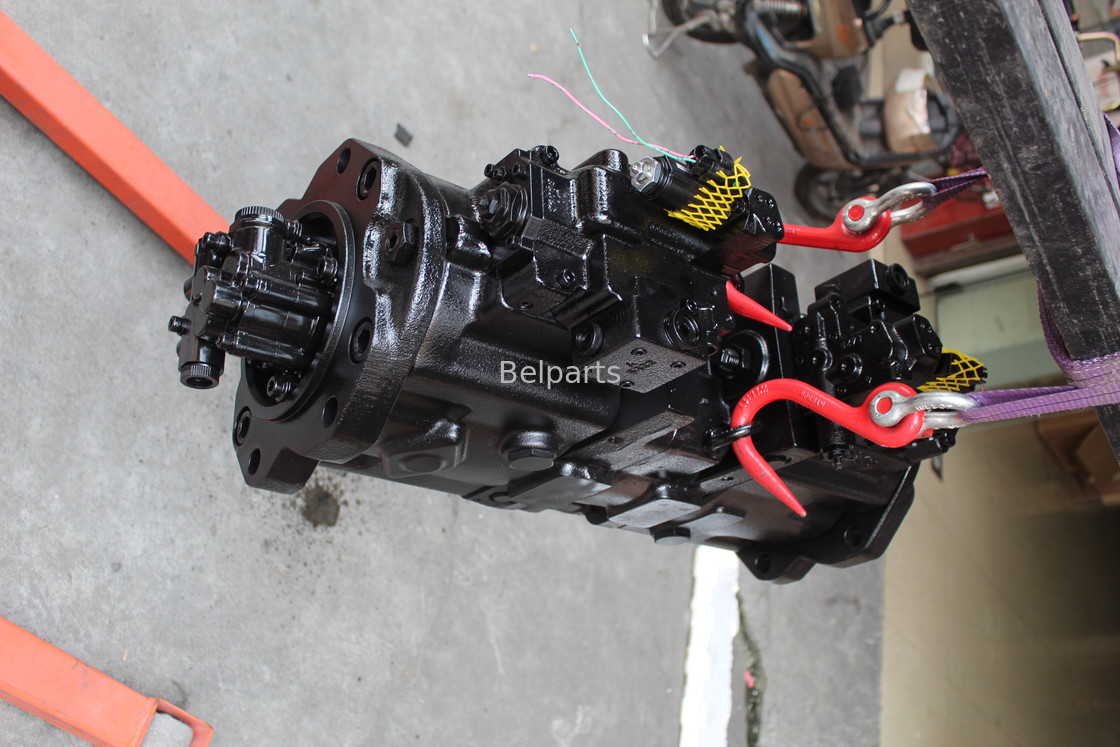

LS10V00001F3 LS10V00003F2 K3V180DTH170R-9TOU Original New Main Hydraulic Pump for Kobelco SK480LC-6E Excavator

1. OEM Part Number & Machine Compatibility

Kawasaki internal pump model: K3V180DTH170R-9TOU tandem variable axial piston pump
Kobelco OEM part numbers: LS10V00001F3, LS10V00003F2
Exact fit excavator model: Kobelco SK480LC-6E large hydraulic excavator
Two part numbers are fully interchangeable with identical mounting structure and internal hydraulic calibration for direct replacement

2. Core Technical Specifications

Structure layout: Twin variable displacement piston main pump integrated with built-in pilot charge gear pump
Single pump displacement: 180 cm³/rev, matched to original high-power hydraulic system design for 48-ton class excavator
Rated continuous working pressure conforms to factory system setting, with preset peak relief pressure for heavy-load overload protection
Operating speed range precisely calibrated to match the rated output of the original engine equipped on SK480LC-6E

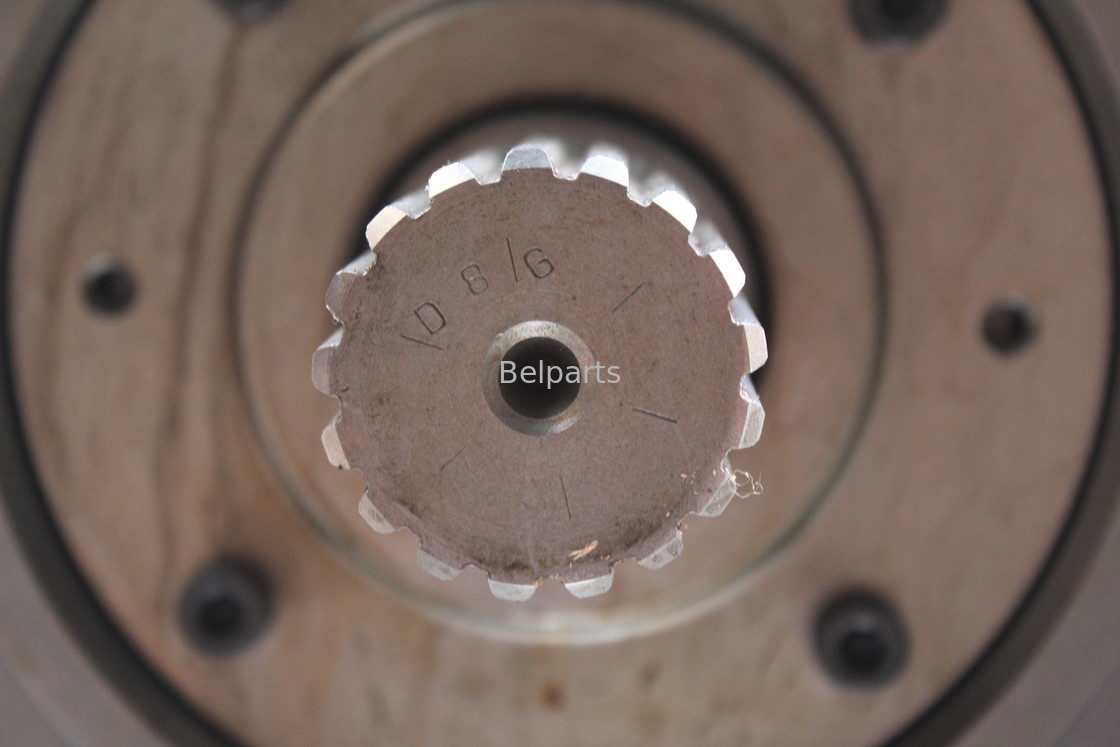

Mounting flange dimension, spline shaft specification and all hydraulic port positions strictly comply with original OEM drawing standards
Pump housing made of high-strength ductile iron; internal pistons, valve plates and friction components adopt quenched wear-resistant alloy steel for extended service life

3. Internal Structure & Functional Introduction

Dual main piston pumps deliver high-pressure hydraulic oil to drive boom, arm, bucket, travel and swing working movements
Integrated pilot gear pump supplies stable pressure oil for pilot control circuits and system hydraulic oil replenishment
Built-in total power matching regulators automatically adjust pump output flow according to real-time load variation, preventing engine stall during heavy digging and loading operations
Optimized tandem compact structure ensures accurate installation inside the dedicated hydraulic compartment of SK480LC-6E

4. Product Advantages

Exact 1:1 OEM casting dimension, supporting plug-and-play installation without modification to hydraulic pipelines or engine mounting structure
Every original new pump passes full hydraulic bench inspection including pressure stability, flow consistency and internal leakage testing before delivery
Complete range of maintenance spare parts are available in stock, including overhaul seal kits, piston assemblies, swash plates and valve plates for separate component replacement during repair work
Dual interchangeable OEM numbers designed for one excavator model, simplifying spare part ordering and inventory management for dealers and repair service centers

5. Packaging & Global Delivery Details

Input shaft and all hydraulic oil ports coated with anti-rust grease and sealed with protective dust plugs
Entire pump wrapped with moisture-proof plastic film and fixed inside export-grade solid wooden crate to avoid collision and moisture damage during long-distance sea or air transportation
In-stock original new units can be arranged for shipment within 3 to 5 working days after order confirmation
Multiple global shipping solutions are available: international air express, sea LCL/FCL bulk shipment and overland truck transportation for global customers

6. FAQ

Q: Are LS10V00001F3 and LS10V00003F2 mutually replaceable?
A: Yes, both part numbers correspond to the same K3V180DTH170R-9TOU pump assembly with identical installation size and internal hydraulic parameters, suitable for cross installation on SK480LC-6E directly.
Q: What is the relationship between K3V180DTH170R-9TOU and the two Kobelco OEM numbers?
A: K3V180DTH170R-9TOU is the original Kawasaki pump model designation, while LS10V00001F3 and LS10V00003F2 are exclusive OEM part numbers assigned by Kobelco for this complete main pump assembly.
Q: Are individual repair spare parts available for this hydraulic pump?
A: Matching full overhaul seal kits, piston shoe assemblies, valve plates, swash plates and independent pilot gear pump spare parts are all available for partial overhaul maintenance and component replacement work.
