Quality HX340SL HX330L swing motor assy for Hyundai EXcavator spare parts 38K9-10150 39K9-12100 Rotary motor device factory

HX340SL HX330L swing motor assy for Hyundai EXcavator spare parts 38K9-10150 39K9-12100 Rotary motor device

Name: HX340SL HX330L swing motor assy for Hyundai EXcavator spare parts 38K9-10150 39K9-12100 Rotary motor device
Brand: GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED
SKU: HX340SL HX330L
Price: 475.00 USD
Availability: InStock

Place of Origin:China

Brand Name:Belparts

Model Number:HX340SL HX330L

Minimum Order Quantity:1 piece

Price:Negotiable price

Payment Terms:T/T,Paypal and Trade Assurance

Supply Ability:1000pieces

Product Details

Highlight:

Hyundai excavator swing motor assy

,

HX340SL swing motor replacement

,

38K9-10150 rotary motor device

Model: HX340SL HX330L

Part Number: 38K9-10150 39K9-12100

Model Name: Excavator Swing Motor Assy

Application: Excavator, Engineering Machinery Equipment

Condition: Original Brand New

Stock: Yes

Brand: Hyundai

Product Description

HX340SL HX330L swing motor assy for Hyundai EXcavator spare parts 38K9-10150 39K9-12100 Rotary motor device

Our main products are Excavator Hydraulic Spare Parts, Hydraulic Main Pump, Swing Motor, Travel Motor, Final Drive Ass'y, Swing Device Ass'y, Swing Gearbox, Travel Gearbox, Gears, Regulators, Relief Valve, Fan Motor and other hydraulic items with genuine and aftermarket quality. Until now, our products have been exported to more than 125 countries and regions, spreading all over the Middle East, Southeast Asia, Africa, North America, South America, Europe and Oceania with our own brand "Belparts", which is highly praised by foreign customers and enjoys a high reputation.

Pos.	Part No	Qty	Parts name	Comments

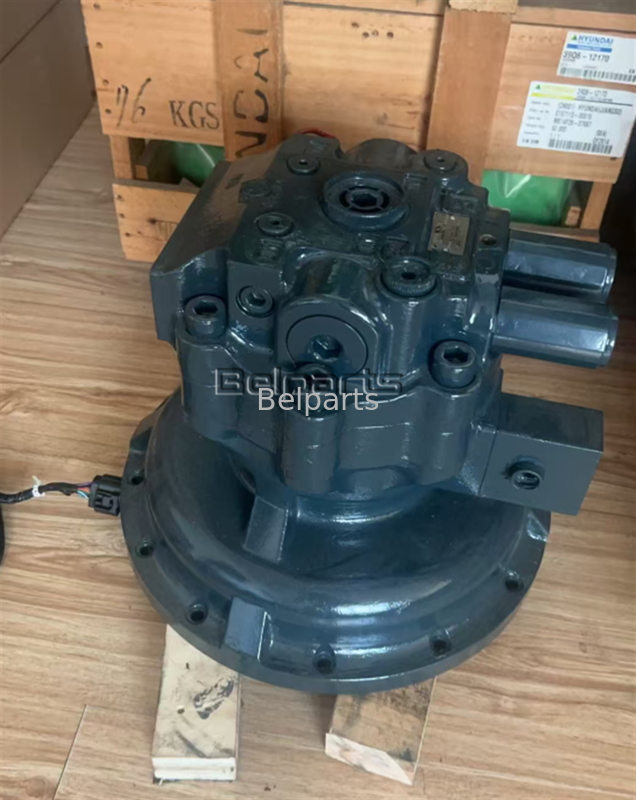

*.	38K9-10150	[1]	SWING MOTOR ASSY	SEE 4100

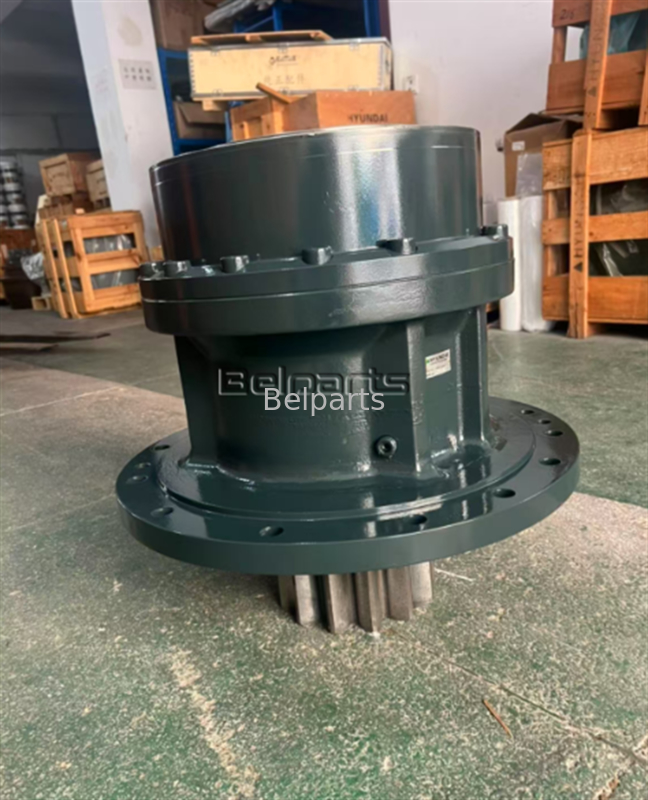

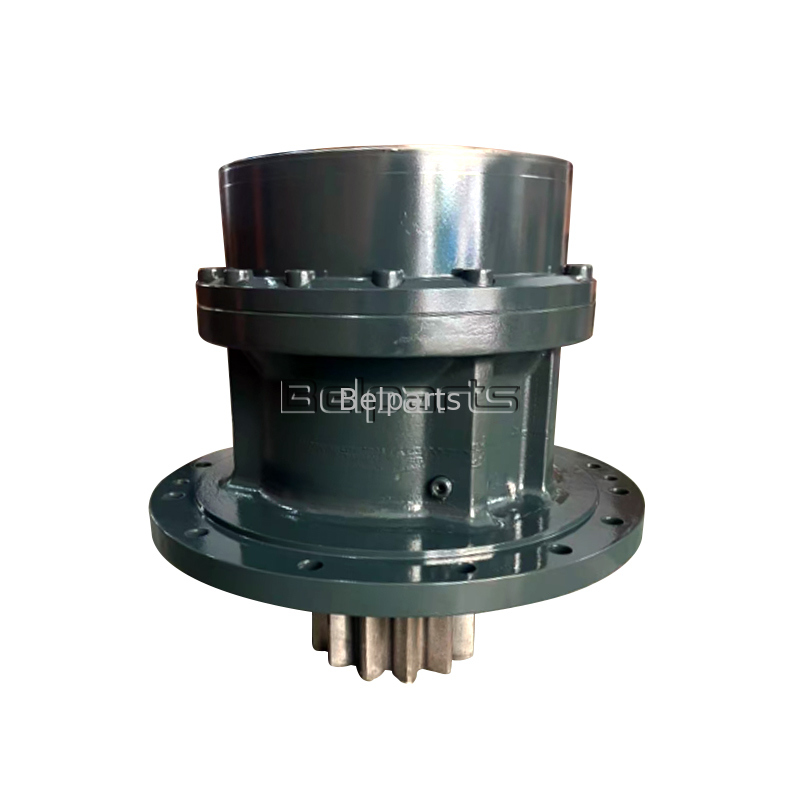

*-2.	39K9-12100	[1]	SWING REDUCTION GEAR
1	39Q8-12110	[1]	GEAR RING
2	39K9-12120	[1]	DRIVE SHAFT
3	39K9-12130	[1]	BEARING-SPH.ROLLER	MAIN
4	39Q8-12140	[1]	BEARING-SPH.ROLLER	SUB
5	39Q8-12150	[1]	PLATE-THRUST
6	39Q8-12160	[1]	RING-SNAP
7	39Q8-12170	[1]	COVER
8	S017-120306	[12]	BOLT-HEX
9	39Q8-12180	[1]	CASING
10	S632-290001	[1]	O-RING
11	S109-100306	[12]	BOLT-SOCKET
NK12.	39Q8-12201	[1]	CARRIER NO.2
NK13.	39Q8-12211	[4]	GEAR-PLANETARY NO.2
NK14.	39Q8-12220	[4]	BEARING-NEEDLE NO.2
NK15.	39Q8-12231	[8]	WASHER-THRUST NO.2
NK16.	39Q8-12240	[4]	PIN-CARRIER NO.2
NK17.	S472-910404	[4]	PIN-SPRING
K18.	39Q8-12251	[1]	GEAR-SUN NO.2
NK19.	39Q8-12261	[1]	PLATE-THRUST NO.2
NK20.	39Q8-12281	[1]	CARRIER NO.1
NK21.	39Q8-12291	[3]	GEAR-PLANETARY NO.1
NK22.	39Q8-12300	[3]	BEARING-NEEDLE NO.1
NK23.	39Q8-12311	[6]	WASHER-THRUST NO.1
NK24.	39Q8-12320	[3]	PIN-CARRIER NO.1
NK25.	S472-800404	[3]	PIN-SPRING NO.1
K26.	39Q8-12331	[1]	GEAR-SUN NO.1
NK27.	39Q8-12341	[1]	PLATE-THRUST NO.1
28	39Q8-12350	[1]	SLEEVE
29	S632-140001	[1]	O-RING
30	39Q6-12350	[1]	SEAL-OIL
31	39Q6-41450	[2]	PIN-PARALLEL
32	S109-18050D	[14]	BOLT-SOCKET
33	39K9-12360	[1]	NAME PLATE
34	39Q6-41800	[2]	RIVET
35	P220-430204	[1]	PLUG-HEX
K.	39Q8-12270	[1]	CARRIER ASSY KIT 1	SEE ILLUST
K.	39Q8-12190	[1]	CARRIER ASSY KIT 2	SEE ILLUST
N.	@	[AR]	NOT SUPPLIED PARTS

HX340SL HX330L swing motor assy for Hyundai EXcavator spare parts 38K9-10150 39K9-12100 Rotary motor device

Principle: As the core for excavator body rotation, the swing assembly first receives high-pressure oil from the hydraulic pump. The swing motor converts hydraulic energy into mechanical energy, which is then transmitted to the built-in reduction mechanism. Through multi-stage gears, the mechanism reduces speed and increases torque, amplifying driving force before transferring it to the slewing ring to drive the upper body for 360° rotation, meeting the orientation adjustment needs during operation.

Usage: Control rotation direction and speed via the swing lever—the larger the lever range, the faster the speed. Avoid sudden rotation or rotating with heavy loads during operation to prevent component impact. Regularly check the motor oil level and seal leakage, and clean the slewing ring gear surface to prevent wear from affecting rotation accuracy.

We offer a variety of customization services. We will complete customized products within the promised timeframe, based on the client's requirements. Please contact us if needed.
