324D 325D 326D 329D 325C 322C hydraulic pump for Excavator spare parts 2726957 2726959 Axial Piston pump
324D excavator hydraulic pump
,325D axial piston pump
,excavator spare parts with warranty

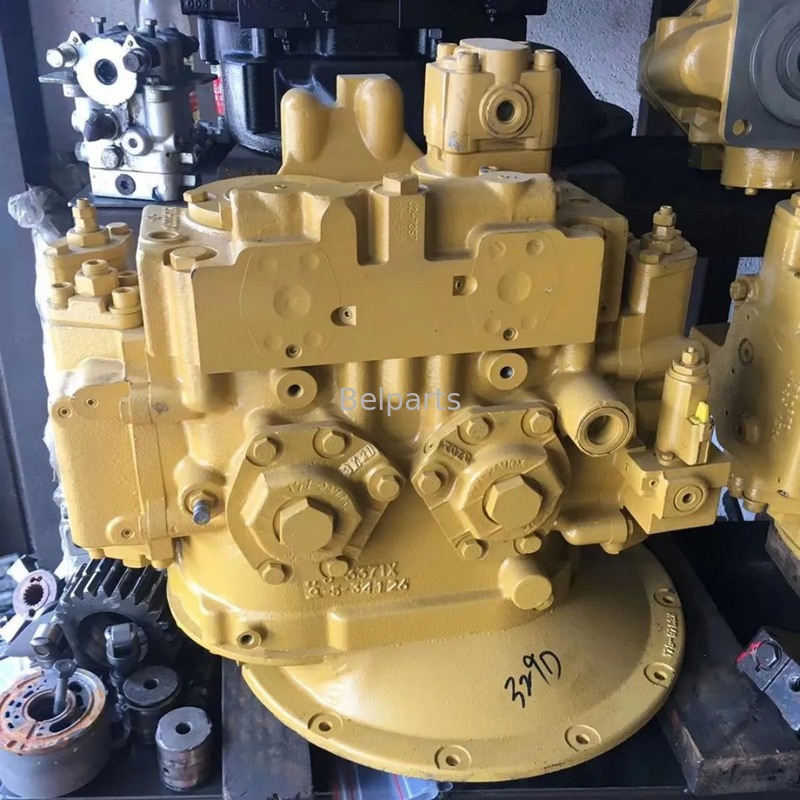

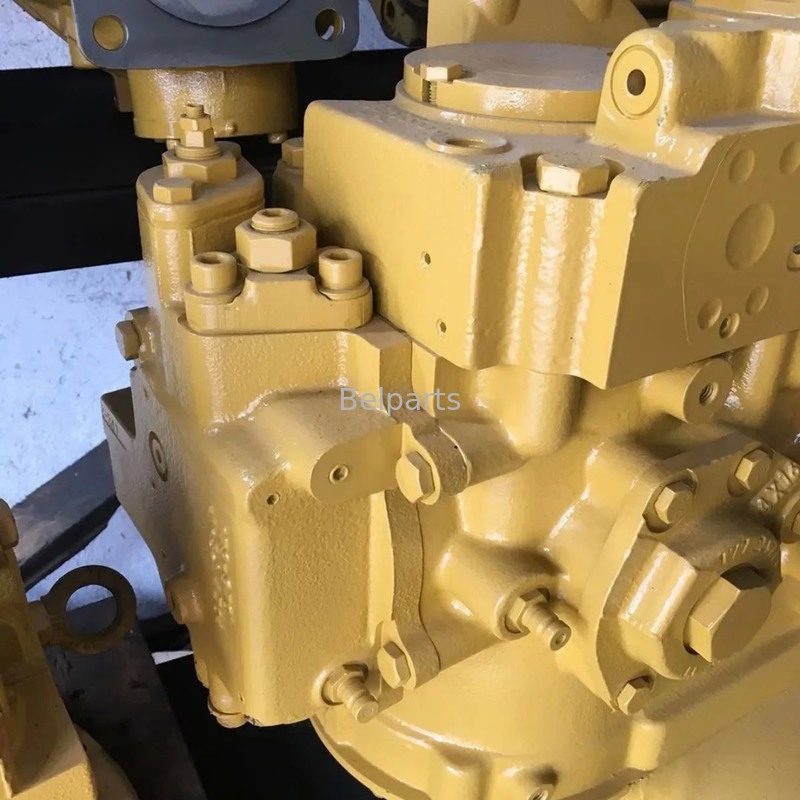

324D 325D 326D 329D 325C 322C hydraulic pump for Excavator spare parts 2726957 2726959 Axial Piston pump
|
Application
|
Excavator
|
|
Part name
|
Main Hydraulic Axial Piston Pump
|
|
Machine model
|
324D 325D 326D 329D 325C 322C
|
|
Part number
|
2726957 2726959
|
|
Warranty
|
6 months
|
|
Delivery time
|
3-7 Days
|
|
Shipment
|
Express/freight/sea/train
|
|
Quality
|
Refurbished
|
|
MOQ
|
1 Piece
|
|
Payment term
|
T/T, Trade Assurance, Paypal and et
|
List of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 1 | 4I1022 | ORIFICE | 2 | |
| 2 | 7Y4215 | SPACER | 2 | |
| 3 | 0963983 | RING-RETAINING | 1 | |
| 4 | 1262016 | PUMP GROUP-GEAR (PILOT) | 1 | |
| 9T0835 | RING-RETAINING | 1 | ||
| 5 | 1297853 | PLATE-CREEP | 2 | |
| 6 | 1297854 | CASE | 1 | |
| 7 | 1297863 | COVER | 1 | |
| 8 | 1297921 | RING-RETAINING | 2 | |
| 9 | 1297925 | SEAL-O-RING (ID=11.89mm) | 1 | |
| 10 | 1297927 | BEARING | 2 | |
| 11 | 1505782 | COVER | 2 | |
| 12 | 1733427 | GUIDE-BALL | 2 | |
| 13 | 1772470 | COVER | 1 | |
| 14 | 1772471 | COVER | 1 | |
| 15 | 1799763 | FLANGE | 1 | |
| 16 | 1884210 | PISTON AS | 2 | |
| 17 | 1904896 | PLUG | 2 | |
| 18 | 1920573 | PIN-DOWEL | 4 | |
| 19 | 1948325 | SET-BEARING | 2 | |
| 20 | 2003333 | HEAD-PUMP | 1 | |
| 21 | 2003334 | COVER | 1 | |
| 22 | 2254541 | SHAFT-DRIVE | 1 | |
| 23 | 2254542 | SHAFT-DRIVEN | 1 | |
| 24 | 2344493 | GASKET | 1 | |
| 25 | 2344494 | GASKET | 1 | |
| 26 | 2478782 | BODY | 1 | |
| 27 | 2478920 | ORIFICE | 2 | |
| 28 | 2560081 | BARREL AS-DRIVE | 1 | |
| 29 | 2560083 | BARREL AS-PUMP | 1 | |
| 30 | 2560088 | ACTUATOR GROUP-PUMP -DRIVE | 1 | |
| 31 | 2560089 | ACTUATOR GROUP-PUMP -DRIVEN | 1 | |
| 33 | 0941875 | PIN, ROLLER | 6 | |
| 34 | 0941882 | PLUG, TAPERED | 16 | |
| 35 | 0950946 | RING (RETAINING) | 2 | |
| 37 | 0963944 | SEAL-O-RING | 1 | |
| 38 | 0964389 | SPRING | 18 | |
| 39 | 1297979 | DOWEL | 4 | |
| 40 | 1778740 | SEAL-O-RING | 1 | |
| 41 | 1899763 | SEAL (13.6mm OD) | 1 | |
| 42 | 1931736 | SEAL (85.6mm OD) | 4 | |
| 43 | 2426801 | SWASHPLATE AS | 2 | |
| 43A | 1733428 | BEARING-SLEEVE | 1 | |
| 0941875 | PIN, ROLLER | 1 | ||
| 2426803 | PIN-DOWEL | 2 | ||
| 44 | 2426804 | BEARING | 4 | |
| 45 | 3K0360 | SEAL PILOT MANIFOLD ON SEAL TO BOOM CHECK VALVE DRAIN | 2 | |
| 46 | 7M8485 | SEAL,ADAPTER,MOTOR PART OF KIT P/N 5R1429 | 2 | |
| 47 | 7X2557 | BOLT (M16X2.0X140MM) | 1 | |
| 48 | 8J4645 | PLUG (FRONT 5 STEM MAIN CONTROL VALVE) | 2 | |
| 49 | 8T3338 | SEAL-O-RING (ID=84.40mm) | 2 | |
| 50 | 8T4136 | CAPSCREW (HEX HD) (M10 X 1.50 X 25L GR 10.9) | 18 | |
| 51 | 8T4137 | BOLT (M10X1.50X20MM) | 2 | |
| 52 | 8T4139 | CAPSCREW (HEX HD) (M12 X 1.75 X 30L GR 10.9) | 10 | |
| 53 | 8T4140 | BOLT-PLT (M16 X 2.0 X 60) | 4 | |
| 54 | 8T4175 | BOLT (M16X2X90-MM) | 2 | |
| 55 | 8T4176 | BOLT-PLT (M12 X 1.75 X 90) | 2 | |
| 56 | 8T4192 | CAPSCREW (HEX HD) (M12 X 1.75 X 25, GR10.9, Z) | 10 | |
| 57 | 8T4196 | CAPSCREW (HEX HD) (M10 X1.5 X 35, GR10.9, Z) | 2 | |
| 58 | 9S4185 | PLUG--TO SEAL HYDRAULIC PUMP TO SUMP OF LIMIT SYSTEM | 2 | |
| AVAILABLE REPAIR KIT(S): | ||||
| 2502503 | KIT-SEAL (PILOT GEAR PUMP) | 1 | ||
| (INCLUDES RING-RETAINING, GASKET, & SEALS) | ||||
| KIT MARKED J SERVICE PART MARKED J | ||||
| METRIC PART | ||||
| SEPARATE ILLUSTRATION |
More Branded Accessories are Available
| Hydraulic Parts | Hydraulic Pump | Final Drive | Travel Reduction |
| Swing Motor | Swing Reduction | Control Valve | Gear Parts |
| Slew Bearing | Engine Assembly | Hydraulic Cylinder | ECU |
Process Features
- Standard production management
- Advanced testing equipment
- Heat Treatment Technology
- Fitting of cylinder block and valve plate
About Factory
- Belparts have a large workshop forexcavator parts producing, from materialcutting, wielding, heating treating,assembling, debugging,painting, testing,every part we will confirm before leavingthe factory.
Why Choose Us?
- Quality Assurance
- Fine Workmanship
- Price Advantage
- Stable Supply
More Models For You To Choose From.
| VRD63 | 100/120/120B |
| SBS80 | 311/311D/312C/312D/314 |
| SBS80(D2GC) | 312D2GC |
| SBS120 | 320C/320D |
| SBS140 | 324D/325D/326D/329D/325C |
| SBS180 | 336E 336F |
FAQ
1.If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.
2.What is the warranty of the parts after I purchased hydraulic axial piston pump & motor spare parts?
The warranty is 6/12 Months based on the item details.
3.How can I pay the order?
We can receive payment through T/T, Western Union, Paypal(for small amount),alibab trade assurance.
4.When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.
5.How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us
and we will check. After it is confirmed, pls return to us , we will offer the correct item.
6.What is your main products ?
We are specialized in the excavator spare parts, such as travel motor gearbox/ass’y/parts, swing gearbox/ass’y/motor/parts,
hydraulic pump assy/parts and gear parts. If you need other excavator parts, we also can supply as your requirements.
-
