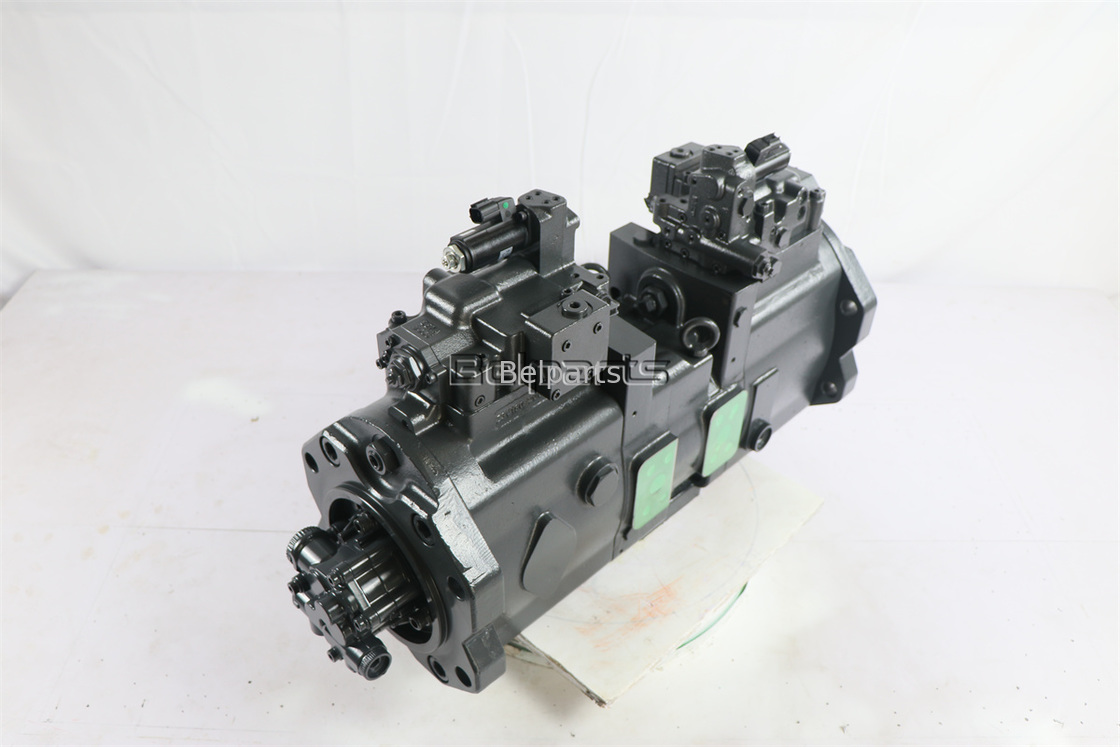

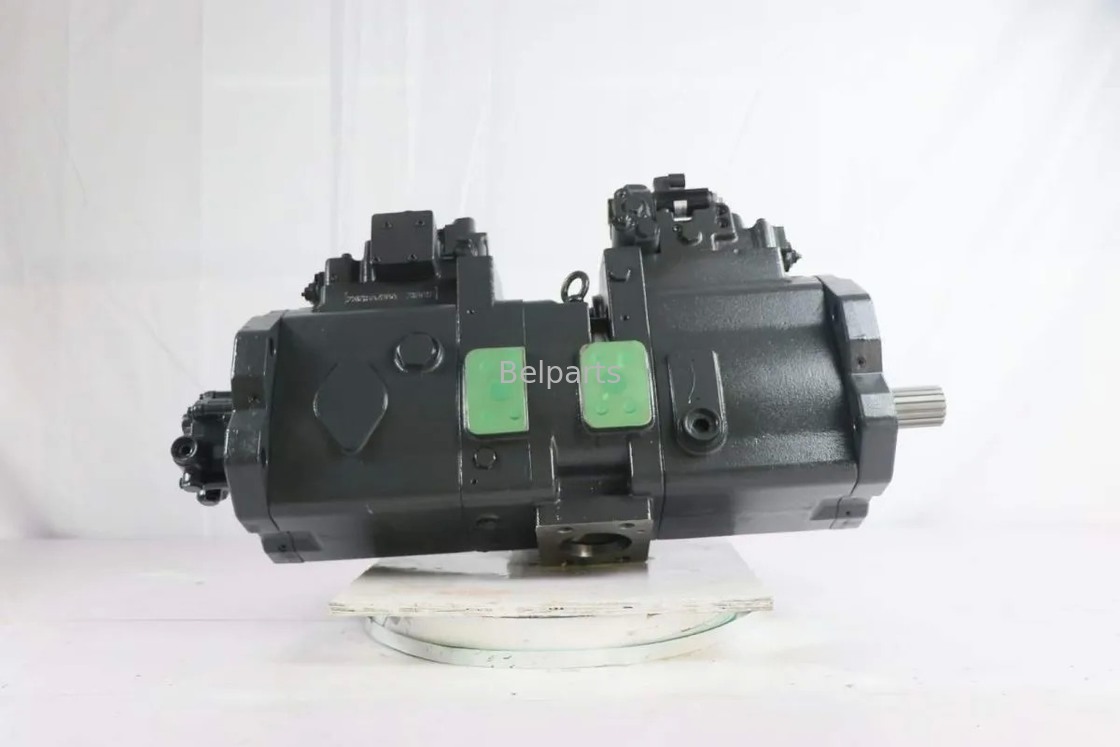

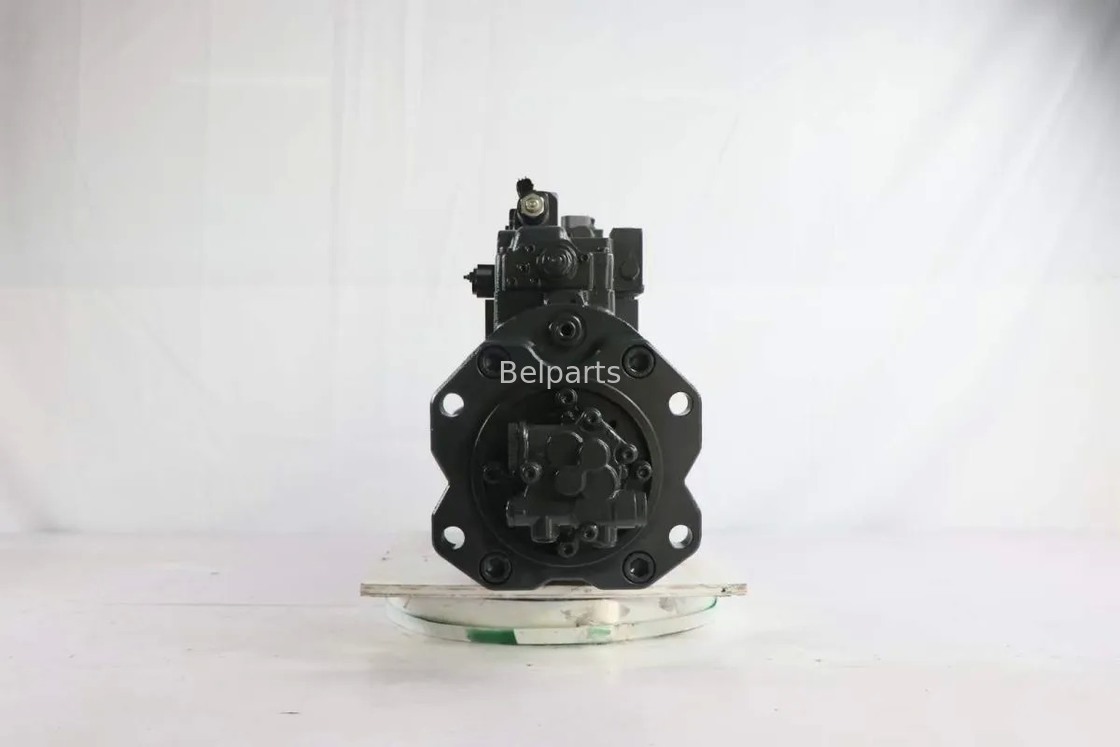

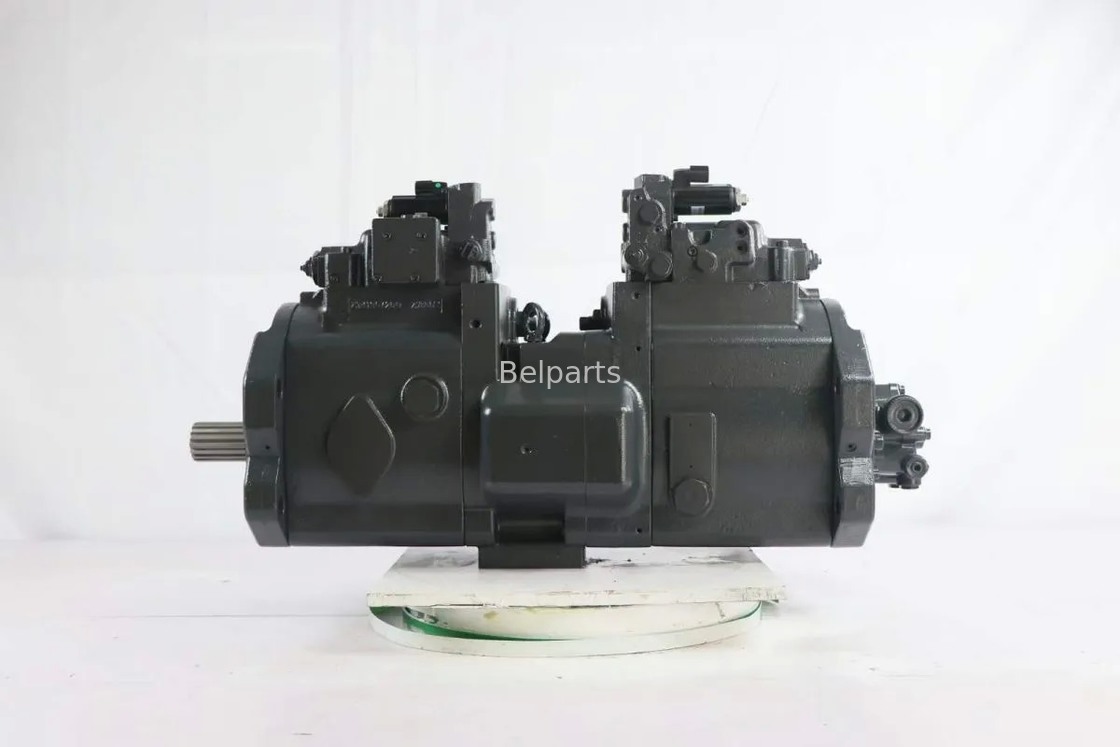

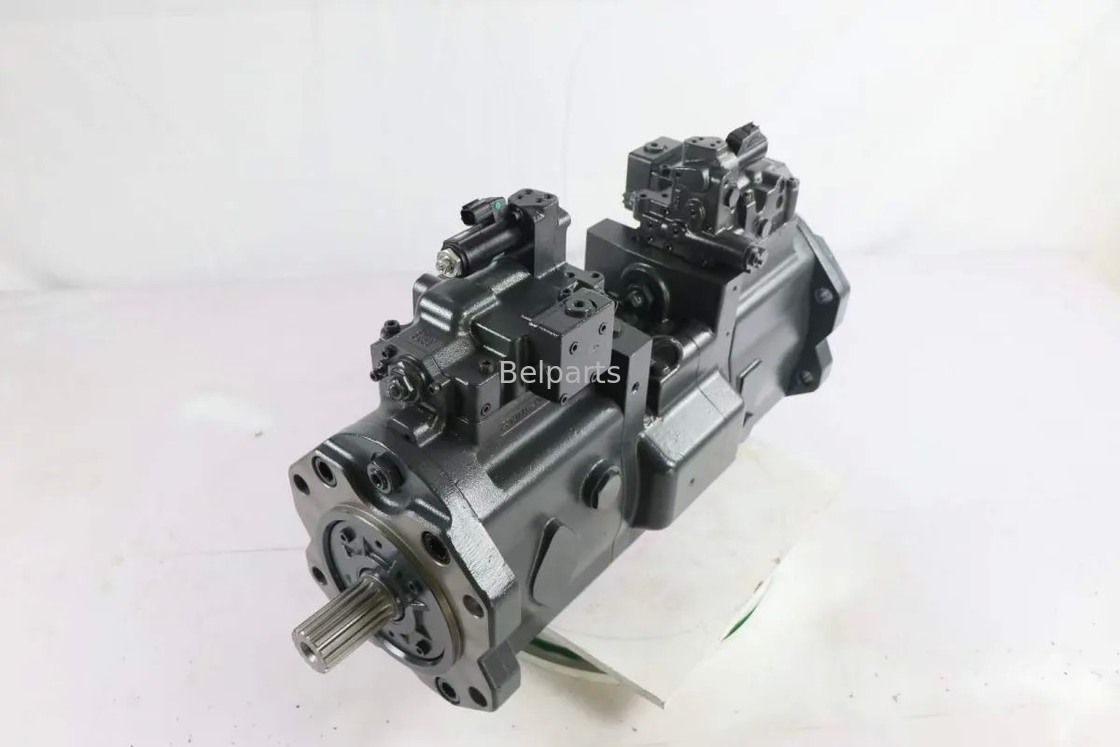

SK450-6 SK450-6E Main Hydraulic Pump for KOBELCO Excavator Spare Part K5V200DTH K3V180DTH1MOR-9TOV LS10V00001F1 Axial Piston Pump
SK450-6 hydraulic pump for Kobelco excavator
,Kobelco excavator axial piston pump
,K5V200DTH hydraulic pump with warranty
| Appliion | Excavator |
|---|---|
| Part name | Hydraulic Main pump |
| Machine model | SK450-6 SK450-6E |
| Type | K3V180DTH1MOR-9TOV |
| Parts Number | LS10V00001F1 |
| Warranty | 12 months |
| Delivery time | 3-7 Days |
| Shipment | Express/freight/sea/train |
| Quality | Made in China |
| MOQ | 1 Piece |
| Payment term | T/T, Trade Assurance, Paypal and etc |
| egory | Construction Machinery Part |
- LS10V00001F1 [1] PUMP
- LS10V00001F5R [1] REMAN-HYD PUMP
- LS10V00001FSC [1] CORE-HYDRAULIC PUMP
- LS10V00002F1 [1] PUMP ASSY SEE P. LS10V00002-1
- LS10V01001F1 [2] VOLTAGE REGULATOR
- LS10V00003F1 [1] PUMP
- YN35V00018F2 [2] SOLENOID VALVE
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| * | 2437U390F1 | [1] | PUMP | KOB PUMP AS5Y Superseded by part number:2437U486F1 |
| 1. | 2480U323F1 | [1] | CONTROL AS5Y | |
| 2. | 2416R481F1 | [1] | HANGER | KOB |
| 3. | 24100R232F1 | [2] | ROTARY DIVIDER | KOB |
| 4. | 2414R430F1 | [1] | COVER ASSY | |
| 5. | 2410R335F1 | [1] | CASE | KOB |
| 5-1. | N5 | [1] | NOT 5OLD SEPARAT | CON CASE |
| 5-2. | ZR26X06200 | [1] | SNAP RING | KOB |
| 5-3. | NSS | [1] | NOT 5OLD SEPARAT | CON SEAL,OIL |
| 5-4. | 2410R33554 | [1] | O-RING | KOB |
| 6. | 2437U386F1 | [1] | PUMP | HIT |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CON SHAFT |
| 8. | 2437U39058 | [1] | CONTACT PLATE | KOB |
| 9. | NSS | [1] | NOT 5OLD SEPARAT | CON BEARING |
| 10. | 2414R26853 | [2] | PIN | |
| 11. | 2437U390511 | [1] | SHIM | KOB SHIM |
| 12. | ZR16X02800 | [1] | SNAP RING | KOB |
| 13. | 2437U390513 | [1] | PLUG | |
| 14. | ZD12P01100 | [1] | O-RING | KOB ID 10.8mmxOD 13.2mm |
| 15. | [1] | NOT SOLD SEPARAT | CON |
- Quality Assurance
- Fine Workmanship
- Price Advantage
- Stable Supply
- Standard production management
- Advanced testing equipment
- Heat Treatment Technology
- Fitting of cylinder block and valve plate
Belparts have a large workshop for excavator parts producing, from material cutting, welding, heating treating, assembling, debugging, painting, testing, every part we will confirm before leaving the factory.
If possible, you can send us pictures of old products, nameplate or the size for reference.
The warranty is 6/12 Months based on the item details.
We can receive payment through T/T, Western Union, Paypal(for small amount), alibab trade assurance.
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock, we will inform you before placing the order.
First of all, I have confidence in the quality of our products, if you really found something wrong, pls provide pictures for us and we will check. After it is confirmed, pls return to us, we will offer the correct item.
We are specialized in the excavator spare parts, such as travel motor gearbox/ass'y/parts, swing gearbox/ass'y/motor/parts, hydraulic pump assy/parts and gear parts. If you need other excavator parts, we also can supply as your requirements.
-
