Final Drive For KOMATSU PC07-1 PC07-2 PC14R-2 PC14R-3 PC15R-8 PC16R-2 PC16R-3 Mini Excavator parts 20W-60-91501 20M-60-91302 20W-60-R1500 20W-60-12000 20W-60-22000 20W-60-32001 Travel Motor Reducer

Place of Origin:Made in china
Brand Name:Belparts
Certification:ISO9001, 2006/42/EC
Model Number:PC07-1 PC07-2 PC14R-2 PC14R-3 PC15R-8 PC16R-2 PC16R-3
Minimum Order Quantity:1PCS
Price:Negotiated price
Payment Terms:T/T,trade assurance,PayPal,L/C,D/P,D/A,Western Union
Supply Ability:100 PCS / Months
Product Details
Highlight:

Komatsu mini excavator final drive

,

Travel motor reducer PHV-1B-12

,

Komatsu PC07-1 spare parts

Part Number: 20W-60-12001 20W-60-12000 20M-60-91302 20W-60-32001
Model: PC07-1 PC07-2 PC14R-2 PC14R-3 PC15R-8 PC16R-2 PC16R-3
Part Name: Final Drive / Travel Motor Reducer
Machine: Excavator
Type: TM01
Quality: Made In China High Quality
Warranty: 12 Months
Shipment: Sea / Air / Express DHL FEDEX UPS
Applicable Machine (T): 1-1.8 Ton
Product Description
Universal Final Drive for Komatsu PC07 PC14R PC15R PC16R | Travel Motor

Precision Traction for Tight-Space Earthmoving. Brand-new TM01 / PHV-1B hydraulic final drive motor with integrated planetary reducer, engineered to restore full dual-speed tracking power across Komatsu mini excavators.

1. OEM Part Number & Model Cross-Reference

(Universal-fit assembly matching the following Komatsu OEM numbers and Nachi pump codes)

  • Komatsu PC07-1: 20W-60-12000
  • Komatsu PC07-2: 20W-60-22000
  • Komatsu PC14R-2: 20W-60-91501, PHV-1B-12B-PT-8829B, 20M-60-91302, 20W-60-R1500, PHV-1B-12B-P-8829A
  • Komatsu PC14R-3: 20W-60-91501, PHV-1B-12B-PT-8829B, 20M-60-91302
  • Komatsu PC15R-8: 20W-60-32001
  • Komatsu PC16R-2: 20W-60-91501, PHV-1B-12B-PT-8829B, 20W-60-R1500, PHV-1B-12B-P-8829A
  • Komatsu PC16R-3: 20W-60-91501, PHV-1B-12B-PT-8829B

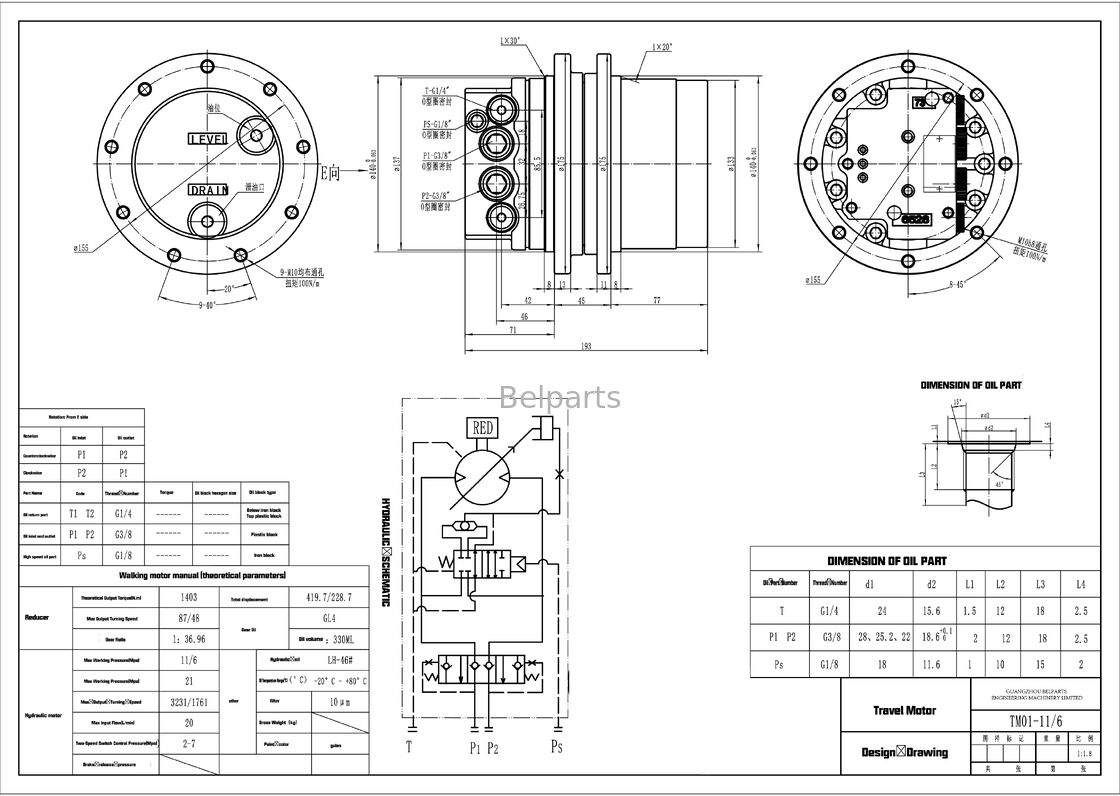

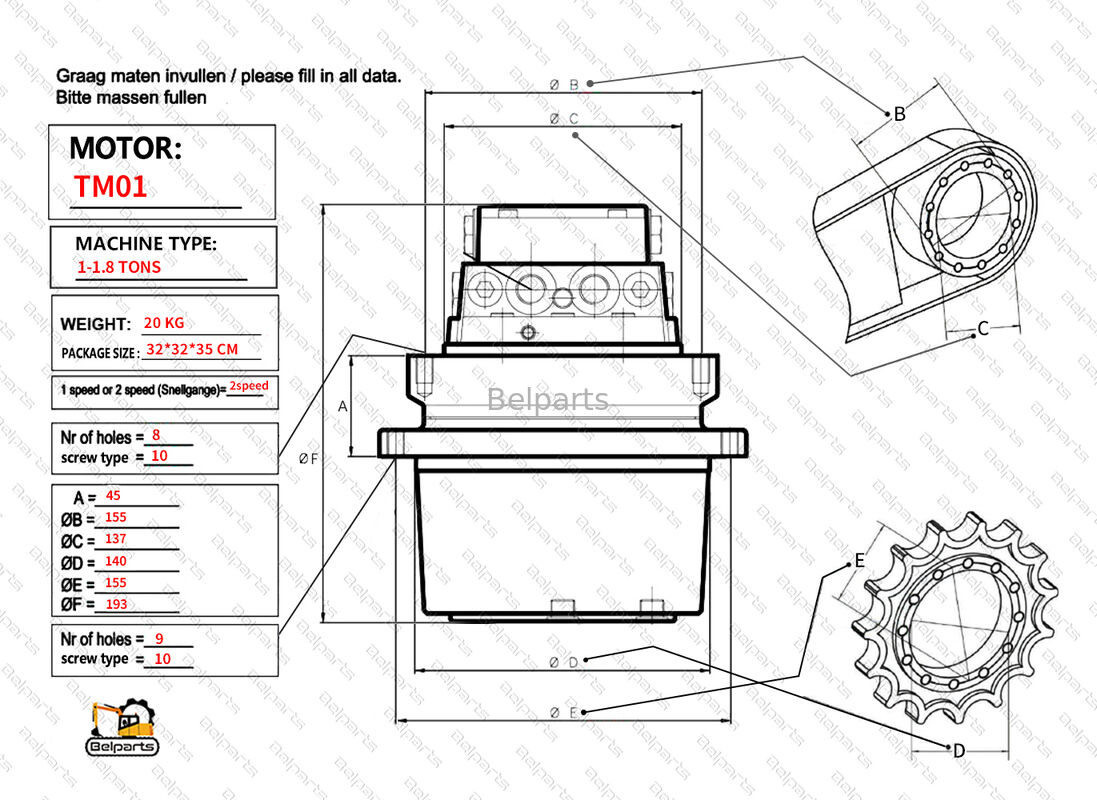

2. Technical Parameters & Operating Data

(Optimized for B2B cross-reference & Google search snippets)

Technical Attribute Specification
Applicable Models Komatsu PC07-1/2, PC14R-2/3, PC15R-8, PC16R-2/3
Motor Code TM01 / PHV-1B
Displacement (Hi / Lo) 6 / 12 mL/rev
Output Torque (Hi / Lo) 700 / 1400 N·m
Output Speed (Hi / Lo) 90 / 45 rpm
Working Pressure 20.6 MPa
Input Flow 20 L/min
Gear Reduction Ratio 37 : 1
Machine Operating Weight 1.0 – 1.8 Ton
Build Standard ISO9001 / 2006/42/EC
3. Solving Komatsu Mini-Excavator Travel Creep

Does your Komatsu lose tracking power once hydraulic oil reaches operating temperature? Worn barrel-and-valve plate interfaces in aging TM01 travel drives cause severe internal leakage under thermal load. This shows up as sluggish track responsiveness, machine drift when digging against slopes, and jerky low-speed positioning. Dropping in this brand-new unit completely restores oil containment, linear tracking, and peak 1400 N·m push power.

4. The BELPARTS Difference: Smooth Inching & Low-Pressure Loss

Mini excavators require precise maneuverability around foundations and utility lines. BELPARTS TM01 drives feature CNC-honed cylinder bores and anti-cavitation porting, providing ultra-smooth low-speed inching (down to 45 rpm) without stutter. Paired with a robust 37:1 reduction gear set, our drives absorb continuous high-pressure spikes without shearing planetary pins.

5. Technical FAQ

Q: Can this unit replace both 20W-60-91501 and motor code PHV-1B-12B-PT-8829B? A: Yes. PHV-1B-12B-PT-8829B is the manufacturer stamping code for Komatsu OEM part number 20W-60-91501. Our complete assembly provides direct drop-in interchangeability with identical mounting holes, sprocket bolt circles, and hydraulic hose connections.

Q: Is hydraulic bleeding necessary after installing this travel motor? A: Yes. Before operating, fill the casing with clean hydraulic fluid through the top drain port. Running a dry motor, even for several seconds, will scorch the swashplate before pressure builds.

List of spare parts
# Part No Part Name Qty.
1 20W-60-32001 MOTOR ASS'Y 2
1 FUFZD8105201 Body 1
2 FUFRP096102 Cover 1
3
Carrier 1
4 FUFRP118506 Gear 4
5
Gear 3
6
Gear 1
7 FUFZD8393109 Gear 1
8
Pin 4
9
Pin 3
10 FUFZD8105212 RING,SEAL 1
11 FUFRP0961113 RING,SNAP 1
12 FUFRP147414 COLLAR,THRUST 1
13 FUFRP096116 NEEDLE 52
14
Ring 39
15 FUES100110 SEAT,FLOATING
16
O-ring 1
17 FU7819W1V Bearing 2
18 FUFRP096221 WASHER,THRUST (K-1) 10
19 FUFRP096122 RING,SNAP 1
20 FURA26 RING,SNAP (K-1) 1
21 FURA13 RING,SNAP 1
22 FUFRP096126 RING,SNAP 1
23 04025-00312 PIN, SPRING 7
24 FUROA25170 O-ring 1
25 FUROA24870 O-RING (K-2) 1
26 FUTPHA-1/8 Plug 3
27
NAME PLATE,NAME 1
28
Motor 1
29 FUFRP147434 WASHER,THRUST 4
30 FUFRP146437 RING,SNAP (K-1) 4
31 FUPPH7-4X6 Pin 1


SERVICE KIT
KIT FUGHB18105 BODY SUB ASS'Y 1
1 FUFZD8105201 Body 1
17 FU7819W1V Bearing 2
22 FUFRP096126 RING,SNAP 1
KIT FUGHC10028393 CARRIER SUB ASS'Y 1
3
Carrier 1
5
Gear 3
6
Gear 1
9
Pin 3
14
Ring 39
18 FUFRP096221 WASHER,THRUST (K-1) 10
20 FURA26 RING,SNAP (K-1) 1
23 04025-00312 PIN, SPRING 7
30 FUFRP146437 RING,SNAP (K-1) 4
