SK50UR-2 K3SP30-110R-2C01 Hydraulic Pump For Mini Excavator Spare Parts PY10V00003F1 Main Piston Pump
Place of Origin:Original Place
Brand Name:Belparts
Model Number:SK50UR-2
Minimum Order Quantity:1PCS
Price:Negotiated price
Payment Terms:T/T,trade assurance,PayPal,L/C,D/P,D/A,Western Union,MoneyGram
Supply Ability:100 PCS / Months
Product Details
Highlight:
SK50UR-2 hydraulic pump for excavator
,mini excavator piston pump
,hydraulic pump spare parts with warranty
Type:
K3SP30-110R-2C01
Part Name:
Hydraulic Pump
Application:
Excavator
Part Number:
PY10V00003F1
Quality:
Original Brand Rebuild
Warranty:
6 Months
Shipment:
Sea / Air / Express DHL FEDEX UPS
Product Description

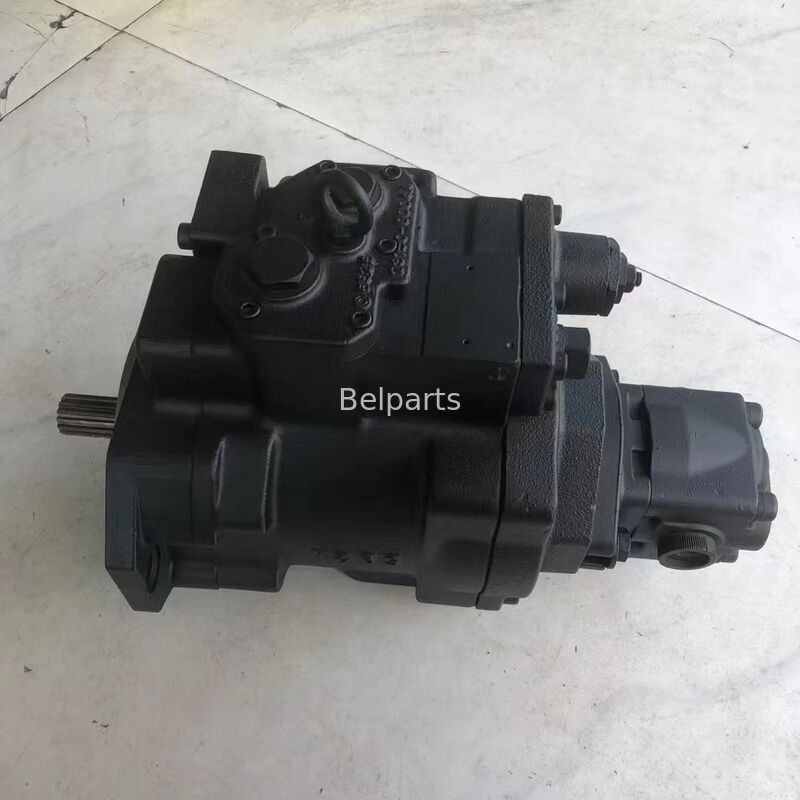

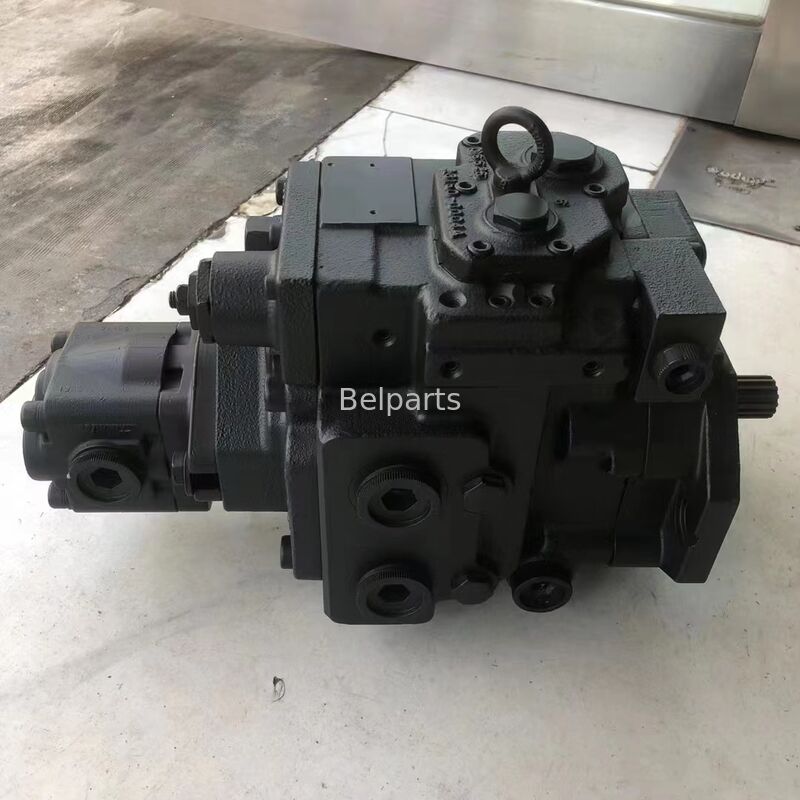

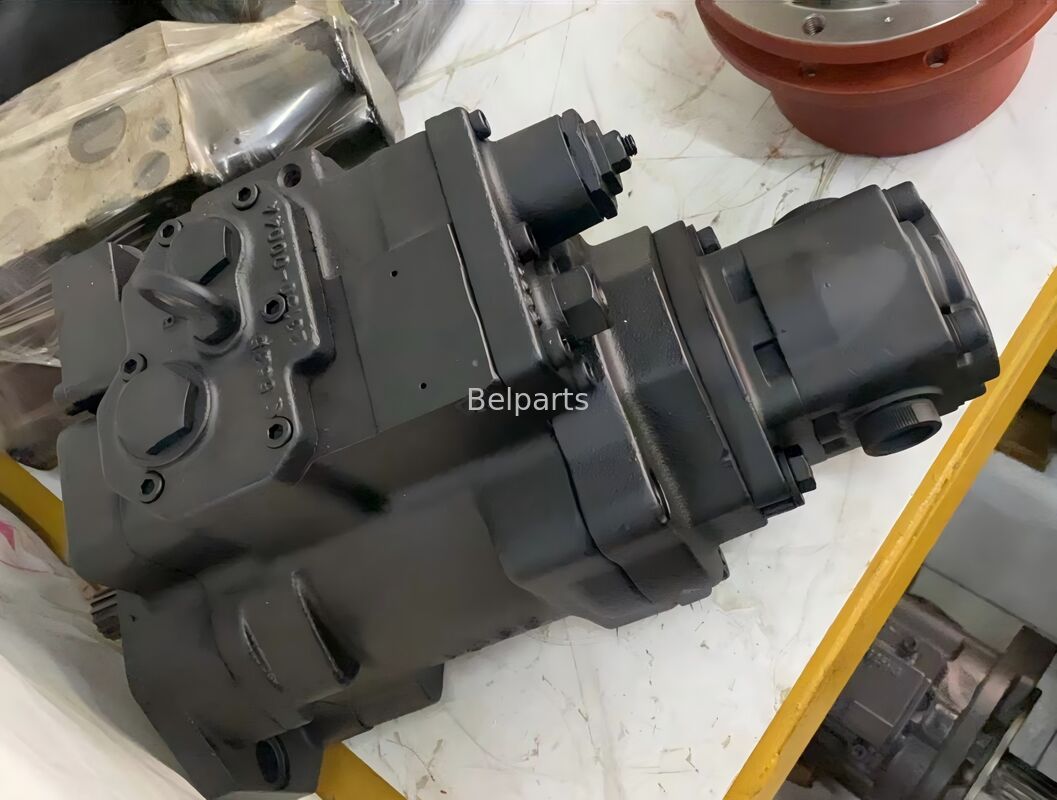

SK50UR-2 K3SP30-110R-2C01 Hydraulic Pump For Mini Excavator Spare Parts PY10V00003F1 Main Piston Pump
Product Overview
SK50UR-2 Hydraulic Pump For Mini Excavator Spare Parts PY10V00003F1 Main Piston Pump
| Application | Excavator |
|---|---|
| Part Name | Hydraulic Piston Pump |
| Model | SK50UR-2 |
| Type | K3SP30-110R-2C01 |
| Part Number | PY10V00003F1 |
| Warranty | 6 months |
| Weight | 55KG |
| Delivery Time | 3-7 Days |
| Shipment | Express/Freight/Sea/Train |
| Quality | Original Brand Rebuild |
| MOQ | 1 Piece |
| Payment Term | T/T, Trade Assurance, PayPal and etc |
| Category | Construction Machinery Part |
Spare Parts List
| # | Part No. | Description | Qty |
|---|---|---|---|
| PY10V00003F1 | PUMP | 1 | |
| Consists Of Ref. Numbers : 11-954 | |||
| 11 | PY10V00003S011 | PISTON ASSY. | 1 |
| 13 | PY10V00003S013 | CYLINDER | 1 |
| 30 | PY10V00003S030 | TRAY | 1 |
| 41 | PY10V00003S041 | VALVE POPPET | 2 |
| 111 | PY10V00003S111 | CLIP, SPRING | 1 |
| 114 | PY10V00003S114 | TRANSMISSION SLEEVE | 1 |
| 123 | PY10V00003S123 | ROLLER BEARING | 1 |
| 124 | PY10V00003S124 | BEARING | 1 |
| 127 | 2441U398S127 | SPACER | 1 |
| 130 | PY10V00003S130 | TURBINE | 1 |
| 141 | NSS | NOT SOLD SEPARAT; Cylinder | 1 |
| 151 | NSS | NOT SOLD SEPARAT; Piston | 10 |
| 152 | NSS | NOT SOLD SEPARAT; Ring, Thrust | 10 |
| 153 | PY10V00003S153 | PLATE | 1 |
| 156 | 2437U188S156 | BUSHING | 1 |
| 157 | 2437U188S157 | SPRING | 10 |
| 158 | 2437U188S158 | THRUST RING | 1 |
| 211 | PY10V00003S211 | LARGE PLATE; PLATE, LARGE | 1 |
| 212 | NSS | NOT SOLD SEPARAT; Plate, Face | 1 |
| 214 | NSS | NOT SOLD SEPARAT; Bushing | 1 |
| 251 | PY10V00003S251 | COUPLING FLANGE | 1 |
| 261 | PY10V00003S261 | COVER | 1 |
| 271 | PY10V00003S271 | HOUSING | 1 |
| 273 | PY10V00003S273 | COVER | 1 |
| 313 | NSS | NOT SOLD SEPARAT; Plate, Distribution | 1 |
| 352 | PY10V00003S352 | COVER | 1 |
| 363 | PY10V00003S363 | TRANSMISSION SLEEVE | 1 |
| 365 | NSS | NOT SOLD SEPARAT; Seat | 1 |
| 366 | NSS | NOT SOLD SEPARAT; Stop | 1 |
| 367 | NSS | NOT SOLD SEPARAT; Ball | 1 |
| 401 | ZS23C10045 | SCREW,Hex Socket Head, M10 x 45mm | 8 |
| 402 | ZS23C08040 | SCREW,Hex Socket Head, M8 x 40mm | 2 |
| 406 | ZS23C06016 | SCREW,Hex Socket Head, M6 x 16mm | 10 |
| 408 | ZS23C06025 | SCREW,Hex Socket Head, M6 x 25mm | 2 |
| 416 | ZS23C08030 | SCREW,Hex Socket Head, M8 x 30mm; M8 x 30 | 4 |
| 424 | ZS23C12030 | SCREW,Hex Socket Head, M12 x 30mm | 4 |
| 466 | 2441U667S466 | PLUG | 2 |
| 467 | 2441U436S468 | PLUG | 1 |
| 468 | 2441U549S464 | PLUG | 1 |
| 490 | 2441U722S490 | PLUG | 9 |
| 492 | 2436U1165S152 | PLUG | 2 |
| 508 | PY10V00003S508 | RESTRICTOR | 2 |
| 530 | PY10V00003S530 | BALL JOINT | 1 |
| 531 | NSS | NOT SOLD SEPARAT; Ball Joint | 1 |
| 532 | PY10V00003S532 | PISTON | 1 |
| 534 | PY10V00003S534 | TAPPET | 1 |
| 548 | NSS | NOT SOLD SEPARAT; Pin | 1 |
| 551 | PY10V00003S551 | COVER | 1 |
| 611 | PY10V00003S611 | LEVER | 1 |
| 621 | PY10V00003S621 | PISTON | 1 |
| 622 | PY10V00003S622 | CYLINDER | 1 |
| 624 | PY10V00003S624 | SPRING SEAT | 1 |
| 625 | PY10V00003S625 | SPRING | 1 |
| 626 | PY10V00003S626 | SPRING | 1 |
| 627 | 2450U45S627 | STEP | 1 |
| 628 | 2436U2455S628 | ADJUSTMENT SCREW | 1 |
| 630 | 2436U1378S630 | NUT | 1 |
| 641 | PY10V00003S641 | BLOCK ASSY. | 1 |
| PY10V00003R100 | REPAIR KIT | 1 | |
| Consists Of Ref. Numbers : 651, 652 | |||
| 651 | PY10V00003S651 | SLEEVE | 1 |
| 652 | PY10V00003S652 | SPOOL | 1 |
| 653 | 2441U722S617 | PIN | 2 |
| 654 | 2441U723S885 | PIN | 1 |
| 700 | ZD12G03500 | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | 1 |
| 701 | ZD12G07000 | O-RING,69.40mm ID x 75.60mm OD x 3.10mm | 1 |
| 702 | ZD12G14500 | O-RING,144.40mm ID x 150.60mm OD x 3.10mm | 1 |
| 704 | ZD12G02500 | O-RING,24.40mm ID x 30.60mm OD x 3.10mm | 1 |
| 705 | ZD12P01600 | O-RING | 1 |
| 706 | ZD12P01100 | O-RING | 4 |
| 707 | ZD12P01800 | O-RING | 1 |
| 708 | ZD12P00700 | O-RING,1.6mm Thk x 6.8mm ID, 90 Duro | 3 |
| 709 | ZD12P02600 | O-RING | 1 |
| 710 | ZD12P02000 | O-RING,2.4mm Thk x 19.8mm ID, 90 Duro | 1 |
| 711 | ZD12P01400 | O-RING | 1 |
| 751 | PY10V00003S751 | GASKET | 1 |
| 752 | PY10V00003S752 | GASKET | 1 |
| 774 | 2441U398S778 | OIL SEAL | 1 |
| 792 | ZD85G02500 | BACK-UP RING | 1 |
| 801 | ZN11C08005 | NUT | 1 |
| 802 | ZN11C16013 | NUT | 1 |
| 824 | 2441U398S820 | RING | 1 |
| 825 | ZR26X01300 | RING, SNAP; RING SNAP | 1 |
| 885 | ZP26D06012 | PIN | 1 |
| 901 | PY10V00003S901 | BOLT | 1 |
| 924 | 2441U691S923 | SCREW | 1 |
| 954 | 2437U185S510 | SET SCREW | 1 |
