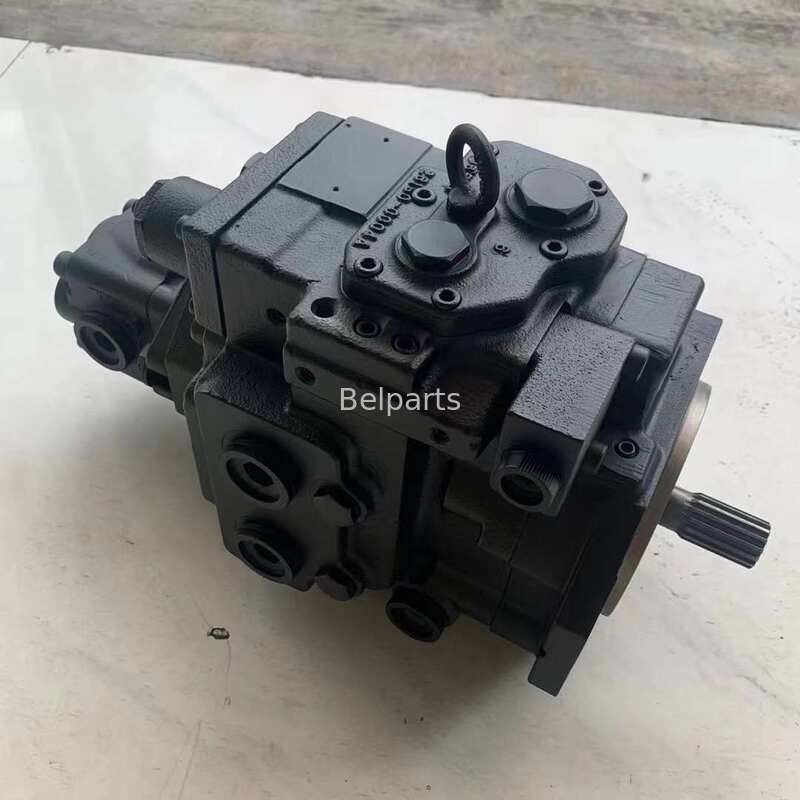

Quality CASE CX50 K3SP30-110R-2C01 Hydraulic Pump For Mini Excavator Spare Parts PY10V00003F1 Main Piston Pump factory

CASE CX50 K3SP30-110R-2C01 Hydraulic Pump For Mini Excavator Spare Parts PY10V00003F1 Main Piston Pump

Name: CASE CX50 K3SP30-110R-2C01 Hydraulic Pump For Mini Excavator Spare Parts PY10V00003F1 Main Piston Pump
Brand: BELPARTS MACHINERY LIMITED
SKU: CX50
Price: 475.00 USD
Availability: InStock

Place of Origin:Original Place

Brand Name:Belparts

Model Number:CX50

Minimum Order Quantity:1PCS

Price:Negotiated price

Payment Terms:T/T,trade assurance,PayPal,L/C,D/P,D/A,Western Union,

Supply Ability:100 PCS / Months

Product Details

Highlight:

CASE CX50 hydraulic pump

,

mini excavator piston pump

,

PY10V00003F1 main pump

Type: K3SP30-110R-2C01

Part Name: Hydraulic Pump

Appliion: Excavator

Part Number: PY10V00003F1

Quality: Original Brand Rebuild

Warranty: 6 Months

Shipment: Sea / Air / Express DHL FEDEX UPS

Product Description

CASE CX50 K3SP30-110R-2C01 Hydraulic Pump For Mini Excavator Spare Parts PY10V00003F1 Main Piston Pump

Appliion	Excavator
Part Name	Hydraulic Piston Pump
Model	CASE CX50
Type	K3SP30-110R-2C01
Part Number	PY10V00003F1
Warranty	6 months
Weight	55KG
Delivery Time	3-7 Days
Shipment	Express/Freight/Sea/Train
Quality	Original Brand Rebuild
MOQ	1 Piece
Payment Term	T/T, Trade Assurance, PayPal and etc
egory	Construction Machinery Part

Spare Parts List

Hydraulic pump spare parts diagram and list

#	Part No.	Description	Qty
	PY10V00003F1	PUMP	1
Consists Of Ref. Numbers : 11-954
11	PY10V00003S011	PISTON ASSY.	1
13	PY10V00003S013	CYLINDER	1
30	PY10V00003S030	TRAY	1
41	PY10V00003S041	VALVE POPPET	2
111	PY10V00003S111	CLIP, SPRING	1
114	PY10V00003S114	TRANSMISSION SLEEVE	1
123	PY10V00003S123	ROLLER BEARING	1
124	PY10V00003S124	BEARING	1
127	2441U398S127	SPACER	1
130	PY10V00003S130	TURBINE	1
141	NSS	NOT SOLD SEPARAT; Cylinder	1
151	NSS	NOT SOLD SEPARAT; Piston	10
152	NSS	NOT SOLD SEPARAT; Ring, Thrust	10
153	PY10V00003S153	PLATE	1
156	2437U188S156	BUSHING	1
157	2437U188S157	SPRING	10
158	2437U188S158	THRUST RING	1
211	PY10V00003S211	LARGE PLATE; PLATE, LARGE	1
212	NSS	NOT SOLD SEPARAT; Plate, Face	1
214	NSS	NOT SOLD SEPARAT; Bushing	1
251	PY10V00003S251	COUPLING FLANGE	1
261	PY10V00003S261	COVER	1
271	PY10V00003S271	HOUSING	1
273	PY10V00003S273	COVER	1
313	NSS	NOT SOLD SEPARAT; Plate, Distribution	1
352	PY10V00003S352	COVER	1
363	PY10V00003S363	TRANSMISSION SLEEVE	1
365	NSS	NOT SOLD SEPARAT; Seat	1
366	NSS	NOT SOLD SEPARAT; Stop	1
367	NSS	NOT SOLD SEPARAT; Ball	1
401	ZS23C10045	SCREW,Hex Socket Head, M10 x 45mm	8
402	ZS23C08040	SCREW,Hex Socket Head, M8 x 40mm	2
406	ZS23C06016	SCREW,Hex Socket Head, M6 x 16mm	10
408	ZS23C06025	SCREW,Hex Socket Head, M6 x 25mm	2
416	ZS23C08030	SCREW,Hex Socket Head, M8 x 30mm; M8 x 30	4
424	ZS23C12030	SCREW,Hex Socket Head, M12 x 30mm	4
466	2441U667S466	PLUG	2
467	2441U436S468	PLUG	1
468	2441U549S464	PLUG	1
490	2441U722S490	PLUG	9
492	2436U1165S152	PLUG	2
508	PY10V00003S508	RESTRICTOR	2
530	PY10V00003S530	BALL JOINT	1
531	NSS	NOT SOLD SEPARAT; Ball Joint	1
532	PY10V00003S532	PISTON	1
534	PY10V00003S534	TAPPET	1
548	NSS	NOT SOLD SEPARAT; Pin	1
551	PY10V00003S551	COVER	1
611	PY10V00003S611	LEVER	1
621	PY10V00003S621	PISTON	1
622	PY10V00003S622	CYLINDER	1
624	PY10V00003S624	SPRING SEAT	1
625	PY10V00003S625	SPRING	1
626	PY10V00003S626	SPRING	1
627	2450U45S627	STEP	1
628	2436U2455S628	ADJUSTMENT SCREW	1
630	2436U1378S630	NUT	1
641	PY10V00003S641	BLOCK ASSY.	1
	PY10V00003R100	REPAIR KIT	1
Consists Of Ref. Numbers : 651, 652
651	PY10V00003S651	SLEEVE	1
652	PY10V00003S652	SPOOL	1
653	2441U722S617	PIN	2
654	2441U723S885	PIN	1
700	ZD12G03500	O-RING,34.40mm ID x 40.60mm OD x 3.10mm	1
701	ZD12G07000	O-RING,69.40mm ID x 75.60mm OD x 3.10mm	1
702	ZD12G14500	O-RING,144.40mm ID x 150.60mm OD x 3.10mm	1
704	ZD12G02500	O-RING,24.40mm ID x 30.60mm OD x 3.10mm	1
705	ZD12P01600	O-RING	1
706	ZD12P01100	O-RING	4
707	ZD12P01800	O-RING	1
708	ZD12P00700	O-RING,1.6mm Thk x 6.8mm ID, 90 Duro	3
709	ZD12P02600	O-RING	1
710	ZD12P02000	O-RING,2.4mm Thk x 19.8mm ID, 90 Duro	1
711	ZD12P01400	O-RING	1
751	PY10V00003S751	GASKET	1
752	PY10V00003S752	GASKET	1
774	2441U398S778	OIL SEAL	1
792	ZD85G02500	BACK-UP RING	1
801	ZN11C08005	NUT	1
802	ZN11C16013	NUT	1
824	2441U398S820	RING	1
825	ZR26X01300	RING, SNAP; RING SNAP	1
885	ZP26D06012	PIN	1
901	PY10V00003S901	BOLT	1
924	2441U691S923	SCREW	1
954	2437U185S510	SET SCREW	1

More Branded Accessories

Branded accessories for excavators including hydraulic components

Hydraulic Pump Final Drive Hydraulic Parts Travel Reduction Swing Motor Swing Reduction Control Valve Display Screen Slew Bearing Engine Assembly Hydraulic Cylinder ECU Controller

Why Choose Us?

Quality Assurance

Fine Workmanship

Price Advantage

Stable Supply

Quality assurance process for excavator parts including inspection and testing

Workmanship demonstration showing precision manufacturing processes

Process Features

Standard production management

Advanced testing equipment

Heat Treatment Technology

Fitting of cylinder block and valve plate

Production process for hydraulic pumps showing assembly and manufacturing stages

About Our Factory

Belparts operates a large workshop dedied to excavator parts production, covering all processes from material cutting, welding, heat treating, assembling, debugging, painting, testing - with every part thoroughly inspected before leaving the factory.

Factory overview showing manufacturing facilities and production area

Frequently Asked Questions

If I only know the excavator model, but cannot offer parts number, what should I do?

If possible, you can send us pictures of old products, nameplate or the size for reference.

What is the warranty of the parts after I purchased hydraulic axial piston pump & motor spare parts?

The warranty is 6/12 Months based on the item details.

How can I pay the order?

We can receive payment through T/T, Western Union, PayPal (for small amount), alibab trade assurance.

When will I get the items after I place order?

Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock, we will inform you before placing the order.

How can I do if there is something wrong with the items?

First of all, we have confidence in the quality of our products. If you really found something wrong, please provide pictures for us to check. After confirmation, please return to us and we will provide the correct item.

What is your main products?

We specialize in excavator spare parts, including travel motor gearbox/assembly/parts, swing gearbox/assembly/motor/parts, hydraulic pump assembly/parts and gear parts. If you need other excavator parts, we can also supply according to your requirements.
