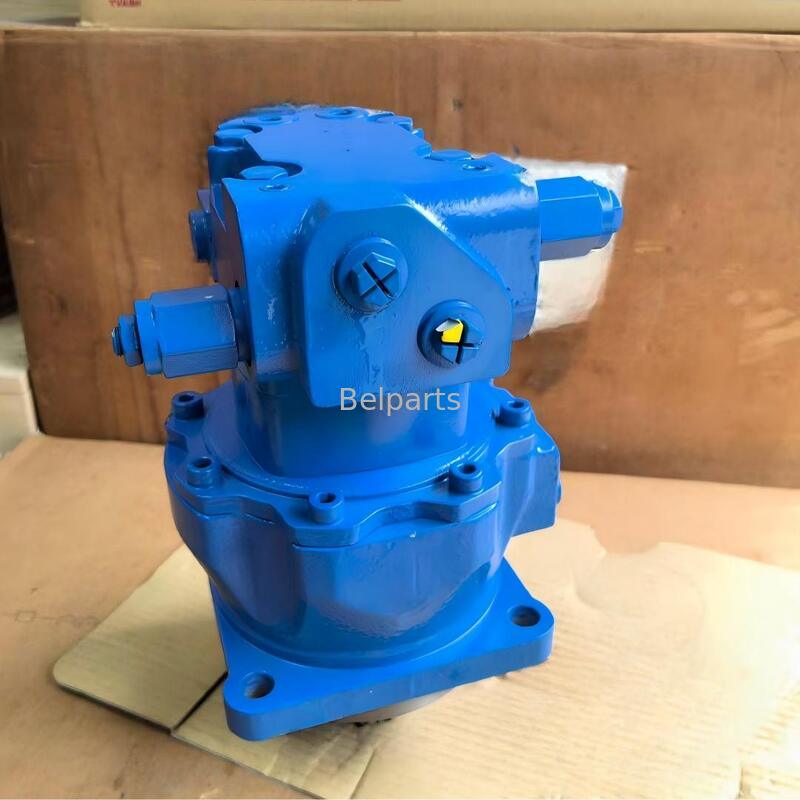

BOBCAT E17 E17Z Doosan DX17Z-7 Swing Motor For Mini Excavator Part 7024419 Rotary Slew Motor Device

Name: BOBCAT E17 E17Z Doosan DX17Z-7 Swing Motor For Mini Excavator Part 7024419 Rotary Slew Motor Device
Brand: GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED
SKU: BOBCAT E17 E17Z Doosan DX17Z-7
Price: 475.00 USD
Availability: InStock

Place of Origin:China

Brand Name:Belparts

Certification:CE

Model Number:BOBCAT E17 E17Z Doosan DX17Z-7

Minimum Order Quantity:1 PCS

Payment Terms:L/C,D/A,D/P,T/T,alibab TRADE ASSURANCE,Western Union

Supply Ability:100 PCS / Months

Product Details

Highlight:

BOBCAT E17 swing motor

,

Doosan DX17Z-7 rotary slew motor

,

mini excavator swing motor with warranty

Parts Number: 7024419

Part Name: Hydraulic Swing Motor

Application: CAT SANY JCB Excavator

Quality: Original Brand New

Condition: New 100%

Warranty: 12 Months

Product Description

BOBCAT E17 E17Z Doosan DX17Z-7 Swing Motor For Mini Excavator Part 7024419 Rotary Slew Motor Device

Product Overview

Application	Excavator
Part Name	Hydraulic Swing Motor
Machine Model	BOBCAT E17 E17Z, Doosan DX17Z-7
Parts Number	7024419
Warranty	12 months
Delivery Time	3-7 Days
Shipment	Express/freight/sea/train
Quality	Original Brand New
MOQ	1 Piece
Payment Term	T/T, Trade Assurance, Paypal and etc.

Inner Parts List

#	Part No.	Description	Qty
1	7024419	SLEW MOTOR	1
2	7265145	HOUSING, BEARING	1
3	7265146	FLANGE, MOUNTING	1
4	7265147	GEAR PINION	1
5	7265184	PLUG; Was 7265148	2
6	7265149	PISTON	1
7	7265150	RING	1
8	7265151	COLLAR	1
9	7265152	DISC, FRICTION	6
10	7265153	PLATE, DISC	7
11	7265154	SPRING	8
12	7265155	BEARING	1
13	7265156	RING, SNAP	1
14	6693163	RING SNAP; NLA - Was 6693163	1
15	7265158	BEARING	1
16	7265159	RING, RETAINING; NSS - Order Ref. 55 - Was 7265159	1
17	7265160	O-RING; NSS - Order Ref. 55 - Was 7265160	3
18	7265161	O-RING; NSS - Order Ref. 55 - Was 7265161	1
19	7265162	BOLT	8
20	7265163	SEAL, SHAFT	1
21	7001011	HOUSING MOTOR	1
22	7001010	DRIVE	1
23	7265166	PLATE, VALVE	1
24	1992084	DR VALVE; Was 7265167	1
25	7265168	VALVE	1
26	6630027	PLATE; Was 7265169	1
27	1992088	SPRING; Was 7265170	2
28	7265171	SEAL	1
29	1992102	PIN; Was 7265172	2
30	7265173	SEAL	1
31	7265174	RING, SNAP	1
32	----	O - RING; NSS - Order Ref. 55 - Was7265175	2
33	----	O - RING; NSS - Order Ref. 55 - Was7265176	1
34	7265177	O-RING; NSS - Order Ref. 55 - Was 7265177	3
35	7265178	BOLT	4
36	7265895	VALVE, RELIEF	1
37	7265180	O-RING; NSS - Order Ref. 55 - Was 7265180	2
38	7265181	O-RING; NSS - Order Ref. 55 - Was 7265181	2
39	7265182	O-RING; NSS - Order Ref. 55 - Was 7265182	2
40	----	PLUG; NSS	2
41	7265184	PLUG	4
42	7265185	PLUG	2
43	7265186	O-RING; NSS - Order Ref. 55 - Was 7265186	2
44	----	SPRING, SEAT; NSS	2
45	----	SCREW SIDE; NSS	2
46	----	HEX SOCKET SET SCREW; NSS	2
47	----	NUT, HEX; NSS	2
48	----	SPRING, SEAT; NSS	2
49	----	SPRING; NSS	2
50	----	NEEDLE, VALVE; NSS	2
51	----	CARTRIDGE	2
52	----	BALL	2
53	----	SPRING; NSS	2
54	7265895	VALVE, RELIEF	2
55	7273497	KIT, SEAL; Ref. 16-18, 20, 28, 30, 32-34, 37-39, 43 - Was 7265654	1

Nachi Swing Motor Model References

Type	Maximum Displacement (cm³/rev)	Swing Motor Maximum Torque (N*m)	Hydraulic Motor Maximum Pressure (MPa)	Mass (Kg)	Applicable Excavator Weight (ton)
PCR-1B	236	627	21.6	24	~2.5
PCR-2B	344	1000	21.6	34	~3.5
PCR-3B	507	1399	21.6	37	~5.0
PCR-4B	784	2434	21.6	55	~5.5
PCR-5B	907	3537	24.5	79	~8.0

Available Branded Accessories

Various hydraulic excavator parts and accessories

Hydraulic Parts Hydraulic Pump Final Drive Travel Reduction Swing Motor Swing Reduction Control Valve Gear Parts Slew Bearing Engine Assembly Hydraulic Cylinder ECU

Why Choose Us?

Quality Assurance
Fine Workmanship
Price Advantage
Stable Supply

Quality control and manufacturing process

Process Features

Standard production management
Advanced testing equipment
Heat Treatment Technology
Fitting of cylinder block and valve plate

About Our Factory

Belparts have a large workshop for excavator parts producing, from material cutting, welding, heat treating, assembling, debugging, painting, testing. Every part we will confirm before leaving the factory.
