Place of Origin:
China
Brand Name:
Belparts
Certification:
CE
Model Number:
EC210 EC210B EC240 EC240B
| Application | Excavator |
|---|---|

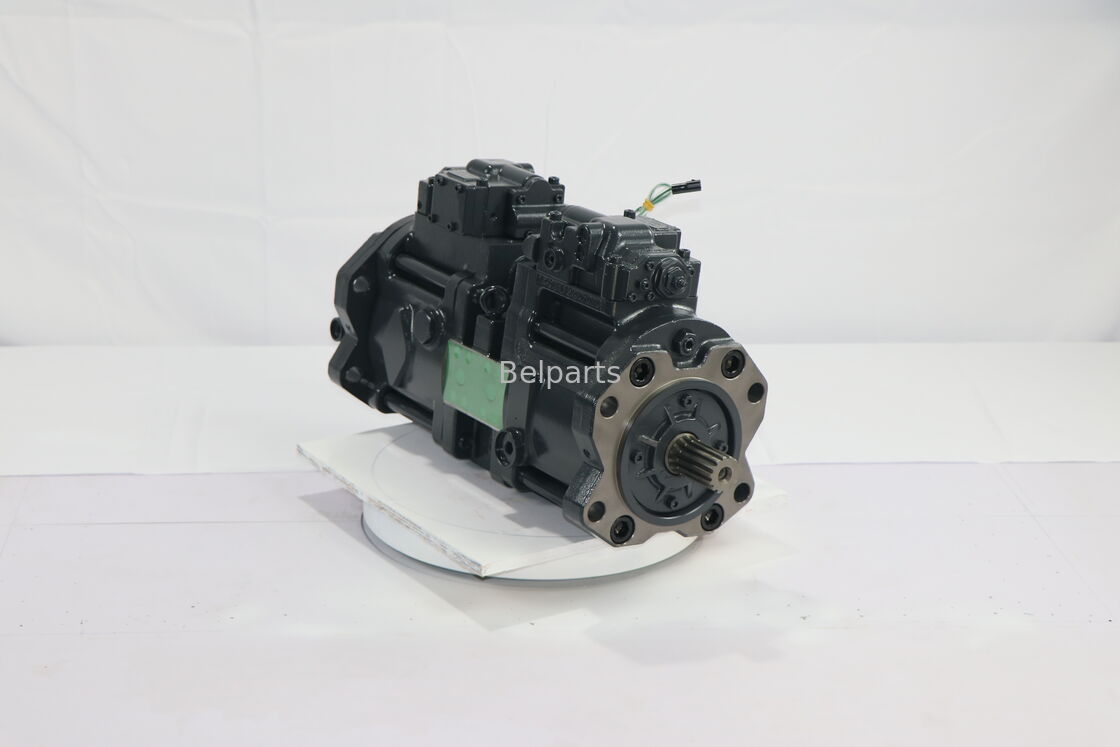

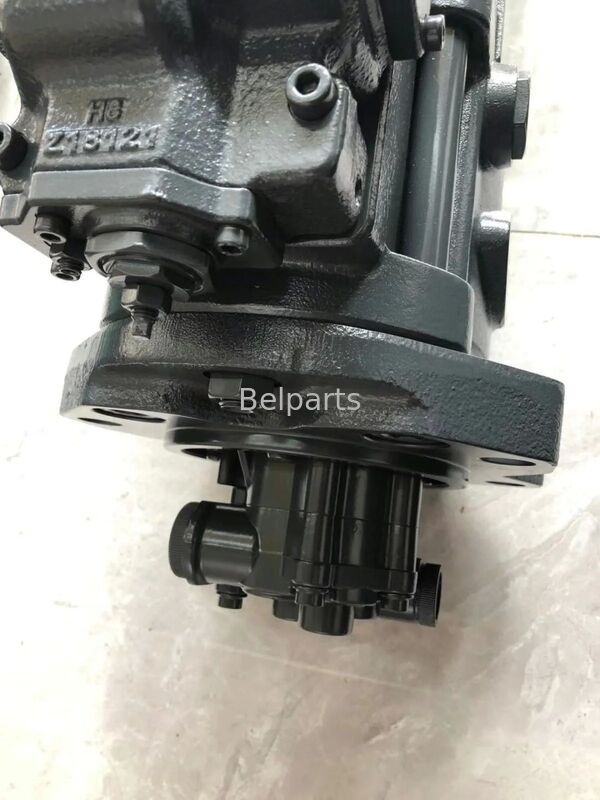

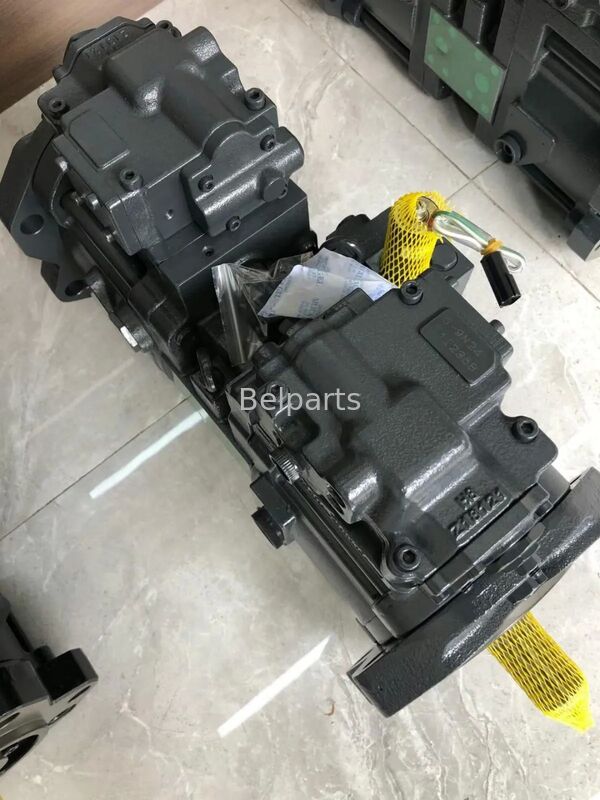

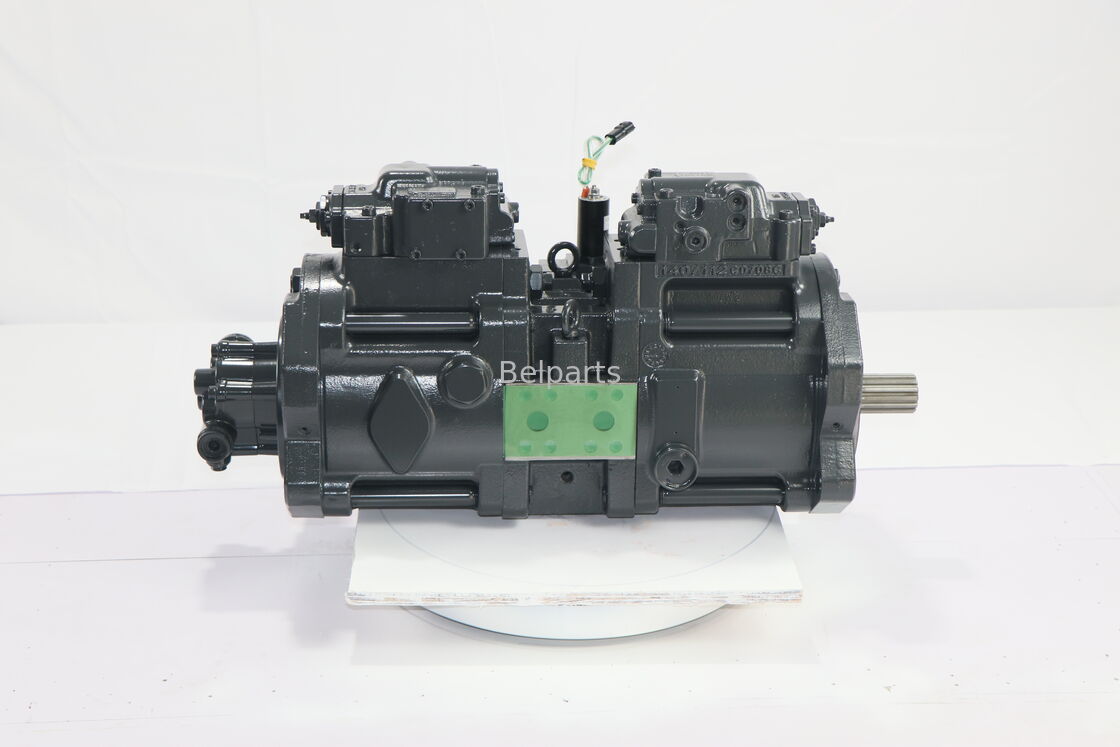

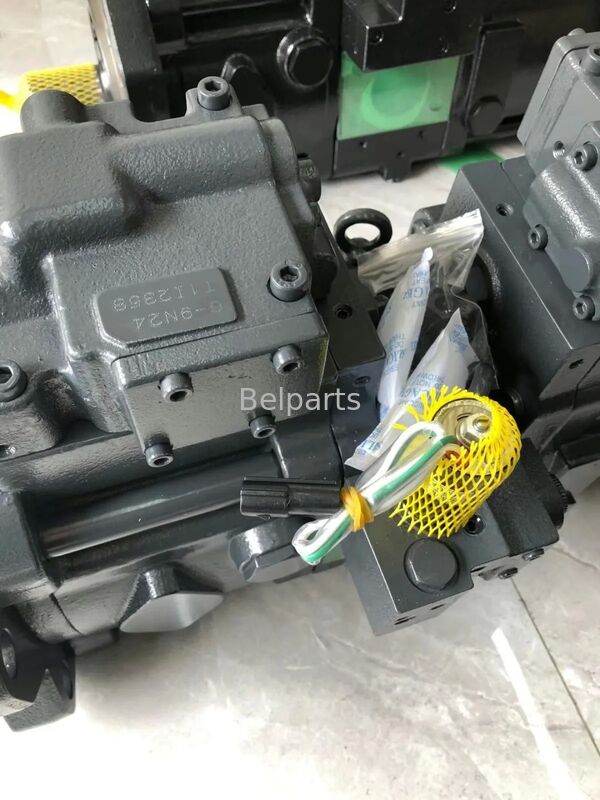

| Part name | Hydraulic piston pump |
| Machine model |
|
| Part number |
SA 1142-00012 SA 8230-14650 SA 1142-00531 SA1142-00012 SA8230-14650 SA1142-00531 |
| Type |
K3V112DT-9N24-14T |
| Warranty | 12 months |
| Delivery time | 3-7 Days |
| Shipment | Express/freight/sea/train |
| Quality | Made in China OEM |
| MOQ | 1 Piece |
| Payment term | T/T, Trade Assurance, Paypal and etc |
| Category | Construction Machinery Part |
| # | Part No. | Description | Qty |
|---|---|---|---|
| SA 1142-00012 | Pump | 1 | |
| 1 | SA 8230-14650 | Piston | 2 |
| 2 | VOE 14500003 | Piston | 9 |
| 3 | VOE 14500002 | Seat | 9 |
| 4 | SA 8230-28580 | Cylinder | 1 |
| 5 | SA 8230-28560 | Block | 1 |
| 6 | VOE 14500001 | Plate | 1 |
| 7 | SA 8230-28590 | Cylinder | 1 |
| 8 | SA 8230-28560 | Block | 1 |
| 9 | VOE 14500000 | Plate | 1 |
| 10 | SA 8230-09800 | Plate | 2 |
| 11 | SA 8230-30540 | Plate | 1 |
| 12 | VOE 14500012 | Bushing | 1 |
| 13 | SA 7223-00450 | Check valve | 2 |
| 14 | SA 7223-00500 | Seat | 1 |
| 15 | SA 7223-00520 | Guard | 1 |
| 16 | SA 9676-73200 | Ball | 1 |
| 17 | SA 7223-00460 | Check valve | 2 |
| 18 | SA 7223-00500 | Seat | 1 |
| 19 | SA 7223-00540 | Guard | 1 |
| 20 | SA 9676-73200 | Ball | 1 |
| 21 | SA 8230-09020 | Valve | 1 |
| 22 | SA 8230-09100 | Shaft | 1 |
| 23 | SA 8230-09070 | Shaft | 1 |
| 24 | SA 8230-09660 | Coupling | 1 |
| 25 | SA 8230-26610 | Roller Bearing | 2 |
| 26 | SA 8230-26700 | Needle Bearing | 2 |
| 27 | SA 8230-14530 | Spacer | 4 |
| 28 | SA 8230-09370 | Plate | 2 |
| 29 | SA 8230-09680 | Bushing | 2 |
| 30 | SA 8230-09710 | Spring | 18 |
| 31 | SA 8230-09670 | Spacer | 2 |
| 32 | SA 8230-21920 | Plate | 2 |
| 33 | SA 8230-08940 | Support | 2 |
| 34 | SA 8230-09350 | Cover | 1 |
| 35 | SA 8230-08930 | Body | 1 |
| 36 | SA 8230-08980 | Valve assembly | 1 |
| 37 | SA 8230-09690 | Bolt | 8 |
| 38 | SA 9016-10804 | Bolt | 4 |
| 39 | SA 9415-11021 | Plug | 3 |
| 40 | SA 9415-11051 | Plug | 4 |
| 41 | SA 7242-11040 | Plug | 21 |
| 42 | SA 8230-09790 | Pin | 2 |
| 43 | SA 8230-09320 | Pin | 1 |
| 44 | SA 7223-00570 | Pin | 1 |
| 45 | SA 8230-09250 | Piston | 2 |
| 46 | SA 8230-09640 | Stop | 2 |
| 47 | SA 8230-09650 | Stop | 2 |
| 48 | SA 9511-22035 | O-ring | 2 |
| 49 | SA 9511-22095 | O-ring | 1 |
| 50 | SA 9511-22145 | O-ring | 4 |
| 51 | SA 9511-12008 | O-ring | 16 |
| 52 | SA 9511-12011 | O-ring | 8 |
| 53 | SA 9511-12024 | O-ring | 4 |
| 54 | SA 9511-12018 | O-ring | 2 |
| 55 | SA 8230-26900 | Seal | 1 |
| 56 | SA 9566-10180 | Ring | 2 |
| 57 | SA 9566-20350 | Ring | 2 |
| 58 | SA 8230-25620 | Nut | 2 |
| 59 | SA 9111-12000 | Nut | 2 |
| 60 | SA 8230-25980 | Ring | 2 |
| 61 | SA 8230-26430 | Plate | 2 |
| 62 | SA 7223-00660 | Spring Pin | 4 |
| 63 | SA 8230-25450 | Eye Bolt | 2 |
| 64 | SA 8230-26780 | Bolt | 2 |
| 65 | SA 8230-09700 | Bolt | 2 |
| 100 | SA 8148-13080 | Sealing Kit | 1 |
Belparts have a large workshop for excavator parts producing, from material cutting, welding, heating treating, assembling, debugging, painting, testing, every part we will confirm before leaving the factory.
If possible, you can send us pictures of old products, nameplate or the size for reference.
The warranty is 6/12 Months based on the item details.
We can receive payment through T/T, Western Union, Paypal(for small amount), Alibaba trade assurance.
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock, we will inform you before placing the order.
First of all, I have confidence in the quality of our products, if you really found something wrong, pls provide pictures for us and we will check. After it is confirmed, pls return to us, we will offer the correct item.
We are specialized in the excavator spare parts, such as travel motor gearbox/ass'y/parts, swing gearbox/ass'y/motor/parts, hydraulic pump assy/parts and gear parts. If you need other excavator parts, we also can supply as your requirements.
