Kobelco SK210-5 Sumitomo SH210A5 CASE CX210 CX210B Hydraulic Pump K3V112DTP1F9R-9Y14-HV K3V112DTP-1X5R-9X14-V For Excavator Parts KRJ10290 KRJ6199 Piston Pump

Kobelco SK210-5 Sumitomo SH210A5 CASE CX210 CX210B Hydraulic Pump K3V112DTP1F9R-9Y14-HV K3V112DTP-1X5R-9X14-V For Excavator Parts KRJ10290 KRJ6199 Piston Pump

Kobelco SK210-5 hydraulic pump

Sumitomo SH210A5 excavator piston pump

CASE CX210 hydraulic pump with warranty

Place of Origin:

China

Brand Name:

Belparts

Certification:

CE

Model Number:

SK210-5 SH210A5 CX210 CX210B

Contact Us
Request A Quote
Kobelco SK210-5 Sumitomo SH210A5 CASE CX210 CX210B Hydraulic Pump K3V112DTP1F9R-9Y14-HV K3V112DTP-1X5R-9X14-V For Excavator Parts KRJ10290 KRJ6199 Piston Pump Kobelco SK210-5 Sumitomo SH210A5 CASE CX210 CX210B Hydraulic Pump K3V112DTP1F9R-9Y14-HV K3V112DTP-1X5R-9X14-V For Excavator Parts KRJ10290 KRJ6199 Piston Pump Kobelco SK210-5 Sumitomo SH210A5 CASE CX210 CX210B Hydraulic Pump K3V112DTP1F9R-9Y14-HV K3V112DTP-1X5R-9X14-V For Excavator Parts KRJ10290 KRJ6199 Piston Pump Kobelco SK210-5 Sumitomo SH210A5 CASE CX210 CX210B Hydraulic Pump K3V112DTP1F9R-9Y14-HV K3V112DTP-1X5R-9X14-V For Excavator Parts KRJ10290 KRJ6199 Piston Pump Kobelco SK210-5 Sumitomo SH210A5 CASE CX210 CX210B Hydraulic Pump K3V112DTP1F9R-9Y14-HV K3V112DTP-1X5R-9X14-V For Excavator Parts KRJ10290 KRJ6199 Piston Pump Kobelco SK210-5 Sumitomo SH210A5 CASE CX210 CX210B Hydraulic Pump K3V112DTP1F9R-9Y14-HV K3V112DTP-1X5R-9X14-V For Excavator Parts KRJ10290 KRJ6199 Piston Pump Kobelco SK210-5 Sumitomo SH210A5 CASE CX210 CX210B Hydraulic Pump K3V112DTP1F9R-9Y14-HV K3V112DTP-1X5R-9X14-V For Excavator Parts KRJ10290 KRJ6199 Piston Pump Kobelco SK210-5 Sumitomo SH210A5 CASE CX210 CX210B Hydraulic Pump K3V112DTP1F9R-9Y14-HV K3V112DTP-1X5R-9X14-V For Excavator Parts KRJ10290 KRJ6199 Piston Pump Kobelco SK210-5 Sumitomo SH210A5 CASE CX210 CX210B Hydraulic Pump K3V112DTP1F9R-9Y14-HV K3V112DTP-1X5R-9X14-V For Excavator Parts KRJ10290 KRJ6199 Piston Pump Kobelco SK210-5 Sumitomo SH210A5 CASE CX210 CX210B Hydraulic Pump K3V112DTP1F9R-9Y14-HV K3V112DTP-1X5R-9X14-V For Excavator Parts KRJ10290 KRJ6199 Piston Pump
Product Details
Type:
K3V112DTP1F9R-9Y14-HV K3V112DTP-1X5R-9X14-V
Part Name:
Hydraulic Pump
Part Number:
KRJ10290 KRJ6199
Application:
Excavator
Quality:
Made In China OEM / High Quality
Warranty:
12 Months
Shipment:
Sea / Air / Express DHL FEDEX UPS
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiation
Packaging Details
Wooden Case Packing
Delivery Time
3-7 Day
Payment Terms
L/C,D/A,D/P,T/T,Alibaba TRADE ASSURANCE,Western Union,PAYPAL
Supply Ability
100 PCS / Months
RELATED PRODUCTS
Good price HYUNDAI R450LC-7 R450LC-7A R500LC-7 R500LC-7A Hydraulic pump for Excavator parts K5V200DT-9C0Z-17T 31NB-10020 31NB-10022 Main Piston pump OEM online

HYUNDAI R450LC-7 R450LC-7A R500LC-7 R500LC-7A Hydraulic pump for Excavator parts K5V200DT-9C0Z-17T 31NB-10020 31NB-10022 Main Piston pump OEM

Get Best Price
Good price Hydraulic Pump For DOOSAN SOLAR 300LC-7A SOLAR 300LC-V Excavator Parts 401-00226B 401-00225A 401-00424 401-00424A 401-00424B 401-00424C Main Piston Pump online

Hydraulic Pump For DOOSAN SOLAR 300LC-7A SOLAR 300LC-V Excavator Parts 401-00226B 401-00225A 401-00424 401-00424A 401-00424B 401-00424C Main Piston Pump

Get Best Price
Good price EC300D EC350D EC300DL Hydraulic Pump For VOLVOO Excavator Spare Parts 14639133 Main Piston Pump K5V160DT-158R-1E06-V online

EC300D EC350D EC300DL Hydraulic Pump For VOLVOO Excavator Spare Parts 14639133 Main Piston Pump K5V160DT-158R-1E06-V

Get Best Price
Good price Kobelco SK210-5 Sumitomo SH210A5 CASE CX210 CX210B Hydraulic Pump K3V112DTP1F9R-9Y14-HV K3V112DTP-1X5R-9X14-V For Excavator Parts KRJ10290 KRJ6199 Piston Pump online

Kobelco SK210-5 Sumitomo SH210A5 CASE CX210 CX210B Hydraulic Pump K3V112DTP1F9R-9Y14-HV K3V112DTP-1X5R-9X14-V For Excavator Parts KRJ10290 KRJ6199 Piston Pump

Get Best Price
CONTACT US
+86 18520556972
belparts01@gmail.com
86-020-32384870
Contact Now
Product Description

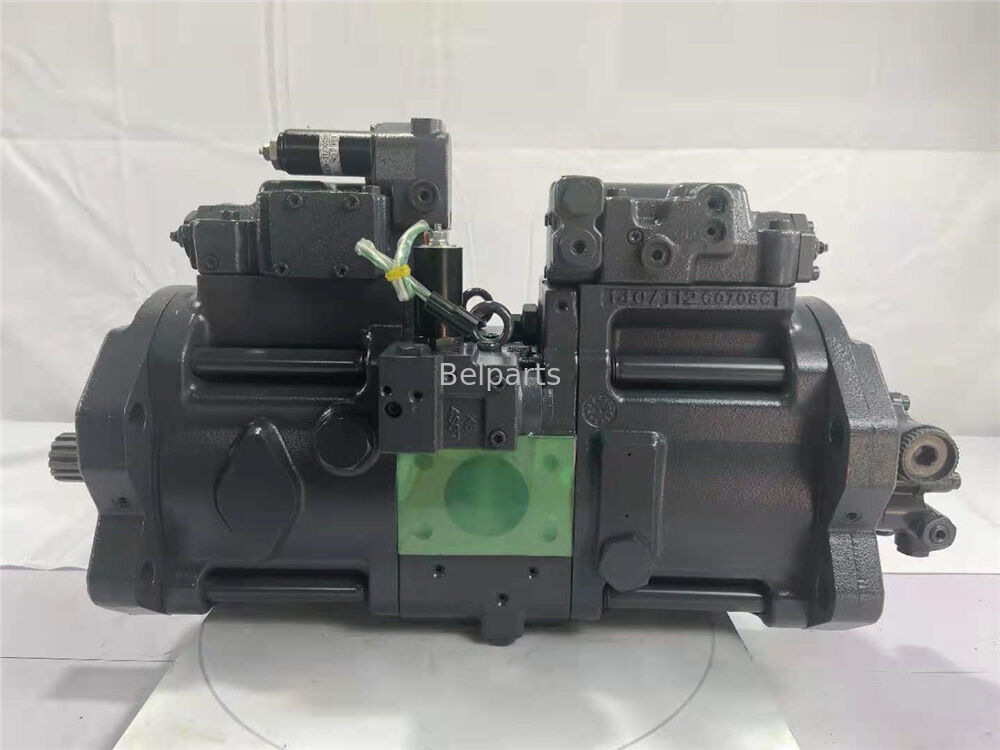

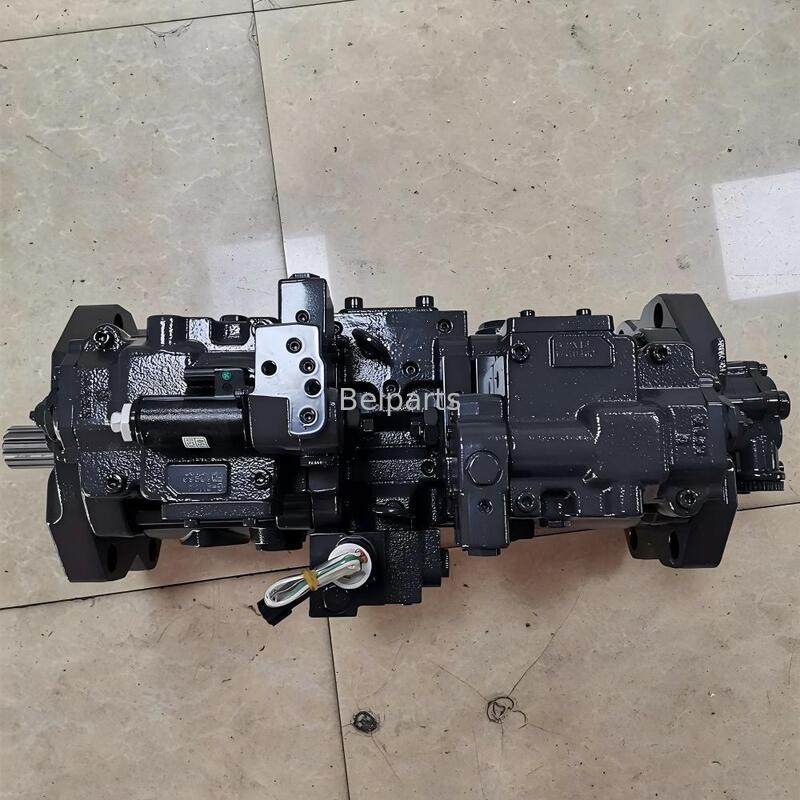

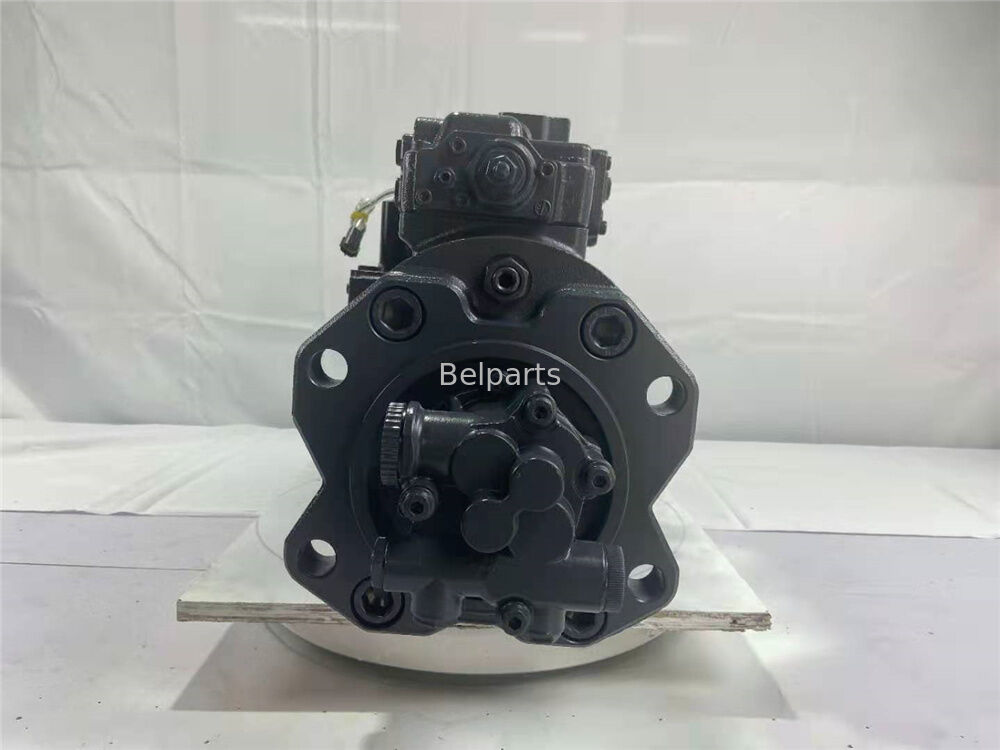

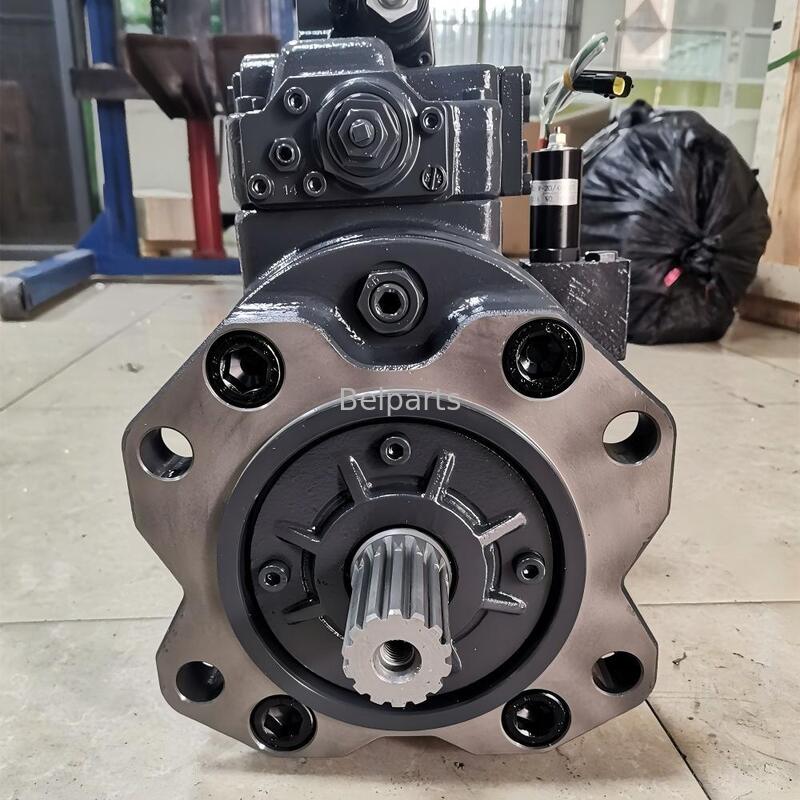

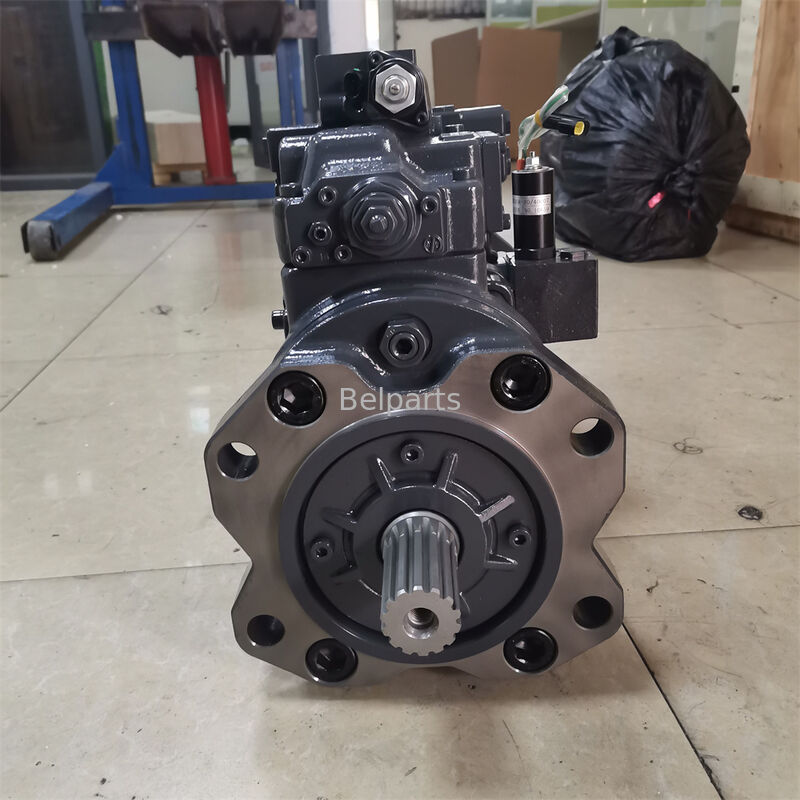

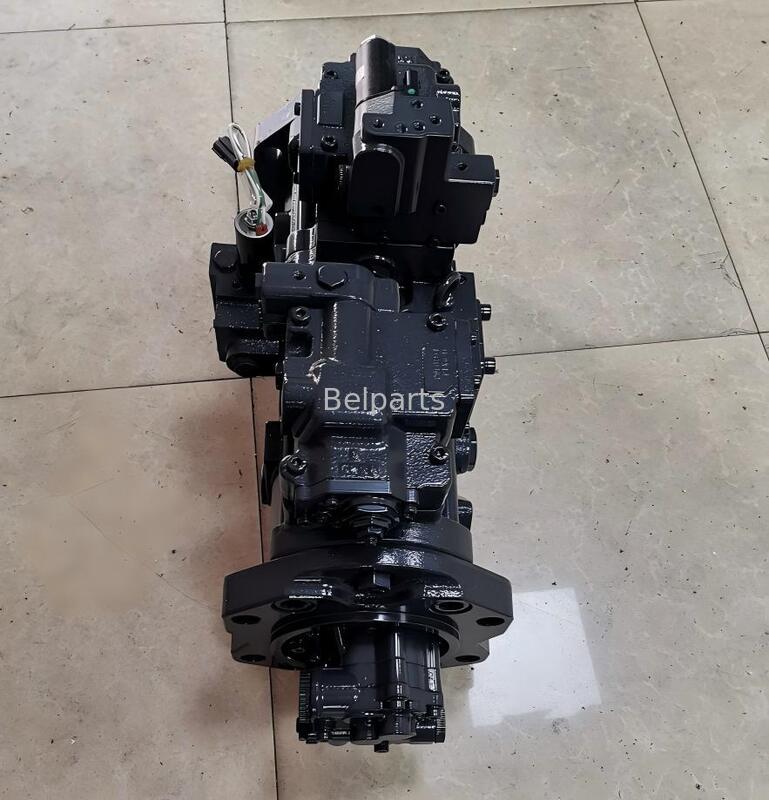

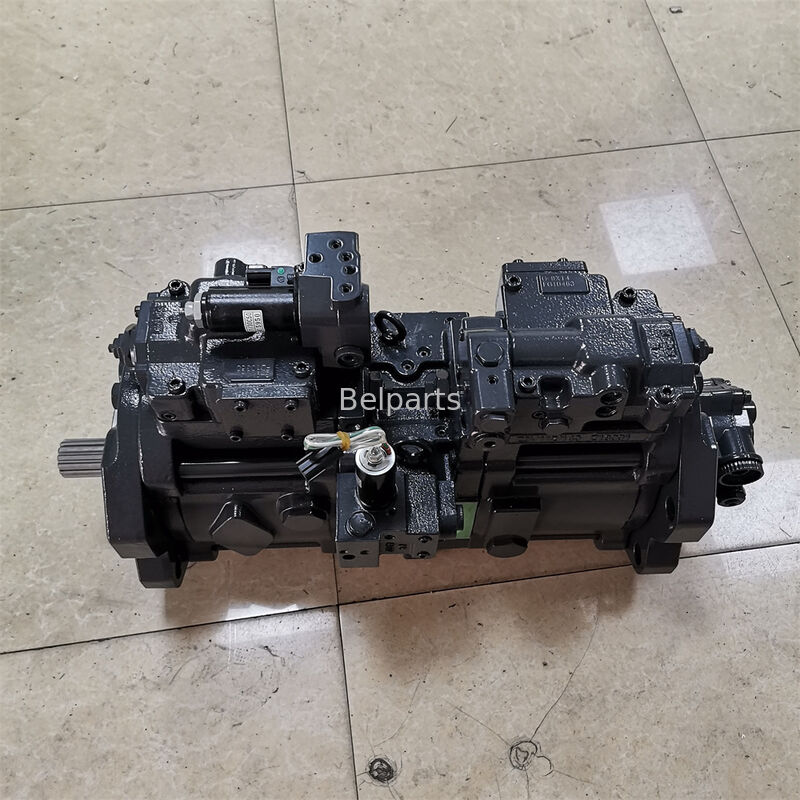

Kobelco SK210-5 Sumitomo SH210A5 CASE CX210 CX210B Hydraulic Pump
K3V112DTP1F9R-9Y14-HV K3V112DTP-1X5R-9X14-V For Excavator Parts KRJ10290 KRJ6199 Piston Pump
Product Specifications
Application Excavator
Part Name Hydraulic Pump
Machine Model Kobelco SK210-5 Sumitomo SH210A5 CASE CX210 CX210B
Part Number KRJ10290 KRJ6199
Type K3V112DTP1F9R-9Y14-HV K3V112DTP-1X5R-9X14-V
Warranty 12 months
Delivery Time 3-7 Days
Shipment Express/freight/sea/train
Quality Made in China OEM / High Quality
MOQ 1 Piece
Payment Term T/T, Trade Assurance, Paypal and etc
Category Construction Machinery Part
Kobelco SK210-5 Sumitomo SH210A5 CASE CX210 CX210B Hydraulic Pump K3V112DTP1F9R-9Y14-HV K3V112DTP-1X5R-9X14-V For Excavator Parts KRJ10290 KRJ6199 Piston Pump 0
Parts List
# Part No. Description Qty
0 KRJ10290 HYDRAULIC PUMP 1
Include(s) 1 - 110
1 LJ014510 HYDRAULIC PUMP 1
See Figure(s) 08-101-00 01
23 TJ00765 PISTON 2
Include(s) 24, 25
24 NSS NOT SOLD SEPARAT 18
25 NSS NOT SOLD SEPARAT 18
26 LJ014500 BARREL 1
Include(s) 27, 28
27 NSS NOT SOLD SEPARAT 1
28 NSS NOT SOLD SEPARAT 1
29 LJ014490 BARREL 1
Include(s) 30, 31
30 NSS NOT SOLD SEPARAT 1
31 NSS NOT SOLD SEPARAT 1
32 LR00552 PLATE 2
Include(s) 33, 34
33 NSS NOT SOLD SEPARAT 2
34 NSS NOT SOLD SEPARAT 2
35 TNP0022 VALVE 2
Include(s) 36 - 38
36 NSS NOT SOLD SEPARAT 2
37 NSS NOT SOLD SEPARAT 2
38 NSS NOT SOLD SEPARAT 2
39 TNP0023 VALVE 2
Include(s) 40 - 42
40 NSS NOT SOLD SEPARAT 2
41 NSS NOT SOLD SEPARAT 2
42 NSS NOT SOLD SEPARAT 2
43 LJ014460 VALVE SECTION 1
See Figure(s) 08-102-00 01
62 160161A1 LEVER ASSY. 2
Include(s) 63, 64
63 NSS NOT SOLD SEPARAT 1
64 NSS NOT SOLD SEPARAT 1
65 160033A1 DRIVE SHAFT 1
66 160034A1 DRIVE SHAFT 1
67 LB00535 COUPLING 1
68 TB00026 BEARING, ROLLER, CYL,40mm ID x 90mm OD x 23mm W 2
69 TB00082 NEEDLE BEARING,35 mm ID x 47 mm OD x 30 mm 2
70 156963A1 SPACER 4
71 TR00047 PLATE 2
72 169288A1 BUSHING 2
73 156960A1 SPRING 18
74 160113A1 PLATE 2
75 TPP0080 SUPPORT 2
76 160334A1 COVER 1
77 LJ014520 HYDRAULIC PUMP 2
78 TJ00067 VALVE BLOCK 1
79 NSS NOT SOLD SEPARAT 1
80 167078A1 BOLT,M8 x 40mm, Cl 12.9 8
81 861-8020 HEX SOC SCREW,M8 x 20mm, Cl 12.9 4
82 863-10020 HEX SOC SCREW,M10 x 20mm, Cl 12.9 4
83 155496A1 PLUG 2
84 TLM0023 PLUG 2
85 155471A1 PLUG 4
86 LK00003 PLUG 27
87 TJ00066 PISTON 2
88 TG00286 STOP LOCK 2
89 161116A1 COVER 2
90 154553A1 O-RING 2
91 LE013510 O-RING 2
92 LE013500 O-RING 4
93 LE013470 O-RING 16
94 LE013410 O-RING 6
95 LE013490 O-RING 2
96 LE013440 O-RING 4
97 154489A1 O-RING 2
98 LE018730 OIL SEAL 1
99 153970A1 BACK-UP RING 2
100 154017A1 BACK-UP RING 2
101 164R016VR NUT 2
102 829-1420 NUT,M20, Cl 10 2
103 800-1140 SNAP RING,M40, Ext 2
104 156954A1 DOWEL 2
105 338W060Z014B LINCH PIN 4
106 126R010SR EYEBOLT; BOLT, EYE 2
107 LA00036 SET SCREW,Hex 2
108 160296A1 SET SCREW 2
109 LL001680 REGULATOR 1
See Figure(s) 08-103-00 01
110 LL001670 REGULATOR 1
See Figure(s) 08-104-00 01
More Branded Accessories Available
Kobelco SK210-5 Sumitomo SH210A5 CASE CX210 CX210B Hydraulic Pump K3V112DTP1F9R-9Y14-HV K3V112DTP-1X5R-9X14-V For Excavator Parts KRJ10290 KRJ6199 Piston Pump 1
Hydraulic Parts Hydraulic Pump Final Drive Travel Reduction Swing Motor Swing Reduction Control Valve Gear Parts Slew Bearing Engine Assembly Hydraulic Cylinder ECU
Why Choose Us?
  • Quality Assurance
  • Fine Workmanship
  • Price Advantage
  • Stable Supply
Kobelco SK210-5 Sumitomo SH210A5 CASE CX210 CX210B Hydraulic Pump K3V112DTP1F9R-9Y14-HV K3V112DTP-1X5R-9X14-V For Excavator Parts KRJ10290 KRJ6199 Piston Pump 2 Kobelco SK210-5 Sumitomo SH210A5 CASE CX210 CX210B Hydraulic Pump K3V112DTP1F9R-9Y14-HV K3V112DTP-1X5R-9X14-V For Excavator Parts KRJ10290 KRJ6199 Piston Pump 3
Process Features
  • Standard production management
  • Advanced testing equipment
  • Heat Treatment Technology
  • Fitting of cylinder block and valve plate
Kobelco SK210-5 Sumitomo SH210A5 CASE CX210 CX210B Hydraulic Pump K3V112DTP1F9R-9Y14-HV K3V112DTP-1X5R-9X14-V For Excavator Parts KRJ10290 KRJ6199 Piston Pump 4
About Factory

Belparts have a large workshop for excavator parts producing, from material cutting, welding, heating treating, assembling, debugging, painting, testing, every part we will confirm before leaving the factory.

Kobelco SK210-5 Sumitomo SH210A5 CASE CX210 CX210B Hydraulic Pump K3V112DTP1F9R-9Y14-HV K3V112DTP-1X5R-9X14-V For Excavator Parts KRJ10290 KRJ6199 Piston Pump 5
FAQ
If I only know the excavator model, but can not offer parts No., what should I do?
If possible, you can send us pictures of old products, nameplate or the size for reference.
What is the warranty of the parts after I purchased hydraulic axial piston pump & motor spare parts?
The warranty is 6/12 Months based on the item details.
How can I pay the order?
We can receive payment through T/T, Western Union, Paypal(for small amount), Alibaba trade assurance.
When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock, we will inform you before placing the order.
How can I do if there is something wrong with the items?
First of all, I have confidence in the quality of our products, if you really found something wrong, pls provide pictures for us and we will check. After it is confirmed, pls return to us, we will offer the correct item.
What is your main products?
We are specialized in the excavator spare parts, such as travel motor gearbox/ass'y/parts, swing gearbox/ass'y/motor/parts, hydraulic pump assy/parts and gear parts. If you need other excavator parts, we also can supply as your requirements.
