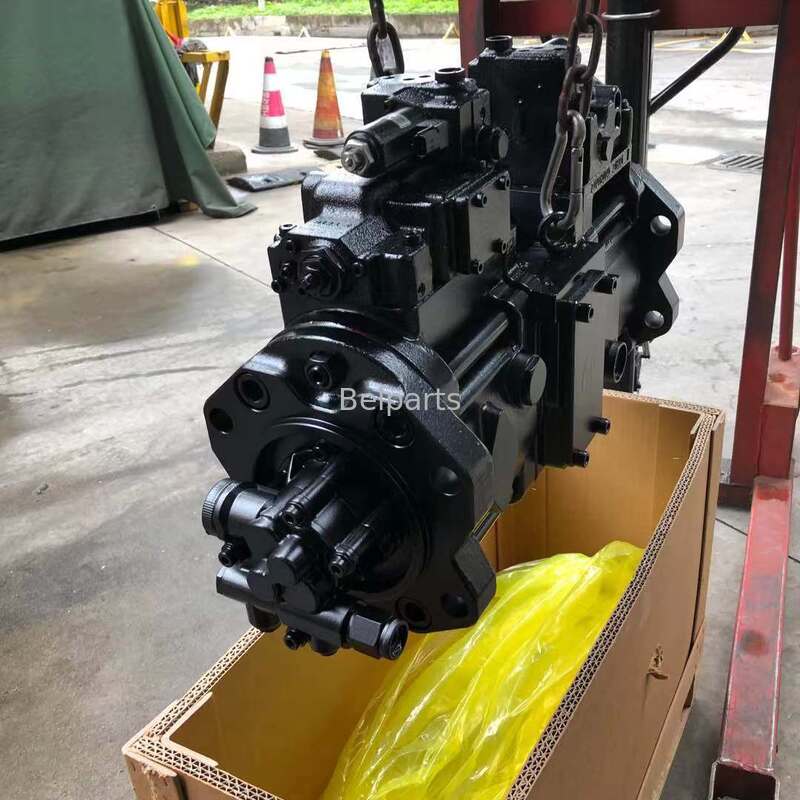

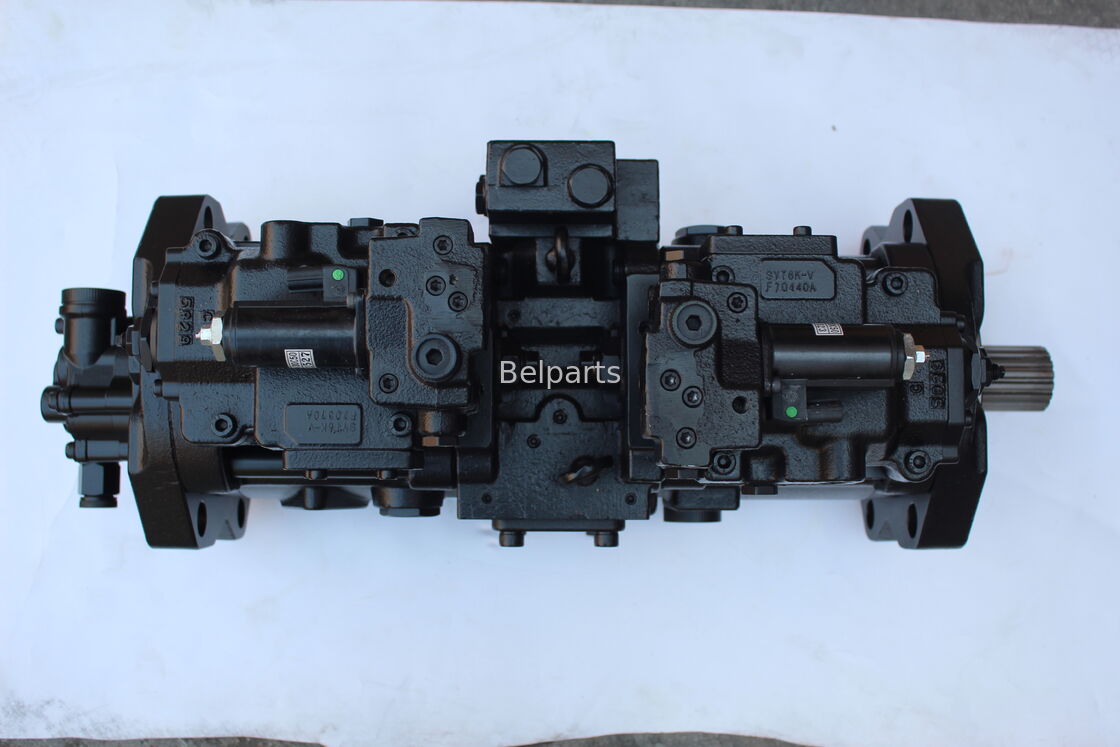

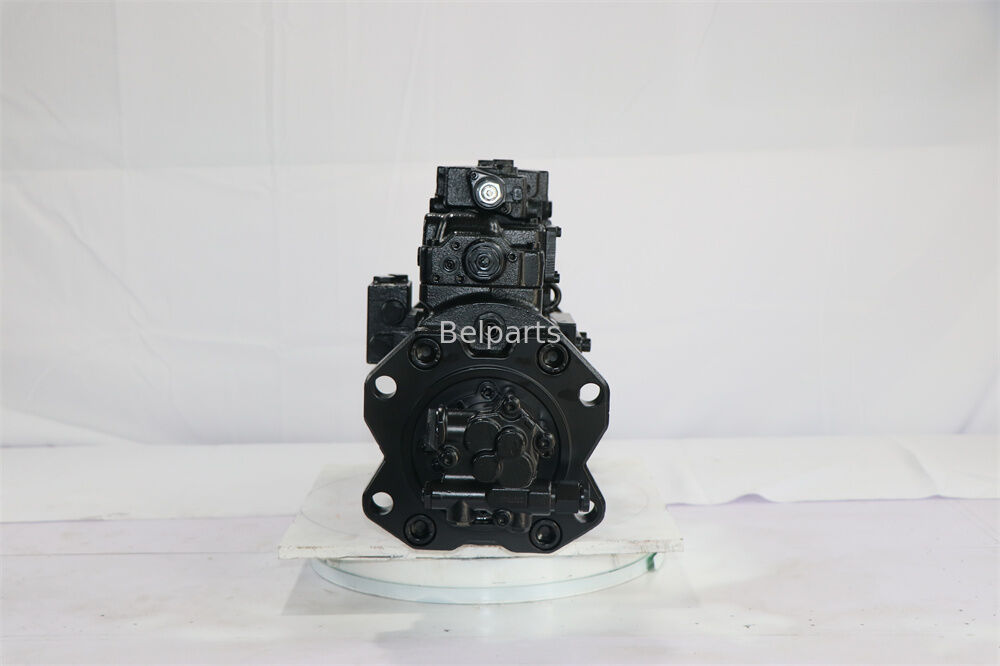

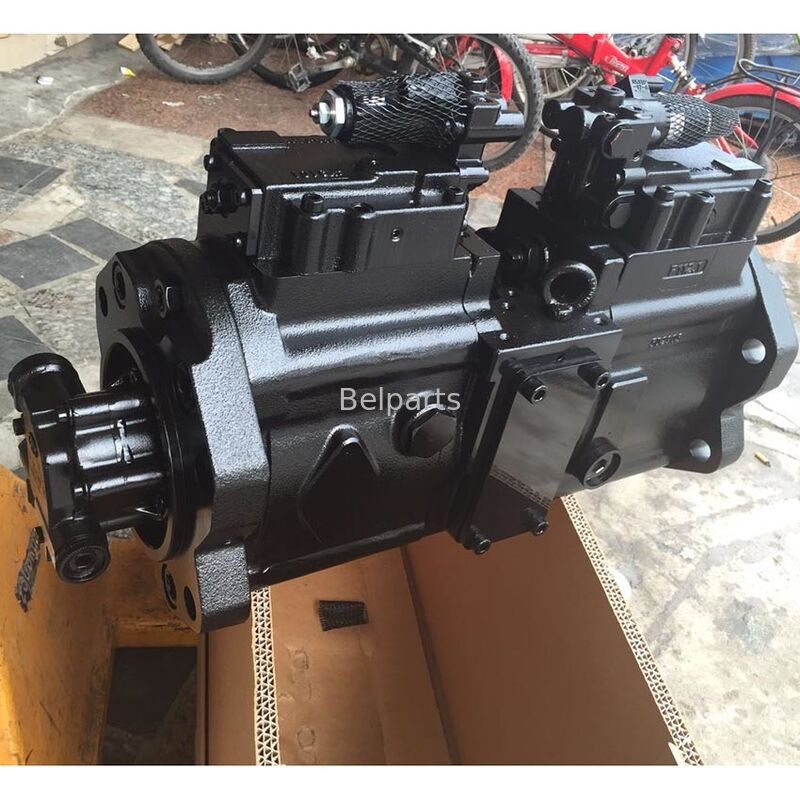

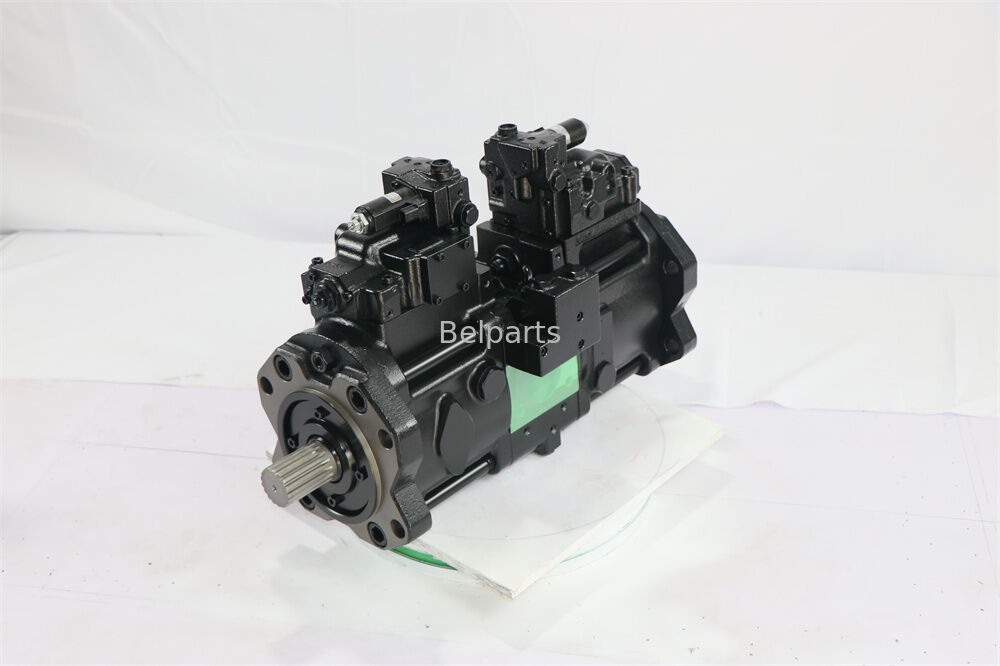

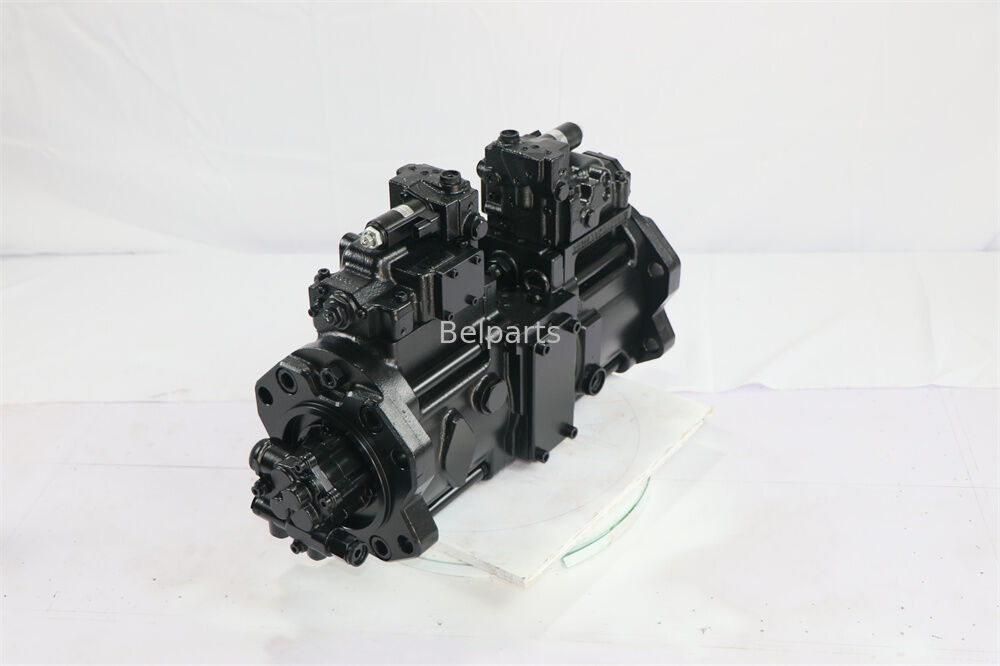

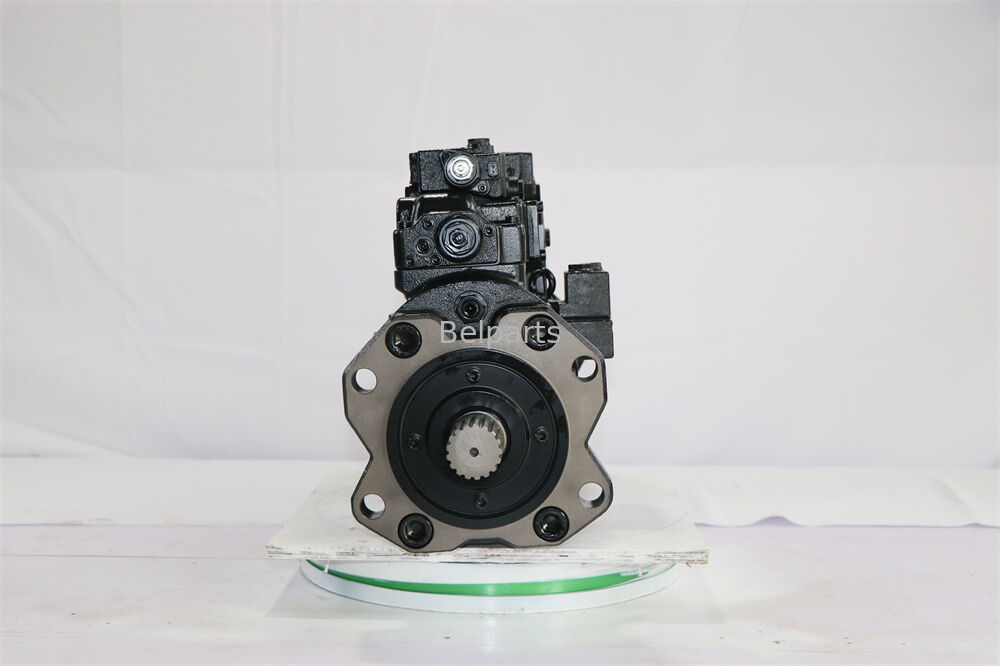

Name: KOBELCO SK330-8 SK350-8 SK350LC-8 Hydraulic Pump for Excavator Parts LC10V00020F1 Main Piston Pump K5V140DTP1X9R-YT6K-V K5V140DTP-YT6K-17T
Brand: GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED
SKU: SK330-8 SK350-8 SK350LC-8
Price: 475.00 USD
Availability: InStock

Home > Products > Hydraulic Pump Excavator Parts >

KOBELCO SK330-8 SK350-8 SK350LC-8 Hydraulic Pump for Excavator Parts LC10V00020F1 Main Piston Pump K5V140DTP1X9R-YT6K-V K5V140DTP-YT6K-17T

KOBELCO excavator hydraulic pump

SK350-8 main piston pump

K5V140DTP excavator pump with warranty

Place of Origin:

China

Brand Name:

Belparts

Certification:

Model Number:

SK330-8 SK350-8 SK350LC-8

Request A Quote

Product Details

Type:

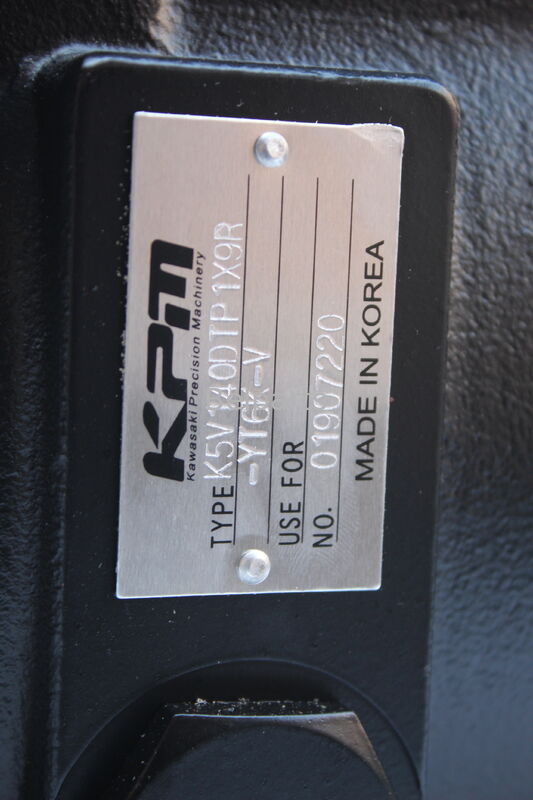

K5V140DTP1X9R-YT6K-V K5V140DTP-YT6K-17T

Part Name:

Main Hydraulic Pump

Part Number:

LC10V00020F1

Application:

Excavator

Condition:

100%New

Quality:

Made In China OEM

Warranty:

12 Months

Payment & Shipping Terms

Minimum Order Quantity

1 PCS

Packaging Details

Wooden Case Packing

Payment Terms

L/C,D/A,D/P,T/T,Alibaba TRADE ASSURANCE,Western Union

Supply Ability

100 PCS / Months

HYUNDAI R450LC-7 R450LC-7A R500LC-7 R500LC-7A Hydraulic pump for Excavator parts K5V200DT-9C0Z-17T 31NB-10020 31NB-10022 Main Piston pump OEM

Get Best Price

Hydraulic Pump For DOOSAN SOLAR 300LC-7A SOLAR 300LC-V Excavator Parts 401-00226B 401-00225A 401-00424 401-00424A 401-00424B 401-00424C Main Piston Pump

Get Best Price

EC300D EC350D EC300DL Hydraulic Pump For VOLVOO Excavator Spare Parts 14639133 Main Piston Pump K5V160DT-158R-1E06-V

Get Best Price

Kobelco SK210-5 Sumitomo SH210A5 CASE CX210 CX210B Hydraulic Pump K3V112DTP1F9R-9Y14-HV K3V112DTP-1X5R-9X14-V For Excavator Parts KRJ10290 KRJ6199 Piston Pump

Get Best Price

+86 18520556972

belparts01@gmail.com

86-020-32384870

Contact Now

Product Description

KOBELCO SK330-8 SK350-8 SK350LC-8 Hydraulic Pump for Excavator Parts

Main Piston Pump LC10V00020F1 K5V140DTP1X9R-YT6K-V K5V140DTP-YT6K-17T

Product Specifications

Application	Excavator
Part Name	Main Hydraulic Pump
Model	SK330-8 SK350-8 SK350LC-8
Type	K5V140DTP1X9R-YT6K-V K5V140DTP-YT6K-17T
Part Number	LC10V00020F1
Warranty	12 months
Delivery Time	3-7 Days
Shipment	Express/freight/sea/train
Quality	Made in China OEM
MOQ	1 Piece
Payment Term	T/T, Trade Assurance, Paypal and etc.

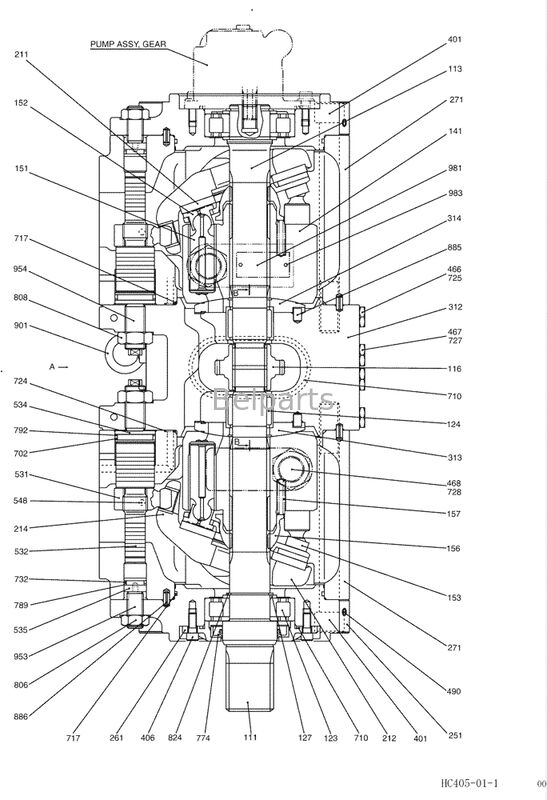

Parts List

Pos.	Part No	Qty	Parts Name
111	LC10V00010S111	1	SHAFT
113	LC10V00010S113	1	SHAFT
116	LC10V00010S116	1	GEAR
123	LC10V00002S123	2	BEARING
124	LC10V00010S124	2	BEARING
127	2441U723S127	3	SPACER
141	NSS	2	NOT SOLD SEPARATELY
151	NSS	18	NOT SOLD SEPARATELY
152	NSS	18	NOT SOLD SEPARATELY
153	LC10V00010S153	2	PLATE
156	YN10V00005S156	2	BUSHING
157	LC10V00010S157	18	SPRING
211	2441U242S211	2	PLATE
212	NSS	2	NOT SOLD SEPARATELY
214	NSS	2	NOT SOLD SEPARATELY
251	LC10V00010S018	2	SUPPORT
261	LC10V00010S261	1	COVER
271	YN10V00043S271	2	BOX
312	LC10V00010S312	1	BLOCK
313	NSS	1	NOT SOLD SEPARATELY
314	NSS	1	NOT SOLD SEPARATELY
325	YN10V00043S325	1	COVER
401	2437U213S401	8	SCREW
406	ZS23C08020	4	SCREW,Hex Socket Head, M8 x 20mm
407	ZS23C06055	3	CAPSCREW,Hex Socket Head, M6 x 55mm
466	2441U667S466	2	PLUG
467	2441U549S464	2	PLUG
468	2441U436S469	4	PLUG
490	2441U722S490	32	PLUG
531	NSS	2	NOT SOLD SEPARATELY
532	LC10V00010S532	2	PISTON
534	2437U213S534	2	STOP
535	2437U213S535	2	STOP
546	YN10V00043S546	2	SPACER
548	NSS	2	NOT SOLD SEPARATELY
702	YN10V00003S702	2	O-RING
710	YX10V00003S012	2	O-RING
717	YN10V00020S012	4	O-RING,3.1mm Thk x 144.4mm ID, 70 Duro
724	YX10V00003S015	16	O-RING,1.9mm Thk x 8.8mm ID, 75 Duro
725	YT10V00003S710	7	O-RING
727	YN10V01001S727	3	O-RING
728	YN10V00020S015	4	O-RING
732	YT10V00003S708	2	O-RING
774	LC10V00010S019	1	OIL SEAL
789	ZD85P01800	2	RING
792	ZD85G03500	2	RING
806	ZN18C16010	2	NUT
808	ZN18C20012	2	NUT
824	ZR16X04000	2	RING
885	2441U723S885	2	PIN
886	ZP26D06014	4	PIN
901	ZS91C01000	2	BOLT
954	2437U213S954	2	SCREW
981	NSS	1	NOT SOLD SEPARATELY
983	2437U407S983	2	RIVET
K	LC10V00010R100	1	REPAIR KIT
K	LC10V00020R100	1	REPAIR KIT
K	LC10V00020R200	1	REPAIR KIT
K	LC10V00010R500	1	REPAIR KIT
K	LC10V00010R600	1	REPAIR KIT

More Branded Accessories

Hydraulic Parts Hydraulic Pump Final Drive Travel Reduction Swing Motor Swing Reduction Control Valve Gear Parts Slew Bearing Engine Assembly Hydraulic Cylinder ECU

Why Choose Us?

Quality Assurance
Fine Workmanship
Price Advantage
Stable Supply

Process Features

Standard production management
Advanced testing equipment
Heat Treatment Technology
Fitting of cylinder block and valve plate

About Factory

Belparts have a large workshop for excavator parts producing, from material cutting, welding, heating treating, assembling, debugging, painting, testing, every part we will confirm before leaving the factory.

FAQ

If I only know the excavator model, but can not offer parts No., what should I do?

If possible, you can send us pictures of old products, nameplate or the size for reference.

What is the warranty of the parts after I purchased hydraulic axial piston pump & motor spare parts?

The warranty is 6/12 Months based on the item details.

How can I pay the order?

We can receive payment through T/T, Western Union, Paypal(for small amount), Alibaba trade assurance.

When will get the items after I place order?

Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock, we will inform you before placing the order.

How can I do if there is something wrong with the items?

First of all, I have confidence in the quality of our products, if you really found something wrong, pls provide pictures for us and we will check. After it is confirmed, pls return to us, we will offer the correct item.

What is your main products?

We are specialized in the excavator spare parts, such as travel motor gearbox/ass'y/parts, swing gearbox/ass'y/motor/parts, hydraulic pump assy/parts and gear parts. If you need other excavator parts, we also can supply as your requirements.
