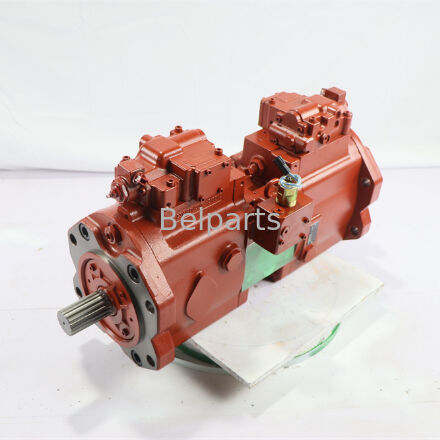

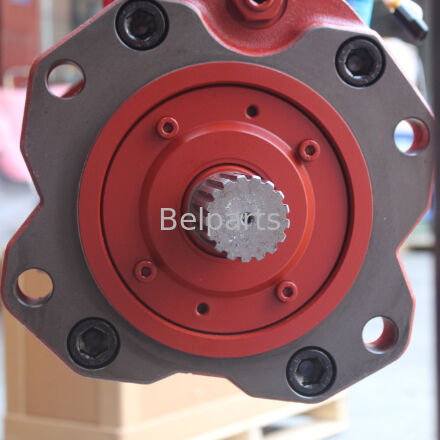

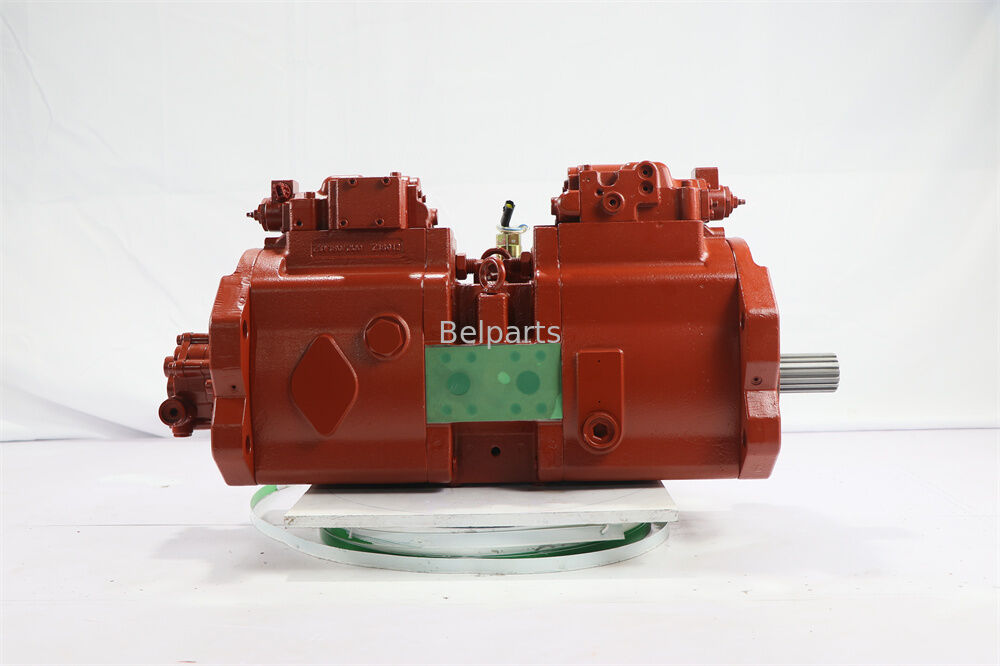

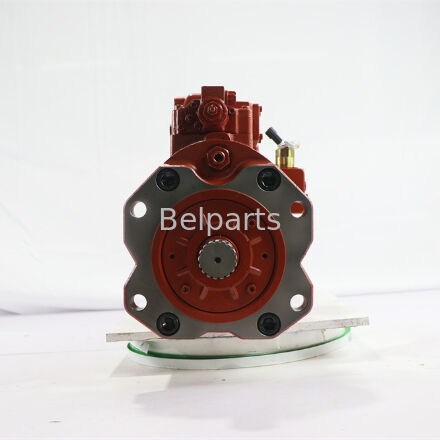

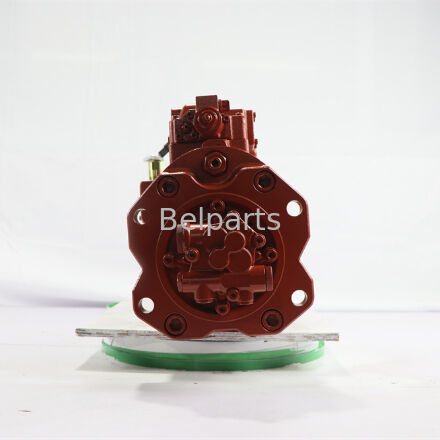

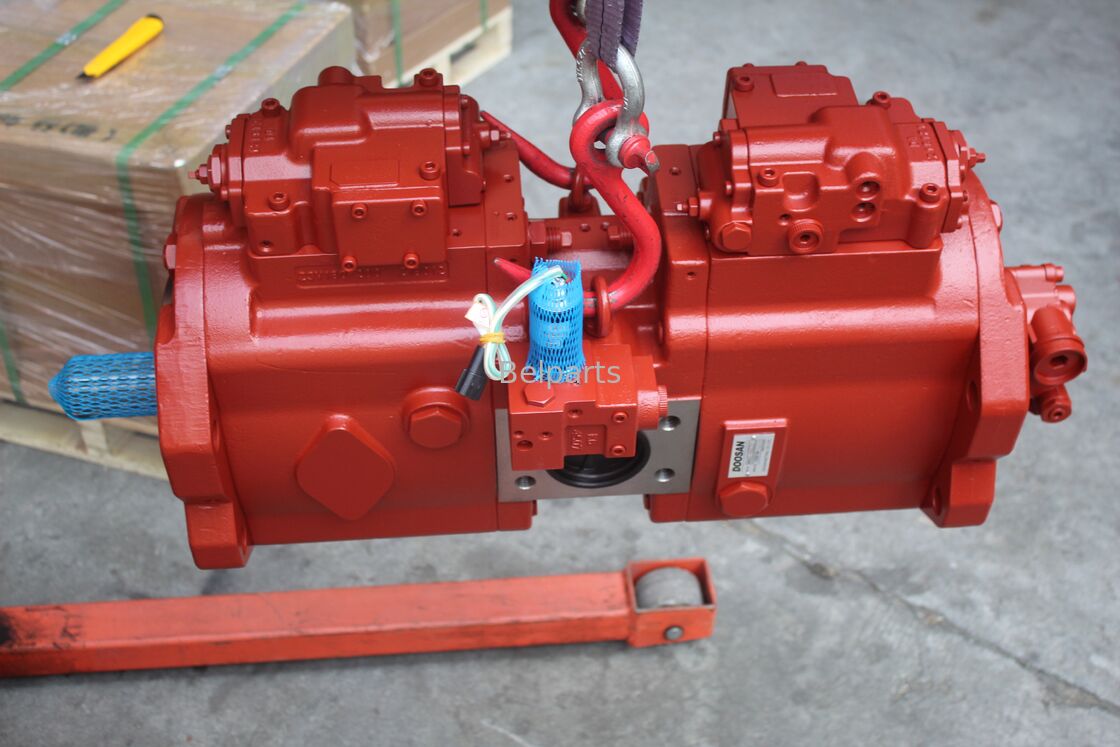

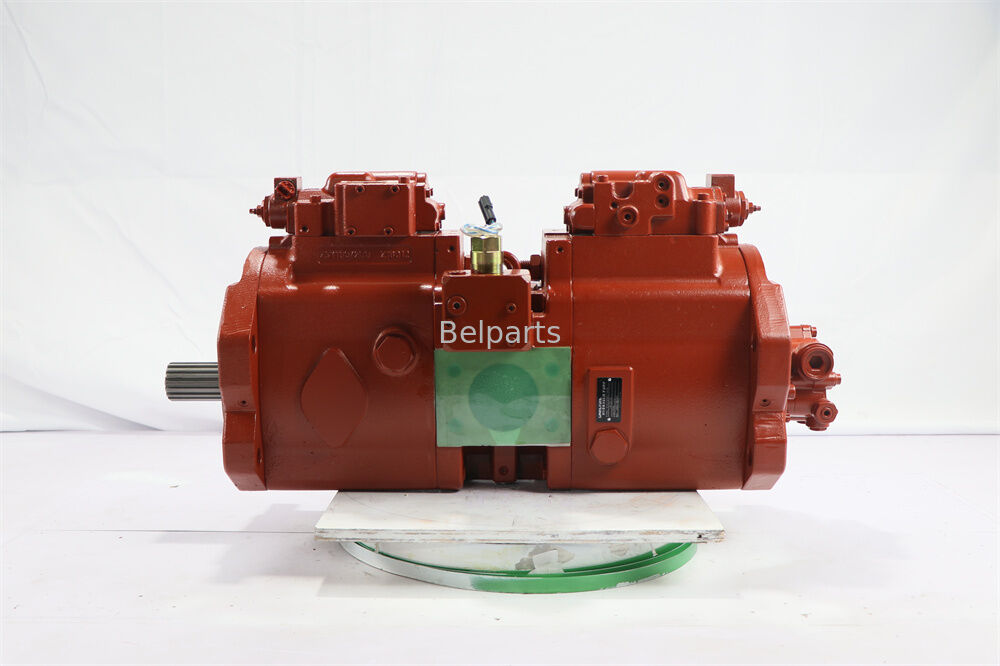

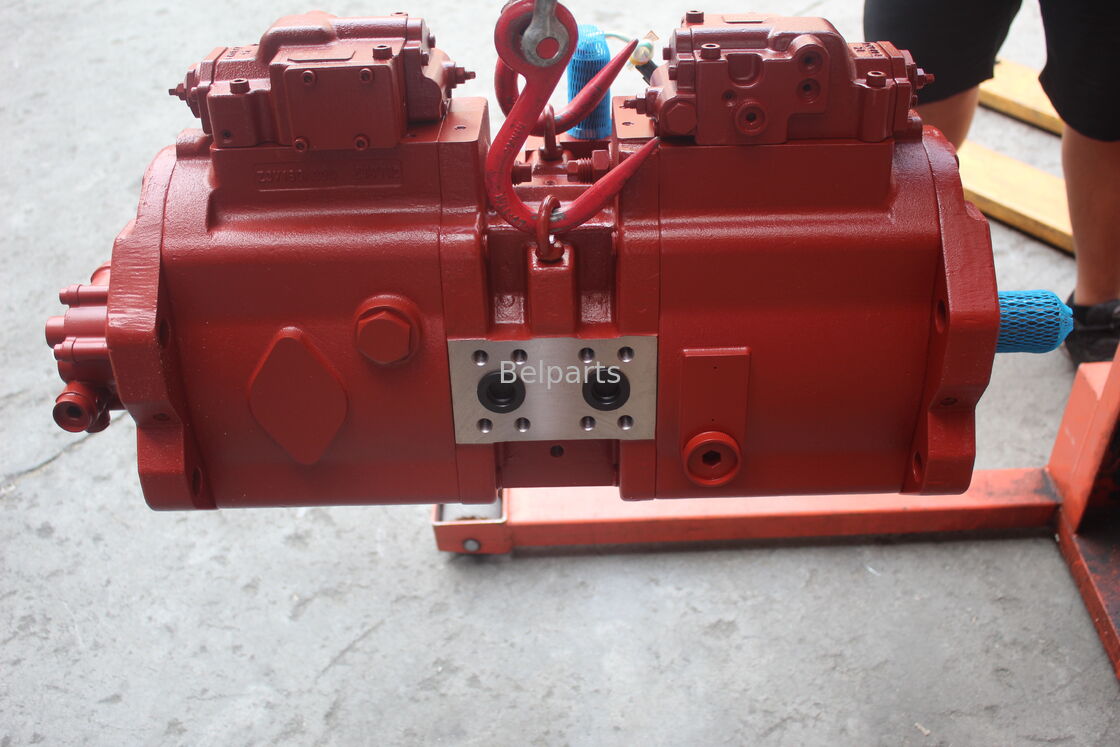

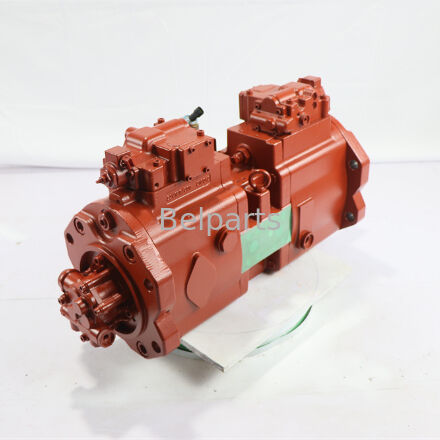

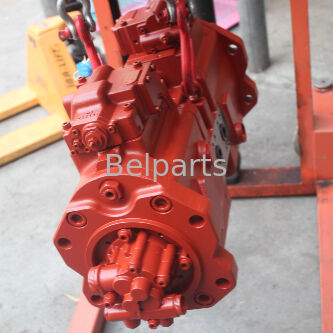

Quality DOOSAN SOLAR 280LC-III DH280-3 DH300-5 Hydraulic Pump for Excavator Parts 2401-9154B 2401-9154C 2401-9154A DAEWOO Main Piston Pump K3V140DT-HNOV-14T factory

DOOSAN SOLAR 280LC-III DH280-3 DH300-5 Hydraulic Pump for Excavator Parts 2401-9154B 2401-9154C 2401-9154A DAEWOO Main Piston Pump K3V140DT-HNOV-14T

Name: DOOSAN SOLAR 280LC-III DH280-3 DH300-5 Hydraulic Pump for Excavator Parts 2401-9154B 2401-9154C 2401-9154A DAEWOO Main Piston Pump K3V140DT-HNOV-14T
Brand: GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED
SKU: SOLAR 280LC-III DH280-3 DH300-5 Solar280LC-3
Price: 475.00 USD
Availability: InStock

Place of Origin:China

Brand Name:Belparts

Certification:CE

Model Number:SOLAR 280LC-III DH280-3 DH300-5 Solar280LC-3

Minimum Order Quantity:1 PCS

Payment Terms:L/C,D/A,D/P,T/T,alibab TRADE ASSURANCE,Western Union

Supply Ability:100 PCS / Months

Product Details

Highlight:

DOOSAN SOLAR hydraulic pump excavator

,

DH280-3 excavator main piston pump

,

K3V140DT hydraulic pump with warranty

Type: K3V140DT-HNOV-14T

Part Name: Main Hydraulic Pump

Part Number: 32401-9154B 2401-9154C 2401-9154A

Application: Excavator

Condition: 100%New

Quality: Made In China OEM

Warranty: 12 Months

Product Description

DOOSAN SOLAR 280LC-III DH280-3 DH300-5 Hydraulic Pump for Excavator Parts

DOOSAN SOLAR 280LC-III Solar280LC-3 DH280-3 DH300-5 Hydraulic Pump for Excavator Parts 2401-9154B 2401-9154C 2401-9154A DAEWOO Main Piston Pump K3V140DT-HNOV-14T

Application	Excavator
Part Name	Main Hydraulic Pump
Model	SOLAR 280LC-III DH280-3 DH300-5 Solar280LC-3
Type	K3V140DT-HNOV-14T
Part Number	32401-9154B 2401-9154C 2401-9154A
Warranty	12 months
Delivery Time	3-7 Days
Shipment	Express/freight/sea/train
Quality	Made in China OEM
MOQ	1 Piece
Payment Term	T/T, Trade Assurance, Paypal and etc

DOOSAN SOLAR 280LC-III Hydraulic Pump diagram

Spare Parts List

#	Part No.	Description	Qty
-	2401-9154B	MAIN PUMP ASS'Y	1
4	704205	PUMP, GEAR	1
79	707847	VALVE, ELECTRO PROPORTIONAL	1
79	708432	PUMP BODY ASS'Y	1
111	113682	SHAFT, DRIVING(F)	1
113	113708	SHAFT, DRIVING(R)	1
114	113710	COUPLING, SPLINE	1
123	212283	BEARING, ROLLER	2
124	212285	BEARING, NEEDLE RNA6932	2
127	113683	SPACER, BEARING	4
141	113699	BLOCK, CYLINDER	2
151	113697	PISTON	18
152	113698	SHOE, TRACK	18
153	113692	PLATE, PUSH	2
156	113693	BUSH, SPHERICAL	2
157	113695	SPRING, CYLINDER	18
158	113694	SPACER	2
211	113691	PLATE, SHOE	2
212	113690	PLATE, SWASH	2
214	113625	BUSH, TILTING	2
251	113689	SUPPORT, SWASH PLATE	2
261	113681	COVER, SEAL(F)	1
263	113709	COVER, REAR	1
271	113696	CASING, PUMP	2
312	120683	BLOCK, VALVE	1
313	113700	PLATE, VALVE(R)	1
314	113711	PLATE, VALVE(L)	1
325	120592	CASING, VALVE	1
401	113714	BOLT, SOCKET M20X2.5X235	8
406	200846	BOLT, HEX SOCKET HEAD	4
407	200838	BOLT, SOCKET M6X1.0X65	3
413	200671	BOLT, SOCKET M10X1.5X70	2
466	108848	PLUG(PF3/8)	2
468	108847	PLUG PF3/4	2
490	211665	EXPANDER	32
531	113685	PIN, TILTING	2
532	113687	PISTON, SERVO	2
534	113684	STOPPER(L)	2
535	113688	STOPPER(S)	2
541	113706	SEAT	4
543	113705	STOPPER(1)	2
544	113073	STOPPER 2	2
545	200166	BALL, STEEL	4
548	113380	PIN, FEEDBACK	2
702	201662	O-RING 1BG40	2
710	201631	O-RING 1BG105	2
717	212281	O-RING	2
719	212284	O-RING	2
724	201765	O-RING 1BP8	16
725	201689	O-RING 1BP11	2
726	201700	O-RING 1BP14	3
728	201721	O-RING 1BP24	3
732	201716	O-RING 1BP21	2
774	212232	SEAL, OIL	1
789	200091	RING, BACK-UP	2
792	200071	RING, BACK-UP	2
808	102048	NUT=ORMN20	2
824	212282	RING, SNAP	2
885	113715	PIN=PJR1014	2
886	200678	PIN, SPRING D6X14	4
901	212286	BOLT, EYE	2
953	212280	SCREW, SET M20X35	2
954	113702	SCREW, ADJUSTING	2
*	2401-9154K	O-RING KIT	1

More Branded Accessories are Available

Hydraulic Parts Hydraulic Pump Final Drive Travel Reduction Swing Motor Swing Reduction Control Valve Gear Parts Slew Bearing Engine Assembly Hydraulic Cylinder ECU

Why Choose Us?

Quality Assurance
Fine Workmanship
Price Advantage
Stable Supply

Process Features

Standard production management
Advanced testing equipment
Heat Treatment Technology
Fitting of cylinder block and valve plate

About Factory

Belparts have a large workshop for excavator parts producing, from material cutting, welding, heating treating, assembling, debugging, painting, testing, every part we will confirm before leaving the factory.

FAQ

If I only know the excavator model, but can not offer parts No., what should I do?

If possible, you can send us pictures of old products, nameplate or the size for reference.

What is the warranty of the parts after I purchased hydraulic axial piston pump & motor spare parts?

The warranty is 6/12 Months based on the item details.

How can I pay the order?

We can receive payment through T/T, Western Union, Paypal(for small amount), alibab trade assurance.

When will get the items after I place order?

Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock, we will inform you before placing the order.

How can I do if there is something wrong with the items?

First of all, I have confidence in the quality of our products, if you really found something wrong, pls provide pictures for us and we will check. After it is confirmed, pls return to us, we will offer the correct item.

What is your main products?

We are specialized in the excavator spare parts, such as travel motor gearbox/ass'y/parts, swing gearbox/ass'y/motor/parts, hydraulic pump assy/parts and gear parts. If you need other excavator parts, we also can supply as your requirements.
