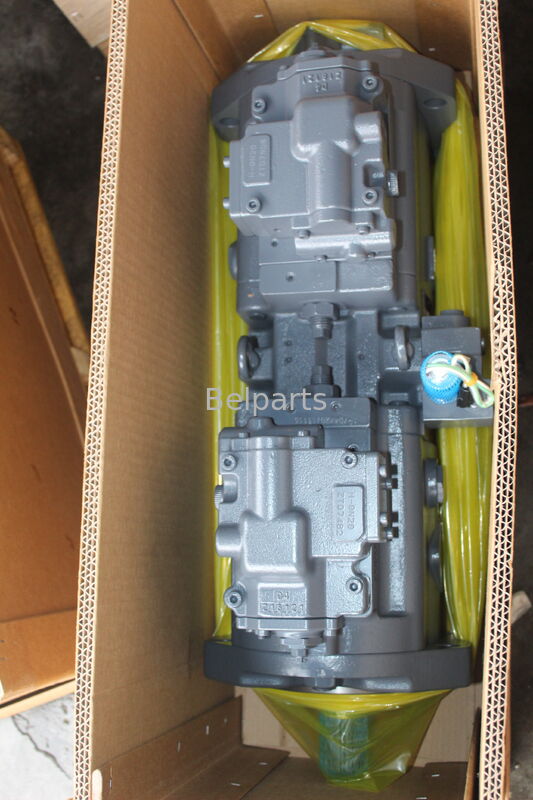

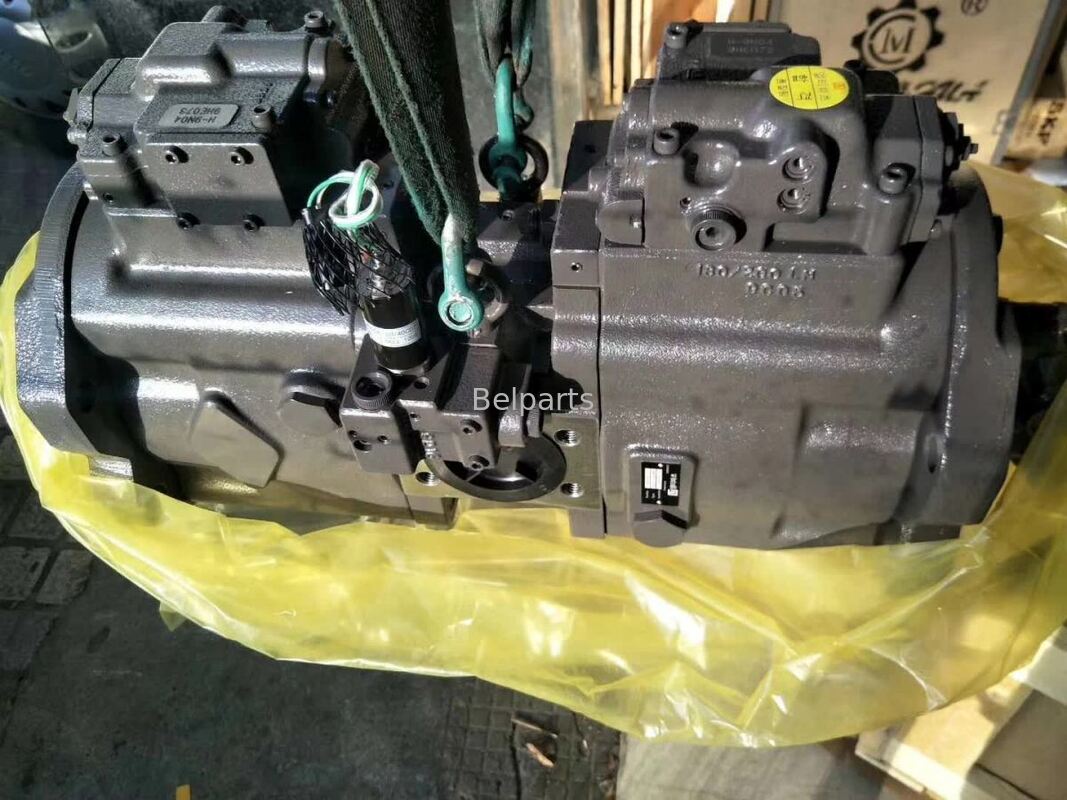

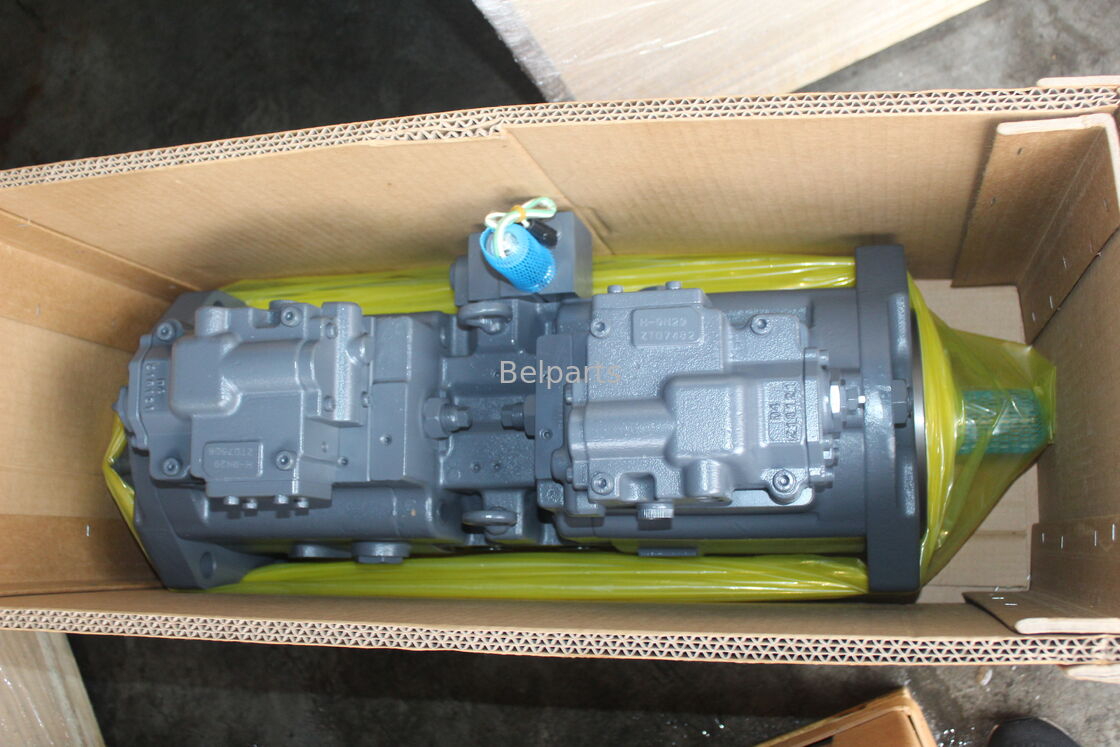

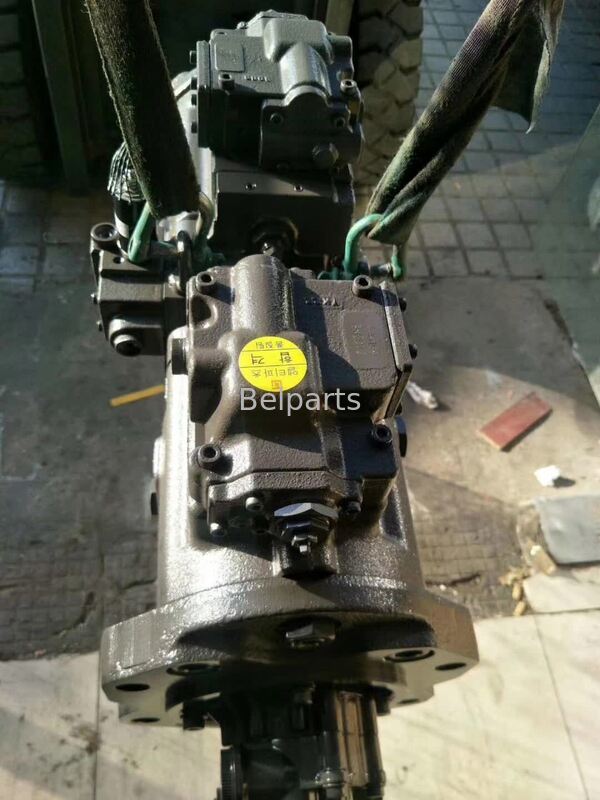

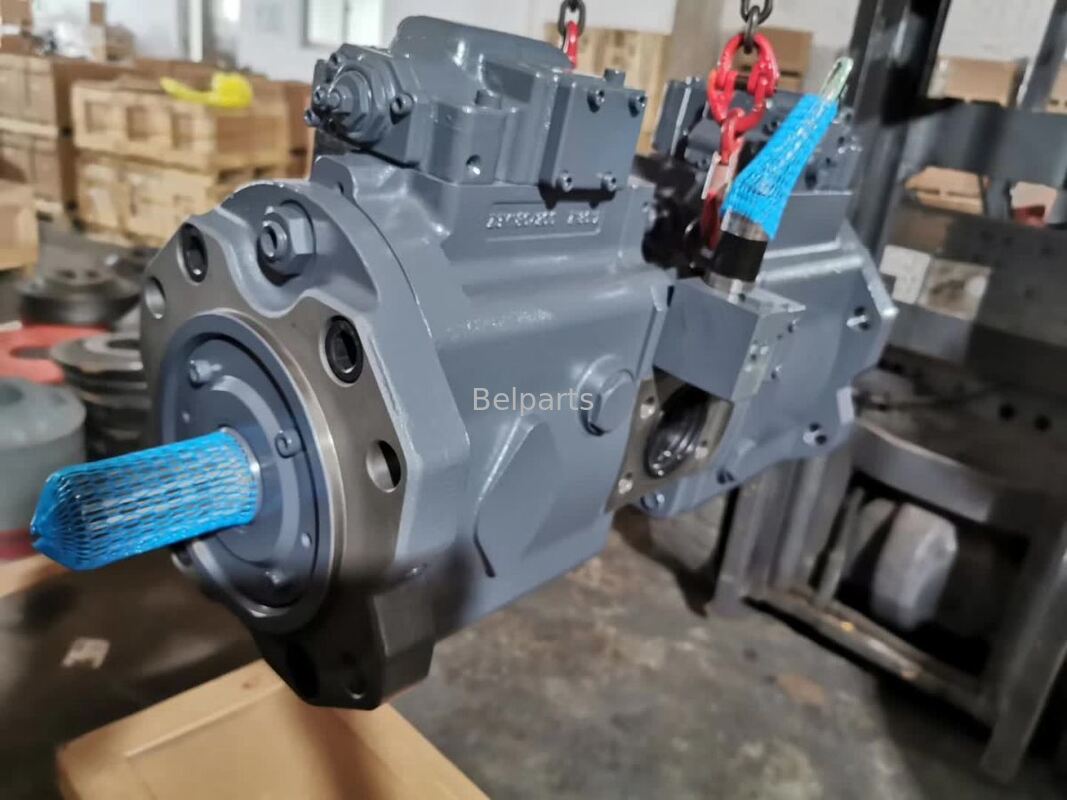

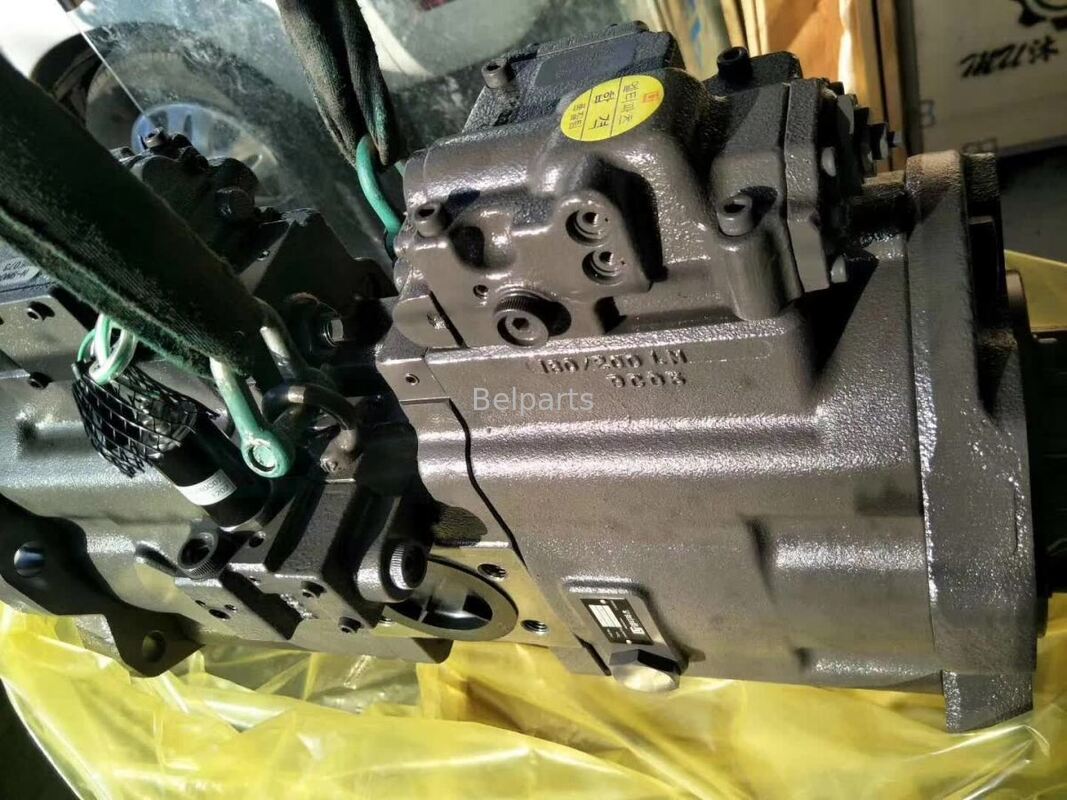

VOLVOo EC290 EC290B LC EC290BLC Hydraulic Pump for Excavator Parts 14641331 SA7220-00601 14524052 14531591 Main Piston Pump K3V140DT-9N29-17T K3V140DT-1K9R-9N24-HV

Place of Origin:China
Brand Name:Belparts
Certification:CE
Model Number:EC290 EC290B LC EC290BLC
Minimum Order Quantity:1 PCS
Payment Terms:L/C,D/A,D/P,T/T,alibab TRADE ASSURANCE,Western Union
Supply Ability:100 PCS / Months
Product Details
Highlight:

VOLVO EC290BLC hydraulic pump

,

excavator main piston pump

,

K3V140DT hydraulic pump parts
Type: K3V140DT-9N29-17T K3V140DT-1K9R-9N24-HV
Part Name: Main Hydraulic Pump
Part Number: 14641331 SA7220-00601 14524052 14531591
Application: Excavator
Condition: 100%New
Quality: Made In China OEM
Warranty: 12 Months
Product Description
VOLVOo EC290 EC290B LC EC290BLC Hydraulic Pump for Excavator Parts 14641331 SA7220-00601 14524052 14531591 Main Piston Pump K3V140DT-9N29-17T  K3V140DT-1K9R-9N24-HV
Application Excavator
Part name Main Hydraulic Pump
Model EC290 EC290B LC EC290BLC
Type K3V140DT-9N29-17T K3V140DT-1K9R-9N24-HV
Part Number VOE14641331 SA 7220-00601 VOE14524052 VOE14531591
Warranty 12 months
Delivery time 3-7 Days
Shipment Express/freight/sea/train
Quality Made in China OEM
MOQ 1 Piece
Payment term T/T, Trade Assurance, Paypal and et
VOLVOo EC290 EC290B LC EC290BLC Hydraulic Pump for Excavator Parts 14641331 SA7220-00601 14524052 14531591 Main Piston Pump K3V140DT-9N29-17T K3V140DT-1K9R-9N24-HV

List of spare parts

# Part No. Description DG00A001

SA 7220-00601 Pump 1
1 SA 7223-00110 Piston 2
2 SA 7223-00120 Piston 9
3 SA 7223-00130 Pad 9
4 SA 7223-00760 Cylinder 1
5 SA 7223-00070 Cylinder Block 1
6 SA 7223-00340 Plate 1
7 SA 7223-00770 Cylinder 1
8 SA 7223-00070 Cylinder Block 1
9 SA 7223-00350 Plate 1
10 SA 7223-00820 Valve 1
11 SA 7223-00010 Shaft 1
12 SA 7223-00020 Shaft 1
13 SA 7223-00030 Connector 1
14 SA 7223-00040 Roller Bearing 2
15 SA 7223-00050 Needle Bearing 2
16 SA 7223-00060 Spacer 3
17 SA 7242-10210 Plate 2
18 VOE 14510060 Bushing 2
19 SA 7223-00170 Spring 18
20 SA 7223-00430 Stop 2
21 SA 7223-00210 Plate 2
22 VOE 14506635 Plate 2
23 SA 7223-00220 Plate 1
24 SA 7223-00240 Bushing 1
25 VOE 14506666 Support 2
26 SA 7223-00250 Support 1
27 SA 7242-11040 Plug 29
28 VOE 14506634 Pin 2
29 SA 7223-00400 Pin 1
30 SA 7223-00570 Pin 1
31 SA 7223-00280 Cover 1
32 SA 7223-00290 Casing 2
33 SA 7223-00310 Block 1
34 SA 7223-00390 Bolt 8
35 VOE 967630 Allen Hd Screw 4
36 SA 9415-11021 Plug 2
37 SA 7223-00480 Check valve 2
38 SA 7223-00510 Seat 1
39 SA 7223-00530 Stop 1
40 SA 9676-73200 Ball 1
41 SA 7223-00490 Check valve 2
42 SA 7223-00510 Seat 1
43 SA 7223-00550 Stop 1
44 SA 9676-73200 Ball 1
45 SA 9415-11051 Plug 3
46 SA 7223-00690 O-ring 2
47 SA 9511-22105 O-ring 1
48 SA 7223-00590 O-ring 2
49 SA 7223-00600 O-ring 2
50 SA 9511-12008 O-ring 16
51 SA 9511-12011 O-ring 4
52 SA 9511-12024 O-ring 3
53 SA 7223-00700 O-ring 2
54 SA 7223-00710 Seal 1
55 SA 7223-00640 Ring 2
56 SA 7223-00650 Ring 2
57 VOE 979022 Nut 4
58 SA 9541-01045 Snap Ring 2
59 SA 7242-10560 Pin 2
60 SA 7223-00660 Spring Pin 4
61 SA 9031-11200 Eye Bolt 2
62 SA 7223-00670 Set Screw 2
63 SA 7223-00680 Set Screw 2
64 SA 7223-00410 Piston 2
65 SA 7223-00420 Stop 2
100 SA 8148-15050 Sealing Kit 1

VOLVOo EC290 EC290B LC EC290BLC Hydraulic Pump for Excavator Parts 14641331 SA7220-00601 14524052 14531591 Main Piston Pump K3V140DT-9N29-17T K3V140DT-1K9R-9N24-HV

# Part No. Description 8277459 S/N -13561 8280312 S/N 13562-

SA 7220-00601 Pump; SER NO 10001-12123SER NO 30001-30141 1

VOE 14524052 Pump; SER NO 12124-SER NO 30142- 1 1
1 SA 7223-00110 Piston 2 2
2 SA 7223-00120 Piston 9 9
3 SA 7223-00130 Pad 9 9
4 SA 7223-00760 Cylinder 1 1
5 SA 7223-00070 Cylinder Block 1 1
6 SA 7223-00340 Plate 1 1
7 SA 7223-00770 Cylinder 1 1
8 SA 7223-00070 Cylinder Block 1 1
9 SA 7223-00350 Plate 1 1
10 VOE 14506635 Plate 2 2
11 SA 7223-00220 Plate 1 1
12 SA 7223-00240 Bushing 1 1
13 SA 7223-00030 Connector 1 1
14 SA 7223-00040 Roller Bearing 2 2
15 SA 7223-00050 Needle Bearing 2 2
16 SA 7223-00060 Spacer 3 3
17 SA 7242-10210 Plate 2 2
18 VOE 14510060 Bushing 2 2
19 SA 7223-00170 Spring 18 18
20 SA 7223-00430 Stop 2 2
21 SA 7223-00210 Plate 2 2
22 SA 7223-00820 Valve; SER NO 10001-12912SER NO 30001-30177 1

VOE 14532653 Valve; SER NO 12913-SER NO 30178- 1 1
23 VOE 14533608 O-ring 1 1
24 VOE 14533606 O-ring 4 4
25 SA 7242-11040 Plug 3 3
26 SA 9415-11021 Plug 1 1
27 SA 9016-20612 Bolt 3 3
28 SA 8230-32080 Valve 1 1
29 VOE 14535454 O-ring 1 1
30 VOE 14535455 O-ring 1 1
31 VOE 14535456 O-ring 1 1
32 SA 7223-00290 Casing; SER NO 10001-13328SER NO 30001-30207 2

VOE 14526119 Casing; SER NO 13329-SER NO 30208- 2 2
33 SA 7223-00310 Block 1 1
34 SA 7223-00390 Bolt 8 8
35 VOE 967630 Allen Hd Screw 4 4
36 SA 9415-11021 Plug 2 2
37 SA 7223-00480 Check valve 2 2
38 SA 7223-00510 Seat 1 1
39 SA 7223-00530 Stop 1 1
40 VOE 14880998 Ball 1 1
41 SA 7223-00490 Check valve 2 2
42 SA 7223-00510 Seat 1 1
43 SA 7223-00550 Stop 1 1
44 VOE 14880998 Ball 1 1
45 SA 9415-11051 Plug 3 3
46 SA 7223-00690 O-ring 2 2
47 VOE 14533617 O-ring 1 1
48 VOE 14533034 O-ring 2 2
49 VOE 14533035 O-ring 2 2
50 VOE 14533604 O-ring 16 16
51 VOE 14533606 O-ring 4 4
52 VOE 14533612 O-ring 3 3
53 SA 7223-00700 O-ring 2 2
54 VOE 14533040 Seal 1 1
55 SA 7223-00640 Ring 2 2
56 SA 7223-00650 Ring 2 2
57 VOE 979022 Nut 4 4
58 SA 9541-01045 Snap Ring 2 2
59 SA 7242-10560 Pin 2 2
60 SA 7223-00660 Spring Pin 4 4
61 SA 9031-11200 Eye Bolt 2 2
62 SA 7223-00670 Set Screw 2 2
63 SA 7223-00680 Set Screw 2 2
64 SA 7223-00410 Piston 2 2
65 SA 7223-00420 Stop 2 2
66 SA 7223-00010 Shaft 1 1
67 VOE 14506666 Support 2 2
68 SA 7223-00020 Shaft 1 1
69 VOE 14506634 Pin 2 2
70 SA 7223-00400 Pin 1 1
71 SA 7223-00570 Pin 1 1
72 SA 7223-00280 Cover 1 1
73 SA 7242-11040 Plug 29 29
900 SA 7220-00420 Regulator; SER NO 10001-12912SER NO 30001-30177 2

VOE 14533619 Regulator; SER NO 12913-SER NO 30178- 2 2

SA 7220-00550 Gear Pump; SER NO 10001-13328SER NO 30001-30207 1

VOE 14536672 Gear Pump; SER NO 13329-SER NO 30208- 1 1
100 SA 8148-15050 Sealing Kit; SER NO 10001-12912SER NO 30001-30177 1

VOE 14534297 Sealing Kit; SER NO 12913-SER NO 30178- 1 1
