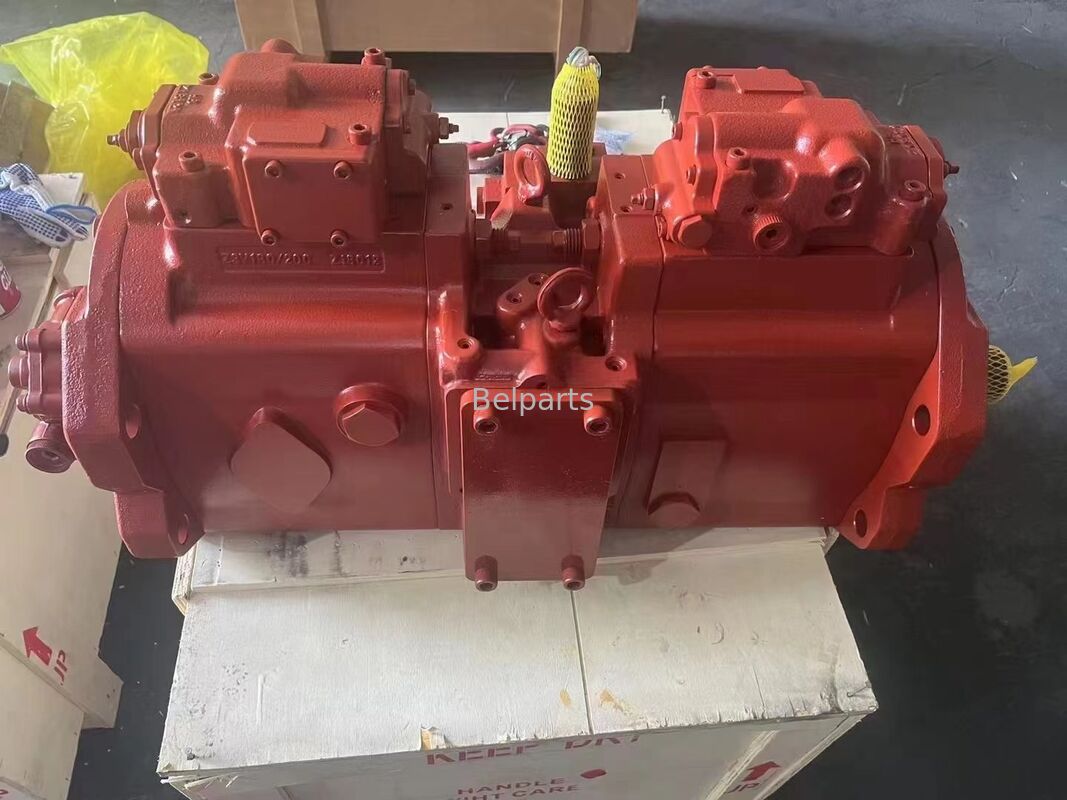

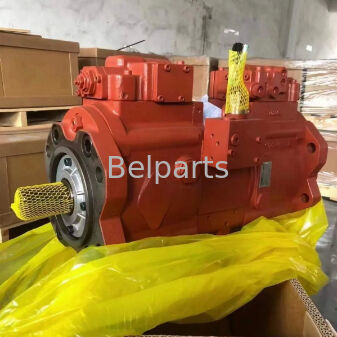

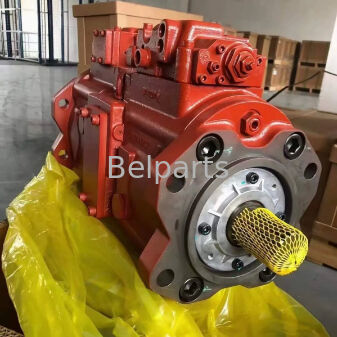

Quality Robex 330LC-9 335LC-9 R330LC-9 R330LC-9S R335LC-9 Hydraulic Pump for Hyundai Excavator Part 31Q9-10030 31Q9-10080 Main Piston Pump K3V180DTP-9N29-17T K3V180DT-1RAR-9NJ9 K5V160DT-1RAR-9NH9 factory

Robex 330LC-9 335LC-9 R330LC-9 R330LC-9S R335LC-9 Hydraulic Pump for Hyundai Excavator Part 31Q9-10030 31Q9-10080 Main Piston Pump K3V180DTP-9N29-17T K3V180DT-1RAR-9NJ9 K5V160DT-1RAR-9NH9

Name: Robex 330LC-9 335LC-9 R330LC-9 R330LC-9S R335LC-9 Hydraulic Pump for Hyundai Excavator Part 31Q9-10030 31Q9-10080 Main Piston Pump K3V180DTP-9N29-17T K3V180DT-1RAR-9NJ9 K5V160DT-1RAR-9NH9
Brand: GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED
SKU: R330LC-9 R330LC-9S R335LC-9 R330LC-9A R335LC-9T
Price: 475.00 USD
Availability: InStock

Place of Origin:China

Brand Name:Belparts

Certification:CE

Model Number:R330LC-9 R330LC-9S R335LC-9 R330LC-9A R335LC-9T

Minimum Order Quantity:1 PCS

Price:Negotiation

Payment Terms:L/C,D/A,D/P,T/T,alibab TRADE ASSURANCE,Western Union,PAYPAL

Supply Ability:100 PCS / Months

Product Details

Highlight:

Hyundai excavator hydraulic pump

,

Robex 330LC-9 piston pump

,

K3V180DTP excavator main pump

Model: R330LC-9 R330LC-9S R335LC-9 R330LC-9A R335LC-9T

Type: K3V180DTP-9N29-17T K3V180DT-1RAR-9NJ9 K5V160DT-1RAR-9NH9

Part Name: Main Hydraulic Pump

Part Number: VOE14531412 VOE14500380 VOE14516492 VOE14512271 VOE14520050

Application: Crawler Excavator

Quality: Made In China OEM

Warranty: 12 Months

Shipment: Sea / Air / Express DHL FEDEX UPS

Product Description

Robex 330LC-9 335LC-9 R330LC-9 R330LC-9S R335LC-9 Hydraulic Pump for Excavator Spare Part 31Q9-10030 31Q9-10080 Main Piston Pump Attachment K3V180DTP-9N29-17T K3V180DT-1RAR-9NJ9 K5V160DT-1RAR-9NH9

Product Specifications

Application	Excavator
Part name	Hydraulic Main pump
Machine model	Robex 330LC-9 335LC-9 R330LC-9 R330LC-9S R335LC-9 R330LC-9A R335LC-9T
Type	K3V180DTP-9N29-17T K3V180DT-1RAR-9NJ9 K5V160DT-1RAR-9NH9
Part number	31Q9-10030 31Q9-10080
Warranty	12 months
Delivery time	3-7 Days
Shipment	Express/freight/sea/train
Quality	Made in China OEM
MOQ	1 Piece
Payment term	T/T, Trade Assurance, Paypal and et

Robex 330LC-9 335LC-9 R330LC-9 R330LC-9S R335LC-9 Hydraulic Pump for Hyundai Excavator Part 31Q9-10030 31Q9-10080 Main Piston Pump K3V180DTP-9N29-17T K3V180DT-1RAR-9NJ9 K5V160DT-1RAR-9NH9

Pos. Part No Qty Parts name
* 31Q9-10030 [1] MAIN PUMP
* 31Q9-10080 [1] MAIN PUMP
111. XJBN-00015 [1] SHAFT-DRIVE(F)
113. XJBN-00153 [1] SHAFT-DRIVE(R)
114. XJBN-00367 [1] COUPLING-SPLINE
123. XJBN-00571 [2] BEARING-ROLLER
124. XJBN-00018 [2] BEARING-NEEDLE
127. XJBN-00569 [3] SPACER-BEARING
NS012. XJBN-00680 [2] BLOCK-CYLINDER
NS141. XJBN-01933 [2] BLOCK-CYLINDER
NS151. XJBN-00681 [18] PISTON
NS151. XJBN-01932 [18] PISTON
NS152. XJBN-01385 [18] SHOE
NS152. XJBN-01931 [18] SHOE
153. XJBN-00020 [2] PLATE-SET
153. XJBN-00683 [2] PLATE-SET
156. XJBN-00564 [2] BUSHING-SPHERICAL
157. XJBN-00541 [18] SPRING-CYLINDER
211. XJBN-00023 [2] PLATE-SHOE
NS212. XJBN-00012 [2] PLATE-SWASH
NS214. XJBN-00013 [2] BUSHING-TILTING
251. XJBN-00550 [2] SUPPORT-S.P.
261. XJBN-00025 [1] COVER(FR)-SEAL
271. XJBN-01386 [2] CASING-PUMP
312. XJBN-00027 [1] BLOCK-VALVE
NS313. XJBN-01387 [1] PLATE(R)-VALVE
NS313. XJBN-01930 [1] PLATE(R)-VALVE
NS314. XJBN-01388 [1] PLATE(L)-VALVE
NS314. XJBN-01929 [1] PLATE(L)-VALVE
401. XJBN-00028 [8] SCREW
406. XJBN-00355 [4] SCREW-HEX SOC HD
466. XJBN-00356 [2] PLUG-VP
468. OVP34 [4] PLUG
490. XJBN-00032 [30] PLUG
NS531. XJBN-00369 [2] PIN-TILTING
NS531. XJBN-00981 [2] PIN-TILTING
532. XJBN-00033 [2] PISTON-SERVO
532. XJBN-00703 [2] PISTON-SERVO
534. XJBN-00034 [2] STOPPER(L)
535. XJBN-00035 [2] STOPPER(S)
NS541. XJBN-00859 [4] SEAT
NS543. XJBN-00860 [2] STOPPER 1
NS544. XJBN-01002 [2] STOPPER(2)
NS545. XJBN-00359 [4] BALL-STEEL
NS548. XJBN-00360 [2] PIN-FEED BACK
702. OORBG40W [2] O-RING
710. OORBG105 [1] O-RING
717. XJBN-00042 [2] O-RING
719. XJBN-00043 [2] O-RING
724. OORBPB [16] O-RING
725. XJBN-00362 [8] O-RING
728. XJBN-00363 [4] O-RING
732. OORBP21W [2] O-RING
774. XJBN-01595 [1] SEAL-OIL
789. XJBN-00049 [2] RING-BACK UP
792. XJBN-00050 [2] RING-BACK UP
808. XJBN-00364 [4] NUT-HEX
824. OSR45 [2] RING-SNAP
885. XJBN-00053 [2] PIN 2
886. XJBN-00365 [4] PIN-SPRING
901. OEBM12 [2] BOLT-EYE
953. XJBN-00654 [2] SCREW-SET
954. XJBN-00057 [2] SCREW-SET
981. XJBN-00158 [1] NAME PLATE
981. XJBN-01661 [1] NAME PLATE
983. XJBN-00341 [2] PIN
*-2. @ [1] REGULATOR
*-2. @ [1] REGULATOR
*-3. @ [1] GEAR PUMP
*-4. @ [1] EPPR VALVE
S011. @ [1] EPPR VALVE
S011. XJBN-01382 [2] PISTON ASSY
S011. XJBN-01937 [2] PISTON ASSY
S013. XJBN-00665 [1] CYLINDER ASSY-RH
S013. XJBN-01935 [1] CYLINDER ASSY-RH
S014. XJBN-00666 [1] CYLINDER ASSY-LH
S014. XJBN-01936 [1] CYLINDER ASSY-LH
S030. XJBN-00011 [2] SWASH PLATE ASSY
S041. XJBN-00072 [2] CHECK VALVE ASSY 1
S042. XJBN-01009 [2] CHECK VALVE ASSY 3
S530. XJBN-00371 [2] TILTING PIN SUB ASSY
S530. XJBN-00986 [2] TILTING PIN SUB ASSY
N. @ [AR] NOT SUPPLIED PARTS
