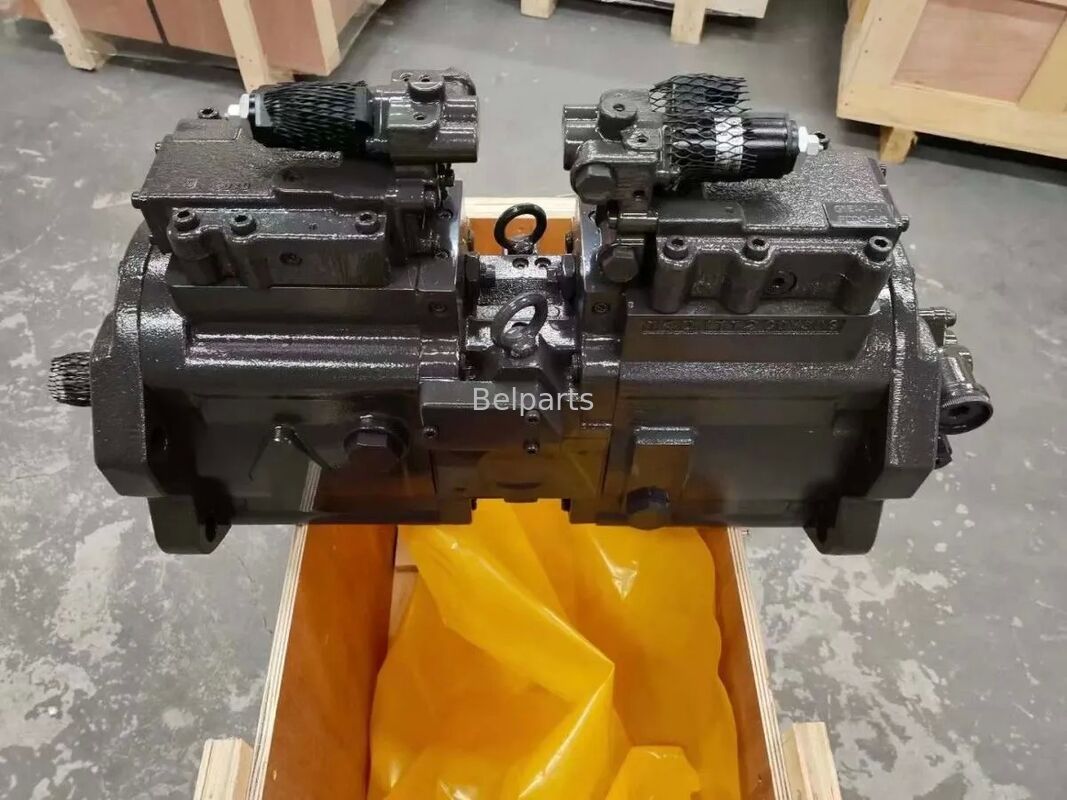

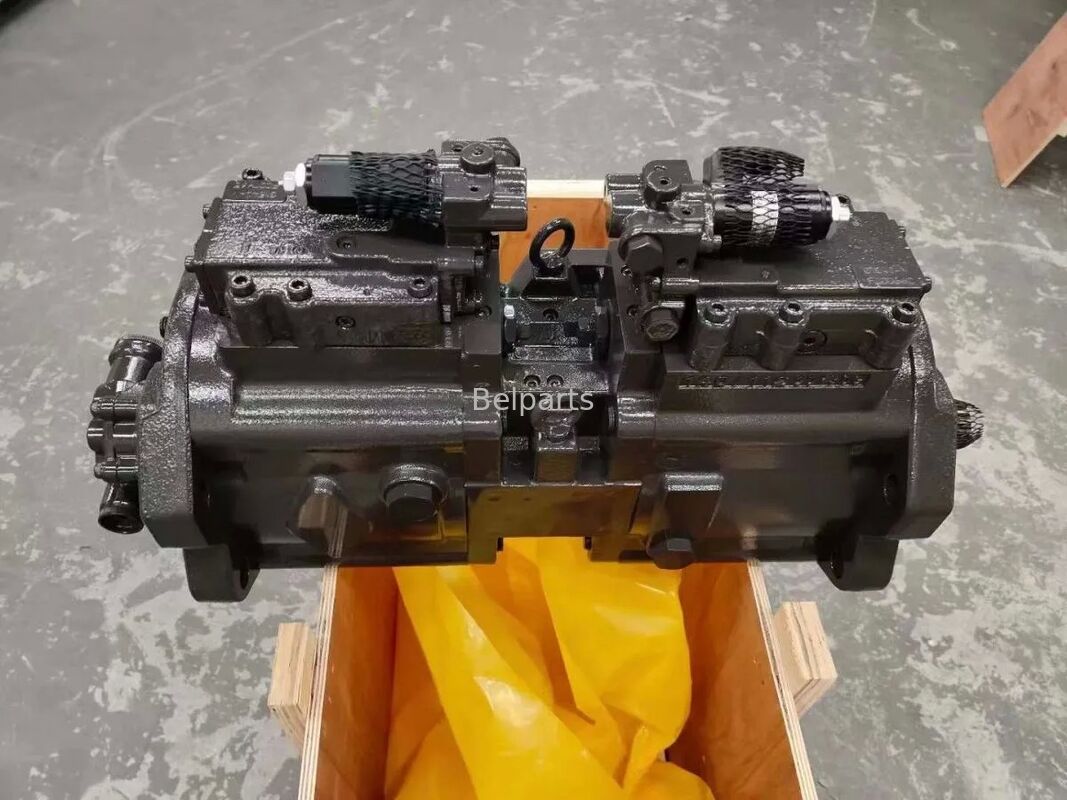

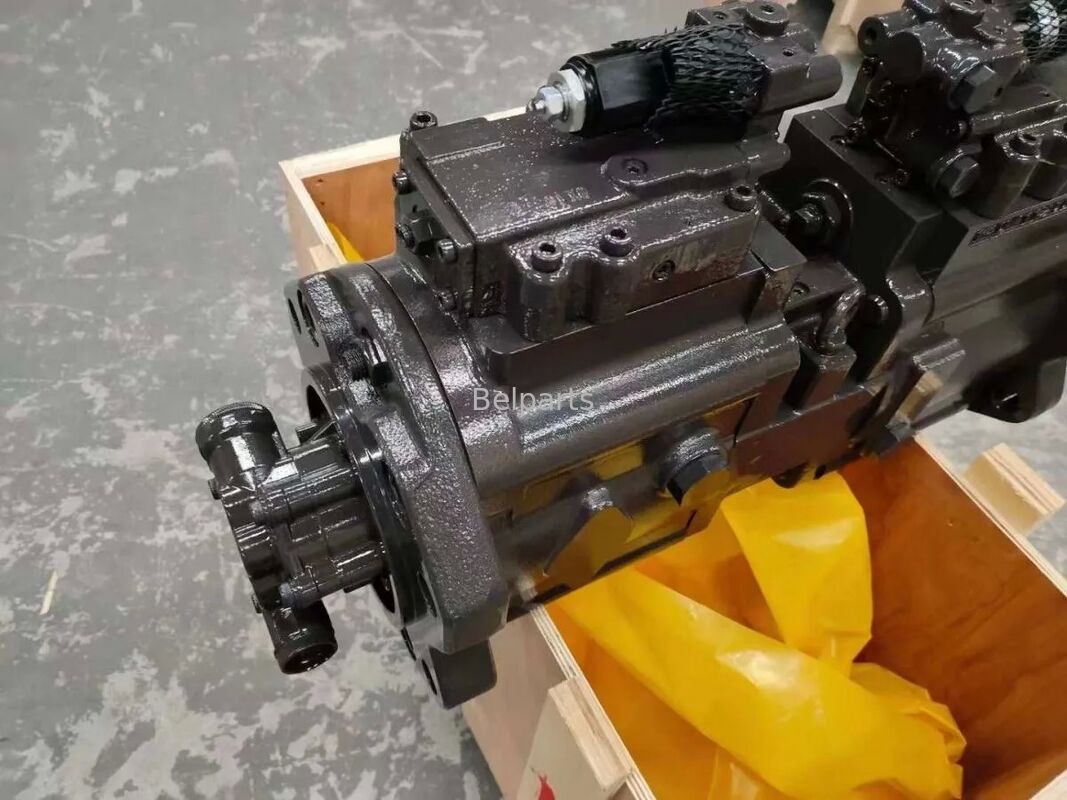

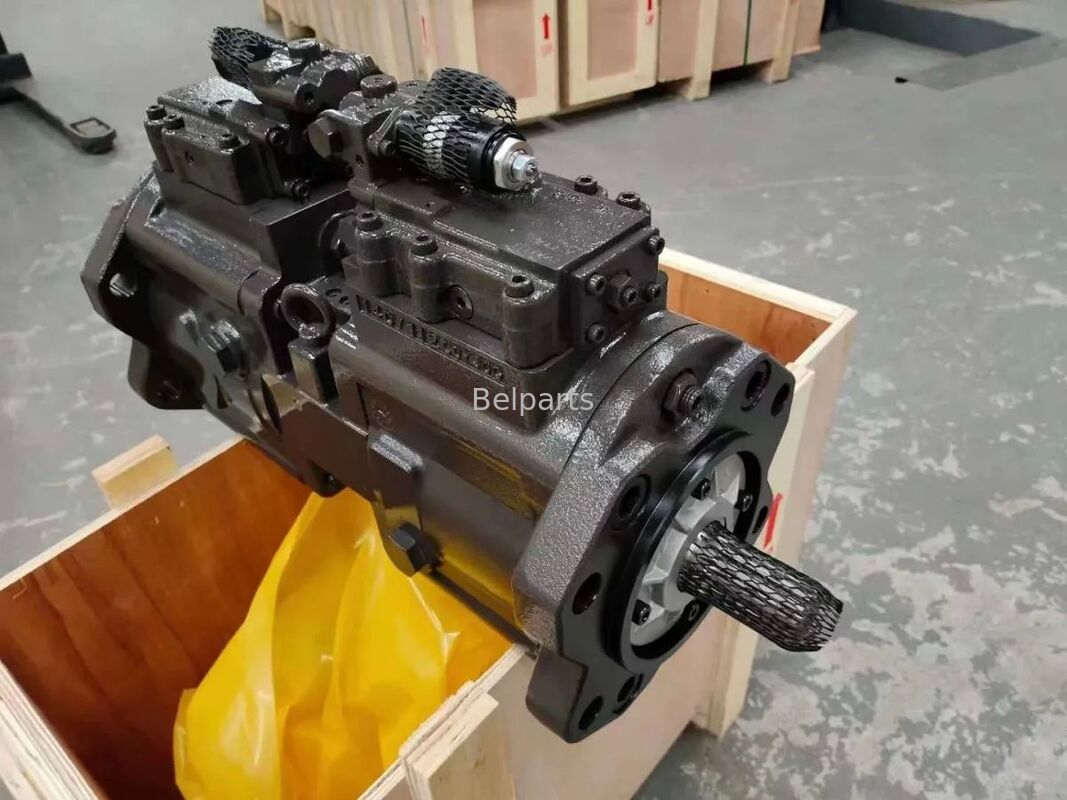

Quality EC300D EC300DL EC300E EC300EL Hydraulic Pump For Excavator Parts 14632316 K5V160DT-1E06-17T Main Piston Pump factory

EC300D EC300DL EC300E EC300EL Hydraulic Pump For Excavator Parts 14632316 K5V160DT-1E06-17T Main Piston Pump

Name: EC300D EC300DL EC300E EC300EL Hydraulic Pump For Excavator Parts 14632316 K5V160DT-1E06-17T Main Piston Pump
Brand: GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED
SKU: EC300D EC300DL EC300E EC300EL
Price: 475.00 USD
Availability: InStock

Place of Origin:China

Brand Name:Belparts

Certification:CE

Model Number:EC300D EC300DL EC300E EC300EL

Minimum Order Quantity:1 PCS

Price:Negotiation

Payment Terms:L/C,D/A,D/P,T/T,alibab TRADE ASSURANCE,Western Union,PAYPAL

Supply Ability:100 PCS / Months

Product Details

Highlight:

VOLVO excavator hydraulic pump

,

EC300D hydraulic pump parts

,

K5V160DT main piston pump

Part Name: Main Hydraulic Pump

Type: K5V160DT-1E06-17T K5V160DT-158R-1E06-V

Part Number: 14632316 VOE14632316

Application: Crawler Excavator

Quality: Made In China Aftermarket

Warranty: 12 Months

Shipment: Sea / Air / Express DHL FEDEX UPS

Product Description

EC300D EC300DL EC300E EC300EL Hydraulic Pump For Excavator Parts

High-quality hydraulic main pump compatible with EC300D, EC300DL, EC300E, and EC300EL excavator models. Part numbers: 14632316, K5V160DT-1E06-17T, K5V160DT-158R-1E06-V.

Product Specifications

Application	Excavator
Part Name	Hydraulic Main Pump
Machine Model	EC300D EC300DL EC300E EC300EL
Part Number	14632316 VOE14632316
Type	K5V160DT-1E06-17T K5V160DT-158R-1E06-V
Warranty	12 months
Delivery Time	3-7 Days
Shipment	Express/Freight/Sea/Train
Quality	Made in China OEM High Quality
MOQ	1 Piece
Payment Term	T/T, Trade Assurance, Paypal, etc.
Category	Construction Machinery Part

Hydraulic pump technical diagram and components

Component Parts List

Pos.	Part No	Qty	Parts Name
*	VOE14632316	[1]	Hydraulic pump
1.	VOE14735328	[2]	Eye bolt
2.	VOE14729945	[4]	Spring pin
3.	VOE14551525	[2]	Pin
4.	VOE14704174	[2]	Snap ring
5.	VOE14737981	[4]	Nut
6.	VOE14692341	[2]	Ring
7.	VOE14600699	[1]	Seal
8.	VOE14692343	[2]	O-ring
9.	VOE14574596	[3]	O-ring
10.	VOE14567587	[1]	O-ring
11.	VOE14533606	[7]	O-ring
12.	VOE14533035	[2]	O-ring
13.	VOE14615353	[2]	O-ring
14.	VOE14533617	[1]	O-ring
15.	SA7223-00690	[2]	O-ring
16.	VOE14550186	[2]	Spacer
17.	SA7223-00420	[2]	Stop
18.	VOE14536033	[2]	Piston
19.	VOE14536023	[4]	Pin
20.	VOE14550185	[4]	Plug
21.	SA8230-25860	[3]	Bolt
22.	VOE14701586	[2]	Plug
23.	VOE14730972	[6]	Hexagon screw
24.	VOE14723571	[1]	Valve block
25.	VOE14692368	[1]	Cover
26.	VOE14626751	[2]	Support
27.	SA7223-00210	[2]	Plate
28.	SA7223-00180	[18]	Spring
29.	VOE14510070	[2]	Bushing
30.	VOE14536027	[2]	Plate
31.	VOE14550444	[3]	Spacer
32.	SA8230-26710	[2]	Needle bearing
33.	SA7241-00421	[2]	Roller bearing
34.	SA7223-00010	[2]	Shaft
35.	VOE14596494	[1]	Cylinder
35.	VOE14596493	[1]	Cylinder
36.	VOE14596492	[2]	Piston
37.	VOE14572992	[4]	Screw
39.	VOE14701586	[30]	Plug
40.	VOE14701586	[2]	Stopper
42.	VOE14723221	[2]	Casing
43.	VOE14692340	[16]	Ring
44.	VOE14692340	[2]	Ring
45.	VOE14701586	[2]	Plate
46.	VOE14701586	[1]	Cover
47.	VOE14701586	[1]	Shaft
48.	VOE14659258	[1]	Piston
48.	VOE14659749	[1]	Piston

Available Accessories

Branded accessories for hydraulic pump components

Related Products

Hydraulic Parts Hydraulic Pump Final Drive Travel Reduction Swing Motor Swing Reduction Control Valve Gear Parts Slew Bearing Engine Assembly Hydraulic Cylinder ECU

Why Choose Us?

Quality Assurance
Fine Workmanship
Price Advantage
Stable Supply

Quality assurance process and testing procedures

Detailed workmanship and precision manufacturing

Process Features

Standard production management
Advanced testing equipment
Heat Treatment Technology
Fitting of cylinder block and valve plate

Production process and manufacturing workflow

About Our Factory

Belparts have a large workshop for excavator parts producing, from material cutting, welding, heating treating, assembling, debugging, painting, testing, every part we will confirm before leaving the factory.

Factory overview and manufacturing facility

Frequently Asked Questions

If I only know the excavator model, but can not offer parts No., what should I do?

If possible, you can send us pictures of old products, nameplate or the size for reference.

What is the warranty of the parts after I purchased hydraulic axial piston pump & motor spare parts?

The warranty is 6/12 Months based on the item details.

How can I pay the order?

We can receive payment through T/T, Western Union, Paypal(for small amount), alibab trade assurance.

When will get the items after I place order?

Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock, we will inform you before placing the order.

How can I do if there is something wrong with the items?

First of all, I have confidence in the quality of our products, if you really found something wrong, pls provide pictures for us and we will check. After it is confirmed, pls return to us, we will offer the correct item.

What is your main products?

We are specialized in the excavator spare parts, such as travel motor gearbox/ass'y/parts, swing gearbox/ass'y/motor/parts, hydraulic pump assy/parts and gear parts. If you need other excavator parts, we also can supply as your requirements.
