Hydraulic Swing Motor For PC1600-1 PC1600SP-1 Komatsu Excavator Part 706-77-01144 706-77-01143 706-77-01142 706-77-01141 Slew Motor Device
Place of Origin:China
Brand Name:Belparts
Certification:CE
Model Number:PC1600 PC1600-1 PC1600SP-1
Minimum Order Quantity:1 PCS
Payment Terms:L/C,D/A,D/P,T/T,alibab TRADE ASSURANCE,Western Union
Supply Ability:100 PCS / Months
Product Details
Highlight:
Komatsu excavator hydraulic swing motor
,PC1600-1 swing motor assembly
,Slew motor device with warranty
Model:
PC1600 PC1600-1 PC1600SP-1
Part Name:
Hydraulic Swing Motor
Parts Number:
706-77-01144 706-77-01143 706-77-01142 706-77-01141
Application:
Excavator
Quality:
Original Brand Refurbished
Warranty:
6 Months
Product Description
Hydraulic Swing Motor For PC1600-1 PC1600SP-1 Komatsu Excavator
Product Overview
| Application | Excavator |
| Part Name | Hydraulic Swing Motor |
| Machine Model | PC1600 PC1600-1 PC1600SP-1 |
| Parts Number | 706-77-01144 706-77-01143 706-77-01142 706-77-01141 |
| Warranty | 6 months |
| Delivery Time | 3-7 Days |
| Shipment | Express/freight/sea/train |
| Quality | Original Brand Refurbished |
| MOQ | 1 Piece |
| Payment Term | T/T, Trade Assurance, Paypal and etc. |
Component Parts List
| # | Part No | Part Name | Qty. |
|---|---|---|---|
| 1 | 706-77-01144 | SWING MOTOR ASS'Y | 1 |
| 1 | 706-77-01143 | SWING MOTOR ASS'Y | 1 |
| 1 | 706-77-01142 | SWING MOTOR ASS'Y | 1 |
| 1 | 706-77-01141 | SWING MOTOR ASS'Y | 1 |

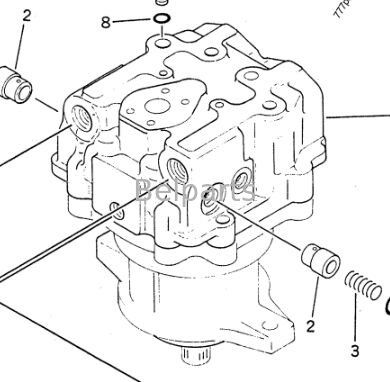

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1640-01A0 AND Y1640-02A0 | |||
| 1 | 706-77-00030 | CYLINDER BLOCK ASS'Y | 1 |
| 1 | 706-77-00040 | CYLINDER BLOCK ASS'Y | 1 |
| 1 | BLOCK,CYLINDER | 1 | |
| 1 | BLOCK,CYLINDER | 1 | |
| 1 | 706-87-40190 | BLOCK,CYLINDER | 1 |
| 2 | 706-77-43130 | RING,CENTER | 1 |
| 2 | 706-77-42130 | RING,CENTER | 1 |
| 3 | 706-77-42160 | PISTON SUB ASS'Y | 7 |
| 4 | 706-77-42081 | SHAFT,CENTER | 1 |
| 5 | 706-77-42110 | Spring | 1 |
| 6 | 706-77-42071 | Bushing | 1 |
| 7 | 706-77-43850 | PLATE,VALVE | 1 |
| 8 | 04020-01024 | PIN,DOWEL (ITL) | 1 |
| 9 | 706-77-42260 | Retainer | 1 |
| 10 | (*706-77-42861 | SHAFT,DRIVE | 1 |
| 11 | 706-75-41271 | Screw | 7 |
| 12 | 706-77-42022 | CASE,BRAKE | 1 |
| 13 | 706-77-42881 | Bearing | 1 |
| 13 | 706-77-42880 | Bearing | 1 |
| 14 | 706-77-42890 | Bearing | 1 |
| 15 | 706-77-42041 | SEAT | 1 |
| 16 | (*706-77-42051 | Spring | 2 |
| 17 | 706-77-05010 | SPACER KIT | 1 |
| 17 | 706-77-42440 | SPACER? 2.3MM | 2 |
| 17 | 706-77-42450 | SPACER? 2.5MM | 2 |
| 17 | 706-77-42460 | SPACER? 2.7MM | 2 |
| 18 | 04064-06525 | RING,SNAP | 1 |
| 19 | 706-77-42060 | Cover | 1 |
| 20 | 07000-02115 | O-RING,(FOR LOW SPEED) (D40PF) | 1 |
| 21 | 706-77-42920 | SEAL,OIL | 1 |
| 22 | 04071-00130 | RING,SNAP? SPROCKET | 1 |
| 23 | 706-77-91331 | Plate | 1 |
| 24 | 706-77-91341 | Plate | 4 |
| 25 | 706-77-91350 | Disc | 4 |
| 26 | 706-77-91490 | PISTON,BRAKE | 1 |
| 27 | 07000-15200 | O-ring | 1 |
| 28 | 07001-05200 | RING,BACK-UP | 1 |
| 29 | 07000-15220 | O-ring | 1 |
| 30 | 07001-05220 | RING,BACK-UP | 1 |
| 31 | 07000-15250 | O-ring | 1 |
| 32 | 706-77-91410 | Spring | 2 |
| 33 | 706-75-42830 | PIN,DOWEL | 1 |
| 34 | 01010-61860 | Bolt | 8 |
| 35 | 01643-31845 | WASHER,SPRING | 8 |
Available Branded Accessories
Why Choose Us?
Quality Assurance
Fine Workmanship
Price Advantage
Stable Supply
Process Features
- Standard production management
- Advanced testing equipment
- Heat Treatment Technology
- Fitting of cylinder block and valve plate
About Our Factory
Belparts have a large workshop for excavator parts producing, from material cutting, welding, heat treating, assembling, debugging, painting, testing. Every part we will confirm before leaving the factory.
Frequently Asked Questions
1. If I only know the excavator model, but can not offer parts No., what should I do?
If possible, you can send us pictures of old products, nameplate or the size for reference.
2. What is the warranty of the parts after I purchased hydraulic axial piston pump & motor spare parts?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Western Union, Paypal (for small amount), alibab trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock, we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, I have confidence in the quality of our products. If you really found something wrong, please provide pictures for us and we will check. After it is confirmed, please return to us, we will offer the correct item.
6. What is your main products?
We are specialized in the excavator spare parts, such as travel motor gearbox/assembly/parts, swing gearbox/assembly/motor/parts, hydraulic pump assembly/parts and gear parts. If you need other excavator parts, we also can supply as your requirements.
