Hydraulic Pump For PC650-1 KOMATSU Excavator Parts 706-47-20002 706-47-20001 706-47-20102 706-46-21301 706-46-21401 Main Piston Pump
| Application |
Excavator |
| Part name |
Hydraulic Main pump |
| Machine model |
PC650-1 |
| Part number |
706-47-20002
706-47-20001
706-47-20102
706-47-20101
706-46-21302
706-46-21301
706-46-21402
706-46-21401
705-52-30011
705-52-30010
|
| Warranty |
6 months |
| Engine |
KT-1150-1E
S6D170-1A |
| Delivery time |
3-7 Days |
| Shipment |
Express/freight/sea/train |
| Quality |
Original Brand Rebuild |
| MOQ |
1 Piece |
| Payment term |
T/T, Trade Assurance, Paypal and et |

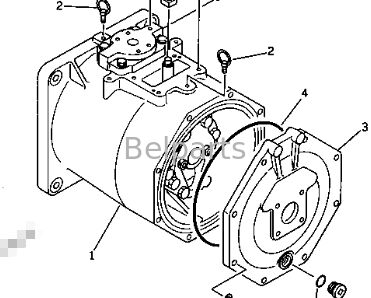

List of spare parts
| # |
Part No. |
Description |
Qty |
| 1 |
(706-47-20002) |
PUMP ASS'Y |
1 |
| 1 |
706-47-20001 |
PUMP ASS'Y |
1 |
| 1 |
(706-47-20102) |
PUMP ASS'Y |
1 |
| 1 |
706-47-20101 |
PUMP ASS'Y |
1 |
| 1 |
706-47-45000 |
PUMP SUB ASS'Y |
1 |
| 1 |
706-47-43001 |
PUMP SUB ASS'Y |
1 |
| 1 |
---- |
CASE,PUMP |
1 |
| 2 |
---- |
Plug |
1 |
| 3 |
---- |
O-ring |
1 |
| 4 |
---- |
CASING,CYLINDER |
1 |
| 5 |
---- |
END COVER SUB A. (KIT) |
1 |
| 6 |
---- |
O-RING (KIT) |
1 |
| 7 |
---- |
Bolt |
8 |
| 8 |
---- |
Bolt |
4 |
| 9 |
---- |
WASHER,SPRING |
12 |
| 10 |
---- |
PLATE,VALVE (KIT) |
1 |
| 11 |
---- |
BOLT (KIT) |
2 |
| 12 |
---- |
WASHER,SPRING (KIT) |
2 |
| 13 |
---- |
BLOCK,CYLINDER (KIT) |
1 |
| 14 |
---- |
SHAFT,CENTER (KIT) |
1 |
| 15 |
---- |
SPRING (KIT) |
1 |
| 16 |
---- |
PLATE,THRUST (KIT) |
1 |
| 17 |
---- |
SEAT,BALL (KIT) |
1 |
| 18 |
---- |
PISTON SUB ASS'Y (KIT) |
7 |
| 19 |
---- |
RETAINER (KIT) |
1 |
| 20 |
---- |
BALL,CENTER (KIT) |
1 |
| 21 |
---- |
HOLDER (KIT) |
8 |
| 22 |
---- |
SHAFT,DRIVE (KIT) |
1 |
| 23 |
---- |
SCREW (KIT) |
14 |
| 24 |
---- |
BEARING (KIT) |
25 |
| 25 |
---- |
Bearing |
26 |
| 26 |
706-47-40360 |
BOSS |
1 |
| 27 |
07000-32115 |
O-RING (KIT) |
1 |
| 27 |
07000-02115 |
O-RING,(FOR LOW SPEED) (D40PF) |
1 |
| 28 |
706-47-40970 |
GASKET (KIT) |
1 |
| 29 |
01010-51240 |
BOLT,(WITH SERVICE VALVE R.H.) |
4 |
| 30 |
01602-21236 |
WASHER,SPRING (WITHOUT TOWING WINCH) |
4 |
| 31 |
706-47-40610 |
SEAL,OIL (KIT) |
1 |
| 31 |
706-77-40921 |
SEAL,OIL (KIT) |
1 |
| 32 |
706-77-40390 |
RING,SNAP |
1 |
| 33 |
07000-35055 |
O-RING (KIT) |
1 |
| 33 |
07000-05055 |
O-RING,(F4350-58A0 -17 ) |
1 |
| 34 |
706-77-40910 |
Ring |
1 |
| 35 |
01530-05212 |
NUT,LOCK |
1 |
| 36 |
01658-05223 |
WASHER,LOCK (KIT) |
1 |
| 37 |
706-47-41540 |
Spacer |
2 |
| 38 |
706-47-41550 |
COLLAR |
2 |
| 38 |
706-47-40580 |
Bearing |
2 |
| 39 |
---- |
RING,SEAL |
1 |
| 40 |
---- |
O-RING (KIT) |
2 |
| 41 |
---- |
RING,BACK-UP |
2 |
| 42 |
---- |
PIN,DOWEL |
6 |
| 43 |
706-47-41510 |
SLEEVE SUB ASS'Y |
2 |
| 43 |
706-47-40520 |
Sleeve |
2 |
| 44 |
07000-02100 |
O-RING,(F4350-65A1 -5 ) |
2 |
| 45 |
706-47-40041 |
BOSS,TRUNNION |
1 |
| 46 |
07000-02070 |
O-RING,(FOR INTAKE AIR COVER) |
2 |
| 47 |
706-47-40220 |
RING,SEAL |
1 |
| 48 |
706-47-40260 |
WASHER,WAVE |
1 |
| 49 |
01010-51240 |
BOLT,(WITH SERVICE VALVE R.H.) |
4 |
| 50 |
01602-21236 |
WASHER,SPRING (WITHOUT TOWING WINCH) |
4 |
| 51 |
706-47-40620 |
Ring |
1 |
| 52 |
706-47-40631 |
WASHER,THRUST |
1 |
| 53 |
706-47-40050 |
BOSS,TRUNNION |
1 |
| 54 |
01010-51240 |
BOLT,(WITH SERVICE VALVE R.H.) |
4 |
| 55 |
01602-21236 |
WASHER,SPRING (WITHOUT TOWING WINCH) |
4 |
| 56 |
706-47-40290 |
Pin |
1 |
| 57 |
01010-51235 |
BOLT, MOUNT TUBES TO SWITCH AND WORK PUMPS |
1 |
| 58 |
01602-21236 |
WASHER,SPRING (WITHOUT TOWING WINCH) |
4 |
| 59 |
706-46-40920 |
Plug |
1 |
| 60 |
(706-46-40910) |
Gasket |
1 |
| 61 |
(07000-12012) |
O-ring |
2 |
|
---- |
SERVICE KIT |
|
| 1K |
706-98-05060 |
END COVER KIT |
1 |
| 5 |
---- |
END COVER SUB A |
1 |
| 10 |
---- |
PLATE,VALVE |
1 |
| 11 |
---- |
Bolt |
2 |
| 12 |
---- |
WASHER,SPRING |
2 |
| 2K |
706-98-05051 |
DRIVE SHAFT KIT |
1 |
| 2K |
706-98-05050 |
DRIVE SHAFT KIT |
1 |
| 6 |
---- |
O-ring |
1 |
| 13 |
---- |
BLOCK,CYLINDER |
1 |
| 14 |
---- |
SHAFT,CENTER |
1 |
| 15 |
---- |
Spring |
1 |
| 16 |
---- |
PLATE,THRUST |
1 |
| 17 |
---- |
SEAT,BALL |
1 |
| 18 |
---- |
PISTON SUB ASS'Y |
7 |
| 19 |
---- |
Retainer |
1 |
| 20 |
---- |
BALL,CENTER |
1 |
| 21 |
---- |
HOLDER |
8 |
| 22 |
---- |
SHAFT,DRIVE |
1 |
| 23 |
---- |
Screw |
14 |
| 24 |
---- |
Bearing |
1 |
| 27 |
07000-32115 |
O-RING (KIT) |
1 |
| 27 |
07000-02115 |
O-RING,(FOR LOW SPEED) (D40PF) |
1 |
| 28 |
706-47-40970 |
GASKET (KIT) |
1 |
| 31 |
706-47-40610 |
SEAL,OIL (KIT) |
1 |
| 31 |
706-77-40920 |
SEAL,OIL |
1 |
| 33 |
07000-35055 |
O-RING (KIT) |
1 |
| 33 |
07000-05055 |
O-RING,(F4350-58A0 -17 ) |
1 |
| 36 |
01658-05223 |
WASHER,LOCK (KIT) |
1 |
| 40 |
---- |
O-ring |
2 |
| 41 |
---- |
RING,BACK UP |
2 |
| 44 |
07000-02100 |
O-RING,(F4350-65A1 -5 ) |
2 |
| 46 |
07000-02070 |
O-RING,(FOR INTAKE AIR COVER) |
2 |
| 59 |
706-46-40910 |
GASKET (KIT) |
1 |
| 60 |
07000-12012 |
O-RING, DIVIDER VALVE MOUNTING |
12 |
| 61 |
07000-02018 |
O-RING,(SEE FIG.1601-29?1602-17) |
4 |
| 61 |
07000-05335 |
O-RING,(SEE FIG.1601-4?1602-4) |
1 |
| 61 |
07000-02018 |
O-RING,(SEE FIG.1601-29?1602-17) |
2 |
More Branded Accessories are Available
Why Choose Us?
- Quality Assurance
- Fine Workmanship
- Price Advantage
- Stable Supply
Process Features
- Standard production management
- Advanced testing equipment
- Heat Treatment Technology
- Fitting of cylinder block and valve plate
About Factory
- Belparts have a large workshop for excavator parts producing, from material cutting, welding, heating treating, assembling, debugging, painting, testing, every part we will confirm before leaving the factory.
FAQ
1. If I only know the excavator model, but can not offer parts No., what should I do?
If possible, you can send us pictures of old products, nameplate or the size for reference.
2. What is the warranty of the parts after I purchased hydraulic axial piston pump & motor spare parts?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Western Union, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock, we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, I have confidence in the quality of our products, if you really found something wrong, pls provide pictures for us and we will check. After it is confirmed, pls return to us, we will offer the correct item.
6. What is your main products?
We are specialized in the excavator spare parts, such as travel motor gearbox/ass'y/parts, swing gearbox/ass'y/motor/parts, hydraulic pump assy/parts and gear parts. If you need other excavator parts, we also can supply as your requirements.
