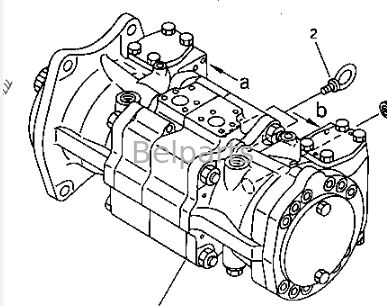

Hydraulic Pump For PC650-3 PC650LC-3 PC650SE-3 KOMATSU Hydraulic Excavator Parts 708-25-01011 708-25-01010 708-25-01031 Original Main Piston Pump
| Application |
Excavator |
| Part name |
Hydraulic Main pump |
| Machine model |
PC650-3 PC650LC-3 PC650SE-3 |
| Part number |
708-25-50101
708-25-01011
708-25-01010
708-25-01031
708-25-01030
708-25-50201
708-25-50200
708-17-10100 |
| Warranty |
6 months |
| Engine |
SA6D140-1C |
| Delivery time |
3-7 Days |
| Shipment |
Express/freight/sea/train |
| Quality |
Original Brand Rebuild |
| MOQ |
1 Piece |
| Payment term |
T/T, Trade Assurance, Paypal and et |
List of spare parts
| # |
Part No |
Part Name |
Qty. |
| 1 |
708-25-01011 |
PUMP ASS'Y |
1 |
| 1 |
708-25-01010 |
PUMP ASS'Y |
1 |
| 1 |
708-25-50101 |
HYDRAULIC PUMP ASS'Y,(HPV 90+90) |
1 |
|
|
THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6101 TO 6113 |
|
| 1 |
(708-25-04170) |
PUMP SUB ASS'Y |
1 |
| 1 |
708-25-51101 |
PUMP SUB ASS'Y |
1 |
|
|
THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6102 TO 6106 |
|
| 1 |
(*708-25-00051) |
CRADLE ASSY, FRONT |
1 |
| 1 |
(708-25-00050) |
CRADLE ASS'Y,FRONT |
1 |
|
|
(708-25-00051,708-25-14121) |
|
| 1 |
(*708-25-00520) |
CRADLE SUB ASS'Y, FRONT |
1 |
| 1 |
|
CRADLE,FRONT |
1 |
| 2 |
|
Plug |
1 |
| 3 |
(*708-25-23411) |
ROCKER, CAM |
1 |
| 3 |
(708-25-23410) |
ROCKER,CAM |
1 |
|
|
(708-25-23411,708-25-14121) |
|
| 4 |
(*708-25-13422) |
RETAINER, SHOE |
1 |
| 5 |
(*708-25-05061) |
SPACER KIT |
1 |
| 5 |
|
SPACER? 11.540MM |
2 |
| 5 |
|
SPACER? 11.560MM |
2 |
| 5 |
|
SPACER? 11.575MM |
2 |
| 6 |
(*708-25-13441) |
RETAINER,BEARING |
2 |
| 7 |
(*708-25-13470) |
Screw |
4 |
| 8 |
(*01643-30623) |
Washer |
4 |
| 9 |
(*708-25-12360) |
Plate |
2 |
| 10 |
(*04020-00820) |
PIN,COTTER |
4 |
| 11 |
(*01010-50816) |
Bolt |
4 |
| 11 |
(01010-30816) |
Bolt |
4 |
| 12 |
(*708-25-14121) |
Slider |
1 |
| 12 |
(708-25-14120) |
Slider |
1 |
|
|
(708-25-14121,708-25-23411) |
|
| 13 |
(*708-25-12340) |
O-ring |
1 |
| 14 |
(*07000-12015) |
O-ring |
1 |
| 15 |
(*708-25-12330) |
JOINT |
1 |
| 16 |
(*708-25-12350) |
Bolt |
12 |
| 17 |
(*708-25-52710) |
SHAFT, FRONT |
1 |
| 18 |
(*708-25-12731) |
Bearing |
1 |
| 19 |
(*708-25-05010) |
WASHER KIT |
1 |
| 19 |
|
WASHER? 2.0MM |
1 |
| 19 |
|
WASHER? 2.1MM |
1 |
| 19 |
|
WASHER? 2.2MM |
1 |
| 20 |
(*708-25-12790) |
RING, SNAP |
1 |
| 21 |
708-25-12812 |
Housing |
1 |
| 21 |
708-25-12811 |
Housing |
1 |
| 22 |
708-25-52860 |
Snap ring |
1 |
| 23 |
07000-02080 |
O-RING,HYDRAULIC OIL FILTER |
1 |
| 24 |
(*708-25-05130) |
SHIM KIT |
1 |
| 24 |
|
SHIM? 0.1MM |
1 |
| 24 |
|
SHIM? 0.2MM |
2 |
| 25 |
01010-50820 |
BOLT,(WITH AUTO EMERGENCY STEERING) |
4 |
| 25 |
01010-30820 |
BOLT,(SANDY? DUSTY TERRAIN SPEC.) |
4 |
| 26 |
01643-30823 |
WASHER, WIRING HARNESS MOUNTING BRACKET |
4 |
| 27 |
(*708-25-00401) |
CYLINDER BLOCK ASS'Y,CYLINDER? FRONT |
1 |
| 27 |
708-25-00010 |
BLOCK ASS'Y,CYLINDER? FRONT |
1 |
|
|
(708-25-00401,708-25-13630? |
|
|
|
708-2E-12260,708-25-00420) |
|
| 27 |
(*708-25-13151) |
BLOCK, CYLINDER |
1 |
| 28 |
(*708-25-13611) |
PLATE,VALVE? FRONT |
1 |
| 28 |
708-25-13210 |
PLATE,VALVE? FRONT |
1 |
|
|
(708-25-13611,708-25-13630? |
|
|
|
708-2E-12260,708-25-00420) |
|
| 29 |
(*708-25-13312) |
PISTON SUB ASS'Y,PUMP |
9 |
| 29 |
(708-25-13311) |
PISTON SUB ASS'Y |
9 |
| 30 |
(*708-25-13130) |
Spring |
1 |
| 31 |
(*708-25-13120) |
WASHER, SNAP |
1 |
| 32 |
(*708-25-13140) |
RING, SNAP |
1 |

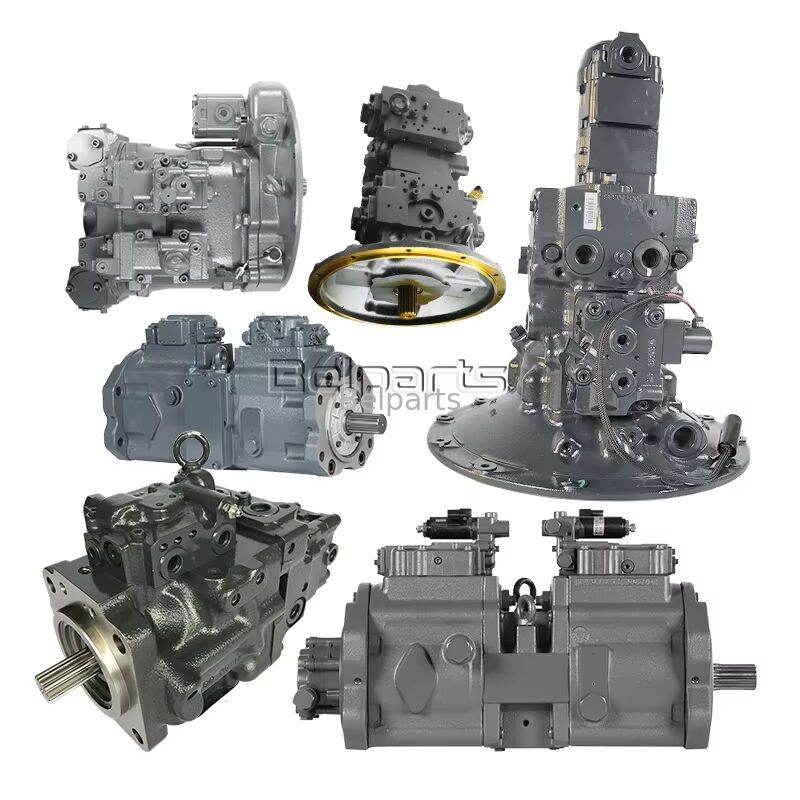

More Branded Accessories are Available
Why Choose Us?
- Quality Assurance
- Fine Workmanship
- Price Advantage
- Stable Supply
Process Features
- Standard production management
- Advanced testing equipment
- Heat Treatment Technology
- Fitting of cylinder block and valve plate
About Factory
- Belparts have a large workshop for excavator parts producing, from material cutting, welding, heating treating, assembling, debugging, painting, testing, every part we will confirm before leaving the factory.
FAQ
1. If I only know the excavator model, but can not offer parts No., what should I do?
If possible, you can send us pictures of old products, nameplate or the size for reference.
2. What is the warranty of the parts after I purchased hydraulic axial piston pump & motor spare parts?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Western Union, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock, we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, I have confidence in the quality of our products, if you really found something wrong, pls provide pictures for us and we will check. After it is confirmed, pls return to us, we will offer the correct item.
6. What is your main products?
We are specialized in the excavator spare parts, such as travel motor gearbox/ass'y/parts, swing gearbox/ass'y/motor/parts, hydraulic pump assy/parts and gear parts. If you need other excavator parts, we also can supply as your requirements.
