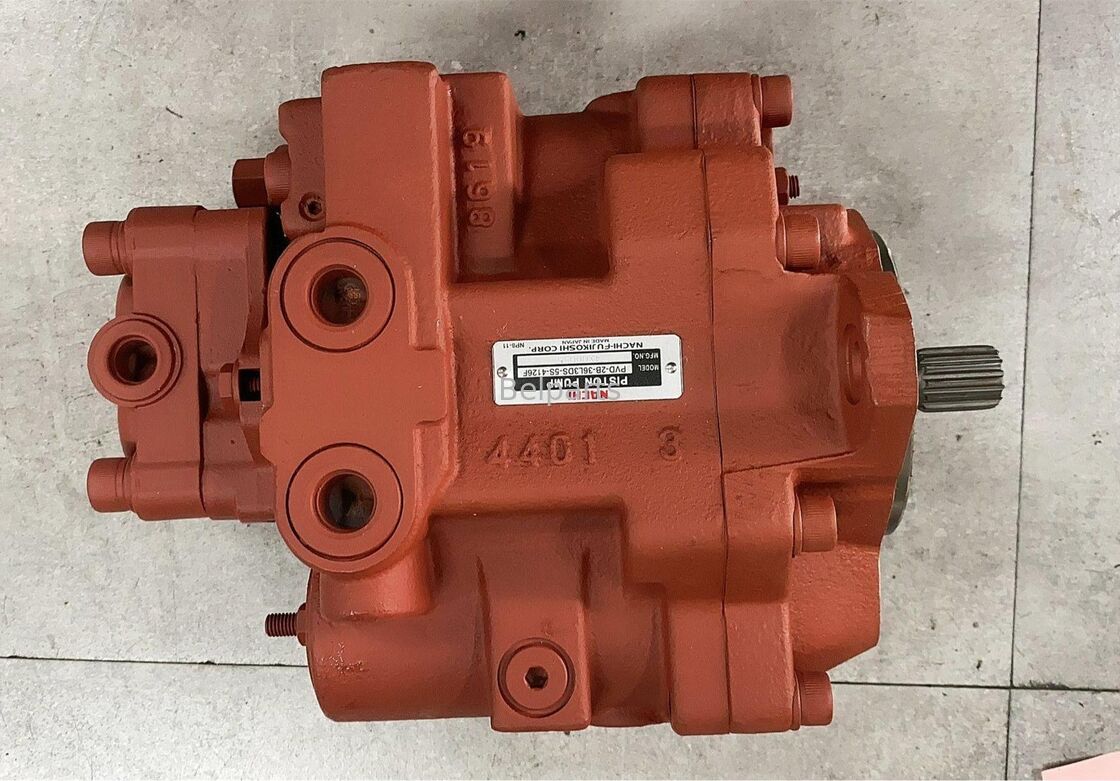

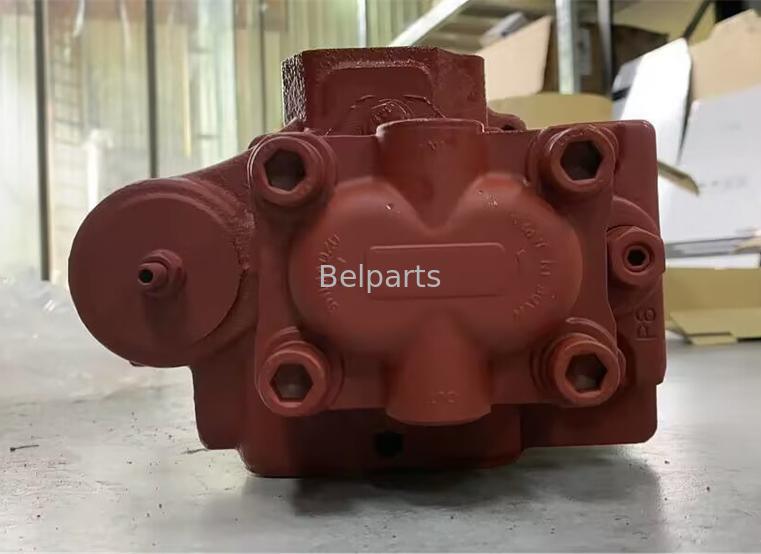

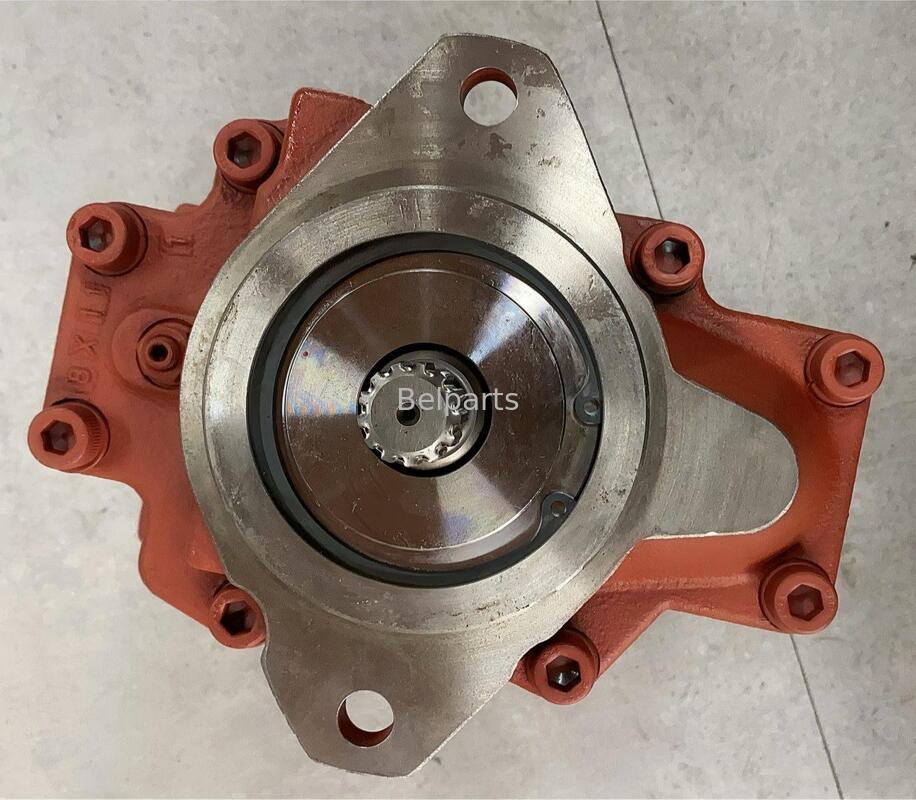

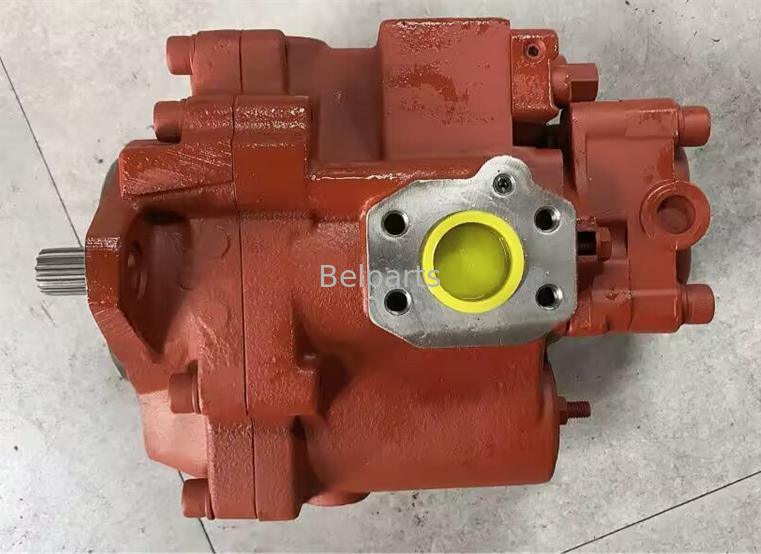

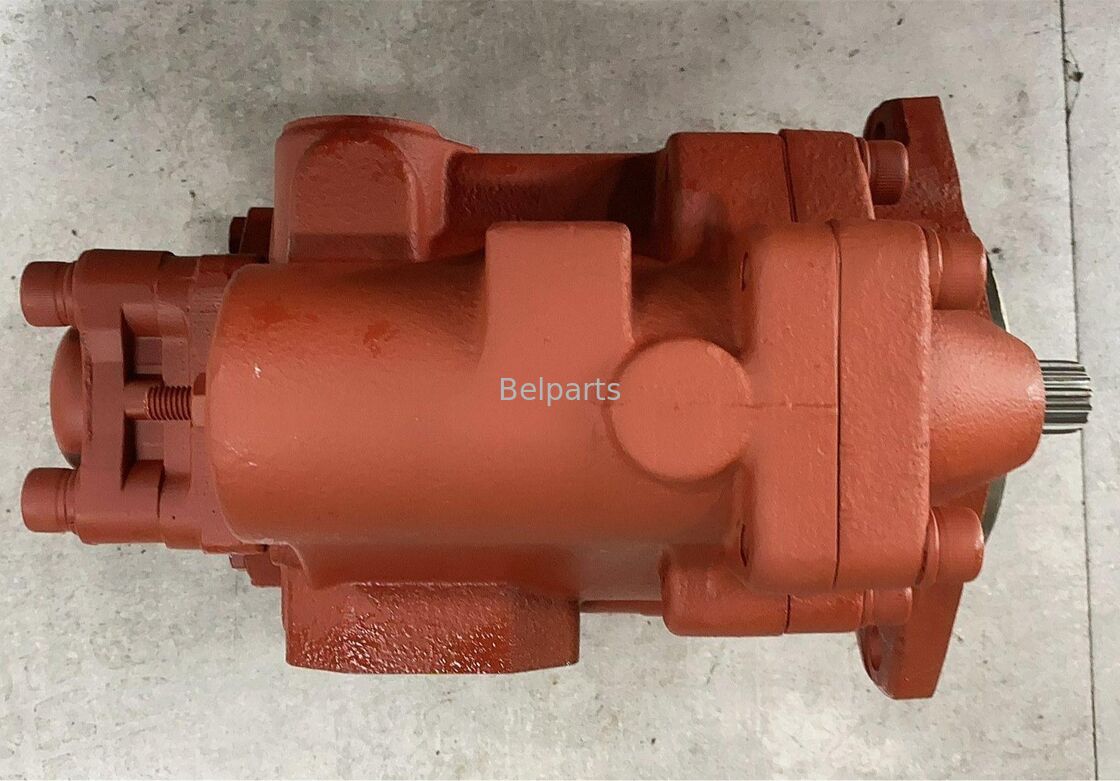

Kubota KX91-2 KX91-2S Hydraulic Pump Nachi PVD-2B-36L3DS-5S for Mini Excavator Parts RC401-61110 HRC40-61120 RC401-61120 Main Piston Pump
Product Specifications
| Application |
Excavator |
| Part name |
Hydraulic Piston pump |
| Model |
KX91-2 KX91-2S
|
| Part Number |
RC401-61110 HRC40-61120 RC401-61120
|
| Type |
PVD-2B-36L3DS-5S |
| Warranty |
12 months |
| Delivery time |
3-7 Days |
| Shipment |
Express/freight/sea/train |
| Quality |
Original Brand New |
| MOQ |
1 Piece |
| Payment term |
T/T, Trade Assurance, Paypal and etc |
| Category |
Construction Machinery Part |
| # |
Part No. |
Description |
Qty |
| 010 |
HRC40-61120 |
ASSY PUMP,PISTON; Replacement |
1 |
| 010 |
RC401-61120 |
ASSY PUMP,PISTON |
1 |
| 020 |
RC401-69510 |
SHAFT |
1 |
| 025 |
RC401-69830 |
PLATE,VALVE |
1 |
| 030 |
RC401-69520 |
HOLDER,SHOE |
1 |
| 030 |
HRC40-69520 |
HOLDER,SHOE; Replacement |
1 |
| 040 |
RC401-69530 |
HOLDER,BARREL |
1 |
| 050 |
RC401-69540 |
SWASHPLATE |
1 |
| 060 |
RC401-69550 |
NEEDLE |
3 |
| 070 |
RC401-69560 |
PIN |
2 |
| 080 |
RC401-69570 |
GASKET |
1 |
| 090 |
RC401-69580 |
SPRING |
1 |
| 100 |
RC401-69590 |
SPRING |
1 |
| 110 |
RC401-69610 |
SPRING |
1 |
| 120 |
RC401-69620 |
HOLDER,SPRING |
1 |
| 130 |
RC401-69630 |
GUIDE,SPRING |
1 |
| 140 |
RC401-69640 |
PIN |
1 |
| 150 |
RC401-69650 |
ROD |
1 |
| 160 |
RC401-69660 |
WASHER |
2 |
| 170 |
RC401-69670 |
RETAINER |
3 |
| 180 |
RC401-69680 |
PIN,STOPPER |
1 |
| 190 |
RC401-69690 |
PIN,STOPPER |
1 |
| 200 |
RC401-69710 |
PIN |
1 |
| 210 |
RC401-69720 |
HOLDER,SEAL |
1 |
| 220 |
RC401-69020 |
BEARING,BALL |
1 |
| 230 |
RC401-69040 |
SEAL,OIL |
1 |
| 240 |
RC401-69730 |
SPRING,PLATE |
4 |
| 250 |
RC401-69060 |
RING,SNAP |
1 |
| 260 |
RC401-69070 |
RING,SNAP |
1 |
| 270 |
RC401-69080 |
RING,SNAP |
1 |
| 280 |
RC401-69090 |
O RING |
1 |
| 290 |
RC401-69120 |
O RING |
1 |
| 300 |
RC401-69740 |
O RING |
2 |
| 310 |
RC401-69220 |
PLUG |
1 |
| 320 |
RC401-69120 |
O RING |
1 |
| 330 |
RC401-69750 |
BOLT,HEX-SOC-HD |
5 |
| 340 |
RC401-69190 |
PLUG |
4 |
| 350 |
RC401-69220 |
PLUG |
1 |
| 360 |
RC401-69230 |
WASHER,SPRING |
5 |
| 370 |
RC401-69240 |
PIN,SPRING |
1 |
| 380 |
RC401-69250 |
PIN,SPRING |
1 |
| 390 |
RC401-69280 |
SCREW,SET HEX-SOC-H. |
1 |
| 400 |
RC401-69290 |
NUT,LOCK |
1 |
| 410 |
RC401-69310 |
WASHER,SEAL |
1 |
| 420 |
RC401-69860 |
ASSY PUMP,GEAR |
1 |
| 430 |
RC401-69760 |
COUPLING |
1 |
| 440 |
RC401-69770 |
COLLAR |
1 |
| 450 |
RC401-69780 |
BOLT,HEXAGON |
2 |
| 460 |
RC401-69390 |
O RING |
1 |
| 470 |
RC401-69790 |
WASHER |
2 |
| 480 |
RC401-69810 |
O RING |
1 |
| 490 |
RC401-69140 |
O RING |
1 |
| 500 |
RC401-69600 |
ASSY PISTON |
1 |
| 510 |
RC401-69500 |
KIT BARREL,CYLINDER |
1 |
| 520 |
RC401-69700 |
KIT SEAL |
1 |
| 530 |
01133-61230 |
BOLT |
2 |
Pos. Part No Qty Parts name 4668462 [1] PUMP;PISTON 1. +++++++ [1] BODY 2. +++++++ [1] BODY 3. 1184901 [1] SHAFT 4. +++++++ [1] CYL. 5. +++++++ [1] PLATE 6. +++++++ [1] PISTON 7. +++++++ [1] SHOE 8. +++++++ [1] HOLDER 9. +++++++ [1] HOLDER 10. 1184902 [1] PLATE;SWASH 11. 1184903 [1] PISTON 12. 1184904 [1] PLUG 13. 1184905 [1] HOLDER 14. 1184906 [1] HOLDER;SPRING 15. 1184907 [1] PLATE;THRUST 16. +++++++ [2] RETAINER 17. +++++++ [3] NEEDLE 18. 0473906 [2] PIN 19. 0630621 [2] PIN 20. 0429816 [1] PIN 21. +++++++ [1] SPRING 22. 1184908 [1] SPRING 23. 1184909 [1] SPRING 24. 1184910 [2] BUSHING 25. 1184911 [1] BRG.;BALL 26. +++++++ [1] BRG.;NEEDLE 27. 988850 [1] RING;RETAINING 28. 1184912 [2] RING;RETAINING 29. +++++++ [1] RING;RETAINING 30. 0630617 [1] ORIFICE 31. 0429825 [1] SCREW 32. 1184913 [8] BOLT;SOCKET 33. 1184914 [4] BOLT;SOCKET 34. 0664917 [1] PLUG 35. 0630505 [3] PLUG 36. 1184915 [1] SEAL;OIL 37. +++++++ [7] PLUG 38. 4506408 [4] O-RING 39. 957366 [3] O-RING 40. 984614 [1] O-RING 41. 4125485 [1] O-RING 42. A811050 [1] O-RING 43. A811075 [1] O-RING 44. A811125 [1] O-RING 45. +++++++ [1] FILTER 46. 4693312 [1] VALVE 47. 4693315 [1] PUMP;GEAR 48. 0749305 [1] COUPLING 49. 0971003 [1] COLLAR 50. 0749306 [2] BOLT 51. 0749307 [2] WASHER 52. 4506407 [1] O-RING 53. 4506408 [1] O-RING 54. A811055 [1] O-RING 90. 4693313 [1] KIT;CYL. 100. 4693314 [1] KIT;SEAL
More Branded Accessories are Available
Why Choose Us?
- Quality Assurance
- Fine Workmanship
- Price Advantage
- Stable Supply
Process Features
- Standard production management
- Advanced testing equipment
- Heat Treatment Technology
- Fitting of cylinder block and valve plate
About Factory
Belparts have a large workshop for excavator parts producing, from material cutting, welding, heating treating, assembling, debugging, painting, testing, every part we will confirm before leaving the factory.
FAQ
If I only know the excavator model, but can not offer parts No., what should I do?
If possible, you can send us pictures of old products, nameplate or the size for reference.
What is the warranty of the parts after I purchased hydraulic axial piston pump & motor spare parts?
The warranty is 6/12 Months based on the item details.
How can I pay the order?
We can receive payment through T/T, Western Union, Paypal(for small amount), Alibaba trade assurance.
When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock, we will inform you before placing the order.
How can I do if there is something wrong with the items?
First of all, I have confidence in the quality of our products, if you really found something wrong, pls provide pictures for us and we will check. After it is confirmed, pls return to us, we will offer the correct item.
What is your main products?
We are specialized in the excavator spare parts, such as travel motor gearbox/ass'y/parts, swing gearbox/ass'y/motor/parts, hydraulic pump assy/parts and gear parts. If you need other excavator parts, we also can supply as your requirements.
