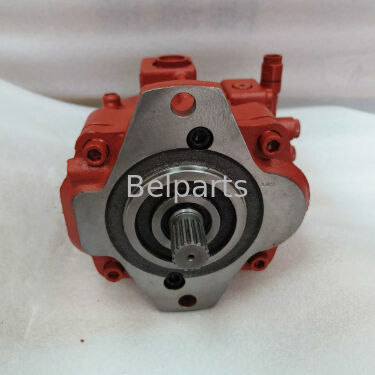

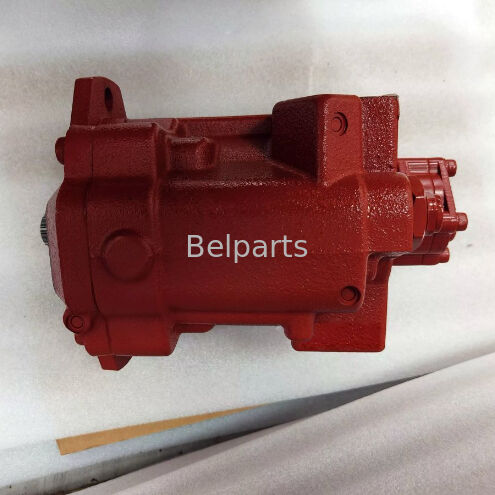

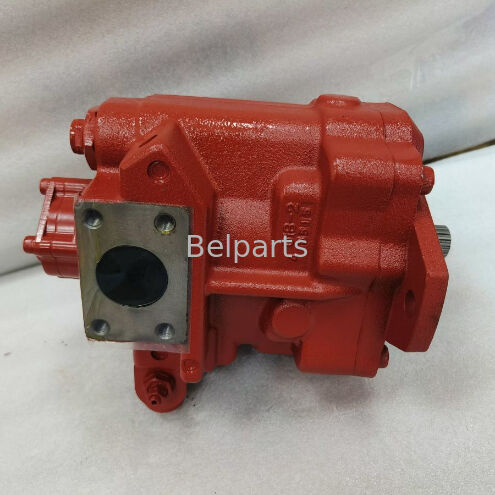

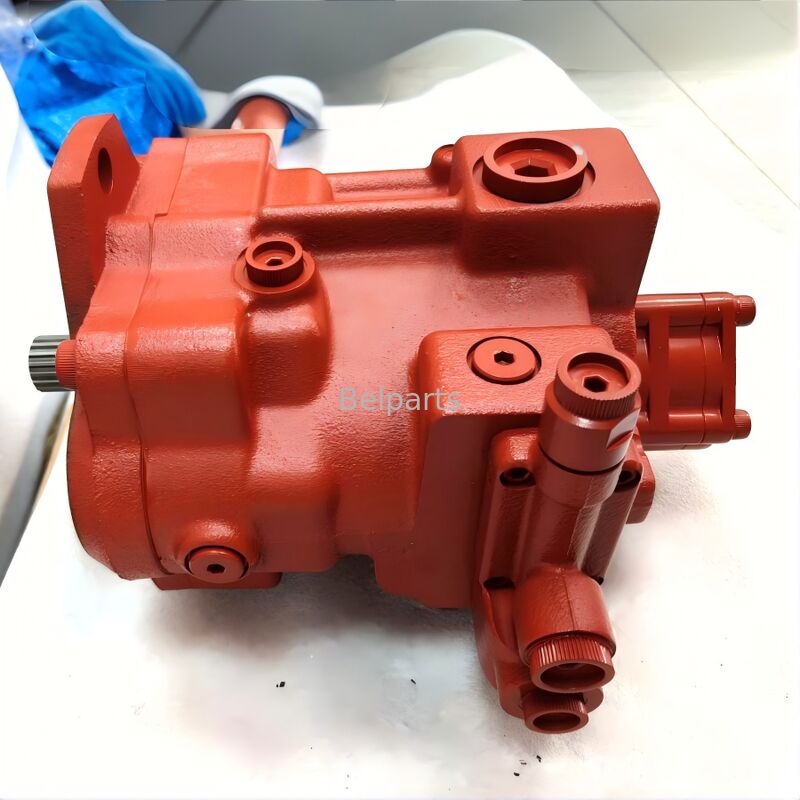

KUBOTA U40-3 U45 U45S U50-3 U50-5 Hydraulic Pump For Mini Excavator Digger Part KYB PSVL-54CG B0610-54010 OEM Main Piston Pump
KUBOTA mini excavator hydraulic pump
,KYB PSVL-54CG hydraulic pump
,OEM main piston pump excavator
KUBOTA U40-3 U45 U45S U50-3 U50-5 Hydraulic Pump For Mini Excavator Digger Part KYB PSVL-54CG B0610-54010 OEM Main Piston Pump
|
Application
|
Excavator
|
|
Part name
|
Main Hydraulic Pump
|
|
Type
|
PSVL-54CG B0610-54010
|
|
Model
|
KUBOTA U40-3 U45 U45S U50-3 U50-5
|
|
Parts number
|
RD431-61115 RD431-61112 RD441-61110
|
|
Warranty
|
12 months
|
|
Delivery time
|
3-7 Days
|
|
Shipment
|
Express/freight/sea/train
|
|
Quality
|
Original Brand New OEM
|
|
MOQ
|
1 Piece
|
|
Payment term
|
T/T, Trade Assurance, Paypal and et
|
| # | Part No. | Description | Qty |
|---|---|---|---|
| 010 | RD431-61115 | ASSY PUMP,PISTON; Serial No. >=30826; Replacement | 1 |
| 010 | RD431-61112 | ASSY PUMP,PISTON; Serial No. <=30825 | 1 |
| 010 | RD441-61110 | ASSY PUMP,PISTON; Serial No. >=31012; Replacement | 1 |
| 020 | RP801-79080 | BEARING NEEDLE | 1 |
| 030 | RD411-69210 | BEARING NEEDLE | 1 |
| 040 | RP401-79090 | SEAL OIL | 1 |
| 050 | 04611-00420 | SNAP RING INTERNAL | 1 |
| 060 | RD411-69220 | SHAFT | 1 |
| 070 | RD201-69210 | WASHER THRUST | 1 |
| 080 | RD101-69560 | WASHER THRUST | 1 |
| 090 | RD411-69232 | GASKET | 1 |
| 100 | 68493-71450 | PIN STRAIGHT | 3 |
| 105 | 04817-00030 | O RING | 1 |
| 110 | RD411-69242 | BUSH | 2 |
| 120 | RD411-69250 | BOLT | 2 |
| 130 | RD431-69260 | PLATE,VALVE | 1 |
| 140 | RD411-69272 | PIN | 1 |
| 150 | 04817-00080 | O RING | 5 |
| 160 | 04817-00080 | O RING | 1 |
| 170 | RD118-69280 | ORIFICE; Serial No. <=30825 | 1 |
| 170 | RD431-69280 | ORIFICE; Serial No. >=30826; Replacement | 1 |
| 180 | RD411-69290 | STOPPER | 1 |
| 190 | RD118-69310 | PIN | 1 |
| 200 | RD411-69320 | SPRING; Serial No. <=31011 | 1 |
| 200 | RD441-69320 | SPRING; Serial No. >=31012; Not Interchangeable | 1 |
| 210 | RD431-69330 | SPRING; Serial No. <=31011 | 1 |
| 210 | RD441-69440 | SPRING; Serial No. >=31012; Not Interchangeable | 1 |
| 220 | RD411-69340 | SEAT SPRING | 2 |
| 230 | 04817-00110 | O RING | 3 |
| 240 | RD431-69450 | O - RING; Serial No. >=30826; Not Interchangeable | 1 |
| 240 | 04817-00210 | O RING; Serial No. <=30825 | 1 |
| 250 | RD411-69350 | NUT | 1 |
| 260 | RD118-69400 | PUMP GEAR; Serial No. <=30825 | 1 |
| 260 | RD118-69402 | PUMP,GEAR; Serial No. >=30826; Not Interchangeable | 1 |
| 270 | RD118-69380 | O RING | 1 |
| 275 | RD431-69430 | O RING | 1 |
| 280 | 01311-10845 | SCREW,HEX SOC CAP; Serial No. <=30825 | 2 |
| 280 | 01311-10855 | SCREW,HEX SOC CAP; Serial No. >=30826; Not Interchangeable | 2 |
| 290 | 04012-50080 | WASHER SPRING | 2 |
| 300 | 01311-11235 | SCREW,HEX SOC CAP | 6 |
| 310 | 68651-72380 | PLUG | 3 |
| 320 | RD431-69502 | ASSY VALVE | 1 |
| 330 | RD431-69440 | ORIFICE | 1 |
| 340 | 04817-00080 | O RING | 1 |
| 350 | 04817-00160 | O RING | 1 |
| 360 | 04817-00110 | O RING | 1 |
| 380 | 01311-10616 | SCREW,HEX SOC CAP | 4 |
| 400 | RD411-69360 | STOPPER | 1 |
| 410 | 04817-00140 | O RING | 1 |
| 415 | 04817-00080 | O RING | 1 |
| 416 | 68651-72450 | PLUG | 1 |
| 420 | RD411-69372 | PIN | 1 |
| 430 | RD118-69430 | O RING | 1 |
| 440 | RD431-69600 | KIT SEAL,CASE | 1 |
| 450 | RD431-69700 | KIT SEAL | 1 |
| 460 | RD431-69802 | KIT SEAL,VALVE | 1 |
| 470 | RD431-69100 | KIT PLATE SWASH | 1 |
| 480 | RD431-69200 | ASSY CYLINDER | 1 |
| 490 | RD431-69300 | ASSY VALVE; Serial No. <=30825 | 1 |
| 490 | RD431-69302 | ASSY VALVE; Serial No. >=30826; Replacement | 1 |
More Branded Accessories are Available
| Hydraulic Parts | Hydraulic Pump | Final Drive | Travel Reduction |
| Swing Motor | Swing Reduction | Control Valve | Gear Parts |
| Slew Bearing | Engine Assembly | Hydraulic Cylinder | ECU |
Why Choose Us?
- Quality Assurance
- Fine Workmanship
- Price Advantage
- Stable Supply
Process Features
- Standard production management
- Advanced testing equipment
- Heat Treatment Technology
- Fitting of cylinder block and valve plate
About Factory
- Belparts have a large workshop forexcavator parts producing, from materialcutting, wielding, heating treating,assembling, debugging,painting, testing,every part we will confirm before leavingthe factory.
FAQ
1.If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.
2.What is the warranty of the parts after I purchased hydraulic axial piston pump & motor spare parts?
The warranty is 6/12 Months based on the item details.
3.How can I pay the order?
We can receive payment through T/T, Western Union, Paypal(for small amount),Alibab trade assurance.
4.When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.
5.How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us
and we will check. After it is confirmed, pls return to us , we will offer the correct item.
6.What is your main products ?
We are specialized in the excavator spare parts, such as travel motor gearbox/ass’y/parts, swing gearbox/ass’y/motor/parts,
hydraulic pump assy/parts and gear parts. If you need other excavator parts, we also can supply as your requirements.
-
