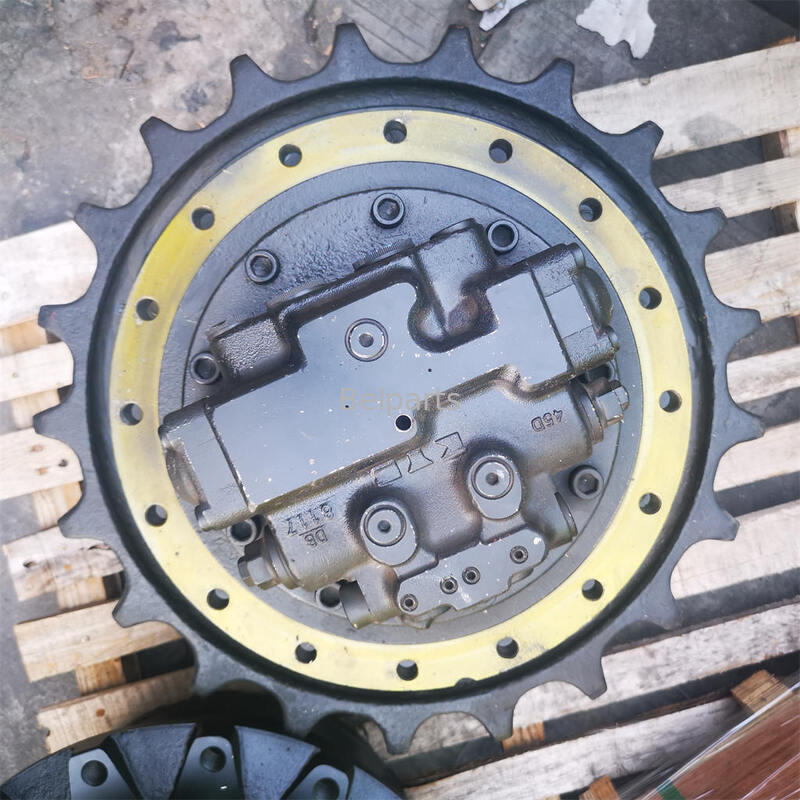

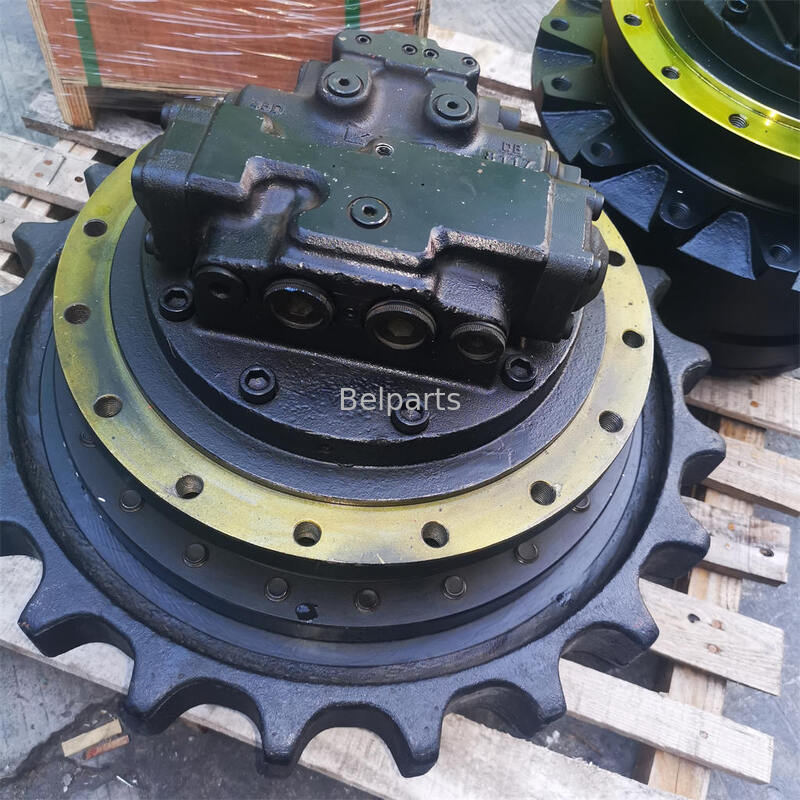

Deere 160LC Final Drive Complete Travel Motor Assembly

1. Basic Information

• Part Name: Integrated Hydraulic Travel Motor + Two-Stage Planetary Reduction Gearbox (Complete Final Drive / Track Drive Device)
• Official OEM Interchange Part Numbers:


  Deere OEM codes: AT183684, AT218124


  Cross reference part numbers: 4359799, 4359799EX, 4389722, 4447928, 4466663


  Original KYB motor model: MAG-85VP-2400E-1
• Compatible Excavator Model:


  Deere 160LC (15–16 ton mid-size excavator)


  Cross-brand interchange: Hitachi EX150LC-5, EX160LC-5
• Available Product Conditions:


  ✅ Genuine Original Factory New


  ✅ Professionally Fully Rebuilt (All wearing parts replaced + bench calibrated)


  ✅ High Precision Premium Aftermarket New
• Warranty Policy:


  12 months warranty for Genuine & Rebuilt units; 6–12 months for aftermarket assemblies
• Net Weight: Approx. 245 kg
• Stock Status: In stock, shipped out within 3–7 working days after order confirmation

2. Key Features

• Adopts original KYB MAG-85VP variable displacement piston motor design, perfectly matched to hydraulic system of Deere 160LC
• Built-in two-speed shift mechanism: high-speed mode for site relocation, low-speed high-torque mode for climbing, muddy ground and heavy-load travel
• Integrated spring-applied hydraulic-release multi-disc parking brake + built-in counterbalance valve, preventing track sliding on slopes and eliminating hydraulic impact during forward/reverse switching
• Double planetary reduction gear structure, large output torque, high transmission efficiency, strong overload resistance for harsh construction site working conditions
• Direct bolt-on replacement, 16 inner / 22 outer mounting hole pattern, identical oil port layout and output spline shaft; no cutting, machining or modification required during field repair
• Forged alloy steel planetary gears with quenching & tempering treatment for superior wear resistance; thick cast iron housing with upgraded sealing structure, effectively blocking mud, water and dust intrusion
• Every finished assembly passes full pressure testing, brake function inspection and no-load running test before delivery; ISO9001 & CE certified

3. Technical Specifications (MAG-85VP-2400E-1)

• Motor Type: Variable Displacement Axial Piston Travel Motor
• Displacement: 85 cm³/rev
• Max System Relief Pressure: 34.3 MPa (343 bar)
• Working Mode: Two-speed high/low torque switchable
• Brake Structure: Mechanical spring parking brake, hydraulic release
• Reduction Form: Two-stage planetary gear reduction
• Mounting Hole Layout: 16 inner mounting holes, 22 outer mounting holes
• Output Shaft: OEM standard spline matched with sprocket hub

4. Compatibility & Cross Reference List

Direct Fit Machine

Full Interchangeable Part Numbers

Cross-Brand Compatible Models

5. BELPARTS Competitive Advantages

• Over 13 years specialized in final drives & travel motors for 14–18 ton Deere & Hitachi mid-size excavators
• Three quality grades optional: genuine KYB/Deere original assembly, fully rebuilt unit with all consumable wear parts renewed, cost-effective high-precision aftermarket replacement
• Strict pre-delivery QC process: hydraulic pressure calibration, anti-slope brake performance test, internal leakage detection and endurance running verification
• Sufficient inventory stored in Guangzhou warehouse, flexible sea freight & air freight global shipping solutions
• Professional engineering team provides on-site installation guidance, fault troubleshooting and long-term technical after-sales support
• Economical cost-saving alternative solution compared with expensive Deere genuine OEM spare parts

6. FAQ

Q1: Are AT183684, AT218124, 4359799 and 4359799EX fully interchangeable?

Q2: Can this final drive fit Hitachi EX150LC-5 / EX160LC-5?

Q3: What is the difference between Rebuilt and Genuine New final drive?

Q4: What is your delivery lead time?
