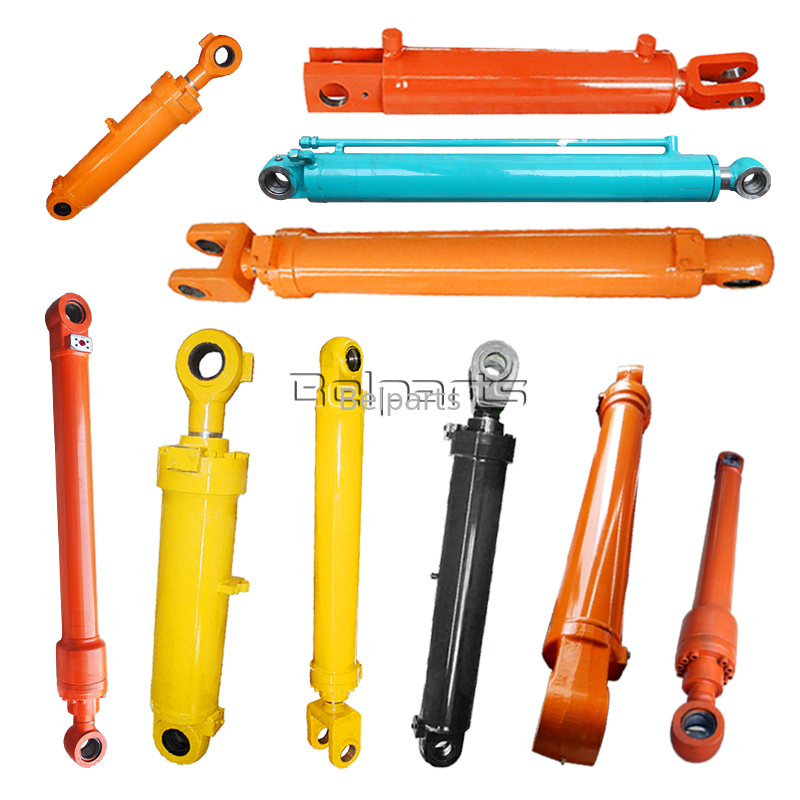

SK135SRLC-1E SK135SR-1E Hydraulic Bucket Cylinder for Kobelco Excavator Spare Parts YX01V00005F1 Aftermarket High Quality
Kobelco excavator hydraulic bucket cylinder
,aftermarket hydraulic cylinder assy
,SK135SR-1E excavator spare parts
This bucket cylinder is key digging component for Kobelco SK135SR-1E and SK135SRLC-1E excavators. It fits original specs precisely for direct replacement and steady onsite working performance.
| Parameter | Details |
|---|---|
| Appliion | Medium Excavator Hydraulic System |
| Part Name | Hydraulic Bucket Cylinder |
| Compatible Model | SK135SR-1E, SK135SRLC-1E |
| Part Number | YX01V00005F1 |
| Quality | High-Quality Aftermarket |
| Certifiion | ISO9001, CE |
| Warranty | 12 Months |
| MOQ | 1 Piece |
| Delivery Time | 3-7 Days Air Express |
| Shipping | Express, Land, Sea, Railway |
| Payment | T/T, Trade Assurance, PayPal |
| # | Part No. | Description | Qty |
|---|---|---|---|
| . | YX01V00005R600 | TUBE; REPAIR KIT CONSISTS OF ITEM 2X1, 29X1, (F2 Only) | 1 |
| . | YX01V00005R400 | TUBE; REPAIR KIT CONSISTS OF ITEM 1X1, 2X1, (F1 Only) | 1 |
| . | YX01V00005R300 | REPAIR KIT; ALL (ROD+PISTON) CONSISTS OF ITEM 6X1, 7X2, 8X1, 9X2, 10X2 | 1 |
| . | YX01V00005R200 | REPAIR KIT; PISTON SIDE CONSISTS OF ITEM 6X1, 7X2, 8X1, 9X2, 10X2 | 1 |
| . | YX01V00005R100 | REPAIR KIT; ROD SIDE CONSISTS OF ITEM 17X1, 18X1, 19X1, 20X1, 21X1, 22X1 | 1 |
| . | ZW26X10000 | LOCK WASHER; ID 10 x OD 18 x Th 2.5mm, (F2 Only) | 2 |
| . | ZS16C10030 | CAPSCREW; SCREW M10x1.50x30mm, (F2 Only) | 2 |
| . | YW01V00003S025 | BRACKET; (F2 Only) | 1 |
| . | YX01V00005F7C | CORE-HYD CYLINDER; Return Number | 1 |
| . | YX01V00005F7R | REMAN-HYD CYLINDER; SK115SRDZ ASN YY00101 AND YY01....., Reman For New P/N YX01V00005F2 | 1 |
| . | YX01V00005F2 | CYLINDER ASSY.; BUCKET | 1 |
| . | YX01V00005F1 | BUCKET CYLINDER; ASSY | 1 |
| . | YX01V00005R500 | PISTON ROD; REPAIR KIT CONSISTS OF ITEM 2X1, 4X1 | 1 |
| 1 | ---- | NOT SOLD SEPARAT; TUBE, CYLINDER, (F1 Only) | 1 |
| 2 | 2438U1097S2 | BUSHING | 2 |
| 3 | 2438U1097S29 | SEAL; DUST | 4 |
| 4 | ---- | NOT SOLD SEPARAT; ROD, PISTON | 1 |
| 5 | YW01V00003S029 | PISTON | 1 |
| 6 | YW01V00001S008 | O-RING | 1 |
| 7 | YW01V00001S009 | BACK-UP RING; RING, BACK UP | 2 |
| 8 | YW01V00003S030 | SEAL; PISTON | 1 |
| 9 | YW01V00001S032 | RING; WEAR | 2 |
| 10 | YW01V00001S012 | RING | 2 |
| 11 | YW01V00001S013 | NUT; PISTON | 1 |
| 12 | YN01V00001S014 | SCREW; SETSCREW | 1 |
| 13 | YX01V00005S013 | RING; CUSHION | 1 |
| 14 | YX01V00005S014 | COVER; ROD | 1 |
| 15 | 2438U1097S18 | BUSHING | 1 |
| 16 | B38K0038E10 | CLIP | 1 |
| 17 | ZD12G09000 | O-RING,89.40mm ID x 95.60mm OD x 3.10mm; ID 89.40 ± 0.77 x OD 95mm | 1 |
| 18 | YW01V00001S020 | RING; BACK UP | 1 |
| 19 | ZD12G09500 | O-RING,3.1mm Thk x 94.4mm ID, 90 Duro; O-Ring -- ID 94.40 ± 0.81 x OD 100mm | 1 |
| 20 | YW01V00001S022 | SEAL | 1 |
| 21 | 2438U897S18 | PACKING; ROD | 1 |
| 22 | 2438U908S27 | SEAL; DUST | 1 |
| 23 | ZS23C14065 | BOLT,Hex Socket Head, M14 x 65mm; M14x2.0x65mm | 8 |
| 24 | YW01V00003S024 | BRACKET; BAND | 1 |
| 25 | YW01V00003S025 | BRACKET; (F1 Only) | 2 |
| 26 | ZS16C10030 | CAPSCREW; SCREW M10x1.50x30mm, (F1 Only) | 4 |
| 27 | ZW26X10000 | LOCK WASHER; ID 10 x OD 18 x Th 2.5mm, (F1 Only) | 4 |
| 28 | YX01V00005S028 | BAND; (F1 Only) | 1 |
| 29 | ---- | NOT SOLD SEPARAT; TUBE, CYLINDER, (F2 Only) | 1 |
High-strength seamless alloy steel cylinder body. Hardened and chrome-plated rod ensures strong wear resistance. Premium seals work stably at -20℃~+85℃. All items pass strict leak and fatigue tests before delivery.
| Engineering Item | Data |
|---|---|
| Component Type | Hydraulic Bucket Cylinder |
| OEM No. | YX01V00005F1 |
| Main Material | High-Strength Seamless Alloy Steel |
| Rod Treatment | Induction Hardening + Chrome Plating |
| Seal Type | High-Pressure Polyurethane Seal |
| Working Temp | -20℃ ~ +85℃ |
| Factory Test | Leakage, Fatigue, Dimension Check |
Matches original performance with cost-effective price. Single piece order available. 12-month warranty covers non-artificial defects. Fast stock delivery reduces maintenance cost and equipment downtime.
Founded in 2013, Belparts supplies hydraulic spare parts for mainstream excavator brands. Products exported to 150+ countries with complete global logistics service.
Q1: Perfect fit for target Kobelco models?
A: Send serial number or old part photos to confirm full compatibility for direct installation.
Q2: Warranty coverage scope?
A: Covers oil leakage, deformation and seal damage from non-human causes, plus free technical support.
Q3: Advantages over regular aftermarket parts?
A: Optimized structure and materials adapt to actual working conditions, more durable and stable.
Q4: Packaging and shipping time?
A: Anti-rust treatment & export wooden box. 3-7 days air freight, 30-45 days sea freight.
Q5: Available payment methods?
A: Safe transactions via T/T, Trade Assurance and PayPal.
